| This documentation is intended both for QC scientists and SciOps astronomers (who may want to ignore the technical information displayed in grey). | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
| bottom plots | contact | ||||||||||||||||||||||||||||
| NAME | std_ifu.prg | |||||||||||||||||||||||||||
| VERSION |
1.0 -- copied from science.prg (2005) 1.1 -- scoreQC included, qc_numsat (2009-06-24) | |||||||||||||||||||||||||||
| SYNTAX | MIDAS | |||||||||||||||||||||||||||
| CALL | processQC -a ab_name | |||||||||||||||||||||||||||
| INSTRUMENT | GIRAFFE | |||||||||||||||||||||||||||
| RAWTYPE | STD_IFU (IFU1/2 standard star) | |||||||||||||||||||||||||||
| PURPOSE | compares raw and product STD files for FLAMES_GIRAFFE QC assessment; QC1 values are calculated, a QC1 plot is generated, displays are generated. The QC1 data are fed into the QC1 database. | |||||||||||||||||||||||||||
| PROCINPUT | STD_RBNSPECTRA, EFFICIENCY_CURVE | |||||||||||||||||||||||||||
| QC1TABLE |
trending | table(s) in QC1 database: giraffe_std | |||||||||||||||||||||||||||
| TRENDPLOT | trending | HealthCheck plot associated to this procedure: none | |||||||||||||||||||||||||||
| QC1PAGE |
trending | associated documentation: std_qc1.html | |||||||||||||||||||||||||||
| QC1PLOTS top |

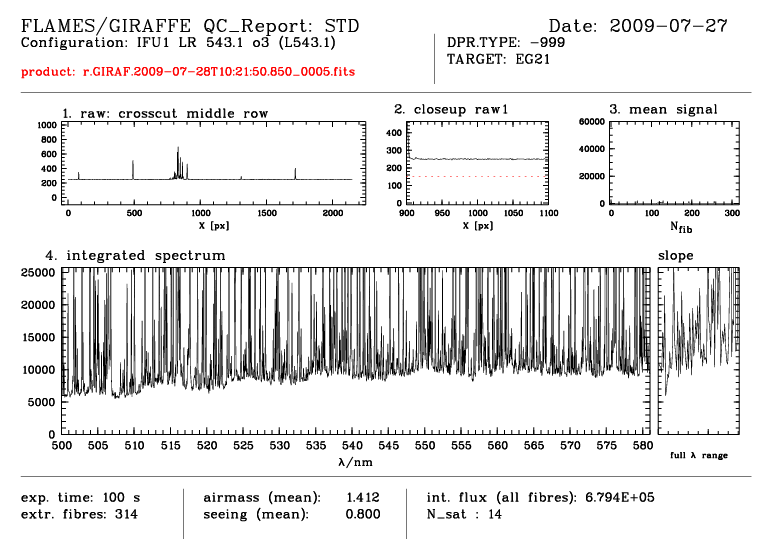

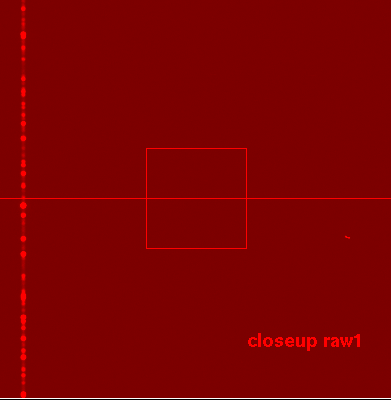

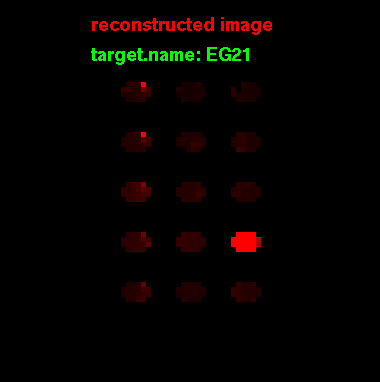

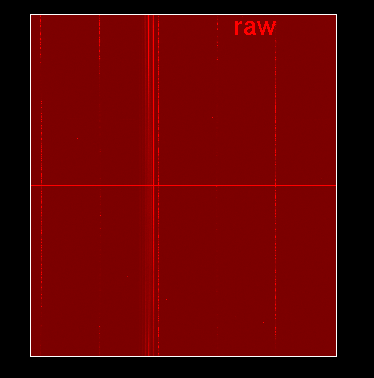

std_ifu1.gif box1:crosscut (middle row) through the raw file (red: mbias level); there should be a few fibres illuminated box2:closeup raw file (columns 900-1100) box3:mean signal, all fibres (middle row) box4:integrated spectrum std_ifu2.png full display of raw frame std_ifu3.png closeup of raw frame, a SIMCAL fibre should be visible std_ifu4.png reconstructed image with all 15 IFUs; one should have the STD star, the others are usually black std_ifu5.png fibre tracing plots (there are actually 4), with SKY and SIMCAL fibres marked in blue | |||||||||||||||||||||||||||
| QC1PARAM |
QC1_db names: num_fib | obs_targ_name | airmass | seeing | qc_numsat FITS key names: PRO.SLIT.NFIBRES | OBS.TARG.NAME | TEL.AIRM.START/END | TEL.AMBI.FWHM.START/END | [calculated] QC1 parameters calculated by the pipeline: qc_numsat | |||||||||||||||||||||||||||
| ALGORITHM | qc_numsat: count all pixels > 60.000 | |||||||||||||||||||||||||||
| CERTIF |
Reasons for rejection: - scoring alerts, in particular saturation - no target visible in reconstructed image | |||||||||||||||||||||||||||
| COMMENTS |
Scoring: num_fib | qc_numsat ABs fail if target not in catalog section MARK_TRACINGS is called in science.prg | |||||||||||||||||||||||||||
| top | [2015-10-29T10:06:33] created by qcDocu v1.1.2, a tqs tool | |||||||||||||||||||||||||||
