NAME |
std_arg.prg
|
|
VERSION |
1.0 -- copied from science.prg (May 2005)
1.1 -- adapted to new CCD, scoreQC included (2008-05-28)
1.2 -- efficiency now separate product (2008-07-17)
|
|
SYNTAX |
MIDAS
|
|
CALL |
processQC -a ab_name
|
|
INSTRUMENT |
GIRAFFE
|
|
RAWTYPE |
STD_ARG (Argus standard star)
|
|
PURPOSE |
compares raw and product STD files
for FLAMES_GIRAFFE QC assessment;
QC1 values are calculated, a QC1 plot is generated,
displays are generated. The QC1 data are fed into the
QC1 database.
|
|
PROCINPUT |
STD_RBNSPECTRA, EFFICIENCY_CURVE
|
|
QC1TABLE |
trending | table(s) in QC1 database:
giraffe_std
|
|
TRENDPLOT |
trending | HealthCheck plot(s) associated to this procedure:
../FULL/trend_report_SYSTEM_EFFIC_HC.html |
../FULL/trend_report_SYSTEM_EFFIC_WLN_HC.html
|
|
QC1PAGE |
trending | associated documentation:
std_qc1.html
|
|
QC1PLOTS
top |

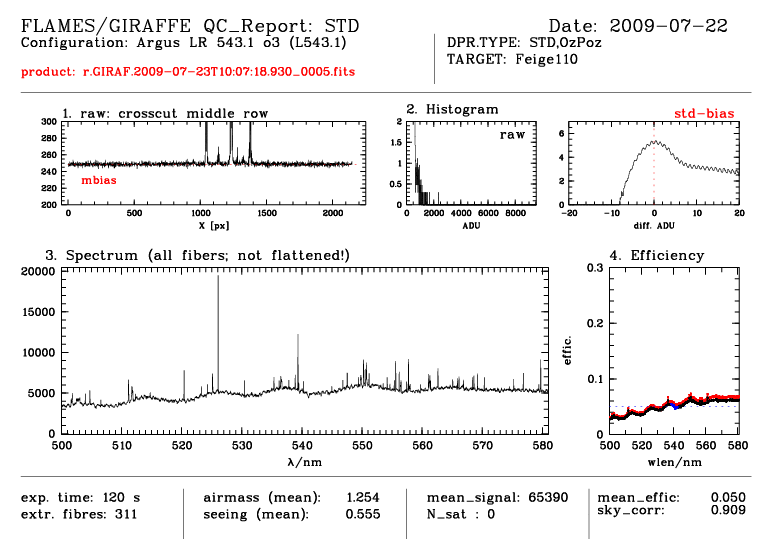

box1:crosscut (middle row) through the raw file (red: mbias level); there should be a few fibres illuminated
box2a:histogram (log) of raw file (as another check for signal)
box2b:raw-bias, should show parabolic peak at 0, not shifted
box3:extracted spectrum (not flattened), all fibres collapsed
box4:efficiency curve, before (black) and after (red) sky correction; the sky correction factor is displayed at bottom

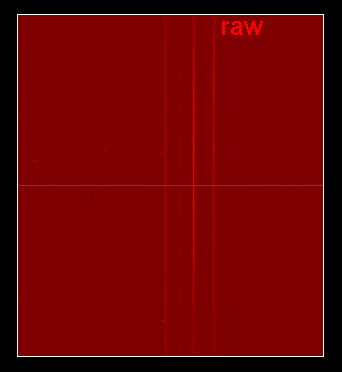

full display of raw frame; box: area displayed in std_arg3.png

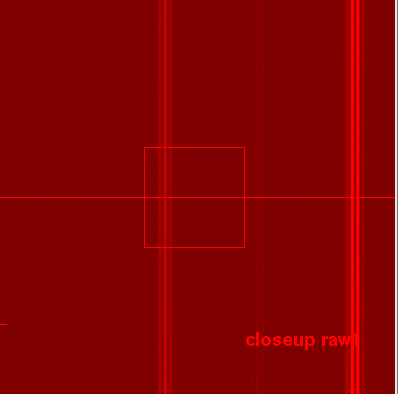

closeup of raw frame, a few fibres should display a signal

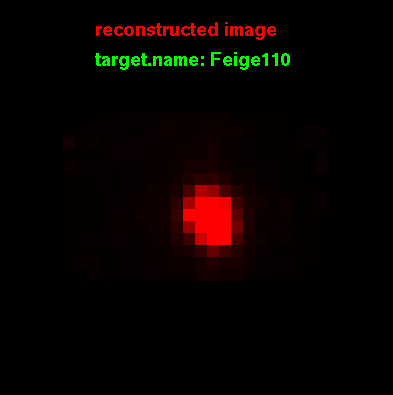

reconstructed image displaying the STD star
fibre tracing plots (there are actually 4), with SKY and SIMCAL fibres marked in blue
|
|
QC1PARAM |
QC1 parameters written into QC1 table:
QC1_db names: num_fib | mean_signal | obs_targ_name | airmass | seeing | mean_effic | qc_numsat
FITS key names: PRO.SLIT.NFIBRES | [calculated] | OBS.TARG.NAME | TEL.AIRM.START/END | TEL.AMBI.FWHM.START/END | [calculated] | [calculated]
QC1 parameters calculated by the pipeline: mean_signal | mean_effic | qc_numsat
|
|
ALGORITHM |
mean_signal, mean_effic: stat/ima; qc_numsat: count all pixels > 60.000
|
|
CERTIF |
Reasons for rejection:
- scoring alerts, in particular saturation
- no target visible in reconstructed image
|
|
COMMENTS |
Scoring: mean_signal | mean_effic | num_fib | qc_numsat
ABs fail if target not in catalog
section MARK_TRACINGS is called in science.prg
|
