9.1. Overview

This document is a user manual for usage of CII Logging and tracing systems. It explains how to use the Logging Client API through ELT CII common library and GUI Applications to interact with it. It also explains how to use the different services that comprise the distributed logging CII system.

All examples in this manual are also presented in git repository https://gitlab.eso.org/cii/info/cii-demo under logging-examples.

9.2. Introduction

CII Log provides the logging and tracing services of the Control System. Logging pertains to all aspects of CII services. Its purpose is to provide basic and detailed information of the different services and systems in the CII in order to have a better understanding of the behaviour of the distributed system, and in particular to troubleshoot the system in case of problems. Figure 2‑1 shows how the CII Log Service interacts with other elements of the ELT Core Integration Infrastructure. Logging is considered a basic service and doesn’t use any other CII service.

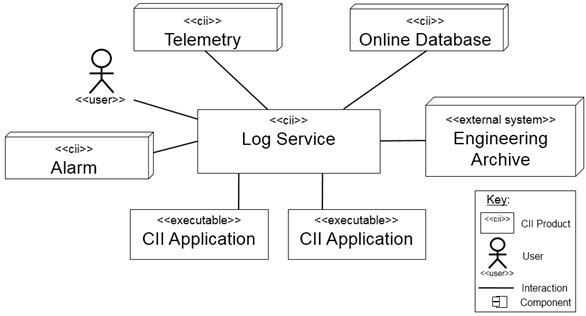

Figure 2‑1 Log interaction

CII Log system components can be divided into four subcomponents according to their responsibilities:

• Client API (Log API)

• Transmission

• Persistence

• Visualization

Figure 2‑2 Data flow between log producers (Host n) and central log sink (Collector).

Host 1,2,...
============
                [ Log Config:     ]
                [  handler=syslog ]
                [  formatter=cii  ]
                /
               /
              /                    (Persistence)            (Visualization)
             /                + => /var/log/elt/elt.log  => CII Log Viewer
            /                 |
App => Log API => rsyslog ==> +
                              |
                              | (Transmission)
                + - - - - - - +
                |
Collector       |
=========       |             (Persistence)            (Visualization)
                => rsyslog -> /var/log/elt/elt.log  => CII Log Viewer

Figure 2‑2 Standard workflow of CII Log system

The CII Log Client API enables users to produce log messages from their applications using Logger objects (see 2.2). These messages are produced as strings and follow a predefined format defined in the CII Logging library (see 2.3). The API leverages on existing logging frameworks and extends them in order to provide all CII functionalities. The logging frameworks it leverages on are:

• Log4j (Java) [4]

• Log4cplus (C++) [5]

• Python logging (Python) [6]

As of CII v4, rsyslog is used as transmission and management service. A client-side rsyslog daemon is responsible for pushing CII logs from a single host (see 2.1) to a remote rsyslog daemon on another host ( so-called log collector). This log message is transported using rsyslog’s own format, wrapping the CII-specific fields that carry way more information than a rsyslog log would have by itself.

The serialized message is not parsed by the transporting rsyslog, instead it is written verbatim to file, both on the sending host and on the collecting host. On each host, a single file is used to aggreate all log messages: /var/log/elt/elt.log. The file is automatically rolled over based on time. See the administration section for details.

In CII v4, there is no log harvester that would read the file and inject its content into a database. This functionality will be re-established once an updated version of the Engineering Archive is available.

A Qt GUI and a Qt widget are available as visualization tools for querying and browsing CII logs.

Tracing is separated from logging, as it serves a different purpose. Tracing is explained in detail in section 8.

9.2.1. Logsink directory

Applications have the freedom to write logs to any place they configure in their log configurations (for examples see below: “Basic usage example with custom configuration”).

To participate in the central log transport, applications need to use rsyslog as a handler/appender in combination with the standard CII log layout format. Note that the CII brief or simple format will not work.

Logs emitted this way will be written to the log sink (/var/log/elt).

The Log Viewer (see below) by defaults operates on /var/log/elt, but can also be instructed to find logs in a different location.

9.2.2. Loggers and Appenders

The architecture of the three used logging frameworks is relatively similar. The main elements of this architecture are the loggers, the appenders, and the layouts.

While the loggers are the elements responsible for exposing the API to create log events, appenders are responsible for writing those events to the appropriate outputs, whether it is stdout, a file, a database, a socket, or any other.

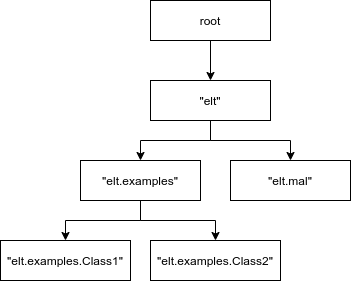

Loggers are organized in a named hierarchical structure in a parent-child relationship fashion. Each logger has a name with dot-separated components, which indicates the position of the logger in the hierarchy. An example hierarchy is shown in Figure 2‑4.

There must always be a root logger with an empty name.

Appenders are attached to loggers. Each logger can have one or more appenders attached, and the same appender can be attached to multiple loggers.

Figure 2‑5 Loggers and Appenders example

Another possible scenario is having multiple child loggers with no appenders attached, having the appenders attached only to the root/parent logger. This can be useful to handle logs from different classes or packages through the child loggers but leveraging the output of those log messages to the parent/root logger and its appenders.

9.2.3. Log Layouts

Log layouts are components of the logging libraries responsible for serializing a log event into the format that will be output by the appenders, usually a string.

CII Logging library provides two different layouts that produce plain strings according to the CII Log format:

• CiiLayout

• CiiSimpleLayout

The CiiLayout is intended both for human and machine consumption, and it must be used for logs written to the central log transport (see 2.1). It contains the fields described in Appendix B, in the same order as shown there.

The CiiSimpleLayout is a simplified version and is intended for human consumption. It is composed of the date and time of the log event, the log type, a log ID, the message and all the optional fields described in Appendix B.

Additional details and usage instructions can be found in section 4.4.

Example log messages using both the CiiLayout and the CiiSimpleLayout are included in section 4.5 as well as examples how to use it in configurations are included in section 4.3.

Appendix B describes the fields of which a CII log is composed. All optional fields can be added to the log message using the CII Log Client API. See section 4.7 for further details.

TraceID and SpanID are used to log information about the current tracing context (see section 8).

ErrorTypeName, ErrorDateTime, ErrorMessage, and ErrorTrace are used to log a formatted CiiException.

9.2.4. Postmortem buffer

CII Log Client API offers a logs postmortem buffer facility. It enables users to obtain on demand logging information that otherwise would have been lost due to filtering by the active logging configuration.

The postmortem buffers stores produced log events for all logging levels, regardless of the filtering configurations of the loggers and appenders.

This buffer is time-bound. Events are evicted after a defined time is elapsed. The time-to-live (TTL) for the buffered log events can be configured by the user.

The flushing of this buffer is triggered on demand through the CII Log Client API. When this happens, the buffered events are flushed to the appropriate destinations.

By default, this buffer is disabled. Configuration and usage instructions can be found in section 4.8.

9.3. Prerequisites

This section describes the prerequisites for using the CII Logging libraries and applications. Note that the preparation of the environment (i.e. installation of required modules, configuration, running of services) is not in the scope of this document. Consult your administrator and the Log TRD document for information on how to establish the environment for usage of CII Logging libraries and applications.

9.3.1. Includes and imports

For basic usage of the Logging library, the user needs the CiiLogManager class. This class contains the API for interacting with the underlying Logging framework using the CII Log extensions, whether it’s Log4j (Java), Log4cplus (C++), or Python logging.

It provides methods for configuring the logging system, getting a Logger object, or flushing the postmortem buffer. Detailed API per language is provided in Appendix A. Additional details can be found in section 4.1.

In addition, the language-specific Logger and Level classes shall be imported. Level class is not necessary if convenience log methods for the different levels are used, such as debug(“message”) instead of log(Level.DEBUG, “message”).

C++ also needs to include ciiException class, since the ciiLogManager configuration methods can throw an exception in case of an error during configuration initialization.

For more advanced use, it is necessary include the CiiLogMessageBuilder class. The CiiLogAudience enum must be imported as well if Audience field value is provided. Also, the appropriate CiiException class must be imported.

These includes, in addition to linked libraries, are shown in the example code in logging-examples module.

9.3.2. C++

To use the logging API from C++, the following directives are needed:

wscript (project)

cnf.check_wdep(wdep_name='client-api.elt-common.cpp.log', uselib_store='cii-logging')
# Transitive Dependencies:
cnf.check_cfg(package='log4cplus', uselib_store='log4cplus', args='--cflags --libs')

wscript (module)

use=[...,
 'cii-logging'
 # Transitive Dependencies:
 'log4cplus'

source

#include <log4cplus/loggingmacros.h>
#include <ciiLogManager.hpp>
#include <ciiLogMessageBuilder.hpp>
#include <ciiLogConfigurator.hpp>
#include <ciiLogAudience.hpp>
#include <ciiException.hpp>

9.3.3. Python

To use the logging API from Python, the following directives are needed:

wscript (project)

(nothing to be done, just require 'cxx python cii')

wscript (module)

(nothing to be done)

source

import logging
from elt.log import CiiLogManager
from elt.log import CiiLogMessageBuilder
from elt.log import CiiLogAudience

9.3.4. Java

source

import org.apache.logging.log4j.Logger;
import org.apache.logging.log4j.Level;
import elt.log.CiiLogManager;
import elt.log.CiiLogMessageBuilder:
import elt.log.CiiLogAudience;
import elt.log.layout.CiiSimpleLayout;
import elt.log.layout.CiiLayout;

9.4. Logging Library Usage

This section describes the CII Logging Client API, and explains through examples how to configure and use the CII Logging API library in an application.

The CII Log Client API is split between two classes. The CiiLogManager and the CiiLogMessageBuilder.

Because of the fact that Cii Log Client API leverages on different libraries for Java (Log4j), C++ (Log4cplus) and Python (Python logging), and the constraints this imposes due to the different implementations and APIs, the CII Log client API methods signatures vary across languages and some methods are only available for certain languages.

A complete description of the CII Log Client API for Java, C++, and Python can be found in Appendix A.

9.4.1. CiiLogManager

This is the main class of the CII Log Client API. It provides static methods for configuring and initializing the application’s logging, retrieving, creation of logger objects used to log messages, or flushing of the post-mortem appender.

The loggers retrieved using the CiiLogManager are used according to the APIs of the specific logging frameworks for each language [4][5][6].

9.4.2. CiiLogMessageBuilder

The CiiLogMessageBuilder is aimed at helping users to create correctly formatted log messages with extended information, such as:

• Audience

• Tracing context

• CII Error messages

• User-defined log ID

See section 4.7 for usage details and examples.

9.4.3. Logging Configuration

Each of the three logging libraries CII Log Client API provides different ways of configuration. The following sections explain how logging is configured for Java, C++, and Python.

If logging is initialized without providing any custom configuration, a default configuration will be used. This configuration will have:

• A root logger configured to an ERROR level with one appender attached.

• An stdout appender using a CiiSimpleLayout layout.

Thus, if using default configuration, logs will be output to console only.

The configuration is set through the CII Log Manager. The python version of the Log Manager additionally allows to also configure the C++ logging, to give python applications control over the logging of underlying C++ libraries. To do this, the developers passes both a python Logging configuration as well as C++ logging config to the Python Log Manager.

Examples of default configuration files for Log4j, Log4cplus, and Python are shown in sections 4.3.1, 4.3.2, and 4.3.2.

It is relevant to notice the default path for any file creation or search is the compilation folder generated when the ‘waf build’ command is called. So any developer string containing a specific path file should be relative to the project build directory.

9.4.3.1. Java

Due to extensions to the Log4j library, only a subset of the configuration options is supported when using CII Log Client API. There is no support for configuring logging using Log4j’s ConfigurationBuilder.

The following file configuration options are available:

• XML

• Properties

• JSON

• YAML

By default, Log4j will look for a file called log4j2.xml in the classpath. If this file is not found, it will fall back to the default CII logging configuration. If there’s any issue creating the default CII configuration, it will fall back to the default Log4j configuration, which consists of a root logger with an ERROR level and a console appender attached to it.

It is possible to specify which configuration file will be loaded by Log4j by setting the system property log4j.configurationFile to the path of the configuration file.

It can be passed as a command line argument as:

-Dlog4j.configurationFile=path/to/log4j2configFile.xml

Or set at runtime before Log4j has been initialized:

System.setProperty(“log4j.configurationFile”, “path/to/log4jconfigFile.xml”)

It is also possible to initialize a custom configuration dynamically using the Log4j Configurator class:

Configurator.initialize(“configuration_name”, “path/to/log4jconfigFile.xml”)

Below it is shown how an XML with a configuration equivalent to the default CII configuration would like.

Listing 4‑1a Example Java default configuration

<?xml version="1.0" ?>
<Configuration name="1584706371399" status="WARN">
  <Appenders>
    <Console name="ConsoleAppender" target="SYSTEM_OUT">
      <CiiSimpleLayout/>
    </Console>
  </Appenders>
  <Loggers>
    <Root level="ERROR" includeLocation="true">
      <AppenderRef ref="ConsoleAppender"/>
    </Root>
  </Loggers>
</Configuration>

The next example shows how to enable distributed logging, with log transmission to a central log collector host.

Listing 4‑1b Example Java configuration with log tranmission

<?xml version="1.0" ?>
<Configuration name="1584706371399" status="WARN">
  <Appenders>
    <Console name="ConsoleAppender" target="SYSTEM_OUT">
      <CiiSimpleLayout/>
    </Console>
    <Syslog name="SyslogAppender" port="514" protocol="UDP">
      <CiiLayout/>
    </Syslog>
  </Appenders>
  <Loggers>
    <Root level="ERROR" includeLocation="true">
      <AppenderRef ref="ConsoleAppender"/>
      <AppenderRef ref="SyslogAppender"/>
    </Root>
  </Loggers>
</Configuration>

Note the use of CiiLayout and CiiSimpleLayout. These are loaded as plugins by Log4j on initialization. It is required for this to work as intended that class CiiLogManager is loaded by the classloader before Log4j is initialized. CII Log layouts are described in more detail in section 4.4.

To troubleshoot the initialization, it is possible to enable the debug level on the internal Log4j StatusLogger by setting system property log4j2.debug. If this property is set, Log4j will output its internal logs to console.

-Dlog4j2.debug=true

9.4.3.2. C++

In addition to the default configuration, the CII Log Client API provides support for custom configuration of the Log4cplus logging framework. Two configuration options are available:

• Properties object

• Properties file

The CiiLogManager class offers methods that can take either an object or a file containing Log4cplus configuration options. It also provides a method without arguments that uses the default CII configuration. Listing 4‑2a shows an example properties configuration equivalent to the default one.

Listing 4‑2a Example C++ default configuration

log4cplus.appender.ConsoleAppender=log4cplus::ConsoleAppender
log4cplus.appender.ConsoleAppender.layout= elt::log::layout::CiiSimpleLayout

log4cplus.rootLogger=ERROR, ConsoleAppender

The next example shows how to enable distributed logging, with log transmission to a central log collector host.

Listing 4‑2b Example C++ configuration with log transmission

log4cplus.appender.ConsoleAppender=log4cplus::ConsoleAppender
log4cplus.appender.ConsoleAppender.layout= elt::log::layout::CiiSimpleLayout

log4cplus.appender.SyslogAppender=log4cplus::SysLogAppender
log4cplus.appender.SyslogAppender.layout=elt::log::layout::CiiLayout

log4cplus.rootLogger=ERROR, ConsoleAppender, SyslogAppender

The next example shows how to log to a local file at a custom path writable by the user.

Listing 4‑2c Example C++ configuration with log file

log4cplus.appender.ConsoleAppender=log4cplus::ConsoleAppender
log4cplus.appender.ConsoleAppender.layout= elt::log::layout::CiiSimpleLayout

log4cplus.appender.LogfileAppender=log4cplus::RollingFileAppender
log4cplus.appender.LogfileAppender.File=/tmp/custom-log-file.log
log4cplus.appender.LogfileAppender.MaxFileSize=16MB
log4cplus.appender.LogfileAppender.MaxBackupIndex=5
log4cplus.appender.LogfileAppender.layout=elt::log::layout::CiiLayout

log4cplus.rootLogger=ERROR, ConsoleAppender, LogfileAppender

Detailed CiiLogManager API can be found in Appendix A.

9.4.3.3. Python

Four configuration modes are supported:

• Default CII Log configuration

• Custom dictionary-based configuration

• Custom file configuration

• Configuration of the LOG4CPLUS logger used by underlying C++ libraries

If a file configuration is used, the file should contain the equivalent to a dictionary based configuration.

In Listing 4‑3a an example of a configuration equivalent to the default configuration can be seen.

Listing 4‑3a Example Python default configuration

'version': 1,
'cii_log_buffer': {
    'enabled': False,
    'ttl_ms': 60000
},
'handlers': {
    'cii-console': {
        'class': 'logging.StreamHandler',
        'formatter': 'cii-brief',
        'stream': 'ext://sys.stdout'
    }
},
'formatters': {
    'cii-brief': {
         'format': 'CII_SIMPLE_LOG_PATTERN',
         'datefmt': 'CII_LOG_PATTERN_DATE'
     }
},
'root': {
    'level': 'ERROR',
    'handlers': ['cii-console']
}

The next example shows how to enable distributed logging, with log transmission to a central log collector host.

Listing 4‑3b Example Python configuration with log transmission

'version': 1,
'handlers': {
    'cii-syslog': {
        'class': 'logging.handlers.SysLogHandler',
        'formatter': 'cii',
        'address': '/dev/log'
    }
},
'formatters': {
    'cii': {
         'format': 'CII_LOG_PATTERN',
         'datefmt': 'CII_LOG_PATTERN_DATE'
     }
},
'root': {
    'level': 'INFO',
    'handlers': ['cii-syslog']
}

The next example shows how to log to a local file at a custom path writable by the user.

Listing 4‑3c Example Python configuration with log file

'version': 1,
'handlers': {
    'logfile': {
        'class': 'logging.handlers.RotatingFileHandler',
         'backupCount": 5,
         'filename': '/tmp/custom-log-file.log',
         'formatter': 'cii',
         'maxBytes': 10485760
    }
},
'formatters': {
    'cii': {
         'format': 'CII_LOG_PATTERN',
         'datefmt': 'CII_LOG_PATTERN_DATE'
     }
},
'root': {
    'level': 'DEBUG',
    'handlers': ['logfile']
}

The next example shows how a python application can forward logs to C++ logging, allowing a joint log of the Python application and its underlying (via Python bindings) C++ libraries.

Listing 4‑3d Example Python configuration with joint C++ logging

'version': 1,
'handlers': {
    'forward-handler': {
        'class': 'elt.log.CiiLogHandler',
        'cii_logger_name': 'name_of_cpp_logger'
     }
},
'root': {
    'level': 'INFO',
    'handlers': ['forward-handler']
}

Detailed API can be found in Appendix A.

9.4.4. Log Layouts

Two CII Log Layouts are provided:

• CiiLayout

• CiiSimpleLayout

These layouts are described in section 2.3.

Examples on how to use the CII Log Layouts can be found in the configurations shown in section 4.3.

9.4.4.1. Java

The CII Log Layouts are provided as Log4j plugins, implemented by the classes CiiLayout and CiiSimpleLayout. They can be used as any other Log4j layout plugin. Usage example can be found in Listing 4‑1.

9.4.4.2. C++

The CII Log Layouts are provided as Log4cplus plugins, implemented by the classes CiiLayout and CiiSimpleLayout. They can be used as any other Log4j layout plugin. Usage example can be found in Listing 4‑2.

9.4.4.3. Python

To use the CII Log Layouts, the cii and cii-brief formatters can be used to enable the CiiLogLayout and the CiiSimpleLayout respectively. The definition of those formatters is injected in the configuration by the CiiLogManager configuration methods. Usage example can be found in Listing 4‑3.

9.4.5. Basic usage example with default configuration

The following examples show a basic usage workflow of the CII Logging API to produce log messages of different levels using a default CII configuration, as described in 4.3.

9.4.5.1. Java

This example can be found in the cii-demo repository: run-logging-example-default-config

Listing 4‑4 Java basic example

public class LoggingBasicCustomExample {

    public static void main(String[] args) {

        /* Automatically initialize the logging framework and get the root
    * logger.
         * No configuration is provided so a default configuration is used.
         * This default configuration has two appenders: one that outputs to
         * stdout using CiiSimpleLogLayout, and another one that outputs to a
         * rolling file in /var/tmp/elt directory.
         * Only log events of levels ERROR and FATAL will be output to the
         * appenders.
         */
        Logger rootlogger = CiiLogManager.getLogger("");

        /* Send INFO level message to root logger
         * This log will be discarded since the minimum log level for the root
         * logger is ERROR
         */
        rootlogger.log(Level.INFO, "First root logger message");

        /* Send ERROR level message to root logger
         * This log will be passed to the appenders for processing, since the
         * minimum log level for the root logger is ERROR
         */
        rootlogger.log(Level.ERROR, "Second root logger message");

        /* Get a logger with name 'elt.log.test'. There's no logger configured
         * with that name, therefore it will be created inheriting the
         * configuration of it's nearest ancester in the loggers named
         * hierarchy. In this case, since there is only root logger
         * configured, the configuration of the root logger will be used.
         */
        Logger logger = CiiLogManager.getLogger("elt.log.test");

        /* Send INFO level message to elt.log.test logger
         * This log will be discarded since the minimum log level is ERROR
         */
        logger.log(Level.INFO, "First elt.log.test logger message");

        /* Send ERROR level message to elt.log.test logger
         * This log will be passed to the appenders for processing, since the
         * minimum log level is ERROR
         */
        logger.log(Level.ERROR, "Second elt.log.test logger message");
    }
}

The logs output produced by this example would be the following in stdout:

2020-03-19T20:05:03.104+0100, ERROR, elt.LoggingBasicDefaultExample/main, Second root logger message
2020-03-19T20:05:12.571+0100, ERROR, elt.LoggingBasicDefaultExample/main, Second elt.log.test logger message

And in log file in logsink directory:

Cref=LoggingBasicDefaultExample.java-31, Date=2020-03-19T20:05:03.104+0100, HostName=docker-eso-eelt, LogType=ERROR, SourceID=elt.LoggingBasicDefaultExample/main, LogID=elt.log.CiiLogManager.main-31, Message=Second root logger message
Cref=LoggingBasicDefaultExample.java-49, Date=2020-03-19T20:05:12.571+0100, HostName=docker-eso-eelt, LogType=ERROR, SourceID=elt.LoggingBasicDefaultExample/main, LogID=elt.log.test.main-49, Message=Second elt.log.test logger message

9.4.5.2. C++

This example can be found in the cii-demo repository: logging-example-app

Listing 4‑5 C++ basic example

int main(int ac, char *av[]) {
  try {
    /* Automatically initialize the logging framework and get the root logger.
     * No configuration is provided so a default configuration is used. This
     * default configuration has two appenders: one that outputs to stdout
     * using CiiSimpleLogLayout, and another one that outputs to a rolling
     * file in /var/tmp/elt directory
     * Only log events of levels ERROR and FATAL will be output to the
     * appenders.
    */
    log4cplus::Logger root_logger = ::elt::log::CiiLogManager::GetLogger();

    std::vector<log4cplus::SharedAppenderPtr> appenders = root_logger.getAllAppenders();
    for (const auto& appender: appenders) {
       std::cout << "Appender:" << appender->getName() << '\n';
    }

    /* Send INFO level message to root logger
     * This log will be discarded since the minimum log level for the root
     * logger is ERROR
     */
    root_logger.log(log4cplus::INFO_LOG_LEVEL, "First root logger message");

    /* Send ERROR level message to root logger
     * This log will be passed to the appenders for processing, since the
     * minimum log level for the root logger is ERROR
     */
    root_logger.log(log4cplus::ERROR_LOG_LEVEL, "Second root logger message");

    /* Get a logger with name 'elt.log.test'. There's no logger configured
     * with that name, therefore it will be created inheriting the
     * configuration of it's nearest ancester in the loggers named hierarchy.
     * In this case, since there is only root logger configured, the
     * configuration of the root logger will be used.
     */
    log4cplus::Logger logger = ::elt::log::CiiLogManager::GetLogger("elt.log.test");

    /* Send INFO level message to elt.log.test logger
     * This log will be discarded since the minimum log level is ERROR
     */
    root_logger.log(log4cplus::INFO_LOG_LEVEL,
                    "First elt.log.test logger message");

    /* Send ERROR level message to elt.log.test logger
     * This log will be passed to the appenders for processing, since the
     * minimum log level is ERROR
     */
    root_logger.log(log4cplus::ERROR_LOG_LEVEL,
                    "Second elt.log.test logger message");

    return 0;
  } catch (const ::elt::error::CiiException& ex) {
    std::cerr << "CiiException occured while executing sample code. What: "
      << ex.what() << '\n';
  }
  return -1;
}

This would produce the following output on stdout:

2020-04-19T21:49:41.894+0200, ERROR, root/140400261358272, Second root logger message
2020-04-19T21:49:41.894+0200, ERROR, root/140400261358272, Second elt.log.test logger message

And this one on the log file in logsink directory:

Cref=../cpp/logging-app/src/logging-app.cpp-35, Date=2020-04-19T21:49:41.894+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID=140400261358272, LogID=root.main-35, Message=Second root logger message
Cref=../cpp/logging-app/src/logging-app.cpp-53, Date=2020-04-19T21:49:41.894+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID=140400261358272, LogID=root.main-53, Message=Second elt.log.test logger message

9.4.5.3. Python

This example can be found in the cii-demo repository: cii-logging-example-app-py

Listing 4‑6 Python basic example

def main():
    """
    Main application code
    @return status code, int
    """
    result = 0
    try:
        # Automatically initialize the logging framework and get the root
        # logger.
        # No configuration is provided so a default configuration is used.
        # This default configuration has two handlers: one that outputs to
        # stdout using elt.log.CiiLogConfigurator.CII_SIMPLE_LOG_PATTERN and
        # another one that outputs to a rolling file in /var/tmp/elt
        # directory.
        # Only log events of levels ERROR and FATAL will be output to the
        # handlers.
        root_logger = CiiLogManager.get_logger()

        # Send INFO level message to root logger
        # This log will be discarded since the minimum log level for the root
        # logger is ERROR
        root_logger.info("First root logger message")

        # Send ERROR level message to root logger
        # This log will be passed to the handlers for processing, since the
        # minimum log level for the root logger is ERROR
        root_logger.error("Second root logger message")

        # Get a logger with name 'elt.log.test'. There's no logger configured
        # with that name, therefore it will be created inheriting the
        # configuration of it's nearest ancestor in the loggers hirearchy. In
        # this case, since there is only root logger configured,
        # the configuration of the root logger will be used
        logger = CiiLogManager.get_logger("elt.log.test")

        # Send INFO level message to elt.log.test logger.
        # This log will be discarded since the minimum log level is ERROR
        logger.info("First elt.log.test logger message")

        # Send ERROR level message to elt.log.test logger
        # This log will be passed to the handlers for processings, since the
        # minimum log level is ERROR
        logger.error("Second elt.log.test logger message")
    except Exception as e:
        print('Exception occured while executing sample code: %s', e)
        result = 5
    return result
if __name__ == '__main__':
    sys.exit(main())

This would produce the following output on stdout:

2020-04-19T21:49:41.894+0200, ERROR, cii-logging-example-app-py/MainThread, Second root logger message
2020-04-19T21:49:41.894+0200, ERROR, cii-logging-example-app-py/MainThread, Second elt.log.test logger message

And this one on the log file in logsink directory:

Cref cii-logging-example-app-py.main-35, Date=2020-04-19T21:49:41.894+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID= cii-logging-example-app-py/MainThread, LogID=main-35, Message=Second root logger message
Cref= cii-logging-example-app-py.main-50, Date=2020-04-19T21:49:41.894+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID= cii-logging-example-app-py/MainThread, LogID=main-50, Message=Second elt.log.test logger message

9.4.6. Basic usage example with custom configuration

This section shows how the use a custom configuration. In this case, we have a configuration with two different loggers, and each logger has a different appender, as described in Table 4‑1.

Table 4‑1 Example loggers and appenders

Logger name	Logger level	Appender type
“” (root)	WARN	File
“elt.log.test”	TRACE	Console

This configuration can be useful if, for example, we want to send all logs of severity WARN or higher to the logsink directory, but we are trying to troubleshot a bug in package elt.log.test, therefore we want logs of severity as low as TRACE to be output as well for that specific package.

In certain cases, it is necessary or useful for a developer to be able to change the existing logging configuration at runtime. In the C++ and Python cases, the respective log4cplus and Python logging APIs are unaffected by the CII Log extensions of those frameworks, and appropriate documentation on runtime configuration of the frameworks is available in their respective APIs documentation [4][5][6]. In the case of Java, due to the implementation details of the postmortem buffer, it is not possible to change levels or filters of the loggers or appenders if it is enabled. If the postmortem buffer is not enabled the Log4j API is unaffected and can be modified according to the Log4j API documentation [4]. More details on the limitations on the usage of the Log4 API are described in section 4.9.1.

The example code and configurations for each language and outputs produced by the examples from section 4.4 with these configurations are shown below. These examples can be also found in logging-examples module.

9.4.6.1. Java

The example shown in Listing 4‑7 uses the configuration shown in Listing 4‑8.

This example can be found in the cii-demo repository: run-logging-example-custom-config

Listing 4‑7 Java example app with custom configuration

public class LoggingBasicExampleCustomConfig {

    public static void main(String[] args) {

        /* Logging is initialized with custom configuration
    * custom-example-log4j2-config.xml located in resources directory.
         * This custom configuration has two loggers:
         *     - root: With a INFO level and a rolling file appender to
         *       /var/tmp/elt directory
         *     - "elt.log.test": With a TRACE level, a console appender, and
         *       additivity enabled
         *
         * It is also possible to provide the path of the configuration file
         * as system property log4j.configurationFile. This can be achieved
         * passing it as an argument when running the application:
         *     $ java -Dlog4j.configurationFile=<path/to/config/file>
         * Or setting it programmatically before Log4j is initialized:
         *     System.setProperty(
         *            "log4j.configurationFile", "path/to/config/file");
         */
        Configurator.initialize("custom-config",
               "java/src/resources/custom-example-log4j2-config.xml");

        /* Get the root logger.
         */
        Logger rootlogger = CiiLogManager.getLogger("");

        /* Send INFO level message to root logger
         * This log will be output to the log file in logsink directory
         */
        rootlogger.log(Level.INFO, "First root logger message");

        /* Send TRACE level message to root logger. This log message will be
         * discarded due to the root logger having a threshold level of WARN
         */
        rootlogger.log(Level.TRACE, "Second root logger message");

        /* Get a logger with name 'elt.log.test'
         */
        Logger logger = CiiLogManager.getLogger("elt.log.test");

        /* Send TRACE level message to elt.log.test logger
         * This log will be output to console since the minimum log level is
         * TRACE.
         * It will be also passed to its parent logger (root) since additivity
         * property of this logger is set to true. The root logger will accept
         * it also, despite of its level being set to INFO. This is due to the
         * fact that the logger level threshold is only checked at the logger
         * where the message is created. If a threshold level would be set to
         * on the appender attached to the root logger, that one would be
         * applied.
         */
        logger.log(Level.TRACE, "First elt.log.test logger message");

        /* Send ERROR level message to elt.log.test logger
         * This log will be output to console since the minimum log level is
         * TRACE. It will be also passed to its parent logger (root) since
         * additivity property of this logger is set to true. The root logger
         * will also pass it to the logsink file appender.
         */
        logger.log(Level.ERROR, "Second elt.log.test logger message");
    }
}

Listing 4‑8 Log4j custom configuration

<Configuration status="WARN">
  <Appenders>
    <Console name="Console" target="SYSTEM_OUT">
      <CiiSimpleLayout/>
    </Console>
    <RollingFile name="FileLogsink" append="true"
      createOnDemand="true"
      fileName="/var/tmp/elt/custom-example.log"
      filePattern="/var/tmp/elt/custom-example.%i.log">
      <Policies>
        <SizeBasedTriggeringPolicy/>
      </Policies>
      <CiiLayout/>
    </RollingFile>
  </Appenders>
  <Loggers>
    <Logger name="elt.log.test" level="TRACE" additivity="true">
      <AppenderRef ref="Console"/>
    </Logger>
    <Root level="INFO">
      <AppenderRef ref="FileLogsink"/>
    </Root>
  </Loggers>
</Configuration>

This configuration would produce the following output on console:

2020-04-19T23:32:38.600+0200, TRACE, elt.log.examples.LoggingBasicExampleCustomConfig/main, First elt.log.test logger message
2020-04-19T23:32:38.600+0200, ERROR, elt.log.examples.LoggingBasicExampleCustomConfig/main, Second elt.log.test logger message

And the following output on the the custom-example.log file in the logsink directory:

Cref=LoggingBasicExampleCustomConfig.java-38, Date=2020-04-19T23:32:38.597+0200, HostName=docker-eso-eelt, LogType=INFO, SourceID=elt.log.examples.LoggingBasicExampleCustomConfig/main, LogID=.main-38, Message=First root logger message
Cref=LoggingBasicExampleCustomConfig.java-58, Date=2020-04-19T23:32:38.600+0200, HostName=docker-eso-eelt, LogType=TRACE, SourceID=elt.log.examples.LoggingBasicExampleCustomConfig/main, LogID=elt.log.test.main-58, Message=First elt.log.test logger message
Cref=LoggingBasicExampleCustomConfig.java-66, Date=2020-04-19T23:32:38.600+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID=elt.log.examples.LoggingBasicExampleCustomConfig/main, LogID=elt.log.test.main-66, Message=Second elt.log.test logger message

9.4.6.2. C++

This example can be found in the cii-demo repository: logging-example-customconfig-app

Listing 4‑9 C++ example app with custom configuration

int main(int ac, char *av[]) {
  try {
    /*
     * Logging is initialized with custom configuration.
     *
     * This custom configuration has two loggers:
     *     - root: With a INFO level and a rolling file appender to
     *             /var/tmp/elt directory
     *     - "elt.log.test": With a TRACE level, a console appender, and
     *                       additivity enabled
     */
    ::elt::log::CiiLogManager::Configure("log4cplus-test.prop");

    /* Get the root logger.*/
    log4cplus::Logger root_logger = ::elt::log::CiiLogManager::GetLogger();

    /* Send INFO level message to root logger
     * This log will be output to the log file in logsink directory
     */
    root_logger.log(log4cplus::INFO_LOG_LEVEL, "First root logger message");

    /* Send TRACE level message to root logger. This log message will be
     * discarded due to the root logger having a threshold level of INFO
     */
    root_logger.log(log4cplus::TRACE_LOG_LEVEL, "Second root logger message");

    /* Get a logger with name 'elt.log.test' */
    log4cplus::Logger logger = ::elt::log::CiiLogManager::GetLogger("elt.log.test");

    /*
     * Send TRACE level message to elt.log.test logger
     * This log will be outputed to console since the minimum log level is
     * TRACE.
     * It will be also passed to its parent logger (root) since additivity
     * property of this logger is set to true. The root logger will accept it
     * also, despite of its level being set to INFO. This is due to the fact
     * that the logger level threshold is only checked at the logger where the
     * message is created.
     * If a threshold level would be set to on the appender attached to the
     * root logger, that one would be applied.
     */
    logger.log(log4cplus::TRACE_LOG_LEVEL,
               "First elt.log.test logger message");

    /*
     * Send ERROR level message to elt.log.test logger
     * This log will be output to console since the minimum log level is
     * TRACE.
     * It will be also passed to its parent logger (root) since additivity
     * property of this logger is set to true. The root logger will also pass
     * it to the logsink file appender.
     */
    logger.log(log4cplus::ERROR_LOG_LEVEL,
               "Second elt.log.test logger message");

    return 0;
  } catch (const ::elt::error::CiiException& ex) {
    std::cerr << "CiiException occured while executing sample code. What: "
      << ex.what() << '\n';
  }
  return -1;

Listing 4‑10 Log4cplus custom configuration

log4cplus.rootLogger=INFO, ROLLINGFILE
log4cplus.logger.elt.log.test=TRACE, STDOUT
log4cplus.additivity.elt.log.test=TRUE
log4cplus.appender.STDOUT=log4cplus::ConsoleAppender
log4cplus.appender.STDOUT.layout=elt::log::layout::CiiSimpleLayout
log4cplus.appender.ROLLINGFILE=log4cplus::RollingFileAppender
log4cplus.appender.ROLLINGFILE.File=/home/rfernandez/INTROOT/logsink/custom-example.log
log4cplus.appender.ROLLINGFILE.MaxFileSize=16MB
log4cplus.appender.ROLLINGFILE.MaxBackupIndex=1
log4cplus.appender.ROLLINGFILE.layout=elt::log::layout::CiiLayout

This configuration would produce the following output on console:

2020-04-19T23:32:38.600+0200, TRACE, elt.log.test/139781441696448, First elt.log.test logger message
2020-04-19T23:32:38.600+0200, ERROR, elt.log.test/139781441696448, Second elt.log.test logger message

And the following output on the the custom-example.log file in the logsink directory:

Cref=../cpp/logging-customconfig-app/src/logging-customconfig-app.cpp-105, Date=2020-04-19T23:32:38.597+0200, HostName=docker-eso-eelt, LogType=INFO, SourceID=139781441696448, LogID=root.main-105, Message=First root logger message
Cref=../cpp/logging-customconfig-app/src/logging-customconfig-app.cpp-125, Date=2020-04-19T23:32:38.600+0200, HostName=docker-eso-eelt, LogType=TRACE, SourceID=139781441696448, LogID=elt.log.test.main-125, Message=First elt.log.test logger message
Cref=../cpp/logging-customconfig-app/src/logging-customconfig-app.cpp-134, Date=2020-04-19T23:32:38.600+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID=139781441696448, LogID=elt.log.test.main-134, Message=Second elt.log.test logger message

9.4.6.3. Python

This example can be found in the cii-demo repository: cii-logging-example-customconfig-app-py

Listing 4‑11 Python example app with custom configuration

def main():
    """
    Main application code
    @return status code, int
    """
    result = 0
    try:
        # Logging is initialize with custom configuration
        #
        # This custom configuration has two loggers:
        #   - root: With a INFO level and rolling file handler to
        #           /var/tmp/elt directory
        #   - "elt.log.test": With a TRACE level, a console appender and
        #                     propagation enabled
        CiiLogManager.configure(CONFIG_FILE_NAME)

        # Get the root logger
        root_logger = CiiLogManager.get_logger()

        # Send INFO level message to root logger
        # This log will be forwarded to the lof file in logsink directory
        root_logger.info("First root logger message")

        # Send TRACE level message to root logger.
        # This log message will be discarded due to the
        # root logger having ad threshold level of INFO
        root_logger.trace("Second root logger message")

        # Get a logger with name 'elt.log.test'
        logger = CiiLogManager.get_logger("elt.log.test")

        # Send a TRACE level message to elt.log.test logger
        # This log will be forwarded to console since the minimum log level is
        # TRACE.
        # It will be also passed to its parent logger (root) since propagate
        # property of this logger is set to True (by default). The root logger
        # will also pass it to the logsink file handler. This is due to the
        # fact that the logger level threshold is only checked at the logger
        # where the message is created.
        logger.trace("First elt.log.test logger message")

        # Send ERROR level message to elt.log.test logger
        # This log will be displayed on console since the minimum log level is
        # TRACE.
        # It will be also passed to its parent logger (root) since propagate
        # property of this logger is set to True (by default). The root logger
        # will also pass it to the logsing file handler.
        logger.error("Second elt.log.test logger message")
    except Exception as e:
        print('Exception occured while executing sample code: %s', e)
        result = 5
    return result
if __name__ == '__main__':
    sys.exit(main())

Listing 4‑12 Python logging custom configuration

{
    "version": 1,
    "handlers": {
        "logsink": {
            "class": "logging.handlers.RotatingFileHandler",
            "backupCount": 5,
            "filename": "my_log_file",
            "formatter": "cii",
            "maxBytes": 10485760
        },
        "console": {
            "class": "logging.StreamHandler",
            "formatter": "cii-brief",
            "stream": "ext://sys.stdout"
        }
    },
    "root": {
        "handlers": [
            "logsink"
        ],
        "level": "INFO"
    },
    "loggers": {
        "elt.log.test": {
          "handlers": [
              "console"
          ],
          "level": "TRACE"
        }
    }
}

This configuration would produce the following output on console:

2020-04-19T23:32:38.600+0200, TRACE, cii-logging-example-customconfig-app-py/MainThread, First elt.log.test logger message
2020-04-19T23:32:38.600+0200, ERROR, cii-logging-example-customconfig-app-py/MainThread, Second elt.log.test logger message

And the following output on the eelt-dev-output.log file in the logsink directory:

Cref= cii-logging-example-customconfig-app-py.main-92, Date=2020-04-19T23:32:38.597+0200, HostName=docker-eso-eelt, LogType=INFO, SourceID= cii-logging-example-customconfig-app-py/MainThread, LogID=main-92, Message=First root logger message
Cref= cii-logging-example-customconfig-app-py.main-108, Date=2020-04-19T23:32:38.600+0200, HostName=docker-eso-eelt, LogType=TRACE, SourceID= cii-logging-example-customconfig-app-py/MainThread, LogID=main-108, Message=First elt.log.test logger message
Cref= cii-logging-example-customconfig-app-py.main-115, Date=2020-04-19T23:32:38.600+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID= cii-logging-example-customconfig-app-py/MainThread, LogID=main-115, Message=Second elt.log.test logger message

Instead of saving the configuration to a file, and passing the filename like in the previous example, it can also be passed as a string to CiiLogManager.configure (<file_content>) directly. Here is an example that does this, after constructing the log configuration dynamically.

loglevel='INFO'
logfile='mylog'

log_config = {
    'handlers': {
        'cii-console': {
            'class': 'logging.StreamHandler',
            'formatter': 'cii-brief',
            'stream': 'ext://sys.stdout',
            'level': ''
        }
    },
    'root': {
        'level': '',
        'handlers': ['cii-console']
    }
}
log_config['handlers']['cii-console']['level'] = loglevel
log_config['root']['level'] = loglevel

if logfile:
    log_config['handlers']['file-handler'] = {
     'class': 'logging.handlers.RotatingFileHandler',
     'backupCount': 10,
     'filename': logfile,
     'formatter': 'cii',
     'maxBytes': 10*1024*1024,
     'level': loglevel
    }
    log_config['root']['handlers'] = ['cii-console', 'file-handler']

CiiLogManager.configure(log_config)

9.4.7. Adding optional information to log messages

Some of the fields in a CII log message are optional and have to be explicitly added to a log event by the user.

9.4.7.1. Via LogManager

The following optional fields can be set directly through the CiiLogManager.

• AppName: The name of the application (or one particular instance of it)

elt::log::CiiLogManager::SetApplicationName("MyApplication");
log4cplus::Logger logger = elt::log::CiiLogManager::GetLogger("MyAppLogger");

9.4.7.2. Via MessageBuilder

The following optional fields can be set through the CiiLogMessageBuilder, letting deveopers create a log message with additional information. Also see CII Log Client API (section X.4.2 of this document).

This optional information can be added to a log message:

• Audience: The intended audience of the log message

• UserLogID: A log ID provided by the user.

• Formatted CiiException: A CII Exception [3] provided by the user that will be formatted into the fields:

  • ErrorMessage

  • ErrorTypeName

  • ErrorDateTime

  • ErrorTrace

• Tracing info: The builder is responsible for extracting the following data from an existing active Tracing context:

  • TraceID

  • SpanID

Once the optional parameters are defined, the user can call the build() method on the builder to produce the formatted string with the selected optional fields.

The builder also provides convenience factory methods for the most common logging use cases: setting a log’s audience and logging a formatted CII Error.

Support for tracing information is currently not available for C++ and Python. It will be added in following releases.

Complete API can be found in Appendix A.

Sections 4.7.1, 4.7.2, 4.7.3 show usage examples for the CiiLogMessageBuilder on Java, C++, and Python. All examples follow the same workflow.

First, the language-specific logging frameworks are initialized with the default CII configuration and a logger named myLogger is retrieved.

(How to enable tracing to be added in following versions)

Then, the following logs with optional information are produced:

• A log with a message, a custom user ID, and an audience value.

• A log with a message and a formatted CII exception using the builder pattern.

• A log with a message and a formatted CII exception using the builder’s convenience method.

• A log with a message and an audience value using the builder’s convenience method.

• A log without message and a formatted CiiException. Since no message is passed, the CiiException error message will be used as log message field.

• A log with current tracing context information. Note that these examples will not output any tracing information, since tracing is not enabled. These examples are meant to illustrate the usage of the CiiLogMessageBuilder.

9.4.7.3. Java

This example can be found in the cii-demo repository: run-logging-example-message-builder-java

Listing 4‑13 Adding optional info to logs (Java)

package elt.log.examples;

import elt.error.CiiException;
import elt.error.CiiInvalidTypeException;
import elt.log.CiiLogAudience;
import elt.log.CiiLogMessageBuilder;
import org.apache.logging.log4j.Logger;
import elt.log.CiiLogManager;

public class LoggingMessageBuilderExample {

    public static void main(String[] args) {

        //initialize Log4j with default CII configuration and retieve
        //"myLogger" Logger
        Logger logger = CiiLogManager.getLogger("myLogger");

        //Build and log message with message value, user ID and DEVELOPER
        //audience
        logger.error(CiiLogMessageBuilder.create("Message value")
                            .withUserLogId("user_log_id")
                            .withAudience(CiiLogAudience.DEVELOPER)
                            .build());

        CiiException e =
                    new CiiInvalidTypeException("Exception error message");

        //Build and log message with formatted CiiException using builder
        //pattern
        logger.error(CiiLogMessageBuilder.create()
                            .withMessage("This is and exception")
                            .withCiiException(e)
                            .build());

        //Build and log message with formatted CiiException using the
        //convenience method
        logger.error(CiiLogMessageBuilder.createAndBuildWithException(
                "This is an exception", e));

        //Build and log message with DEVELOPER audience
        logger.error(CiiLogMessageBuilder.createAndBuildWithAudience(
                "Message for DEVELOPER audience", CiiLogAudience.DEVELOPER));

        //Build and log message with formatted CiiException using the
        //convenience method without passing a message field value
        logger.error(
                CiiLogMessageBuilder.createAndBuildWithException(null, e));

        //Build and log a message with tracing context information
        logger.error(CiiLogMessageBuilder.create(
                "This is a log message with tracing info")
                            .withTracingInfo()
                            .build());
    }
}

The log output from this code, using the CiiSimpleLayout, would be the following:

Listing 4‑14 Output CiiLogMessageBuilder usage example Java

2020-03-30T10:05:46.377+0200, ERROR, elt.log.examples.LoggingMessageBuilderExample/main, Message value, Audience=DEVELOPER, UserLogID=user_log_id

2020-03-30T10:05:46.401+0200, ERROR, elt.log.examples.LoggingMessageBuilderExample/main, This is and exception, ErrorTypeName=elt.error.CiiInvalidTypeException, ErrorDateTime=1585523146401, ErrorMessage=Invalid type detected Exception error message, ErrorTrace=elt.error.CiiInvalidTypeException
     at elt.log.examples.LoggingMessageBuilderExample.main(LoggingMessageBuilderExample.java:23)

2020-03-30T10:05:46.402+0200, ERROR, elt.log.examples.LoggingMessageBuilderExample/main, This is an exception, ErrorTypeName=elt.error.CiiInvalidTypeException, ErrorDateTime=1585523146401, ErrorMessage=Invalid type detected Exception error message, ErrorTrace=elt.error.CiiInvalidTypeException
     at elt.log.examples.LoggingMessageBuilderExample.main(LoggingMessageBuilderExample.java:23)

2020-03-30T10:05:46.402+0200, ERROR, elt.log.examples.LoggingMessageBuilderExample/main, Message for DEVELOPER audience, Audience=DEVELOPER

2020-03-30T10:05:46.402+0200, ERROR, elt.log.examples.LoggingMessageBuilderExample/main, Invalid type detected Exception error message, ErrorTypeName=elt.error.CiiInvalidTypeException, ErrorDateTime=1585523146401, ErrorMessage=Invalid type detected Exception error message, ErrorTrace=elt.error.CiiInvalidTypeException
     at elt.log.examples.LoggingMessageBuilderExample.main(LoggingMessageBuilderExample.java:23)

2020-03-30T10:05:46.403+0200, ERROR, elt.log.examples.LoggingMessageBuilderExample/main, This is a log message with tracing info

9.4.7.4. C++

This example can be found in the cii-demo repository: logging-example-messagebuilder

Listing 4‑15 Adding optional info to logs (C++)

int main(int ac, char *av[]) {
  try {
    log4cplus::Logger logger = ::elt::log::CiiLogManager::GetLogger("myLogger");

    //Build and log message with message value, user ID and DEVELOPER audience
    logger.log(log4cplus::ERROR_LOG_LEVEL,
      ::elt::log::CiiLogMessageBuilder::Create().WithMessage("Message value")
        .WithUserLogId("user_log_id")
        .WithAudience(::elt::log::CiiLogAudience::DEVELOPER)
        .Build());

    try {
      CII_THROW(::elt::error::CiiException, "TEST EXCEPTION");
    } catch (const elt::error::CiiException& e) {
      //Build and log message with formatted CiiException using builder
      //pattern
      logger.log(log4cplus::ERROR_LOG_LEVEL,
        ::elt::log::CiiLogMessageBuilder::Create()
       .WithMessage("This is and exception")
          .WithException(e)
          .Build());

      //Build and log message with formatted CiiException using the
      //convenience method
      logger.log(log4cplus::ERROR_LOG_LEVEL,
        ::elt::log::CiiLogMessageBuilder::CreateAndBuildWithException(
                         "This is an exception", e));
    }

    //Build and log message with DEVELOPER audience
    logger.log(log4cplus::ERROR_LOG_LEVEL,
      ::elt::log::CiiLogMessageBuilder::CreateAndBuildWithAudience(
        "Message for DEVELOPER audience",
         ::elt::log::CiiLogAudience::DEVELOPER));

    //Build and log a message with tracing context information
    logger.log(log4cplus::ERROR_LOG_LEVEL,
      ::elt::log::CiiLogMessageBuilder::Create(
           "This is a log message with tracing info")
         .WithTracingInfo(true).Build());

    return 0;
  } catch (const ::elt::error::CiiException& ex) {
    std::cerr << "CiiException occured while executing sample code. What: "
      << ex.what() << '\n';
  }
  return -1;
}

The output of the code in Listing 4‑15 using the CiiSimpleLayout would be the following:

Listing 4‑16 Output CiiLogMessageBuilder usage example C++

2020-04-19T21:56:56.130+0200, ERROR, myLogger/140218499314368, Message value, Audience=DEVELOPER, UserLogID=user_log_id
2020-04-19T21:56:56.303, ERROR, myLogger/140218499314368, This is and exception, ErrorTypeName=elt::error::CiiException, ErrorDateTime=1587333416, ErrorMessage=TEST EXCEPTION, ErrorTrace= 0# elt::error::CiiException::CiiException(std::string const&) at ../elt-common/cpp/error/client/src/ciiException.cpp:29
 1# main at ../cpp/logging-messagebuilder-app/src/logging-messagebuilder-app.cpp:25
 2# __libc_start_main in /lib64/libc.so.6
 3# 0x0000000000414039 in cii-logging-example-messagebuilder-app

2020-04-19T21:56:56.303+0200, ERROR, myLogger/140218499314368, This is an exception, ErrorTypeName=elt::error::CiiException, ErrorDateTime=1587333416, ErrorMessage=TEST EXCEPTION, ErrorTrace= 0# elt::error::CiiException::CiiException(std::string const&) at ../elt-common/cpp/error/client/src/ciiException.cpp:29
 1# main at ../cpp/logging-messagebuilder-app/src/logging-messagebuilder-app.cpp:25
 2# __libc_start_main in /lib64/libc.so.6
 3# 0x0000000000414039 in cii-logging-example-messagebuilder-app

2020-04-19T21:56:56.303+0200, ERROR, myLogger/140218499314368, Message for DEVELOPER audience, Audience=DEVELOPER
2020-04-19 21:56:56.303, ERROR, myLogger/140218499314368, This is a log message with tracing info

9.4.7.5. Python

This example can be found in the cii-demo repository: cii-logging-example-messagebuilder-py

Listing 4‑17 Adding optional info to logs (Python)

def main():
    """
    Main application code
    @return status code, int
    """
    result = 0
    try:
        logger = CiiLogManager.get_logger("myLogger")

        # Build and log message with message value, user ID and DEVELOPER
        # audience
        logger.error(CiiLogMessageBuilder()
                     .with_message("Message value")
                     .with_user_log_id("user_log_id")
                     .with_audience(CiiLogAudience.DEVELOPER)
                     .build())
        try:
            raise CiiException("TEST EXCEPTION")
        except CiiException as e:
            # Build and log message with formatted exception using builder
            # pattern
            logger.error(CiiLogMessageBuilder.create()
                         .with_message("This is an exception")
                         .with_exception(e)
                         .build())
            # Build and log message with formatted exception using convenience
            # method
            logger.error(CiiLogMessageBuilder
                  .create_and_build_with_exception("This is an excaption", e))
        # Build and log message with DEVELOPER audience
        logger.error(CiiLogMessageBuilder
                     .create_and_build_with_audience("Message for DEVELOPER audience", CiiLogAudience.DEVELOPER))
        # Build and log a message with tracing context information
        logger.error(CiiLogMessageBuilder
                     .create("This is a log message with tracing info")
                     .with_tracing_info(True)
                     .build())
        # Build and log a message with keyword args
        logger.error(CiiLogMessageBuilder
                     .create_and_build_with_args(message='This is a message',
                                           user_log_id='USER_LOG_ID',
                                           audience=CiiLogAudience.DEVELOPER))
    except Exception as e:
        print('Exception occured while executing sample code: %s', e)
        result = 5
    return result

if __name__ == '__main__':
    sys.exit(main())

The output of the code in Listing 4‑17 using the CiiSimpleLayout would be the following:

Listing 4‑18 Output CiiLogMessageBuilder usage example Python

2020-04-19T21:56:56.130+0200, ERROR, cii-logging-example-messagebuilder-app-py/MainThread, Message value, Audience=DEVELOPER, UserLogID=user_log_id
2020-04-19T21:56:56.303+0200, ERROR, cii-logging-example-messagebuilder-app-py/MainThread, This is an exception, ErrorTypeName=elt.error.Exceptions.CiiException, ErrorDateTime=1588727172250, ErrorMessage=TEST EXCEPTION, ErrorTrace=Traceback (most recent call last):
  File "/home/rfernandez/INTROOT/bin/cii-logging-example-messagebuilder-app-py", line 30, in main
    raise CiiException("TEST EXCEPTION")
elt.error.Exceptions.CiiException: TEST EXCEPTION

2020-04-19T21:56:56.303+0200, cii-logging-example-messagebuilder-app-py/MainThread, This is an excaption, ErrorTypeName=elt.error.Exceptions.CiiException, ErrorDateTime=1588727172250, ErrorMessage=TEST EXCEPTION, ErrorTrace=Traceback (most recent call last):
  File "/home/rfernandez/INTROOT/bin/cii-logging-example-messagebuilder-app-py", line 30, in main
    raise CiiException("TEST EXCEPTION")
elt.error.Exceptions.CiiException: TEST EXCEPTION

2020-04-19T21:56:56.303+0200, ERROR, cii-logging-example-messagebuilder-app-py/MainThread, Message for DEVELOPER audience, Audience=DEVELOPER
2020-04-19T21:56:56.303+0200, ERROR, cii-logging-example-messagebuilder-app-py/MainThread, This is a log message with tracing info
2020-04-19T21:56:56.303+0200, ERROR, cii-logging-example-messagebuilder-app-py/MainThread, This is a message, Audience=DEVELOPER, UserLogID=USER_LOG_ID

9.4.8. String formatting

Usage of formatted strings in the printf style is supported in both Java, C++, and Python.

In Java, the String.format method can be used to construct the required message. Also, the Logger instances returned by CiiLogManager.getlogger support string formatting.

The following examples would produce a log with the message “Number: 100”.

logger.debug(String.format("Number: %d", 100));
logger.debug("Number: %d", 100);

In C++ it is supported through the LOG4CPLUS_<LEVEL>_FMT macros [20], as shown in the following example:

LOG4CPLUS_WARN_FMT(root, "Number: %d", 100);

In Python it is also supported using the language’s regular string formatting constructs.

logger.error("Number: %d", 100)
logger.error("Number: %d" % 100)

9.4.8.1. Compile-time validation

Compile-time validation of the formatted strings is supported for Java and for C++.

In the C++ case, compile time validation is automatically done if the LOG4CPLUS_<LEVEL>_FMT macros [20] are used.

In Java, this is supported through the Checker Framework [17]. This solution doesn’t only apply to formatted Strings used in log messages, but to any formatted string in the source code.

The Format String Checker prevents the use of incorrect format strings in format methods such as System.out.printf, String.format, or the Logger log methods. It warns the developer if an invalid format string is written, and it warns if the other arguments are not consistent with the format string (in number of arguments or in their types).

Checker Framework library is installed in the system as part of srv-support-libs when client-apis module is installed. Once installed it can be used during compilation as shown in the example below that compiles class TestUnitLogStringCheckerTest.java:

export CHECKERFRAMEWORK=$CIISRV_ROOT/lib/srv-support-libs/checker-framework-3.2

javac -J-Xbootclasspath/p:$CHECKERFRAMEWORK/javac.jar \
-Xbootclasspath/p:$CHECKERFRAMEWORK/jdk8.jar \
-cp $CHECKERFRAMEWORK/checker-qual.jar:$CIISRV_ROOT/lib/srv-support-libs/*:$CIISRV_ROOT/lib/ \
-processorpath $CHECKERFRAMEWORK/checker.jar \
-processor org.checkerframework.checker.formatter.FormatterChecker \
-Astubs=$CHECKERFRAMEWORK/Logger.astub \
 -source 8 -target 8 TestUnitLogStringCheckerTest.java

In Python this is not supported, since it is not compiled.

9.4.9. Using the Postmortem Buffer

This section describes the usage of the postmortem buffer. By default, this buffer is disabled and it is the responsibility of the user to enable it.

The postmortem buffer is configured through two environment variables:

• CII_LOG_BUFFER_ON: If set to true, the postmortem buffer will enabled. If not set, or set to any other value, the postmortem buffer will be disabled.

• CII_LOG_BUFFER_TTL_MS: Time-To-Live in milliseconds of the buffered log events.

Changes to these environment variables, once the logging has been initialized, will not have any effect on the current configuration. In order for it to be applied, logging must be shut down and initialized again.

Programatic and file-based configurations of the postmortem buffer will take precedence over these environment variables.

Due to the differences in implementations and APIs of the logging frameworks CII Log Client API leverages on, the implementation and usage of the postmortem buffer vary from language to language. Configuration and usage instructions are described for each of the three languages in the following subsections.

Note: Enabling the postmortem buffer can make significant performance impact. The impact depends on the number of produced logs. When it is, enabled, all the logging events (regardless of its level) will gather all the log context information (hostname, line number, file name, etc…). Gathering this information will take significant time, when a lot of logs are produced.

9.4.9.1. Java

In addition to the configuration of the postmortem buffer through environment variables, it is possible to configure it using system properties.

• cii.log.buffer.on: This property defines if the buffer is enabled or not. By default, it is disabled. Must be set to true to enable the buffer.

• cii.log.buffer.ttl.ms: This property defines the TTL value in milliseconds for entries in the buffer. Default is 60000 ms (1 min).

These properties must be set before initialization of the Log4j framework in order for them to have effect.

If any of these system properties are defined, it will override the environment variable for that configuration parameter.

Once the logging framework is initialized, it is not possible to enable or disable the postmortem buffer.

If the postmortem buffer is enabled, once the configuration is initialized it is not possible to perform any changes to the active configuration using the Log4j API. The Logger.getLevel() method or any method to retrieve levels or filters configuration at runtime can return an incorrect value and should not be relied upon.

The example in Listing 4‑19 describes a standard workflow using the postmortem buffer.

In the first place, the cii.log.buffer.on property is set in order to enable the postmortem buffer. Also, the cii.log.buffer.ttl.ms property is set to a custom value of 30 seconds, setting the events TTL in the buffer to that value.

Then, a logger object is obtained with the name of the current class. Since no custom configuration has been defined, it will automatically initialize the logging framework to the default CII configuration. Default configuration only has the root logger configured; therefore, the retrieved object will use the root logger configuration, which filters out logs from levels below ERROR.

After, a log message is produced for every log level, from TRACE to FATAL. Only logs of levels ERROR and FATAL will be logged by the appenders.

Finally, the CiiLogManager.flushBufferedAppender() method is called. This will output all the buffered logs to all appenders that originally rejected them, whether it was filtered out by the logger or by the appender itself. Listing 4‑20 shows the console output of the execution of the example. As can be seen, first, the ERROR and FATAL messages are printed to console, and then, when the postmortem buffer is flushed, the rest of the log messages are printed to the console.

This example can be found in the cii-demo repository: run-logging-example-postmortem-buffer-java

Listing 4‑19 Example postmortem appender (Java)

package elt.log.examples;

import elt.log.CiiLogManager;
import org.apache.logging.log4j.Level;
import org.apache.logging.log4j.Logger;


public class PostmortemAppenderExample {

    public static void main(String[] args) {

        // Enable the postmortem appender
        // This must be done before initializing Log4j
        System.setProperty("cii.log.buffer.on", "true");
        // Set the time-to-live of the log events in the buffer to 30s
        System.setProperty("cii.log.buffer.ttl.ms", "30000");

        // Automatically initialize the logging framework with console and
        // file appender and get the logger with the name
        // elt.log.examples.PostmortemAppenderExample
        Logger logger = CiiLogManager.getLogger(
                PostmortemAppenderExample.class.getCanonicalName());

        // Create a log message of each level. Only messages of levels ERROR
        // and FATAL will be output to the console and file
        logger.log(Level.TRACE, "Trace message");
        logger.log(Level.DEBUG, "Debug message");
        logger.log(Level.INFO, "Info message");
        logger.log(Level.WARN, "Warn message");
        logger.log(Level.ERROR, "Error message");
        logger.log(Level.FATAL, "Fatal message");

        try {
            Thread.sleep(500);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        // Flush the postmortem appender. Logs of levels TRACE, DEBUG, INFO,
        // and WARN will be now output to the console and file
        CiiLogManager.flushPostmortemBuffer();
    }
}

This example produces the following output:

Listing 4‑20 Console output from postmortem example (Java)

2020-03-12T22:33:14.524+0100, ERROR, elt.log.examples.PostmortemAppenderExample/main, Error message
2020-03-12T22:33:14.524+0100, FATAL, elt.log.examples.PostmortemAppenderExample/main, Fatal message
2020-03-12T22:33:14.524+0100, TRACE, elt.log.examples.PostmortemAppenderExample/main, Trace message
2020-03-12T22:33:14.524+0100, DEBUG, elt.log.examples.PostmortemAppenderExample/main, Debug message
2020-03-12T22:33:14.524+0100, INFO, elt.log.examples.PostmortemAppenderExample/main, Info message
2020-03-12T22:33:14.524+0100, WARN, elt.log.examples.PostmortemAppenderExample/main, Warn message

9.4.9.1.1. Async Logging

Log4j supports asynchronous logging, as described in [11]. It’s important to note that when using custom configurations, the includeLocation property of loggers’ configuration must be explicitly set to true. Otherwise, information as the source code file and line references will be lost. It is also necessary for the postmortem buffer to work as intended since it relies on a log event’s context data, which would otherwise be lost.

This also needs to be taken into consideration when flushing the buffer, since it’s possible that some of the last produced log events might have not been processed yet by the buffer at the time of flushing when asynchronous logging is used.

9.4.9.2. C++

In C++, the postmortem buffer can be configured using the environment variables mentioned earlier, as well as programmatically. The CiiLogConfigurator class provides methods to initialize a configuration with the postmortem buffer enabled, as well as a method to enable the postmortem buffer once the configuration has been already initialized.

When the postmortem buffered is flushed, log messages indicating the START and END of the flushed logs will be injected, as can be seen in Listing 4‑22, helping the user identify the logs that were buffered by the postmortem facility.

More details on how to configure the postmortem buffer can be found in Appendix A.2.

A usage example of the postmortem buffer in C++ is shown in Listing 4‑21. In this example, the postmortem buffer is enabled and a log TTL of 30 seconds is set. Then, logging is initialized with the default configuration. A series of log messages of different levels are produced, and finally, the postmortem buffer is flushed to all the configured appenders.

This example can be found in the cii-demo repository: logging-example-postmortem-buffer-app

Listing 4‑21 Example postmortem appender (C++)

int main(int ac, char *av[]) {
  try {
    //Enable postmortem appender and set the time-to-live of the log events in
    //the buffer to 30s
    std::string postmortem_enable_env = std::string(
      ::elt::log::CiiLogManager::POSTMORTEM_APPENDER_ENABLED_ENV_VAR) +
      "=true";
    putenv(const_cast<char*>(postmortem_enable_env.c_str()));

    std::string postmortem_ttl_env = std::string(
      ::elt::log::CiiLogManager::POSTMORTEM_APPENDER_ENTRYTTL_MS_ENV_VAR) +
      "=30000";
    putenv(const_cast<char*>(postmortem_ttl_env.c_str()));

    // Automatically initialize the logging framework with console and file
    // appender and get the logger with the name
    // elt.log.examples.PostmortemAppenderExample
    log4cplus::Logger logger = ::elt::log::CiiLogManager::GetLogger(
      "PostmortemAppenderExample");

    // Create a log message of each level
    // Only messages of levels ERROR and FATAL will be output to the console
    // and file
    logger.log(log4cplus::TRACE_LOG_LEVEL, "Trace message");
    logger.log(log4cplus::DEBUG_LOG_LEVEL, "Debug message");
    logger.log(log4cplus::INFO_LOG_LEVEL, "Info message");
    logger.log(log4cplus::WARN_LOG_LEVEL, "Warn message");
    logger.log(log4cplus::ERROR_LOG_LEVEL, "Error message");
    logger.log(log4cplus::FATAL_LOG_LEVEL, "Fatal message");
    std::this_thread::sleep_for(std::chrono::seconds(1));

    // Flush the postmortem appender.
    // Logs of levels TRACE, DEBUG, INFO, and WARN will be now output to the
    // console and file
    ::elt::log::CiiLogManager::FlushPostmortemBuffer();

    return 0;
  } catch (const ::elt::error::CiiException& ex) {
    std::cerr << "CiiException occured while executing sample code. What: "
      << ex.what() << '\n';
  }
  return -1;
}

This example produces the following output:

Listing 4‑22 Console output from postmortem example (C++)

2020-04-19T22:27:50.415+0100, ERROR, PostmortemAppenderExample/140577659003584, Error message
2020-04-19T22:27:50.415+0100, FATAL, PostmortemAppenderExample/140577659003584, Fatal message
2020-04-19T22:27:51.416+0100, TRACE, root/140577659003584, [START] DUMPING POSTMORTEM LOGS
2020-04-19T22:27:50.415+0100, TRACE, PostmortemAppenderExample/140577659003584, Trace message
2020-04-19T22:27:50.415+0100, DEBUG, PostmortemAppenderExample/140577659003584, Debug message
2020-04-19T22:27:50.415+0100, INFO, PostmortemAppenderExample/140577659003584, Info message
2020-04-19T22:27:50.415+0100, WARN, PostmortemAppenderExample/140577659003584, Warn message
2020-04-19T22:27:51.416+0100, TRACE, root/140577659003584, [END] DUMPING POSTMORTEM LOGS

9.4.9.3. Python

The postmortem buffer can be configured by one of the methods provided by the elt.log.CiiLogManager module. Note that once the buffered logger is configured into the system, it can not be disabled.

The standard Python Logging API is unaffected by the use of the postmortem buffer.

The example in Listing 4‑23 shows an example usage of the postmortem buffer in Python.

More details on how to configure the postmortem buffer can be found in Appendix A.3.

An usage example of the postmortem buffer in Python is shown in Listing 4‑23. In this example, the postmortem buffer is enabled and a log TTL of 30 seconds is set. Then, logging is initialized with the default configuration. A series of log messages of different level are produced, and finally the postmortem buffer is flushed to all the configured handlers.

This example can be found in the cii-demo repository: cii-logging-example-postmortem-buffer-app-py

Listing 4‑23 Example postmortem buffer (Python)

def main():
    """
    Main application code
    @return status code, int
    """
    result = 0
    try:
        # Enable postmortem functionality and set time-to-live of the log events
        # in the buffer to 30s
        os.environ[CiiLogManager.POSTMORTEM_BUFFER_ON_ENV_VAR] = 'true'
        os.environ[CiiLogManager.POSTMORTEM_BUFFER_TTL_MS_ENV_VAR] = '30000'

        # Automatically initialize the logging framework with console and file
        # handler and get the logger with name 'PostmortemBufferExample'
        logger = CiiLogManager.get_logger("PostmortemBufferExample")

        # Create a log message of each level
        # Only messages of levels ERROR and FATAL will be outoput to the console
        # and file

        logger.trace("Trace message")
        logger.debug("Debug message")
        logger.info("Info message")
        logger.warning("Warning message")
        logger.error("Error message")
        logger.fatal("Fatal message")

        # Wait a little
        time.sleep(1)

        print('Flushing postmortem buffer')
        # Flush postmortem buffer, trace, debug and info messages should be seen
        # on stdout
        CiiLogManager.flush_postmortem_buffer()

    except Exception as e:
        print('Exception occured while executing sample code: %s', e)
        result = 5
    return result

if __name__ == '__main__':
    sys.exit(main())

This example produces the following output:

2020-05-06T11:45:02.407+0100, ERROR, cii-logging-example-postmortem-buffer-app-py/MainThread, Error message
2020-05-06T11:45:02.407+0100, CRITICAL, cii-logging-example-postmortem-buffer-app-py/MainThread, Fatal message
2020-05-06T11:45:02.407+0100, TRACE, cii-logging-example-postmortem-buffer-app-py/MainThread, Trace message
2020-05-06T11:45:02.407+0100, DEBUG, cii-logging-example-postmortem-buffer-app-py/MainThread, Debug message
2020-05-06T11:45:02.407+0100, INFO, cii-logging-example-postmortem-buffer-app-py/MainThread, Info message
2020-05-06T11:45:02.407+0100, WARNING, cii-logging-example-postmortem-buffer-app-py/MainThread, Warning message

9.5. Logging services administration

This section describes the services used by logging. These services should be managed and maintained by system administrators.

9.5.1. Logging services configuration

It must be noted that running the services is not needed for being able to use the Logging Client API. For details on how to use the CII Log Client API, see section 3.3.

As of CII v4, the log transmission uses these services:

• rsyslog

• logrotate

9.5.1.1. Host Setup

During cii-postinstall, an adminstrator chooses a cii-role for the host.

In accordance, cii-postinstall configures the rsyslog of the host.

The roles have the following effects:

Role	Effect
own server	writes to local file elt.log
group client	writes to local file elt.log, and pushes logs to a log-collector-host
group server	writes to local file elt.log, and accepts logs pushed from other hosts

9.5.1.2. Start/Stop Services

The log services can be started using

sudo cii-services start log

and stopped using

sudo cii-services stop log

9.5.1.3. Configuration

The log file is rotated daily, and 21 days will be kept.

To modify the amount of retained logs, see /etc/logrotate.d/elt-log (requires privileges)

9.5.2. Logging services monitoring

To check the status of the logging services, do

systemctl status --no-pager rsyslog logrotate

To see the service logs, do

journalctl -u rsyslog

journalctl -u logrotate

9.6. Logging User Tools

This section describes the different user interface tools that enable users to create, query, and browse CII Log events.

9.6.1. ciiLogSend

Notice: As of CII v4, the alias names logSend and cii-services-log-cli have been removed.

This section describes how to use the ciiLogSendd command line tool. This tool allows a user to write a log entry to the local CII log service, which will add the log to the logsink directory on the local machine, and can also (depending on the CII role of the host) transmit the log entry to a centralized CII log collector via CII distributed log transport.

This tool takes the Message field value and accepts parameters for all the rest of the CII Log format fields as described in Appendix B. For the required fields, the “N/A” value is used if no value is provided, except for the LogType field, for which the INFO level will be used, and for the HostName field, for which the current hostname will be used. The Date field is populated with the current time. Table 5‑1 shows the mappings beteen the sendLog command flags and the CII Log fields.

Table 6‑1 ciiLogSend CLI tool flags mappings

Flag	Field name
-h, –help
-lt, –logtype	LogType
-cr, –cref	Cref
-si, –sourceid	SourceID
-h, –hostname	HostName
-au, –audience	Audience
-uli, –userlogid	UserLogID
-ti, –traceid	TraceID
-spi, –spanid	SpanID
-en, –exceptionname	ErrorTypeName
-ed, –exceptiontimestamp	ErrorDateTime
-em, –errormessage	ErrorMessage
-et, errortrace	ErrorTrace

A basic usage example can be seen below:

$ ciiLogSend "This is a log message"

Which will create the following log:

Cref=N/A, Date=2020-03-27T19:44:57.872+0200, HostName=docker-eso-eelt, LogType=INFO, SourceID=N/A, LogID=N/A, Message=This is a log message

This is a more advanced example, where several of the log fields are passed as arguments:

$ ciiLogSend "This is a log message" -lt ERROR -cr example_code_reference -si  \
example_source_id -li example_log_id -au DEVELOPER

Which will produce the following log:

Cref=example_code_reference, Date=2020-03-27T19:50:28.739+0200, HostName=docker-eso-eelt, LogType=ERROR, SourceID=example_source_id, LogID=example_log_id, Audience=DEVELOPER, Message=This is a log message

9.6.2. Log Viewer

This section describes usage of the ciiLogViewer application, which is a graphical viewer application for logs. It is a stand-alone version of the CII log viewer widget.

Table 6‑2 log viewer command line options

Flag	Description
-h, –help	Shows help
-f, –follow	Display (tail) new local logs

In “follow” mode, it detects all newly created log messages on the local host, found in the local log sink directory, and displays them in an automatically refreshing table.

To run it:

ciiLogViewer [/path/to/logs]

To show the centralised logs:

ciiLogViewer /var/log/elt

Default for when “[/path/to/logs]” is omitted:

1. CII v4

• $CII_LOGS (if set)

• $INTROOT/logsink (if set)

2. Next Version:

• /var/log/elt will become the default in the next version.

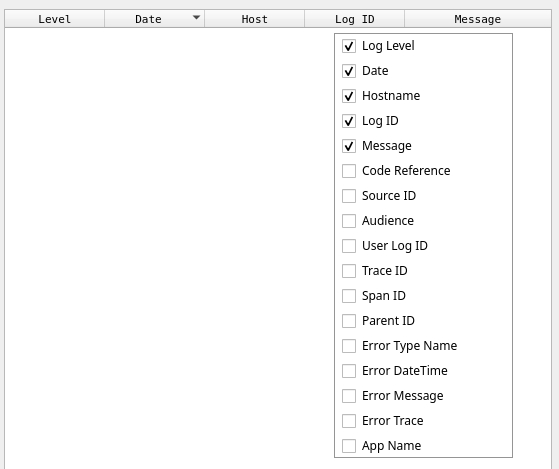

9.6.2.1. Column Chooser

Right-click on the table header, then select the checkboxes to apply.

9.6.2.2. View Filtering

As of CII v4, the log viewer can filter over all columns, using regexp-based query expressions.

Syntax:

   <COLUMN NAME 1> [NOT] <LIKE STATEMENT 1> <COLUMN NAME 2> [NOT] <LIKE STATEMENT 2> ...

   # where the <LIKE STATEMENT N> is of the form:
   LIKE (<REGULAR EXPRESSION FOR THE COLUMN>)


The NOT operator acts as negation, for example:

    # display records where the host column does not contain "test" (case insensitive)
    Host NOT LIKE(test)


The OR operator is implicit, for example:

   Host LIKE(\.eso\.org) Log ID LIKE(^Default) Message NOT LIKE(^MyID$)

   # means:
     Host should contain ".eso.org
     or: Log ID should start from "Default"
     or: Message should be exactly "MyID"


More examples:

   Host LIKE(*.eso.org) - an invalid regular expression, no effect

   Host LIKE(.eso.org) will match "?eso?org"

   Host LIKE(\.eso\.org) will match anything that contains ".eso.org"

   Host LIKE(^elt\.eso\.org$) will match "elt.eso.org" exactly

Notes:

1. The relation between all column “filters” is OR

2. The NOT and LIKE keywords must be upper-case

3. Column names are matched case-insensitive, e.g. Host, host, HOST

4. Columns names with white space need not be quoted, e.g. Log ID

5. Filters for non-existing columns are ignored, e.g. Host33 NOT LIKE(.*)

9.6.3. Log Viewer Widget (Qt)

This is a Qt widget, meant for integration into an ELT application, allowing to display and filter ELT log data. The widget is the basis for the Log Viewer application described in the previous section.

To set the “/path/to/logs”:

• pass it as a constructor argument, or

• set the “directory” Qt property. Note this can be done any time.

9.7. Tracing

This section describes the CII Tracing system, including application instrumentation examples as well as the different services used to manage and browse the tracing data produced by the CII distributed systems.

9.7.1. Introduction

Tracing purpose is to aid developers and engineers in the understanding of interactions between components in a distributed system.

It must be noted that logging and tracing are handled separately and there is no automatic connection between logs and traces. This logical connection must be created manually by the user.

It is supported in CII with the OpenTracing API [22], and Jaeger [23] is used as the OpenTracing implementation.

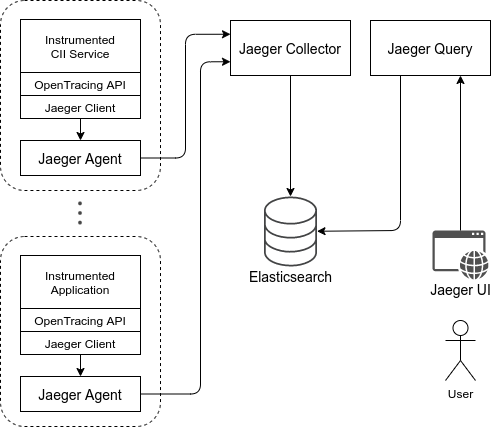

Figure 8‑1 CII Tracing architecture

The architecture of the tracing system is shown in the figure above.

It can be divided in:

• Instrumented application using OpenTracing API and Jaeger Client libraries

• Jaeger services

• Elasticsearch persistence backend

The Jaeger services used are:

• Jaeger Agent

• Jaeger Collector

• Jaeger Query

A standard workflow of the tracing system is also shown in Figure 8‑1.

Applications and services instrumented with the OpenTracing API produce tracing data, that is sent to a Jaeger Agent by the Jaeger Client library.

The Jaeger Agent collects tracing data from multiple applications and sends batches of data to the Jaeger Collector.

The Jaeger Collector is responsible for persisting the tracing data received from the Jaeger Agents to an Elasticsearch instance.

Finally, the Jaeger Query service provides access to the persisted tracing data, as well as the Jaeger UI, which can be used to browse the tracing data.

9.7.1.1. Traces and Spans

Distributed tracing relies on traces and spans. A trace is the complete processing of a request. The trace represents the whole execution path of a request as it moves through all of the services or components of a distributed system. All trace events generated by a request share a trace ID that tools use to organize, filter, and search for specific traces.

Each trace is comprised of several spans. A span is an activity or operation that takes place within individual services or components of the distributed system. Each span is another step in the total processing of the overall request. Spans are typically named and timed operations. Spans each carry a unique span ID, and can also carry a reference to their parent span, metadata, or other annotations.

A trace can be seen as a directed acyclic graph, where spans are the nodes and references between spans are the edges.

For example, the following figure illustrates a trace made up of 6 spans:

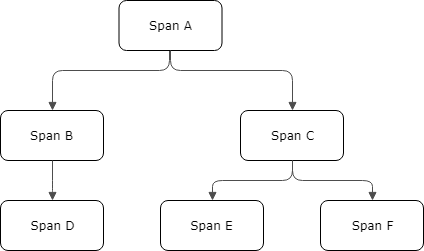

Figure 8‑2 Causal relationships between spans in a trace

While this representation allows us to visualize the relationships between the different spans in a trace, it can also be useful to visualize traces in a timeline:

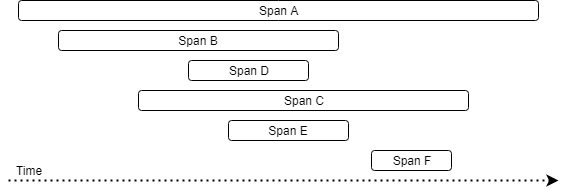

Figure 8‑3 Temporal relationships between spans in a trace

Each trace is identified by a unique Trace ID. A traced transaction that spans across multiple hosts, processes, or threads shall have a tracing context propagated between them.

This trace context must contain the following information to be able to trace the call flow of a transaction between services:

• Trace ID: Identifier for a specific operation spanning across one or more distributed systems. When this operation is initiated, a Trace ID is generated and passed to other services that are called as part of the operation.

A trace is composed of one or more spans in one or more distributed hosts. Each span describes a logical unit of work, and contains the following information:

• Operation name: String describing the unit of work represented by the span, e.g. ConfigService::readConfig.

• Span ID: Identifies the span. It must be unique within a trace.

• Parent ID: Identifier that references the ID of the span that triggered the current span.

• Start time: Timestamp indicating when a span was started.

• End time: Timestamp indicating when a span was ended.

The flow of this tracing context information across different services through operation can be seen in Figure 8‑4.

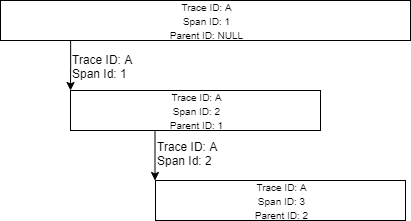

Figure 8‑4 Tracing context information flow

In this case, Service 1 would create a tracing context with Trace ID = A, Span ID = 1, and Parent ID = NULL. Together with the call to Service 2, Trace ID and Span ID of the caller are passed. Then Service 2 will create a trace context with Parent ID equal to the Span ID from Service 1 and the Trace ID to the one passed by Service 1. This newly created context will be set as the current context for Service 2. The same procedure applies to the interaction between Service 2 and Service 3 and to subsequent calls to any other service.

9.7.2. Tracing Library Usage

The following sections describe basic tracing instrumentation usage examples.

Advanced usage and configuration of the OpenTracing API and Jaeger are out of the scope of this document. For further information, see [22] and [23].

9.7.2.1. Tracing request-reply communication

Every request-reply action is instrumented.

When a new request is being issued by the client a new span is created. The MAL middleware implementation must check for existence of an active span using GlobalTracer.get().scopeManager().activeSpan() method. If there is a span active a newly created span Parent Id is set to Span Id of the active span, otherwise Parent Id is to 0. Operation name of the span is set to <instance name>::<method name>, e.g. ConfigService::readConfig. Trace Id and Span Id of the span are propagated to the server side among other request data. Upon completion or cancelation of the request the Span.finish() method is called on the created span instance.

On the server side a new span is created when request is received. The span shares the same operation name and Trace Id. It is created as a child span of the request span, i.e. Span Id of the span is set to Parent Id the of the request span. Upon completion or cancelation of the reply the Span.finish() method is called on the created span instance. The server-side implementation of a CII request-reply interface can create a child span of the span that CII created using mal tracing utilities by calling elt::mal::util::tracing::startSpan, which will create a child span of an active span if an active span exits, otherwise a childless span will be created.

9.7.2.2. Tracing publish-subscribe communication

Publish-subscribe communication is not instrumented by default. It needs to be enabled per data entity in ICD, i.e. by setting structure attribute trace to ”true”. This will instruct ICD generator to declare agnostic data entity structure as traceable by extending Traceable interface. The interface provides access to Trace Id and Span Id.

interface Traceable {
  int64_getTraceId();
  uint64 getSpanId();
};

Figure 8‑5 Definition of Traceable interface in pseudo-IDL.

On publisher side the process is the same as on the client side of request-reply communication pattern with exception that the operation name equals “publish(<data entity name>)” and the span finishes as soon as it is published (enqueued).

On the subscriber side it is programmer’s responsibility to create a new span, mal mapping will not create any spans automatically. User needs to extract a tracing context (i.e. sample->getTrace()) and create a span using mal tracing utilities. This decision has been made mostly due to the fact that multiple data entities can be read at once. The Logging API will provide helper method to create and activate a new span from received data entity that implements Traceable, e.g. TracingUtils#createSpan(methodName, traceable).

9.7.2.3. Includes/Imports

9.7.2.3.1. Java

import elt.utils.TracingUtils;
import io.opentracing.Span;
import io.opentracing.SpanContext;
import io.opentracing.Tracer;
import io.opentracing.util.GlobalTracer;

9.7.2.3.2. C++

#include <ciiTrace.hpp>

9.7.2.3.3. Python

import elt.trace

9.7.2.3.4. Java class path dependencies

To support the CII Tracing, the Opentracing and Jaeger libraries need to be added to the Java classpath. It is also important to set the Jaeger service name and sampling type and rate.

Listing 8‑1 Java tracing classpath libraries

LIBDIR="$CIISRV_ROOT/lib"
SRV_SUPPORT_LIBS="$LIBDIR/srv-support-libs/*"
JAEGER_LIBS="$LIBDIR/srv-support-libs/jaeger/*"
OPENTRACING_LIBS="$MAL_ROOT/lib/opentracing/*"
MALCOMMON_LIB="$MAL_ROOT/lib/mal-common.jar"
export JAEGER_SERVICE_NAME=tracing-example

java -DJAEGER_SAMPLER_TYPE=const -DJAEGER_SAMPLER_PARAM=1 -DJAEGER_SERVICE_NAME=$JAEGER_SERVICE_NAME -cp "$MALCOMMON_LIB:$OPENTRACING_LIBS:$JAEGER_LIBS:$SRV_SUPPORT_LIBS:$LIBDIR/*" elt.trace.examples.TracingBasicExample

9.7.2.4. Basic usage example

In these examples, tracing is initialized using the provided TracingUtils.initializeTracing() helper method, which can be used to initialize the tracing framework and register a global tracer for the current application.

Then a root span is created, and a second span with the root span as its parent.

Finally, after all spans are finished, the tracer is closed.

9.7.2.4.1. Java

This example can be found in the cii-demo repository: run-tracing-example-java

Listing 8‑2 Tracing basic example (Java)

/**
 * CII tracing utility usage
 */
public class TracingBasicExample {

    public static void main(String[] args) {

        /* Initialize tracing framework and register global tracer.
         */
        Tracer tracer = TracingUtils.initializeTracing();

        /* Once the global tracer is registered, it is also
         * possible to obtain an instance from GlobalTracer.
         */
        tracer = GlobalTracer.get();

        /* Start a parent span */
        Span parentSpan = tracer.buildSpan("method1")
                .start();

        /* Start a child span */
        String str;
        Span span = tracer.buildSpan("method2")
                .asChildOf(parentSpan)
                .start();

        try {
            Thread.sleep(2000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        /* close the child span */
        span.finish();

        try {
            Thread.sleep(3000);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }

        /* close the parentSpan */
        parentSpan.finish();

        /* close global tracer */
        tracer.close();
    }
}

9.7.2.4.2. C++

This example can be found in the cii-demo repository: cii-tracing-example-app

Listing 8‑3 Tracing basic example (C++)

int main(int ac, char *av[]) {
  try {
    /* Initialize tracing framework and register global tracer.*/
    ::elt::trace::InitializeTracing("demo-service-name");

    /* Obtain a tracer (registered in previous step) */
    std::shared_ptr<opentracing::Tracer> tracer = opentracing::Tracer::Global();
    if (!tracer) {
      throw ::elt::error::CiiException("No tracer registered");
    }

    /* Start a parent span */
    std::unique_ptr<opentracing::Span> parentSpan = tracer->StartSpan("method1");

    /* Start a child span */
    std::unique_ptr<opentracing::Span> span = opentracing::Tracer::Global()->StartSpan(
       "method2", { opentracing::ChildOf(&parentSpan->context())});
    std::this_thread::sleep_for(std::chrono::seconds(2));

    /* close the child span */
    span->Finish();
    std::this_thread::sleep_for(std::chrono::seconds(3));

    /* close the parentSpan */
    parentSpan->Finish();

    /* close global tracer */
    tracer->Close();
    return 0;
  } catch (const ::elt::error::CiiException& ex) {
    std::cerr << "CiiException occured while executing sample code. What: "
      << ex.what() << '\n';
  }
  return -1;
}

9.7.2.4.3. Python

In this example, the use of a span and the tracer as context manager is shown as well.

This example can be found in the cii-demo repository: cii-tracing-example-app-py

Listing 8‑4 Tracing basic example (Python)

def main():
    """
    Main application code
    @return status code, int
    """
    result = 0
    try:
        # Initialize tracing framework and register global tracer
        elt.trace.initialize_tracing('demo-service-name')

        # Obtain a tracer (registered in previous step)
        tracer = elt.trace.opentracing.Tracer.get_global()
        if tracer is None:
            raise RuntimeError('No tracer registered')

        # Start a parent span
        parent_span = tracer.start_span('method 1')

        # Start a child span
        span = tracer.start_span("method2",
                      [elt.trace.opentracing.child_of(parent_span.context())])

        time.sleep(2)

        # Close the child span
        span.finish()

        # Span as context manager
        with tracer.start_span("method3",
                     [elt.trace.opentracing.child_of(parent_span.context())]):
            time.sleep(1)
        # span.finish() was called on context exit

        time.sleep(1)

        # Close the parent span
        parent_span.finish()

        # Use tracer as context manager that closes itself automatically
        with tracer:
            # make another span and use it as context manager
            with tracer.start_span('another span'):
                time.sleep(1)
        # global tracer is closed a this point
        # to explicitly close the tracer, use: tracer.close()

    except Exception as e:
        print('Exception occured while executing sample code: %s', e)
        traceback.print_exc()
        result = 5
    return result

if __name__ == '__main__':
    sys.exit(main())

9.7.2.5. Mal pub/sub and request/response tracing basic examples

Mal tracing examples are part of icd-demo project and are listed in Table 2.

Table 2: MAL tracing basic examples in icd-demo

Example type	Example location
Mal pub/sub java tracing example	app/java/src/elt/mal/example/ps
Mal pub/sub c++ tracing example	app/cpp/ps/publisher/src app/cpp/ps/subscriber/src
Mal pub/sub python tracing example	app/python/ps/publisher/src app/python/ps/subscriber/src
Mal request/response java tracing example	app/java/src/elt/mal/example/rr
Mal request/response c++ tracing example	app/cpp/rr/client/src app/cpp/rr/server/src
Mal request/response python tracing example	app/python/rr/client/src app/python/rr/server/src

Basic examples for mal pub/sub tracing (based on examples in icd-demo):

Listing 8‑5 Tracing mal pub/sub example (C++)

/**
  * @brief Initialize tracing (implementation specific to the user
  * environment, mal is using only opentracing API to obtain the tracer)
  *
  *  In this example we are using jaeger implementation of opentracing
  *  standard.
  *
  * @param service_name opentracing service name
  *
  */
void InitializeTracing(const std::string& service_name) {
  const bool log_span = true;
  const bool disabled = false;
  const double always_sample = 1.0;

  /* Configuration specific to jaeger (opentracing API implementation) */

  jaegertracing::Config config = jaegertracing::Config(
    disabled,
    jaegertracing::samplers::Config(
      CONST_SAMPLING_STRATEGY,
      always_sample),
    jaegertracing::reporters::Config(
      jaegertracing::reporters::Config::kDefaultQueueSize,
      jaegertracing::reporters::Config::defaultBufferFlushInterval(),
      log_span,
      ::jaegertracing::reporters::Config::kDefaultLocalAgentHostPort));

  std::shared_ptr<opentracing::Tracer> tracer = jaegertracing::Tracer::make(
    service_name, config, jaegertracing::logging::consoleLogger());

  /* Register jaeger tracer as global opentracing tracer,
     MAL will call opentracing API to obtain this tracer*/
  opentracing::Tracer::InitGlobal(
    std::static_pointer_cast<opentracing::Tracer>(tracer));
}


InitializeTracing("Some service");

/* Create a subscriber and a publisher in usual way and start publishing */

::elt::mal::Uri uri("zpb.ps://127.0.0.1:12404/test");
std::unique_ptr<ps::Subscriber<elt::SampleDataEntity>> subscriber =
  mal::CiiFactory::getInstance().getSubscriber<elt::SampleDataEntity>(
  uri, m_standardQoS, m_malProperties);

std::unique_ptr<ps::Publisher<elt::SampleDataEntity>> publisher =
  mal::CiiFactory::getInstance().getPublisher<elt::SampleDataEntity>(
  uri, m_standardQoS, m_malProperties);

std::shared_ptr<elt::SampleDataEntity> dataEntity = publisher->createDataEntity();

dataEntity->setText("Initial");
dataEntity->setSampleId(0);

const std::size_t  SAMPLE_COUNT = 3;
for (std::size_t i = 0; i < SAMPLE_COUNT; i++) {
  std::stringstream ss;
  ss << "Some text" << i;
  dataEntity->setText(ss.str());
  dataEntity->setSampleId(i);

 /* Since the global tracer is set (InitializeTracing) and
    elt::SampleDataEntity has struct attribute trace="true",
    MAL will start a new span and finish it immediately and propagate the span
    context using sample->setTrace()*/

  publisher->publish(*dataEntity, std::chrono::milliseconds(100));
}

std::this_thread::sleep_for(std::chrono::milliseconds(100));

std::vector<std::shared_ptr<elt::SampleDataEntity>> samples = subscriber->read(0);

std::shared_ptr<elt::SampleDataEntity> sample = samples.at(0);

/* Obtain tracer using opentracing API */
std::shared_ptr<opentracing::Tracer> tracer = opentracing::Tracer::Global();

/* Obtain the span context from sample and create a child span */
std::stringstream contextStrm(sample->getTrace());

std::unique_ptr<::opentracing::SpanContext> spanContext = ::elt::mal::util::tracing::deserializeSpan(contextStrm);

{
  std::unique_ptr<opentracing::Span> childSpan = opentracing::Tracer::Global()->StartSpan(
    "tracerPublishSubscribeTest",
    {opentracing::ChildOf(spanContext.get())});
}

Listing 8‑6 Tracing mal pub/sub example (Java)

/**
 * @brief Initialize tracing (implementation specific to the user
 * environment, mal is using only opentracing API to obtain the tracer)
 *
 *  In this example we are using jaeger implementation of opentracing
 *  standard.
 *
 * @param serviceName service name
 */
public static void initializeTracing(String serviceName) {

  /* Configuration specific to jaeger (opentracing API implementation) */
  Configuration.SamplerConfiguration samplerConfig =
  Configuration.SamplerConfiguration.fromEnv().withType("const").withParam(1);

  Configuration.ReporterConfiguration reporterConfig =
  Configuration.ReporterConfiguration.fromEnv().withLogSpans(true);

  Configuration config = new
  Configuration(serviceName).withSampler(samplerConfig).withReporter(
    reporterConfig);

  /* Register jaeger tracer as global opentracing tracer,
     MAL will call opentracing API to obtain this tracer */
  GlobalTracer.registerIfAbsent(config.getTracer());
}
initializeTracing(“some service”);

/* Create a subscriber and a publisher in usual way and start publishing */
URI uri = new URI("zpb.ps://127.0.0.1:12517/Sample");

try (Subscriber<SimpleSample> subscriber =
  CiiFactory.getInstance().getSubscriber(
    uri, QoS.DEFAULT, this.malProperties, SimpleSample.class);
  Publisher<SimpleSample> publisher =
    CiiFactory.getInstance().getPublisher(
      uri, QoS.DEFAULT, malProperties, SimpleSample.class);
) {

  SimpleSample dataEntity = publisher.createDataEntity();

  dataEntity.setValue(42.0);
  dataEntity.setDaqId(0);

  final int sampleCount = 3;
  for (int i = 0; i < sampleCount; i++) {
    dataEntity.setValue(i);
    dataEntity.setDaqId(i);

   /* Since the global tracer is set (initializeTracing) and
    SimpleSample has struct attribute trace="true",
    MAL will start a new span and finish it immediately and
    propagate the span context using sample.setTrace() */

    publisher.publish(dataEntity, 100, TimeUnit.MILLISECONDS);
  }
  /* Get published samples */
  ArrayList<SimpleSample> samples = new ArrayList<>();
  LocalDateTime now = LocalDateTime.now();
  LocalDateTime timeLimit = now.plusSeconds(10);
  while (timeLimit.isAfter(now)) {
    List<SimpleSample> readSamples = subscriber.read(0);
    samples.addAll(readSamples);

    if (samples.size() == sampleCount) {
      break;
    }

    now = LocalDateTime.now();
  }

  SimpleSample simpleSample = samples.get(0);

  /* Obtain the span context from sample and create a child span */

  Span span = TracingUtil.createSpan("SubscriberDemo",
     simpleSample.getTrace(), Tags.SPAN_KIND_CONSUMER);

9.7.2.6. Context Propagation

Tracing context is automatically propagated through MAL communication. Every request-reply action is instrumented. Upon completion or cancelation of the request, the Span.finish() method is called on the created span.

OLDB messaging automatically propagates the tracing context as well. If there is no active span at the time of call of OLDB API function, then no tracing context is transferred to the OLDB. Span.finish() method is called just before OLDB call completes but only if there was an active span. The OLDB client can obtain the span context from a data point value by calling a getTrace method which will return the context only if an active span exited at the time when write method was called. Otherwise, the context will be empty. It is then the responsibility of the client to create a child span from the context read from the data point value. For the OLDB subscriptions the user is also responsible for obtaining the span context from data point value received trough a subscription listener (NewValue call) and then creating new child spans.

In both cases, if there is an active span, the new span is created with the active span as a parent.

Any other type of tracing context propagation is the responsibility of the developer (see [22]).

9.7.3. Tracing Services

This section describes the services used by tracing. The services described below are used for collection, transmission, persistence, and querying of distributed CII traces data. They must be running and properly configured for the tracing system to work.

These services should be managed and maintained by system administrators. See the Log TRD document on how to set up the tracing services.

Documentation on configuration and deployment of these services can be found in [23].

9.7.3.1. Jaeger Agent

Network daemon that listens for spans sent over UDP, which it batches and sends to the collector.

9.7.3.2. Jaeger Collector

Receives traces from Jaeger Agents and runs them through a processing pipeline. It is responsible for persisting traces to the storage backend. It supports Elasticsearch as a storage backend.

9.7.3.3. Jaeger Query

This service retrieves traces from storage and hosts a UI to display them

9.7.4. Tracing GUI (Jaeger UI)

The Jaeger UI is a web application provided by the Jaeger Query service. It allows browsing the tracing data produced by the different CII services and applications.

By default, it’s available on port 16686.

To access it, open to the http://ciijaegerqueryhost:16686 on your browser, where ciijaegerqueryhost is the hostname of the Jaeger Query service. The Jaeger UI search page will be presented to the user, as shown in Figure 8‑6.

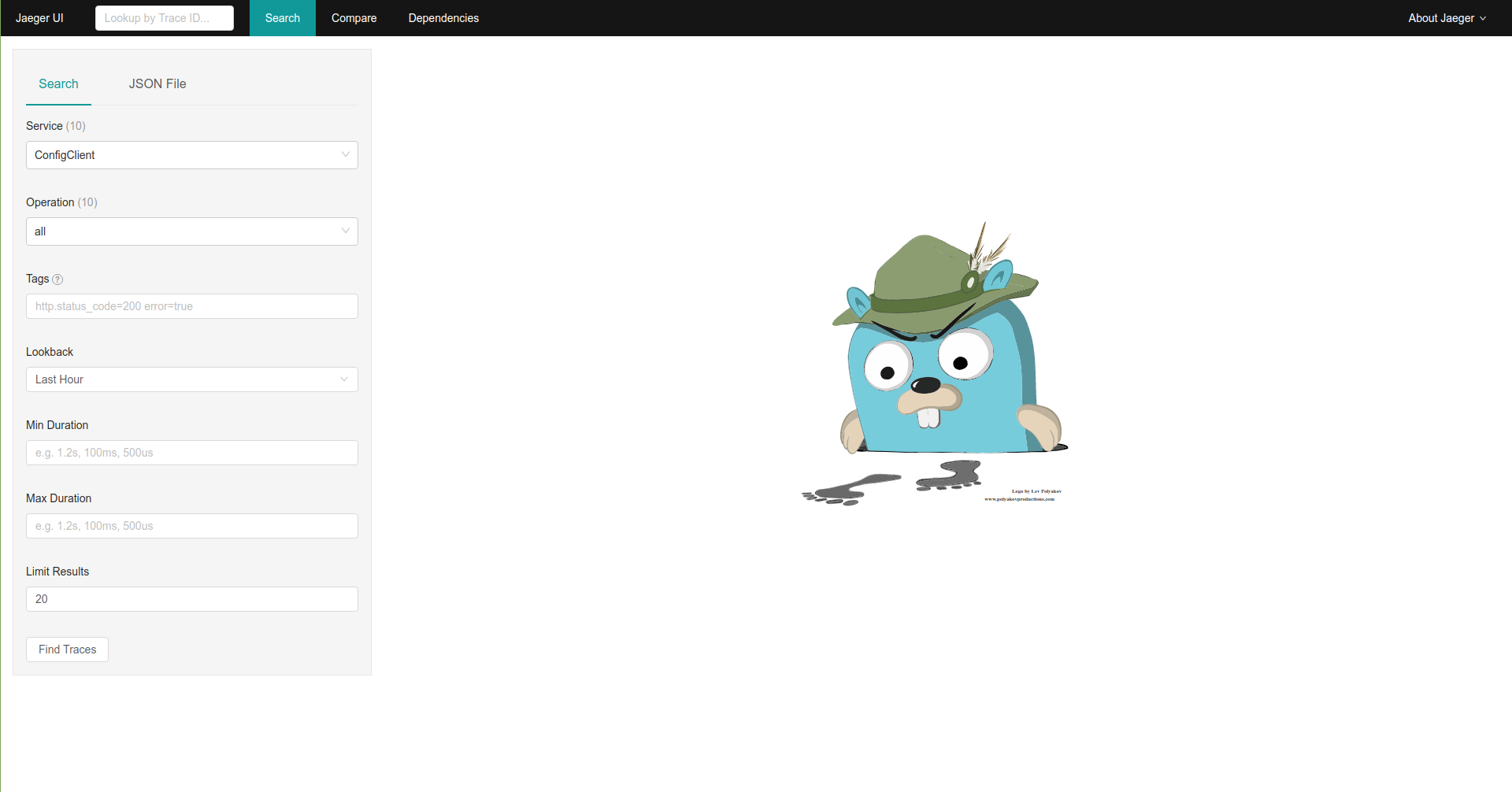

Figure 8‑6 Jaeger UI search view

On the left side of this view, the different filtering parameters for the traces search can be defined by the user. To perform the search, click the Find Traces button. When this button is clicked, a list of traces matching the search filtering options will be displayed on the right side of the screen, as shown in Figure 8‑7.

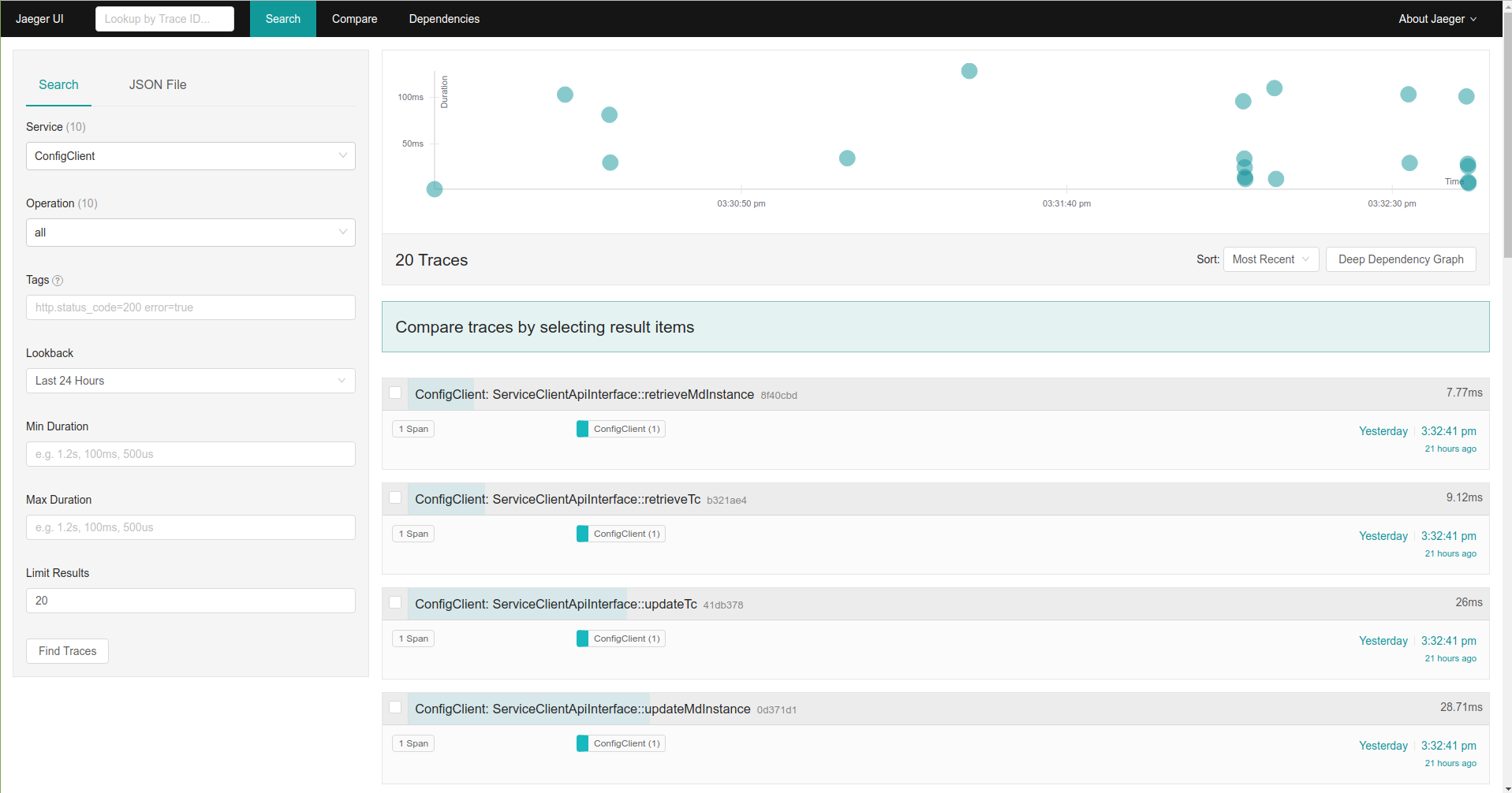

Figure 8‑7 Jaeger UI traces search result

It is possible to look for a specific trace using the Lookup by Trace ID input field on the top-left side of the screen. It is also possible to browse a trace directly with the URL https://ciijaegerqueryhost:16686/trace/<trace_id>.

When clicking on a trace on the search results list, or accessing it directly, the trace view will be presented to the user in a trace timeline view, as shown in Figure 8‑8. Clicking on each of the spans will display the information about that span.

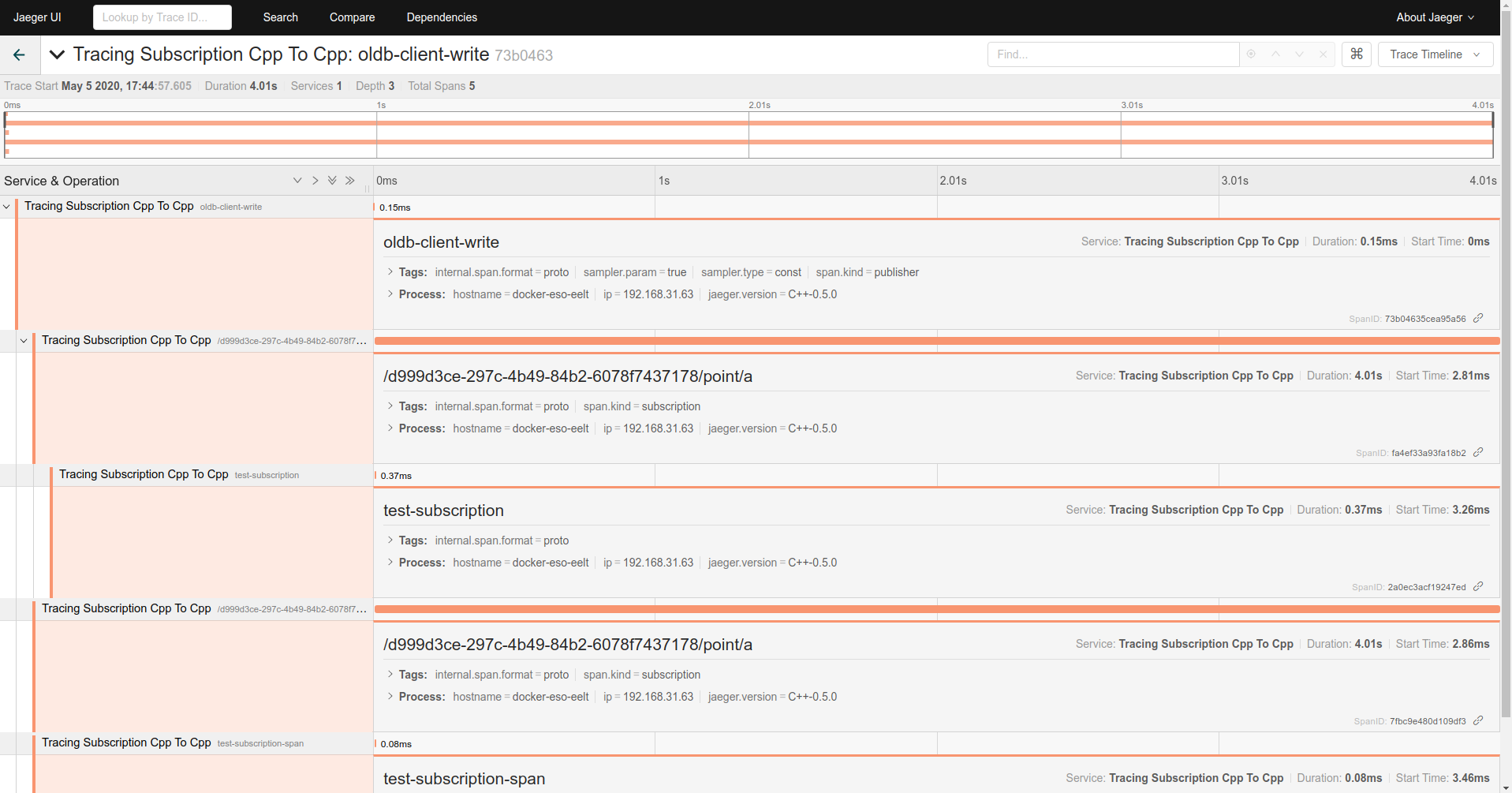

Figure 8‑8 Jaeger UI trace view

The trace view offers the following trace visualization modes:

• Trace Timeline: Displays the trace and its spans in a timeline visualization (Figure 8‑8).

• Trace Graph: Displays the trace and its spans as a directed acyclic graph (Figure 8‑9).

• Trace JSON: Displays the trace and its spans as a JSON object.

• Trace JSON (Unadjusted): Displays the trace and its spans as a JSON object with raw data without any adjustments [25].

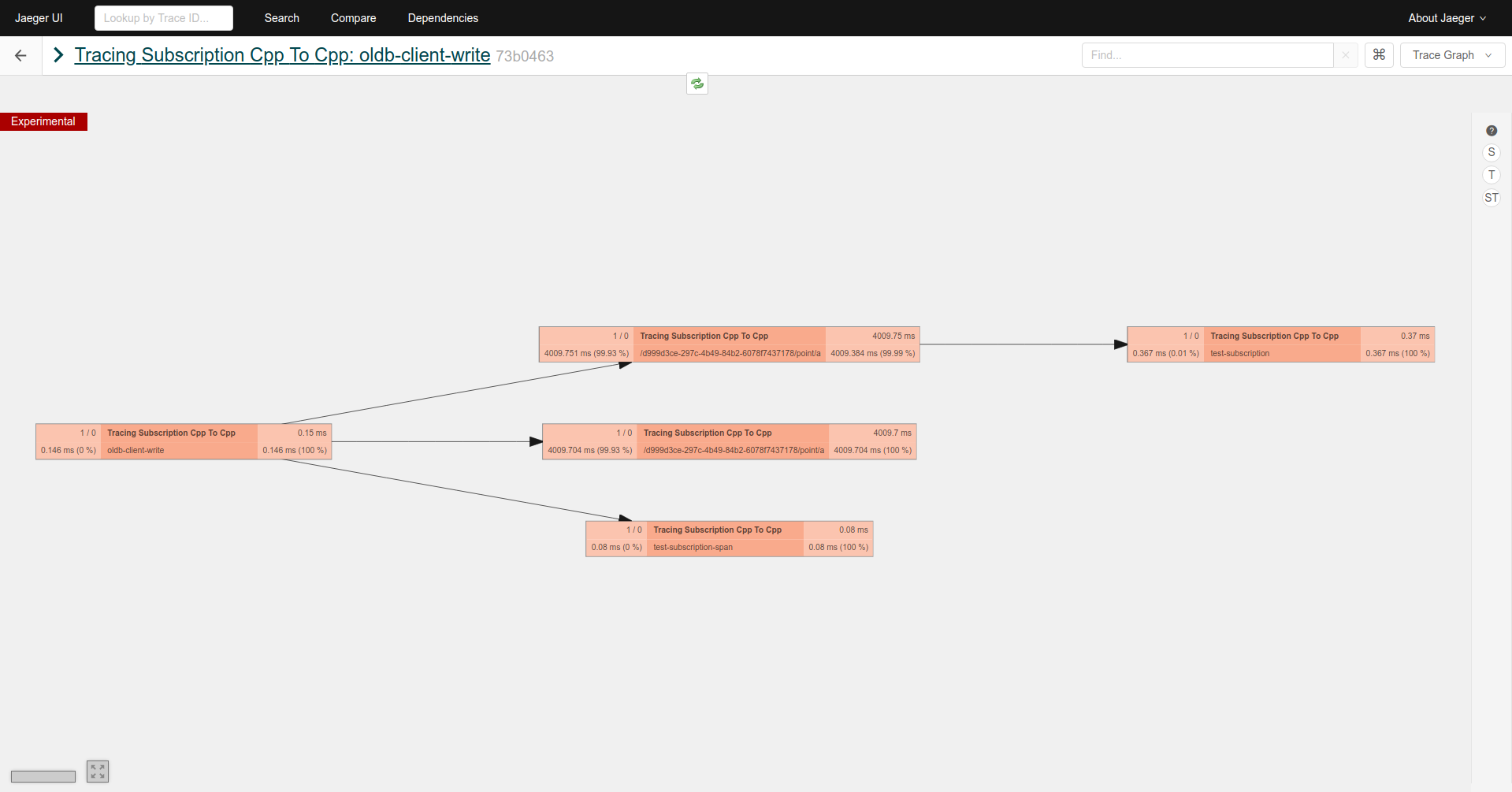

Figure 8‑9 Jaeger UI Trace Graph visualization

9.8. CII Log Client API

This are the listings for the CII Log API methods with short descriptions. APIs for Java, C++, and Python are slightly different, therefore a listing for each of the three languages is provided.

9.8.1. Java

Java CII Log API is provided by the CiiLogManager, CiiLogMessageBuilder , CiiLayout, and CiiSimpleLayout.

9.8.1.1. CiiLogManager

public static Logger getLogger()
CII logger factory method. Returns: A formatter logger object with the name of the calling class. It automatically initializes and configures the logging context if it has not been initialized previously.

public static Logger getLogger(String loggerName)
CII logger factory method. Returns: A formatter logger object with the provided name. It automatically initializes and configures the logging context if it has not been initialized previously.

public static void addAppender(Appender appender, Level level, Filter filter)
This method adds an appender with the provided level and filter to the root logger. Parameters: appender The appender to be added. level The level threshold for the appender. filter The filter to be applied to log messages by the appender.

public static void isPostmortemBufferEnabled()
Checks if the postmortem buffer is enabled. Returns: true if the post moretem buffer is enabled, false otherwise.

public static boolean flushPostmortemBuffer()
Flushes buffered logs to appenders that have previously rejected those log messages. Returns: A boolean value indicating if the flushing of the buffer was actually performed. For example, if the method is called when the buffer is disabled, it will return false.

public static void shutdown()
Shuts down current logging context.

public static long elt.log.CiiLogManager.getPostmortemBufferTtlMillis()
Gets the value of the postmortem Time-To-Live (TTL) for buffered log events. Returns: TTL of the postmortem buffer in ms.

9.8.1.2. CiiLogMessageBuilder

public static CiiLogMessageBuilder create(String message)
Factory method to create a CiiLogMessageBuilder instance with the provided Message field value. Parameters: message The message value. Returns: The message builder.

public static CiiLogMessageBuilder create()
Factory method to create a CiiLogMessageBuilder instance. Returns: The message builder.

public CiiLogMessageBuilder withMessage(String message)
Sets the Message field value. Parameters: message The message value. Returns: The message builder.

public CiiLogMessageBuilder withUserLogId(String userLogId)
Sets the UserLogID field value. Parameters: userLogId The user ID value. Returns: The message builder.

public CiiLogMessageBuilder withAudience(CiiLogAudience audience)
Sets the Audience field value. Parameters: audience The audience value. Returns: The message builder.

public CiiLogMessageBuilder withTracingInfo()
Indicates the CiiLogMessageBuilder to include TraceID and SpanID fields from the current tracing context. Returns: The message builder.

public CiiLogMessageBuilder withTracingInfo(Boolean withTracingInfo)
Indicates the CiiLogMessageBuilder if it should include TraceID and SpanID fields from the current tracing context. Parameters: withTracingInfo Boolean indicating if tracing info should be added to the built message. Returns: The message builder.

public CiiLogMessageBuilder withCiiException()
Sets a CiiException to be formatted to the ErrorTypeName, ErrorDateTime, ErrorMessage, and ErrorTrace and added to the log message. Returns: The message builder.

public String build()
Constructs the log message string according to the defined parameters. Returns: The formatted string.

public static String createAndBuildWithException(String message, CiiException exception)
Convenience method that creates a formatted log message with the the provided Message field value and the fields containing the CiiException info. Parameters: message The message value. Exception The exception to be formatted. Returns: The formatted string.

public static String createAndBuildWithAudience(String message, CiiLogAudience audience)
Convenience method that creates a formatted log message with the the provided Message field value and the provided audience. Parameters: message The message value. audience The audience value. Returns: The formatted string.

9.8.1.3. CiiLayout

public static CiiLayout create()
Factory method to create a CiiLayout instance. Returns: A new CiiLayout instance.

9.8.1.4. CiiSimpleLayout

public static CiiSimpleLayout create()
Factory method to create a CiiSimpleLayout instance. Returns: A new CiiLayout instance.

9.8.2. C++

C++ CII Log Client API is provided by CiiLogManager, CiiLogMessageBuilder, CiiLogConfigurator, CiiLayout, and CiiSimpleLayout classes.

9.8.2.1. CiiLogManager

void elt::log::CiiLogManager::configure ( const std::map< std::string, std::string > & properties, cpp_logging=False )
Configure logging from properties. Parameters: properties Logging configuration written as properties (name and value pairs) cpp_logging Forward the configuration to the C++ CII Log Manager

void elt::log::CiiLogManager::configure ( const std::string & logConfigFile, cpp_logging=False )
Configure logging from a file name. Parameters: logConfigFile Logging configuration file cpp_logging Forward the configuration to the C++ CII Log Manager

std::string elt::log::CiiLogManager::detailMessage( const std::string & message, const CiiLogAudience audience, const std::string userLogId = “” )
Utility method producing a detailed message with all method’s parameters included. Parameters: message message part of detailed message audience audience part of detailed message userLogId userLogId part of detailed message

log4cplus::Logger elt::log::CiiLogManager::getLogger ( const std::string loggerName )
Gets a logger instance. Parameters: loggerName logger name

9.8.2.2. CiiLogMessageBuilder

Provides a way to construct a log message according to the CII log format

elt::log::CiiLogMessageBuilder::CiiLogMessageBuilder ( )
Default constructor.

elt::log::CiiLogMessageBuilder::CiiLogMessageBuilder ( const std::string & message )
Constructor, taking message as argument Parameters: message Message value

std::string elt::log::CiiLogMessageBuilder::Build ( ) const
Build formatted log message string from information within builder and return it. Returns: The formatted log message string

static CiiLogMessageBuilder elt::log::CiiLogMessageBuilder::Create ( )
Static method to create CiiLogMessageBuilder (Java API compat) Returns: A new instance of the CiiLogMessageBuilder

static CiiLogMessageBuilder elt::log::CiiLogMessageBuilder::Create ( const std::string & message )
Static method to create CiiLogMessageBuilder with message (Java API compat) Parameters: message Message value Returns: A new instance of the CiiLogMessageBuilder

static std::string elt::log::CiiLogMessageBuilder::CreateAndBuildWithAudience ( const std::string & message, CiiLogAudience audience )
Static method to create a formatted log message string with provided message and audience Parameters: message Message value audience Target log audience Returns: The formatted message string

static std::string elt::log::CiiLogMessageBuilder::CreateAndBuildWithException ( const std::string & message, const elt::error::CiiException & exception )
Static method to create a formatted log message string with provided message and CiiException Parameters: message Message value exception Reference to the instance of the elt::error::CiiException Returns: The formatted message string

static std::string elt::log::CiiLogMessageBuilder::CreateAndBuildWithMessage ( const std::string & message )
Static method to create a formatted log message string with provided message Parameters: message Message value Returns: The formatted message string

CiiLogMessageBuilder& elt::log::CiiLogMessageBuilder::WithAudience ( CiiLogAudience audience )
Add audience to the builder and return reference to self (chaining support) Parameters message audience CiiLogAudience value Returns A reference to self

CiiLogMessageBuilder& elt::log::CiiLogMessageBuilder::WithException ( const elt::error::CiiException & exception )
Add information about an elt::error::CiiException to the builder and return reference to self (chaining support). Parameters: exception Reference to the exception Returns: A reference to self

CiiLogMessageBuilder& elt::log::CiiLogMessageBuilder::WithException ( const std::exception & exception )
Add information about std::exception to the builder and return reference to self (chaining support) Parameters: exception Reference to the exception Returns: A reference to self

CiiLogMessageBuilder& elt::log::CiiLogMessageBuilder::WithMessage ( const std::string & message )
Add message to the builder and return reference to self (chaining support) Parameters: message message value Returns: A reference to self

CiiLogMessageBuilder& elt::log::CiiLogMessageBuilder::WithTracingInfo ( bool tracing_info )
Enable/disable tracing info flag and return reference to self (chaining support) Parameters: tracing_info boolean flag to enable/disable addition of tracing information into the message Returns: A reference to self

CiiLogMessageBuilder& elt::log::CiiLogMessageBuilder::WithUserLogId ( const std::string & user_log_id )
Add user log ID string to the builder and return reference to self (chaining support) Parameters: user_log_id user defined log id string Returns: A reference to self

9.8.2.3. CiiLogConfigurator

Configures Log4cplus loggers and appenders from configuration file and injects each configured logger with one PostmortemAppender instance to keep all filtered events for some specified time for later usage.

Configure loggers with configuration from log4cplus.properties file and life time of 1 second with example:

//configure log4cplus from log4cplus.properties file and then set the
//life time of the stored events for 1 second
CiiLogConfigurator::doConfigure ( 1 , "log4cplus.properties" );

If configuration of Log4cplus is initialized without the postmortem buffer enabled, it is possible to enable it once the Log4cplus configuration has been initialized with the following method:

//set the life time of the stored events for 1 second
CiiLogConfigurator::inject( 1 );

To dump stored events which still have valid lifetimes call this method:

//dump all valid events to parent logger
CiiLogConfigurator::postmortemDump();

CiiLogConfigurator has an option to reset log4cplus configuration be fully reset when calling doConfigure:

CiiLogConfigurator::setResetOnConfigure( shouldReset );

static void elt::log::CiiLogConfigurator::doConfigure( uint32_t life_time, const log4cplus::tstring & config_filename, log4cplus::Hierarchy & h = log4cplus::Logger::getDefaultHierarchy(), unsigned flags = 0 )
This method eliminates the need to create a temporary PropertyConfigurator to configure log4cplus. It is equivalent to the following: PropertyConfigurator config("filename"); config.configure(); Parameters: life_time The life time in seconds for an event to be stored internally in the Postmortem appender config_filename The configuration file name h root hierarchy flags flags

static void elt::log::CiiLogConfigurator::inject ( uint32_t life_time )
Inject PostMortemAppender into each configured logger instance without loading property file. Parameters: life_time The life time in seconds for an event to be stored internally in the Postmortem appender

static void elt::log::CiiLogConfigurator::postmortemDump ( )
Dump all valid events (events which have life time less than globally specified life time) to all the loggers that previously rejected them.

static void elt::log::CiiLogConfigurator::setResetOnConfigure ( bool reset )
Decides whether the configuration should reset all already configured loggers when a new configuration is applied. Parameters: reset true = enable, false = disable

static bool elt::log::CiiLogConfigurator::getResetOnConfigure ( )
Returns: Boolean indicating if the existing loggers will be reset when a configuration is applied.

9.8.2.4. CiiLayout

Log layout for CII Log format.

elt::log::layout::CiiLayout::CiiLayout( const log4cplus::helpers::Properties & properties )
Construct CII layout with properties. Parameters: properties Layout properties.

9.8.2.5. CiiSimpleLayout

Simple log layout for CII Log format.

elt::log::layout::CiiSimpleLayout::CiiSimpleLayout( const log4cplus::helpers::Properties & properties )
Construct CII simple layout with properties. Parameters: properties Layout properties.

9.8.3. Python

Python CII Log Client API is provided by CiiLogManager, CiiLogConfigurator, and CiiLogMessageBuilder classes.

9.8.3.1. CiiLogManager

Provides methods to manage and configure logging, as well as methods to obtain logger objects.

log.CiiLogManager.configure(config = None)

Perform logging configuration from provided dictionary/file just like logging.config.dictConfig() function with additional functionality: Initialize missing keys in the provided dictionary from CII_DEFAULT_CONFIG, so that the root logger gets initialized with logsink and console handlers. Configuration dictionary supports additional top level key cii_log_buffer, which must contain a dictionary with keys enabled and ttl_ms. The value of enabled key must be boolean. When True, a log buffer will be enabled. The value of ttl_ms key must be integer defining captured record Time-To-Live in ms (within the buffer). Note that these settings will be overridden with the values of the environment variables below. Environment variables CII_LOG_BUFFER_ON and CII_LOG_BUFFER_TTL_MS are checked for existence. These environment variables override settings for cii_log_buffer provided in the configuration dictionary. If CII_LOG_BUFFER_ON exists AND has value 1 or TRUE (case insensitive), the log buffer will be enabled. The value of 0 or FALSE will disable the log buffer. Environment variable CII_LOG_BUFFER_TTL_MS if exists, must be convertible to int and represents the number of milliseconds that the log buffer retains the messages. When this variable does not exist, the default of 60000ms is assumed. Parameters: config Configuration dictionary or filename or None. When a filename is provided, it must be a valid JSON file that can be parsed into the config dictionary. When None is provided, the configuration dictionary is used from the default CII_DEFAULT_CONFIG dictionary. Returns: Dictionary with the actual configuration used.

log.CiiLogManager.get_logger(name = None)
CII logger factory method. Parameters: name Name of the logger or None to obtain root logger. Returns: Instance of logger object.

log.CiiLogManager.flush_postmortem_buffer()
Flush buffered logs to the handlers that have previosly rejected thos log messages. Cyclic log buffer is reset. Returns: True if flushing was actually performed, False otherwise.

log.CiiLogManager.is_postmortem_buffer_enabled()
Query whether buffered logger is installed. Returns: True when that is the case, False otherwise.

9.8.3.2. CiiLogConfigurator

log.CiiLogConfigurator.load_configuration(filename)
Load log configuration from provided file. Log configuration must be saved in JSON format. Note that this is not supported with Python logging subsystem. Parsing of log configuration must produce a dictionary that is compatible with CiiLogManager.configure() method Parameters: filename Name of JSON file containing configuration. Returns: Dictionary with log configuration.

log.CiiLogConfigurator.configure(config = None)

Perform logging configuration from provided dictionary/file just like logging.config.dictConfig() function with additional functionality: Initialize missing keys in the provided dictionary from CII_DEFAULT_CONFIG, so that the root logger gets initialized with logsink and console handlers. Configuration dictionary supports additional top level key cii_log_buffer, which must contain a dictionary with keys enabled and ttl_ms. The value of enabled key must be boolean. When True, a log buffer will be enabled. The value of ttl_ms key must be integer defining captured record Time-To-Live in ms (within the buffer). Note that these settings will be overridden with the values of the environment variables below. Environment variables CII_LOG_BUFFER_ON and CII_LOG_BUFFER_TTL_MS are checked for existence. These environment variables override settings for cii_log_buffer provided in the configuration dictionary. If CII_LOG_BUFFER_ON exists AND has value 1 or TRUE (case insensitive), the log buffer will be enabled. The value of 0 or FALSE will disable the log buffer. Environment variable CII_LOG_BUFFER_TTL_MS if exists, must be convertible to int and represents the number of milliseconds that the log buffer retains the messages. When this variable does not exist, the default of 60000ms is assumed. Parameters: config Configuration dictionary or filename or None. When a filename is provided, it must be a valid JSON file that can be parsed into the config dictionary. When None is provided, the configuration dictionary is used from the default CII_DEFAULT_CONFIG dictionary. Returns: Dictionary with the actual configuration used.

log.CiiLogConfigurator.check_config( )
Check whether configure() method was already called. If that was not the case, it calls it to configure defaults.

log.CiiLogConfigurator.save_configuration(config, filename)
Save log configuration dictionary as json into provided filename. Parameters: config Dictionary with log configuration. filename Name of the output file.

log.CiiLogConfigurator.get_formatter(simple = False)
Create and return CII specific formatter Parameters: simple When set to True, return formatter with simple format, otherwise return formatter with CII full pattern. Returns: Instance of formatter object

log.CiiLogConfigurator.flush_postmortem_buffer()
Flush buffered logs to the handlers that have previosly rejected thos log messages. Cyclic log buffer is reset. Returns: True if flushing was actually performed, False otherwise.

log.CiiLogConfigurator.flush_postmortem_buffer_to_string()
Flush content of the cyclic log buffer to string. Cyclic log buffer is reset. Returns: String containing log messages captured by CiiBufferedLogger, or a RuntimeError when CiiBufferedLogger is not installed.

log.CiiLogConfigurator.reset_postmortem_buffer()
Empty the log buffer if buffered logger is installed. Returns: True when log buffer was reset, False when not installed.

log.CiiLogConfigurator.get_effective_logsink_filename()
Return full name of the filename for log sink (if one was created by calling get_logsink_filename). Returns: The filename of the logsink log file or None when get_logsink_filename was not called.

log.CiiLogConfigurator.get_logsink_filename()
Return full name of the filename for log sink. Returns: The filename of the logsink log file.

log.CiiLogConfigurator.enable_postmortem_buffer(ttl_seconds = 60)
Enable postmortem buffer by installing a buffered logger as a root logger. Parameters: ttl_seconds Message Time-To-Live in seconds. Returns: True when logger installed with this invocation, False when already installed. Note ttl_seconds parameter has no meaning when BufferedLogger is already installed.

log.CiiLogConfigurator.is_postmortem_buffer_enabled()
Query whether buffered logger is installed. Returns: True when that is the case, False otherwise.

9.8.3.3. CiiLogMessageBuilder

Provides a way to construct a log message according to the CII log format.

__init__(self, message=None)
Constructor Parameters: message The message field value.

create(cls, message=None)
Creates a formatted log message string with exception info. Parameters: message The message field value. Returns: A new instance of the CiiLogMessageBuilder.

create_and_build_with_exception(cls, message, exception)
Creates a formatted log message string with exception info. Parameters: message The message field value. exception The exception instance to be formatted to the appropriate fields the log message. Exception instance should be derived from the elt.config.CiiException. Returns: The formatted string.

create_and_build_with_audience(cls, message, audience)
Creates a formatted log message string with audience field. Parameters: message The message field value. audience The CiiLogAudience value to be formatted to the Audience field. Returns: The formatted string.

create_and_build_with_args(cls, **kwargs)

Create a formatted log message string from provided arguments. See with_args. The following arguments are supported: message: value of the message field (string). audience: value of the audience field (CiiLogAudience). user_log_id: value of the user log ID field. exception: exception to be formatted. with_tracing_info: boolean value for enabling/disabling of tracing info. Parameters: kwargs keyword arguments. Returns: The formatted string.

with_message(self, message)
Sets the mesage field value. Parameters: message The message field value. Returns: The builder instance itself.

with_user_log_id(self, user_log_id)
Sets the user ID field value. Parameters: user_log_id Value for the user log ID field. Returns: The builder instance itself.

with_audience(self, audience)
Sets the audience for the log message. Parameters: audience The intended CiiLogAudience of the log message. Returns: The builder instance itself.

with_tracing_info(self, tracing_info=True)
Sets the log message to include/exclude tracing info fields. Returns: The builder instance itself.

with_cii_exception(self, exception)
Sets the exception to be formatted and included in the log message. Parameters: exception Exception to be formatted and added to the log message. Returns: The builder instance itself.

with_exception(self, exception)
Sets the exception to be formatted and included in the log message. Alias for with_cii_exception. Parameters: exception Exception to be formatted and added to the log message. Returns: The builder instance itself.

with_args(self, message=None, audience=None, user_log_id=None, exception=None, with_tracing_info=None)

Sets the fields from provided keyword arguments. The following arguments are supported: message: value of the message field (string). audience: value of the audience field (CiiLogAudience). user_log_id: value of the user log ID field. exception: exception to be formatted. with_tracing_info: boolean value for enabling/disabling of tracing info. Parameters: kwargs keyword arguments. Returns: The builder instance itself

build(self)
Construct the log message string according to the defined parameters. Returns: The constructed log message following the Cii log format.

9.9. CII Log Fields

All fields in a log message, aside from the date/time fields are treated as strings.

Table 8‑3 Log fields

Field	ES field name	Description	Optional
Cref	cii.cref	Source filename/line number.	NO
Date	cii.date	Date and time of log creation down to milliseconds in UTC timescale with the ‘T’ designator between date and time, eg: 2020-03-16T09:3 2:09.681+0100. It follows ISO 8601 standard.	NO
HostName	cii.hostname	Hostname of the computing node where the log was produced.	NO
LogType	cii.logtype	The type of log message (level).	NO
SourceID	cii.sourceid	Class name, thread name.	NO
LogID	ci.logid	ID of the log message source location.	NO
Message	cii.message	Text message of the log event.	NO
Audience	cii.audience	The intended recipient of the log.	YES
UserLogID	cii.userlogid	A user provided ID.	YES
TraceID	cii.traceid	ID of the trace for the current tracing context.	YES
SpanID	cii.spanid	ID of the span for the current tracing context.	YES
ErrorTypeName	cii.error.typen ame	Name of the CII Error	YES
ErrorDateTime	cii.error.datet ime	Unix timestamp of the error	YES
ErrorMessage	cii.error.messa ge	Message of the error	YES
ErrorTrace	cii.error.trace	Stack trace of the error	YES
