LECHES

Mechanical Drawings

All mechanical pieces have been manufactured with the courtesy of the Ausbildungswerkstatt of the Max-Planck-Institut für extraterrestrische Physik. Our most grateful thanks to the director Mr. Richard Mayr (Ausbildungsleiter), to Mr. Peter Feldmeier (Stellvertretrer) and his learning team, in particular Franz Soller who dedicated his time and experience to the manufacturation of the many different components of Leches (see here their web page)

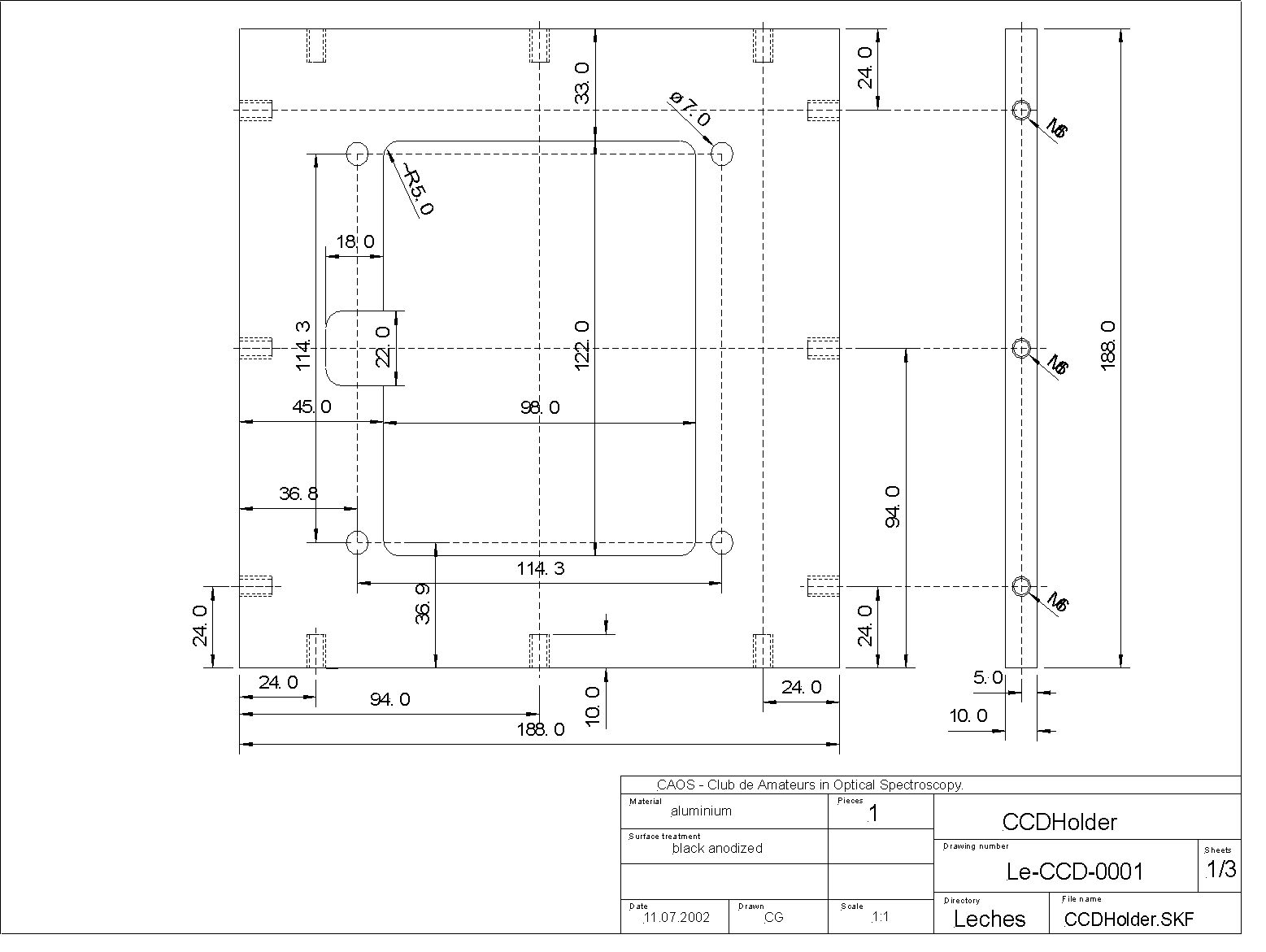

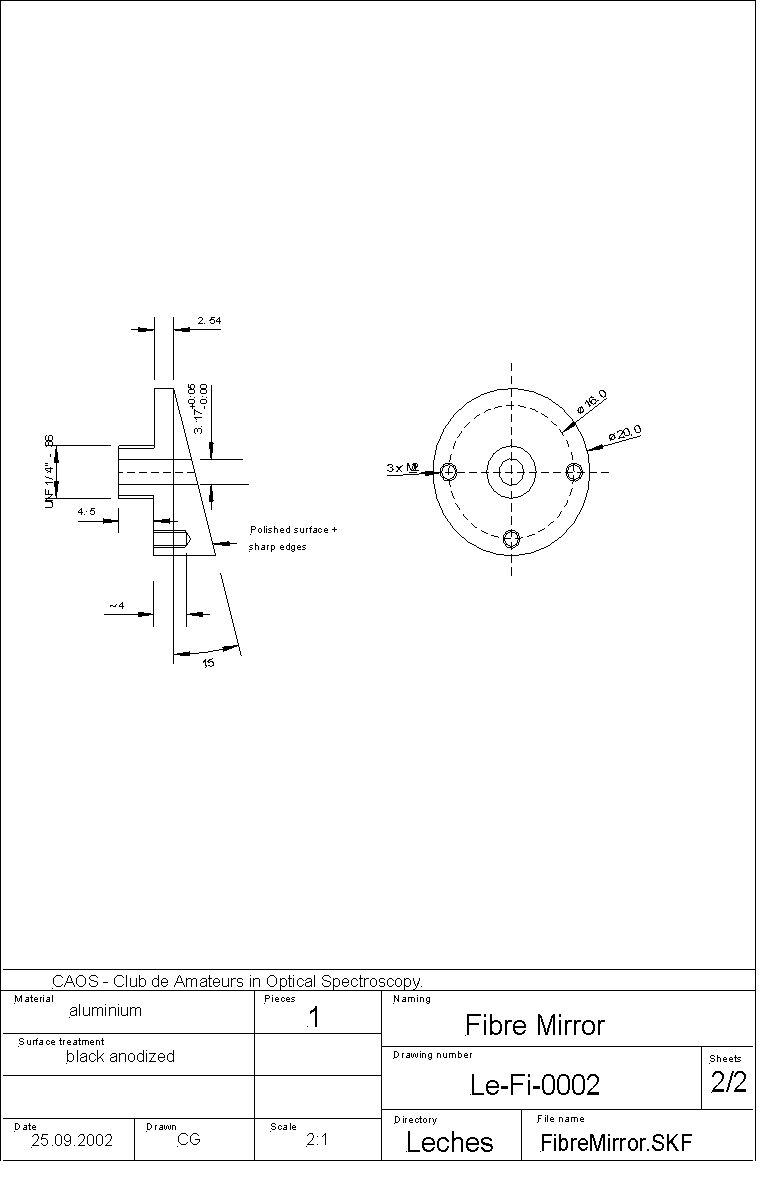

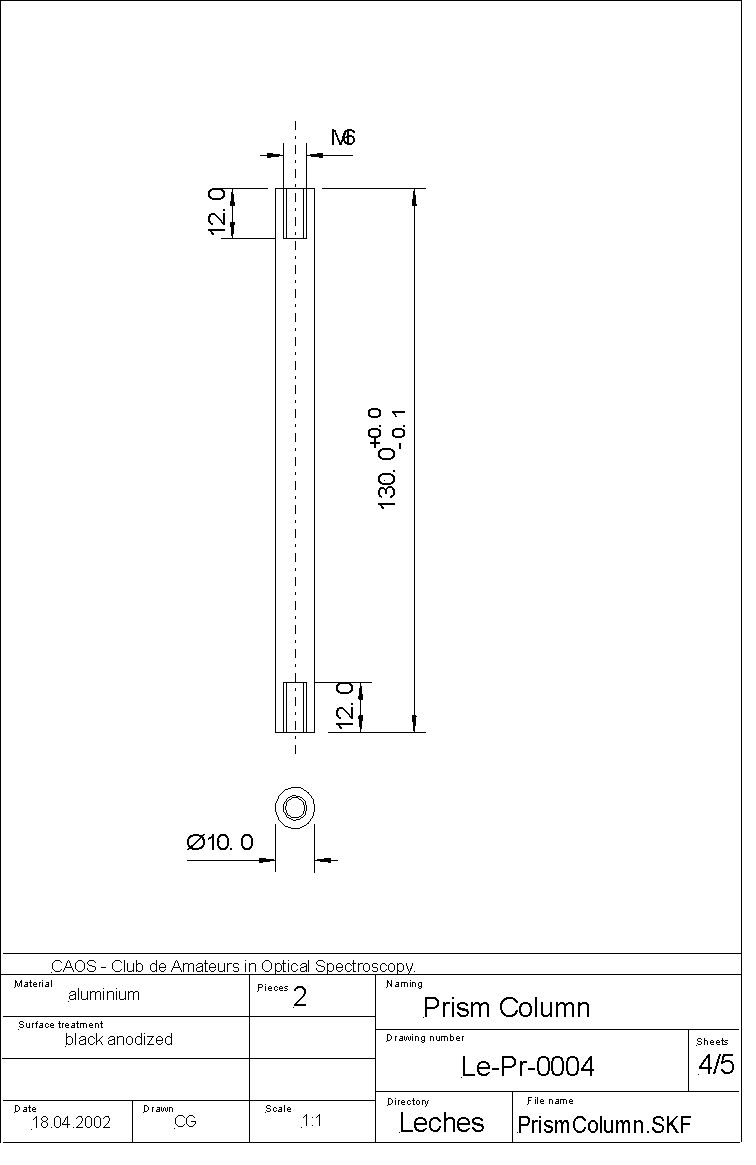

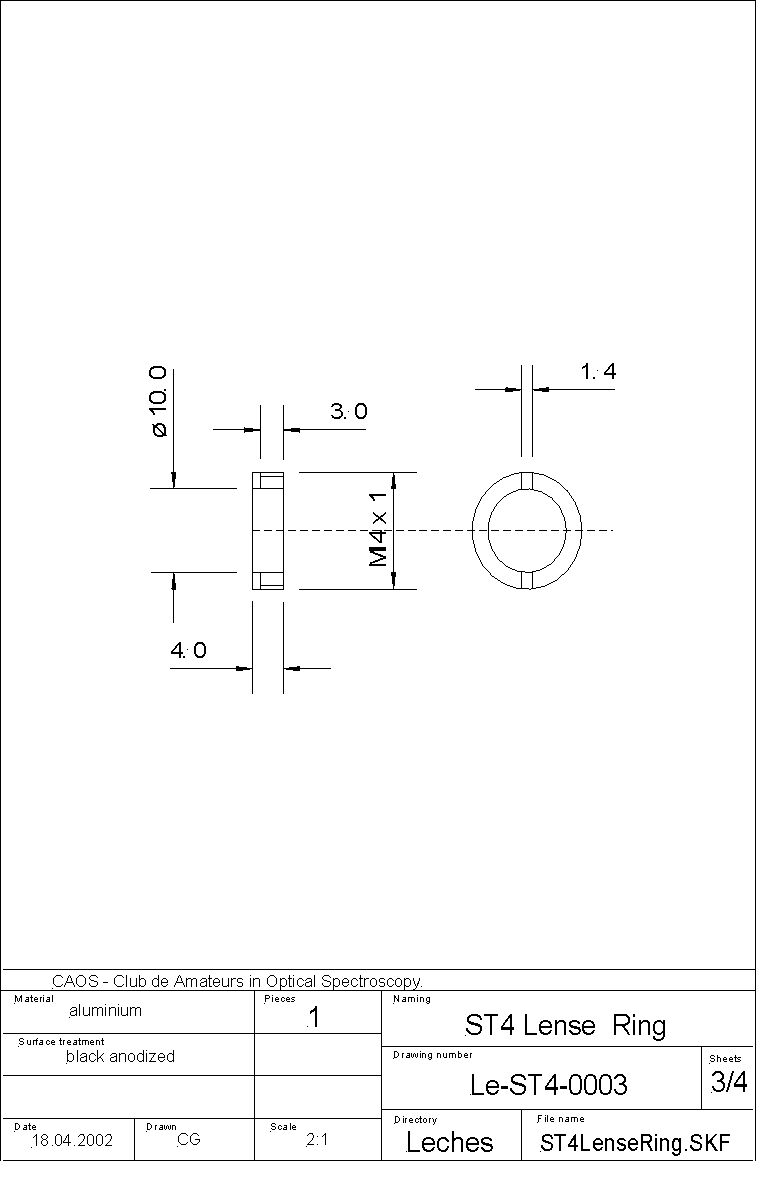

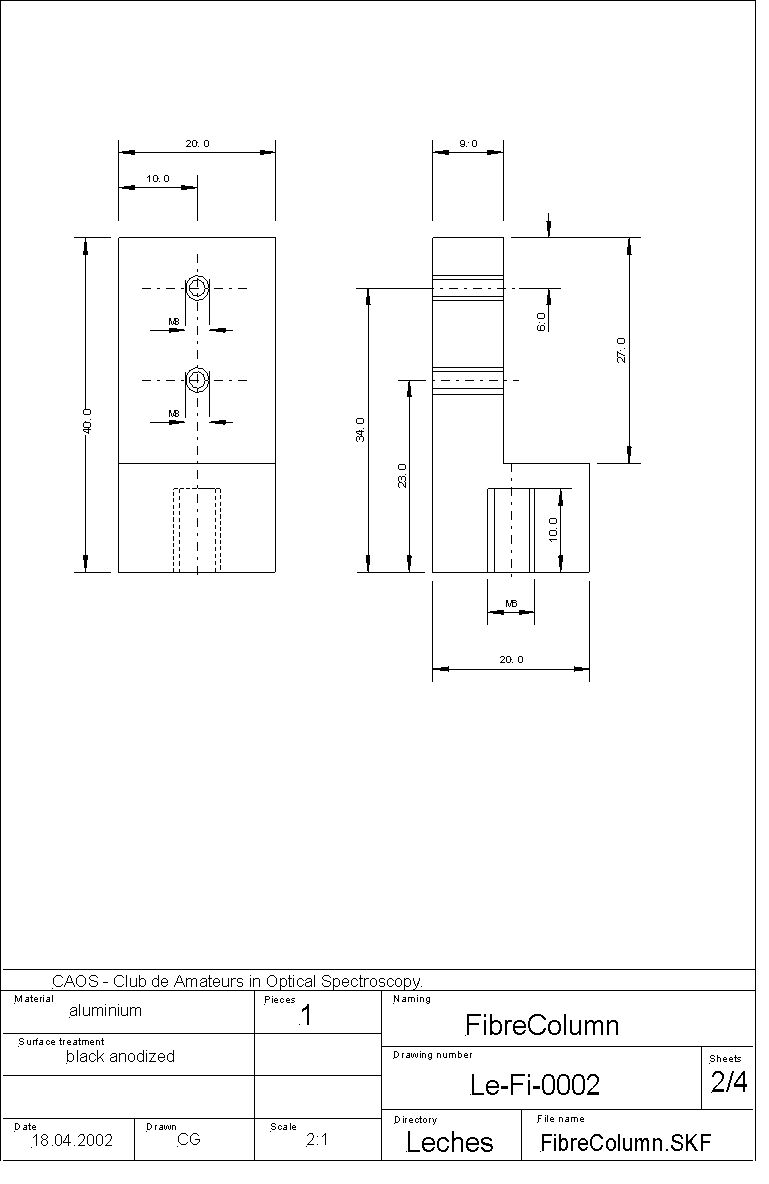

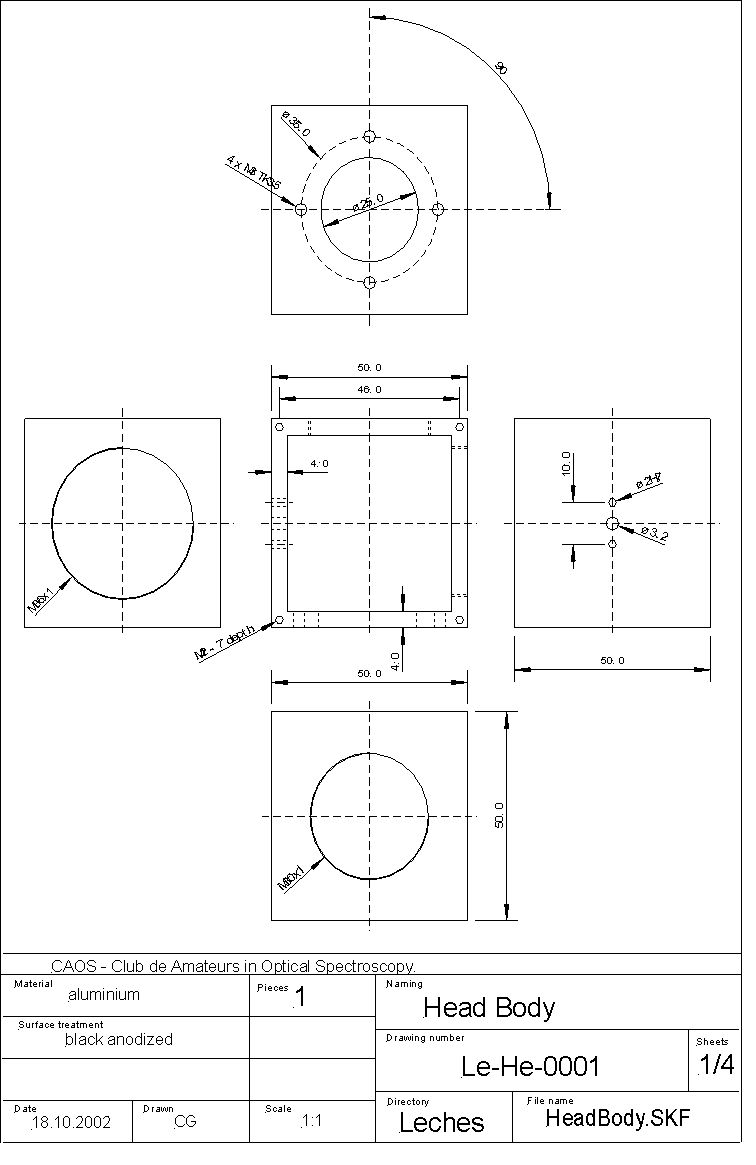

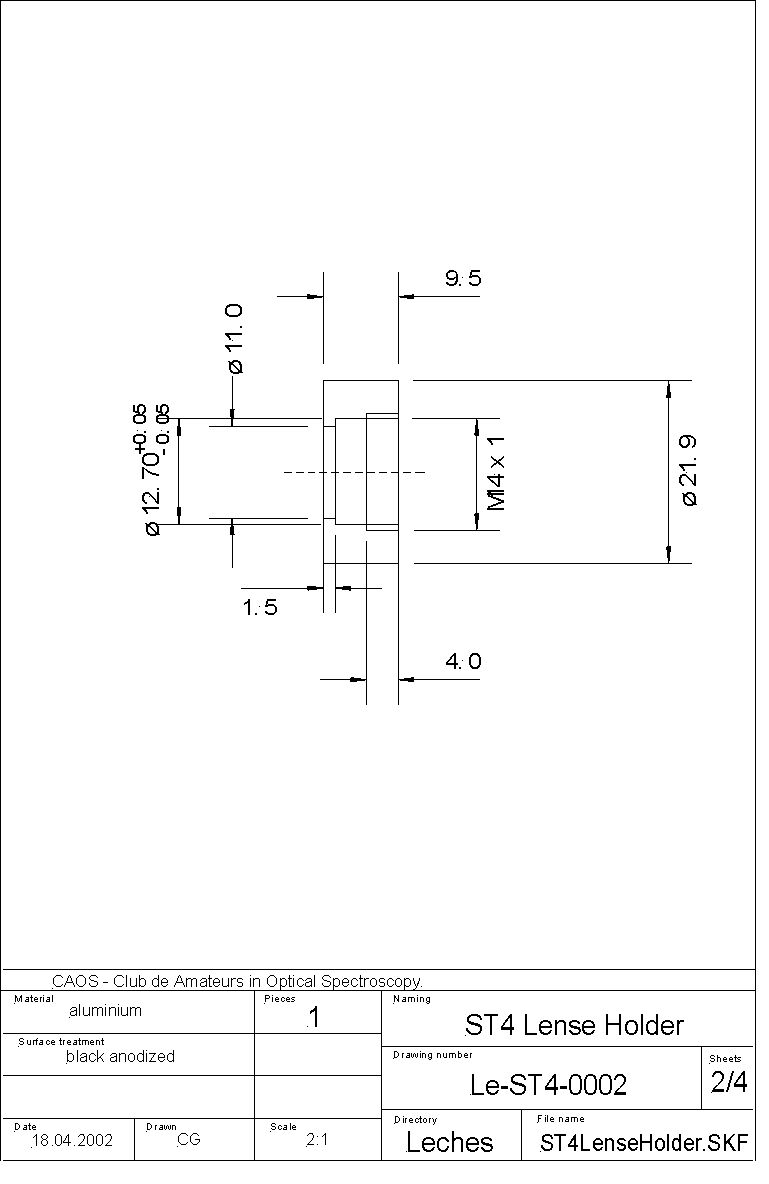

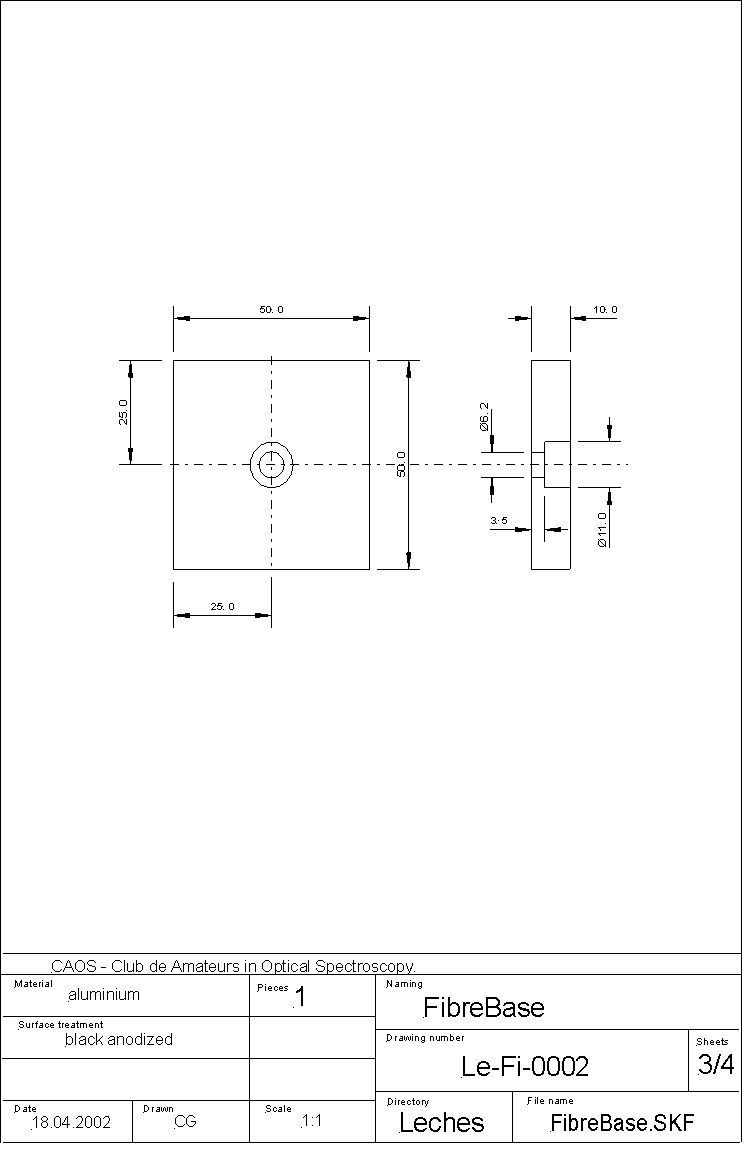

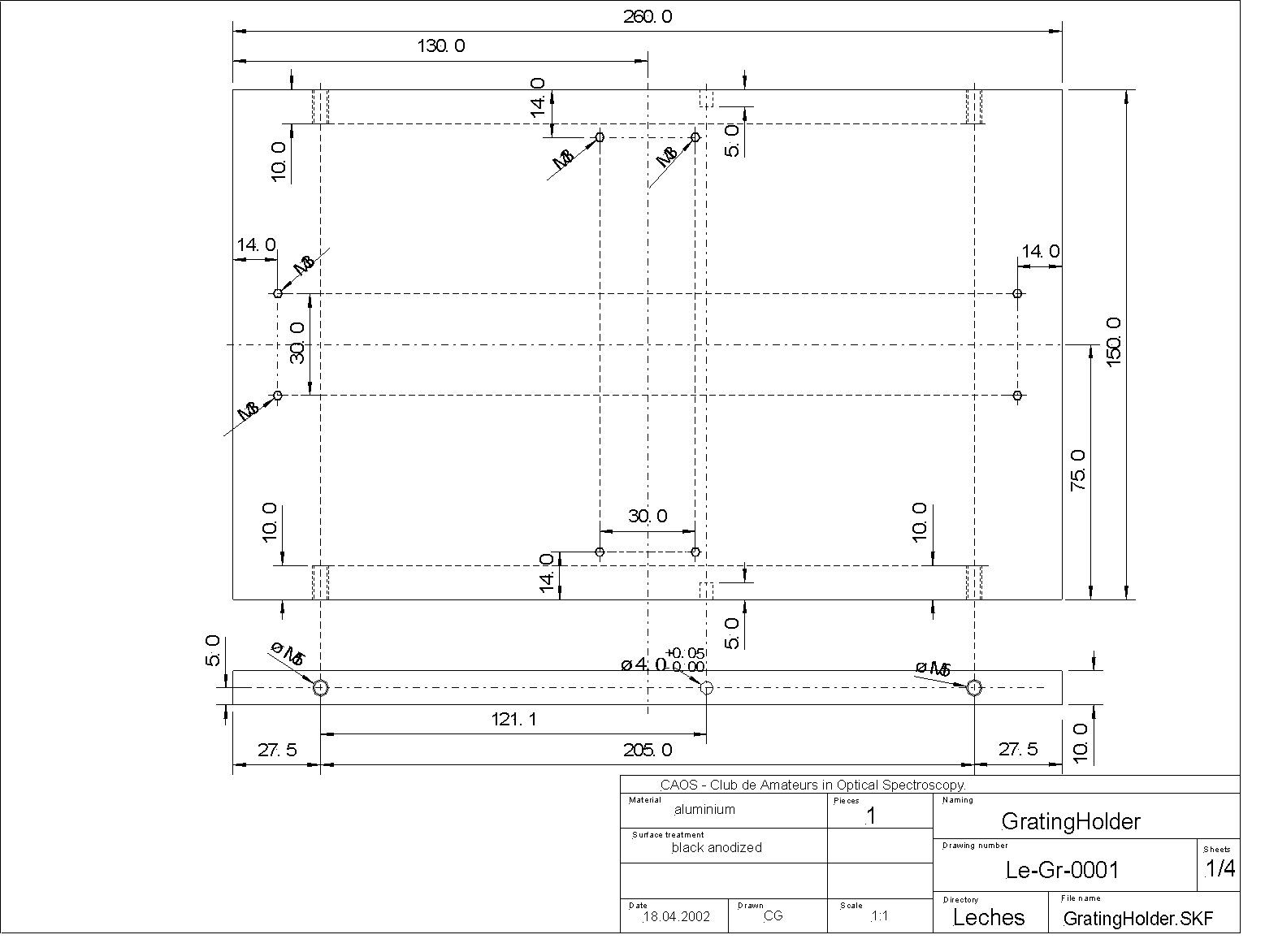

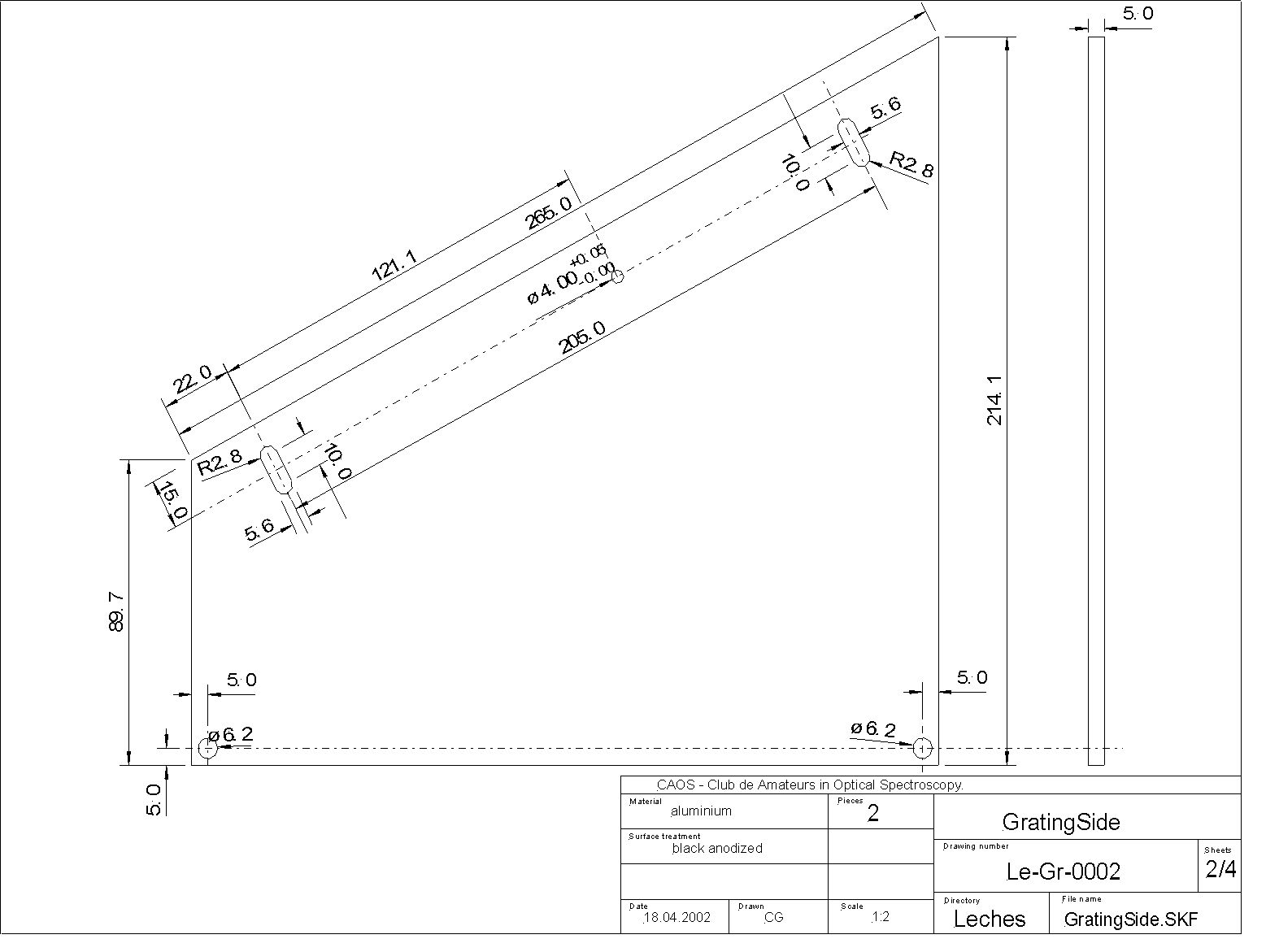

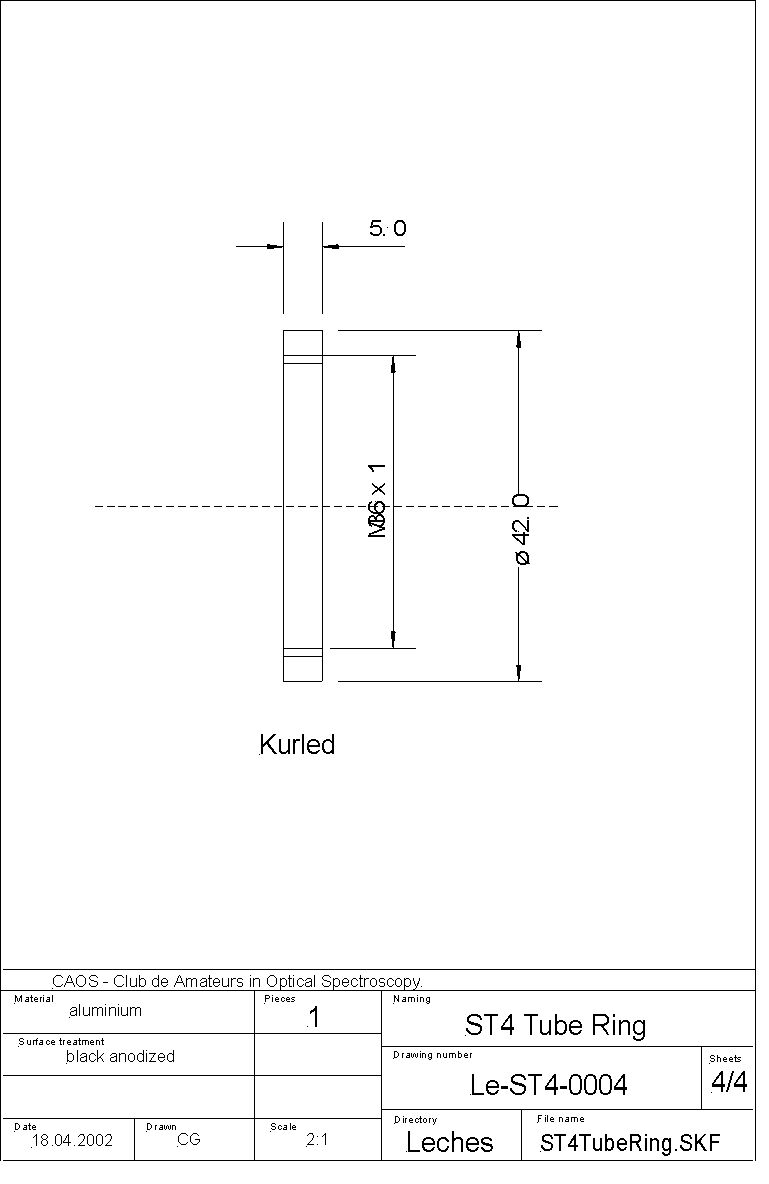

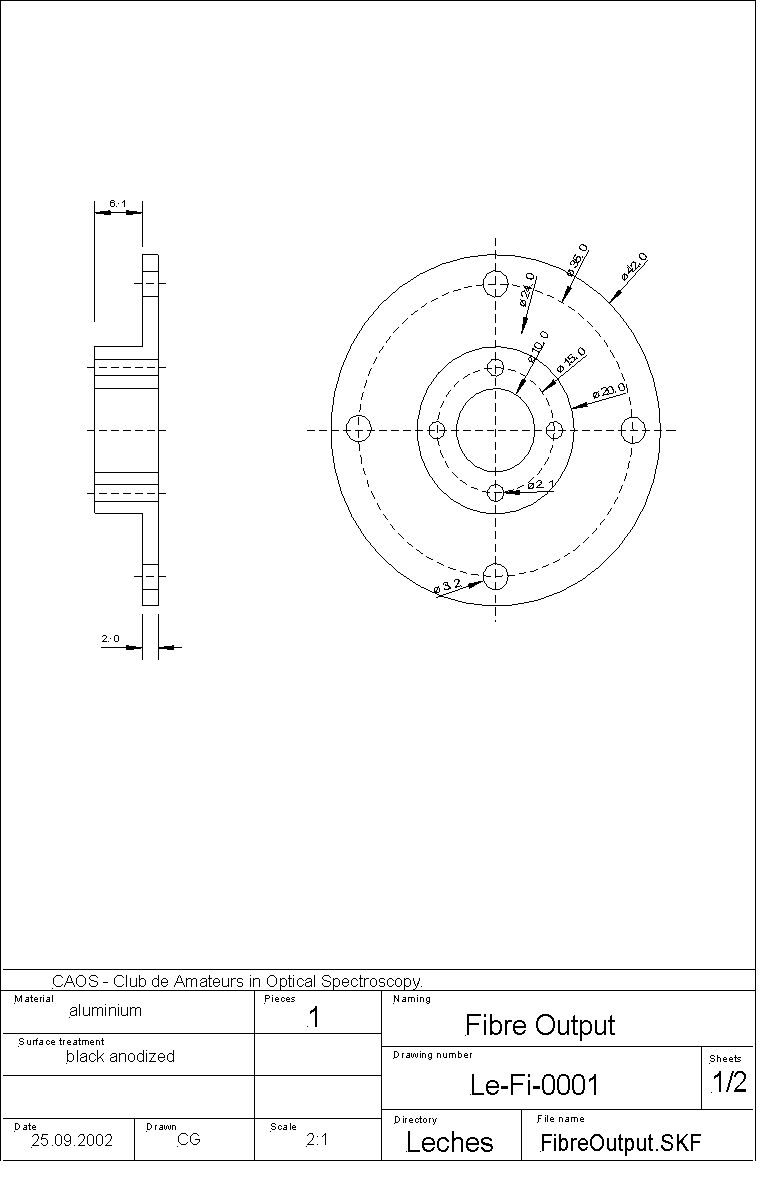

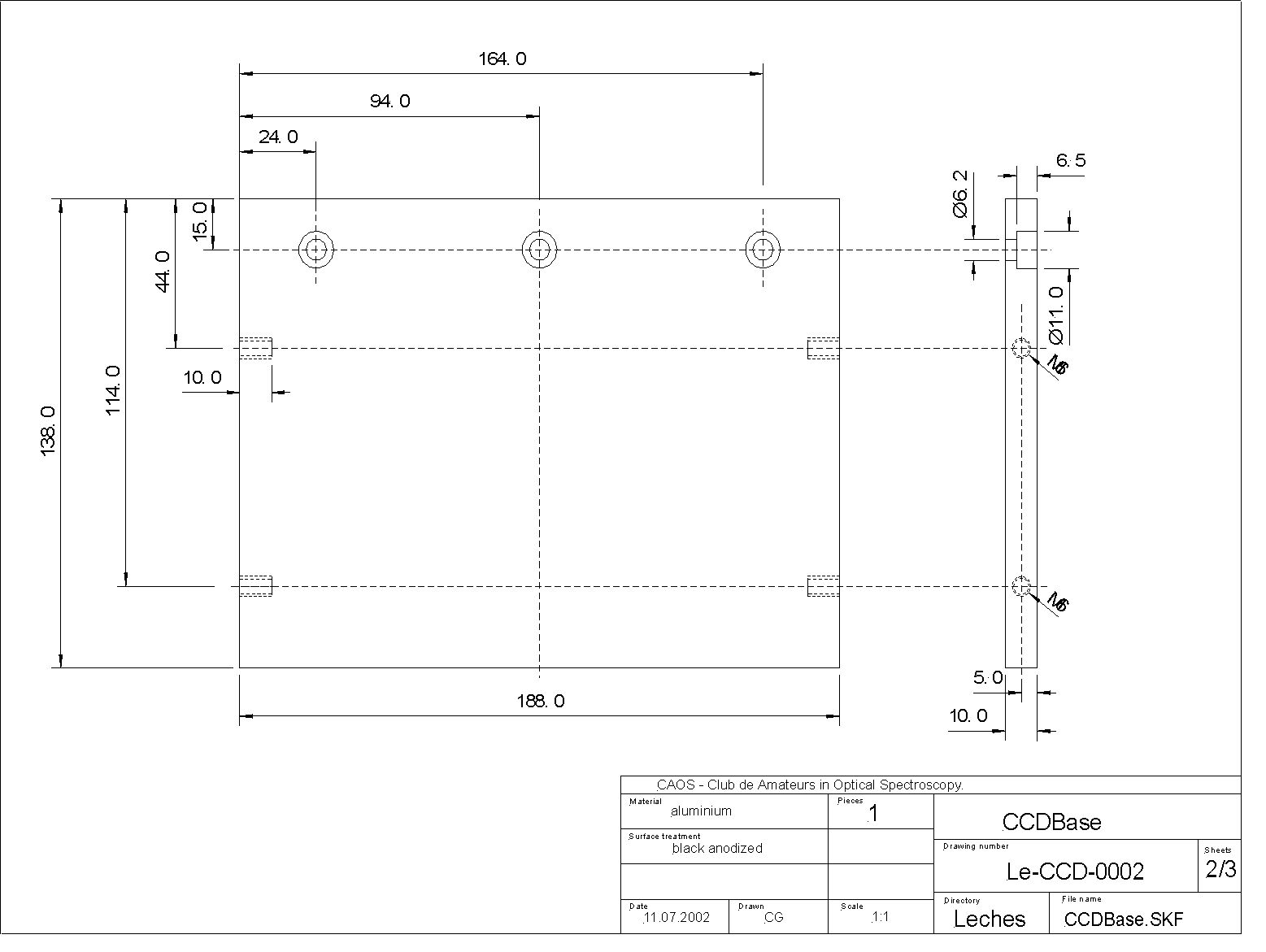

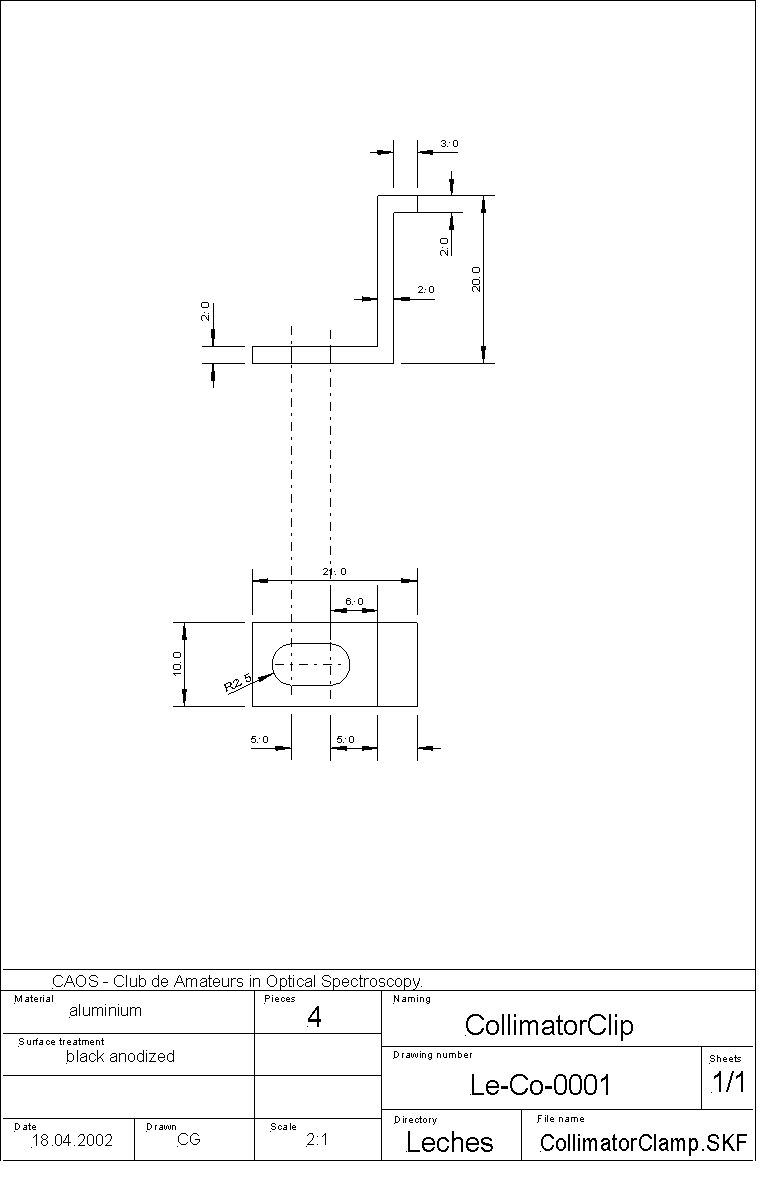

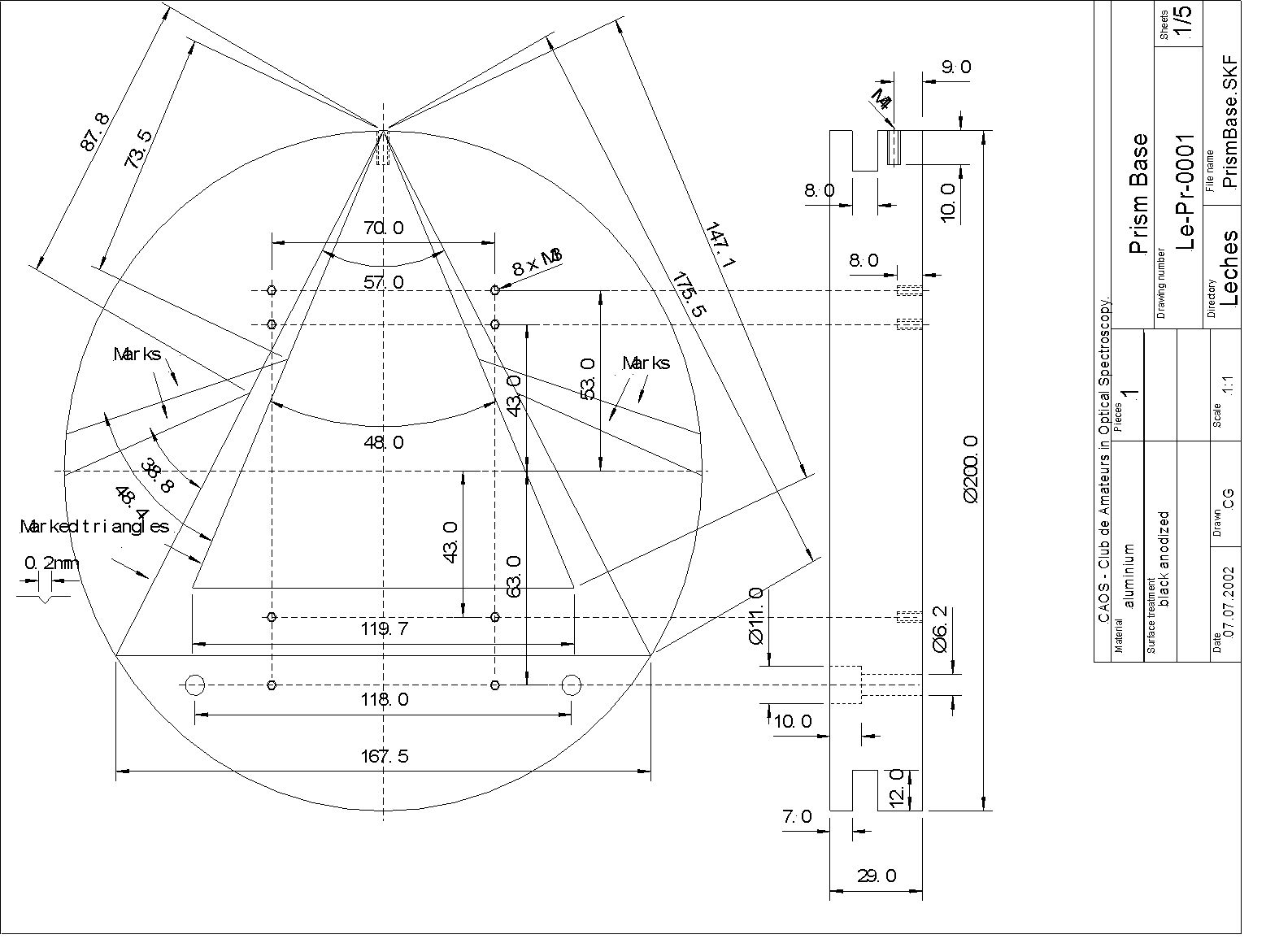

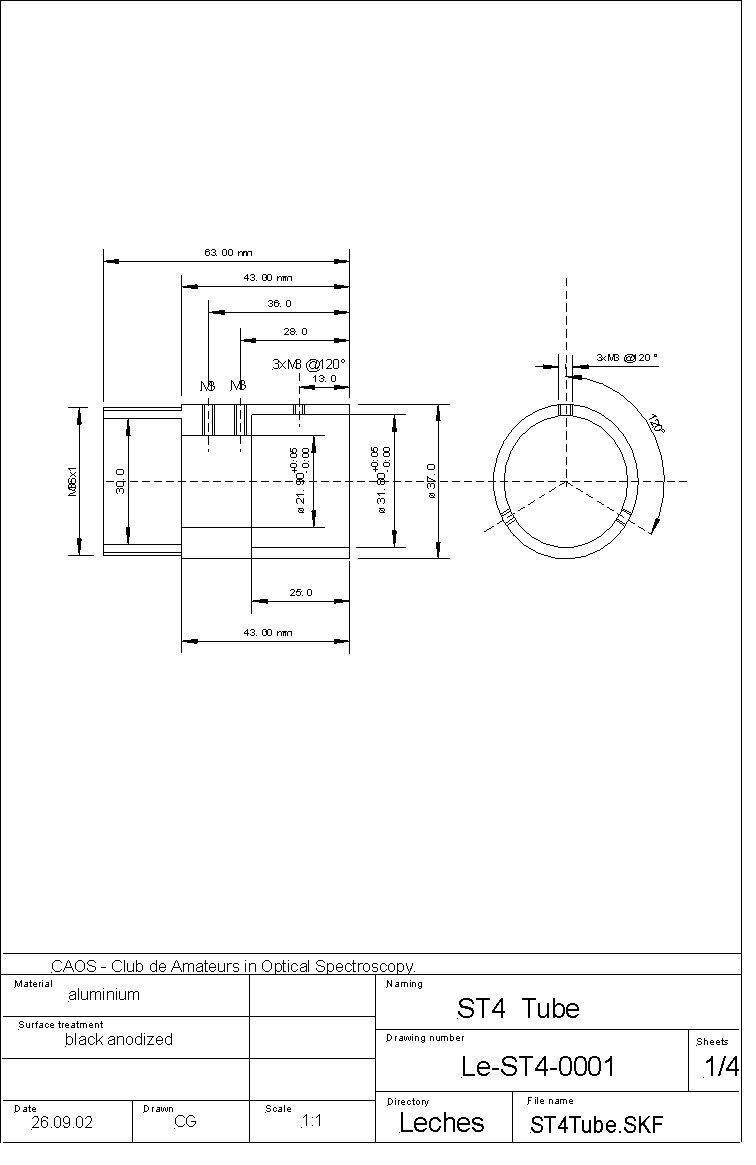

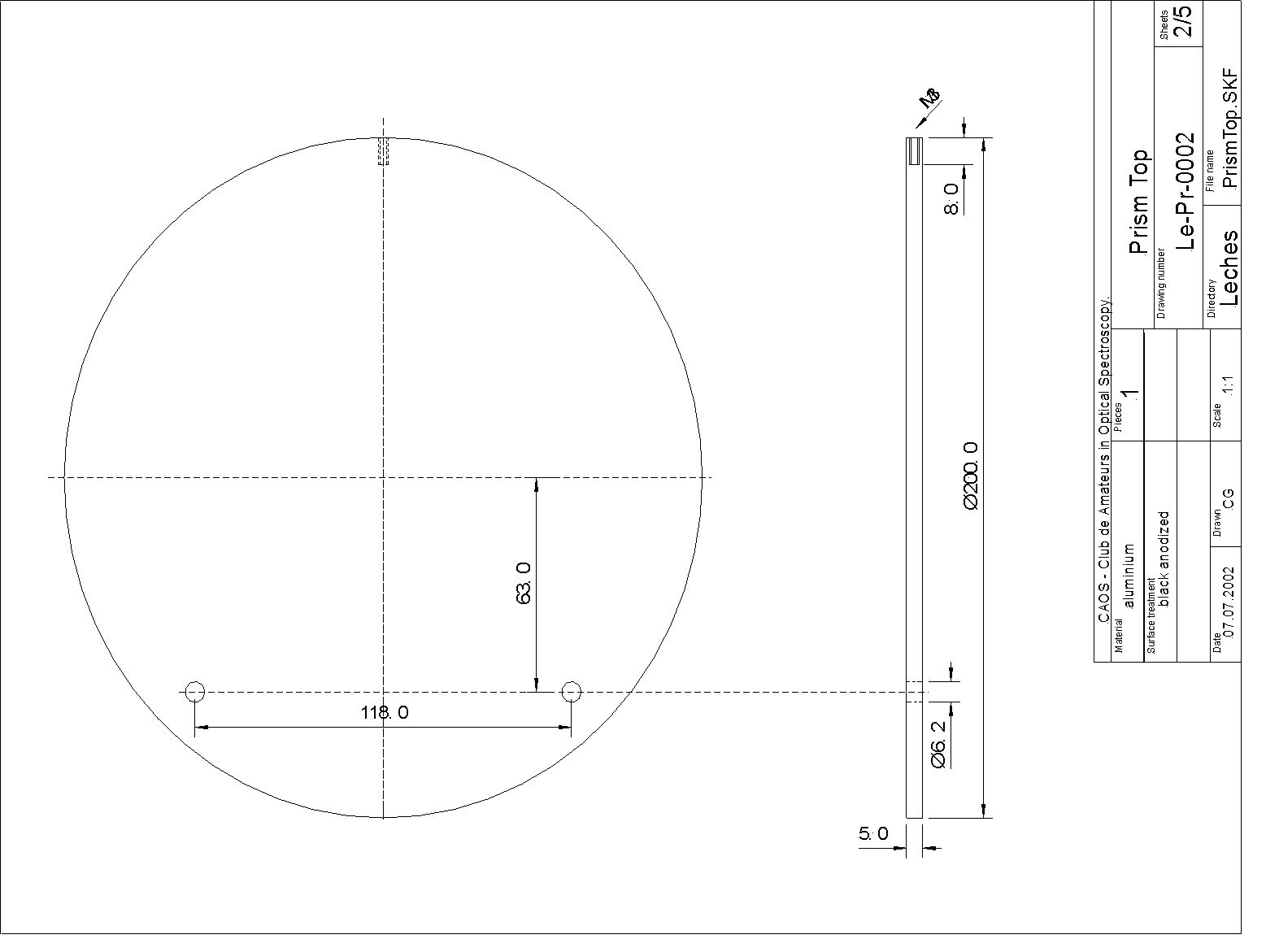

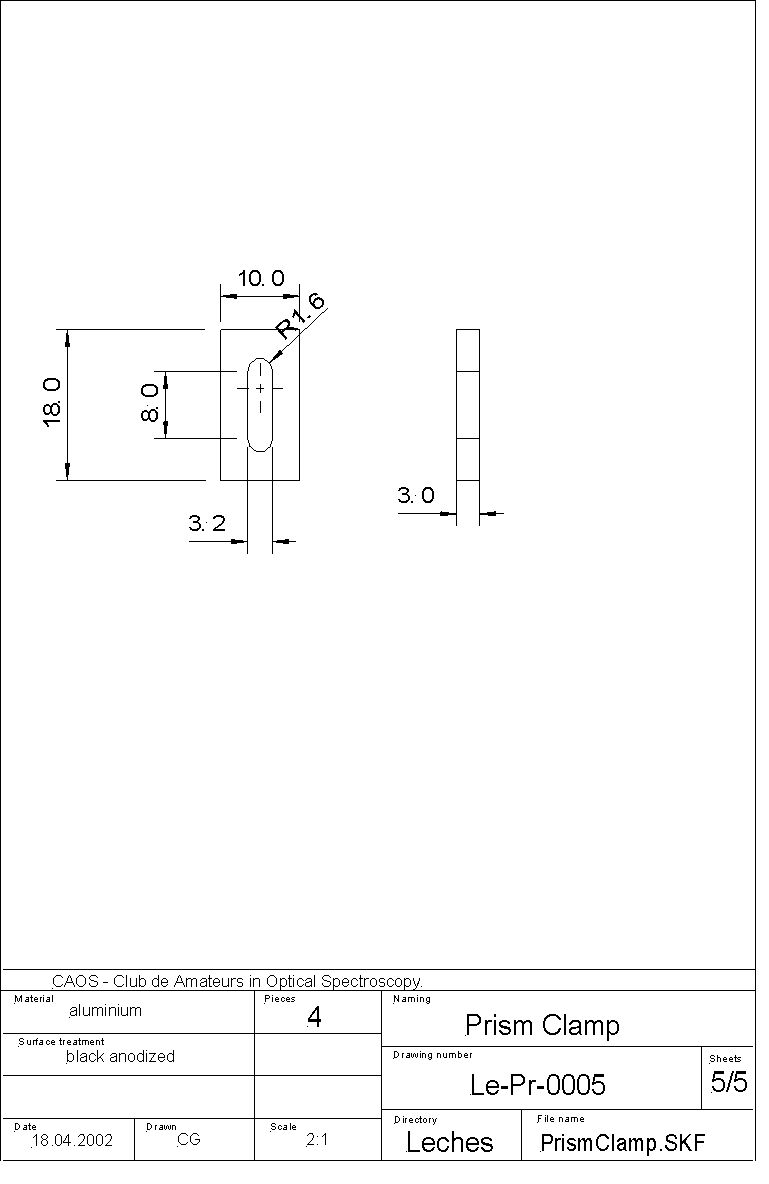

Table for Prisma (In Workshop)

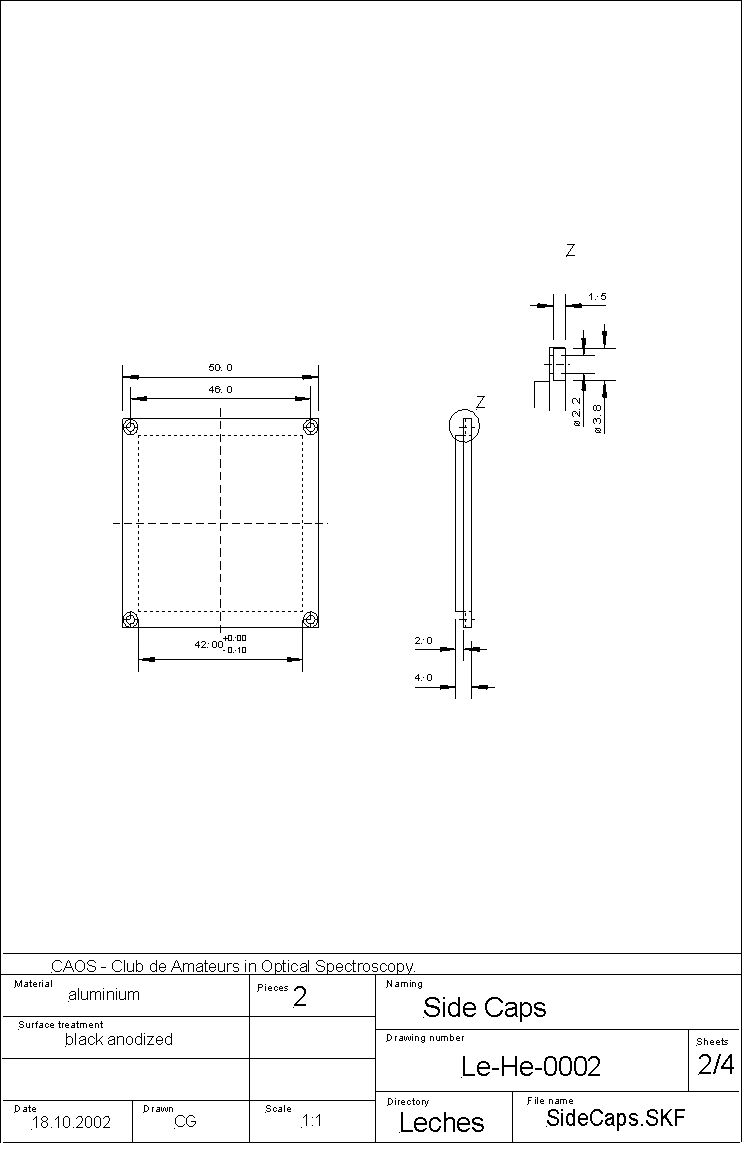

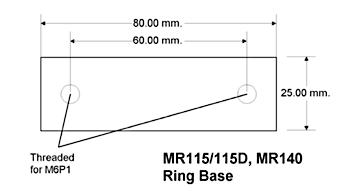

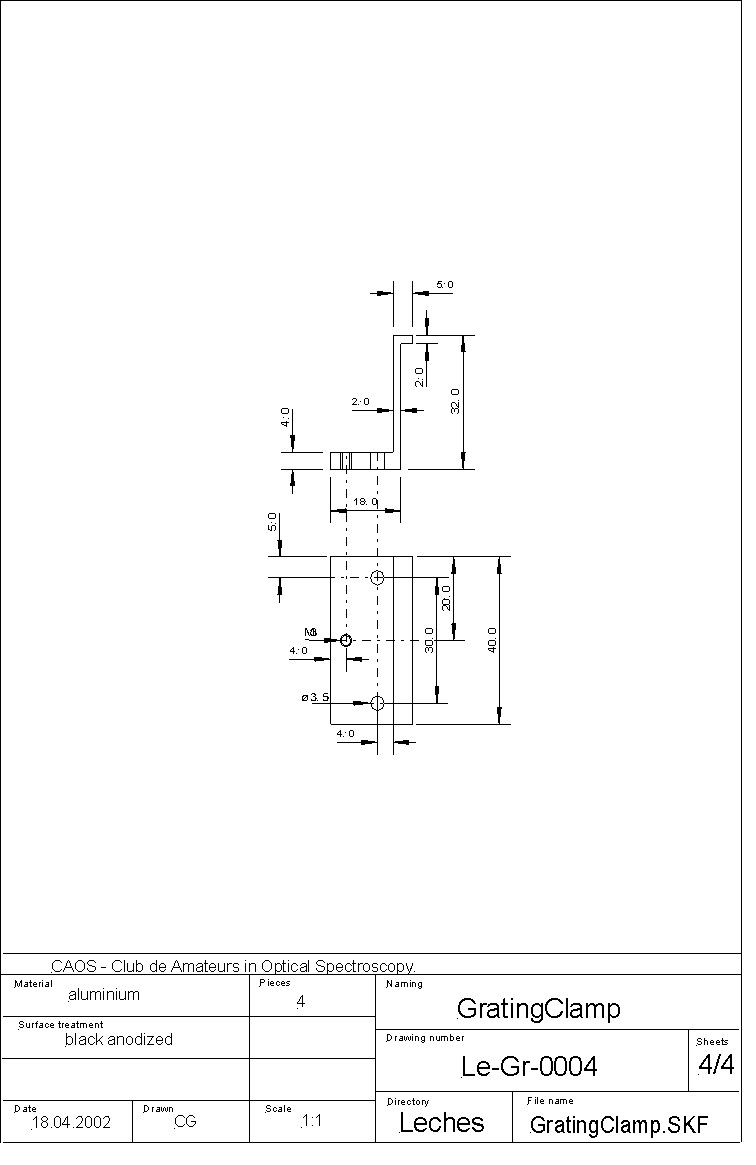

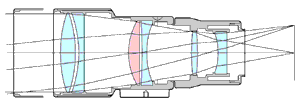

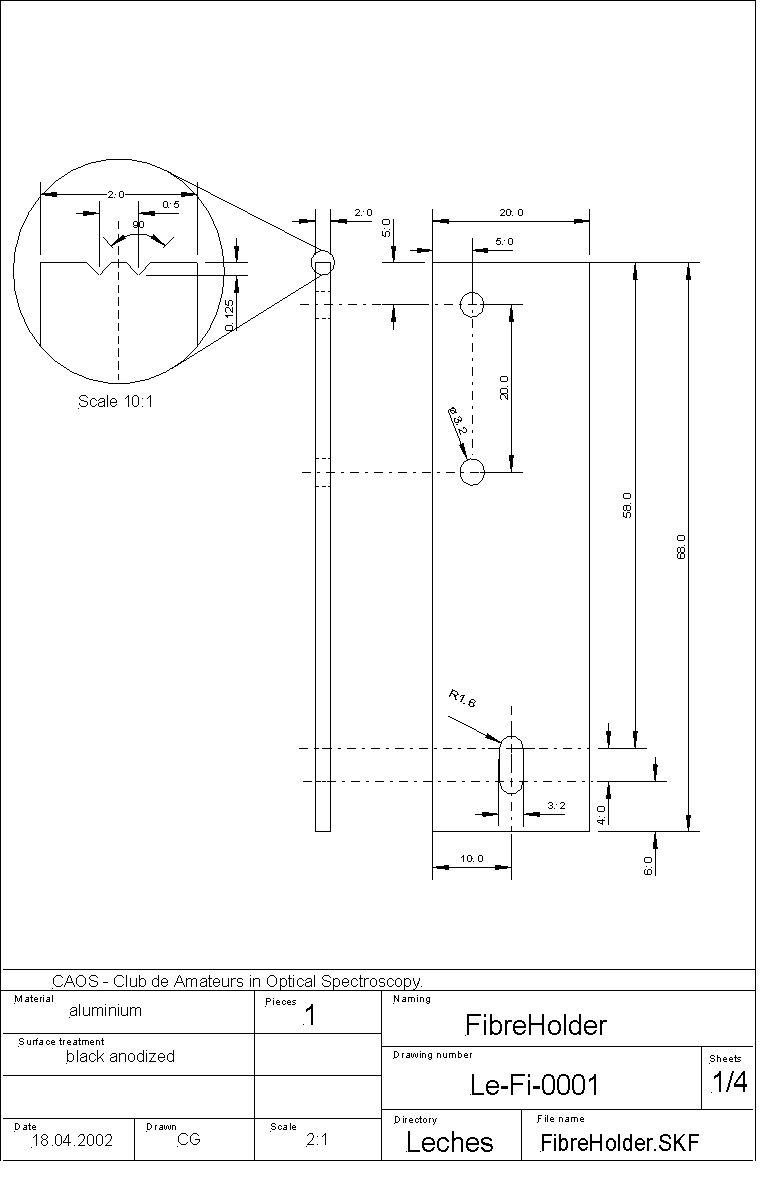

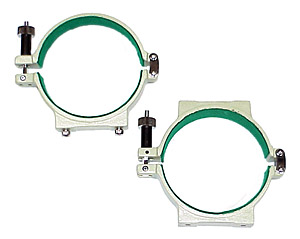

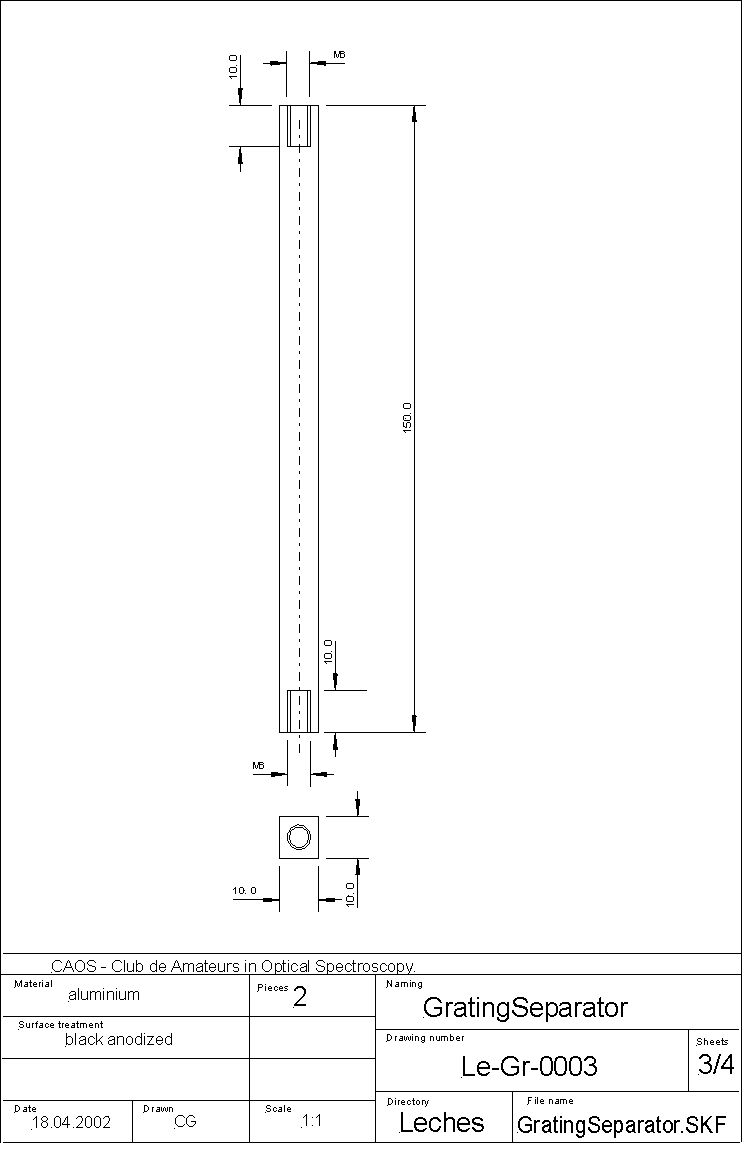

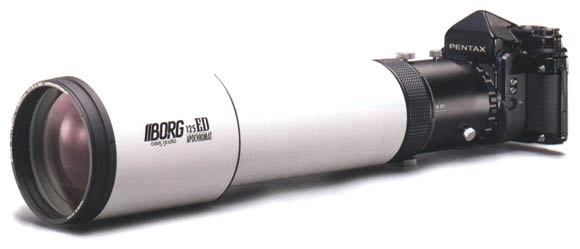

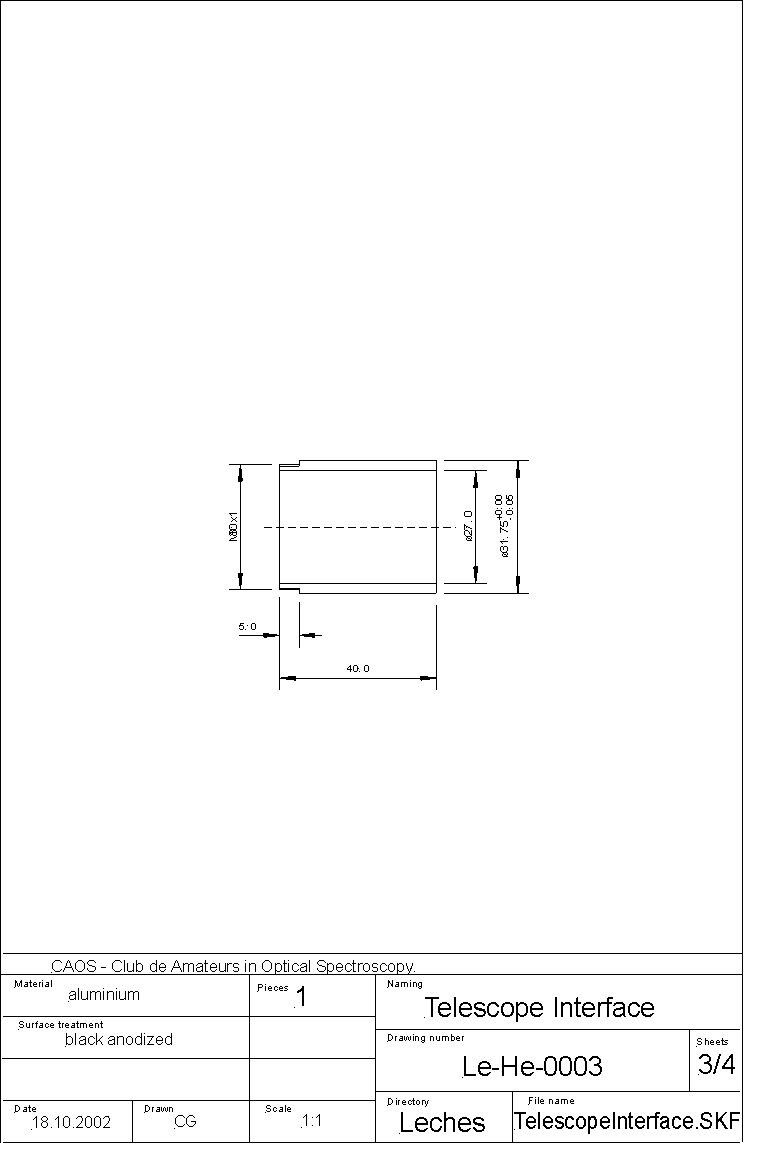

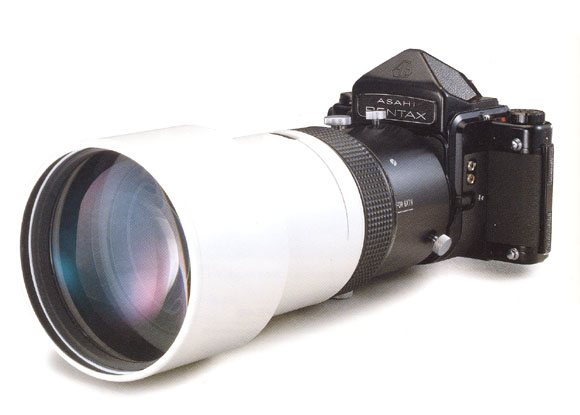

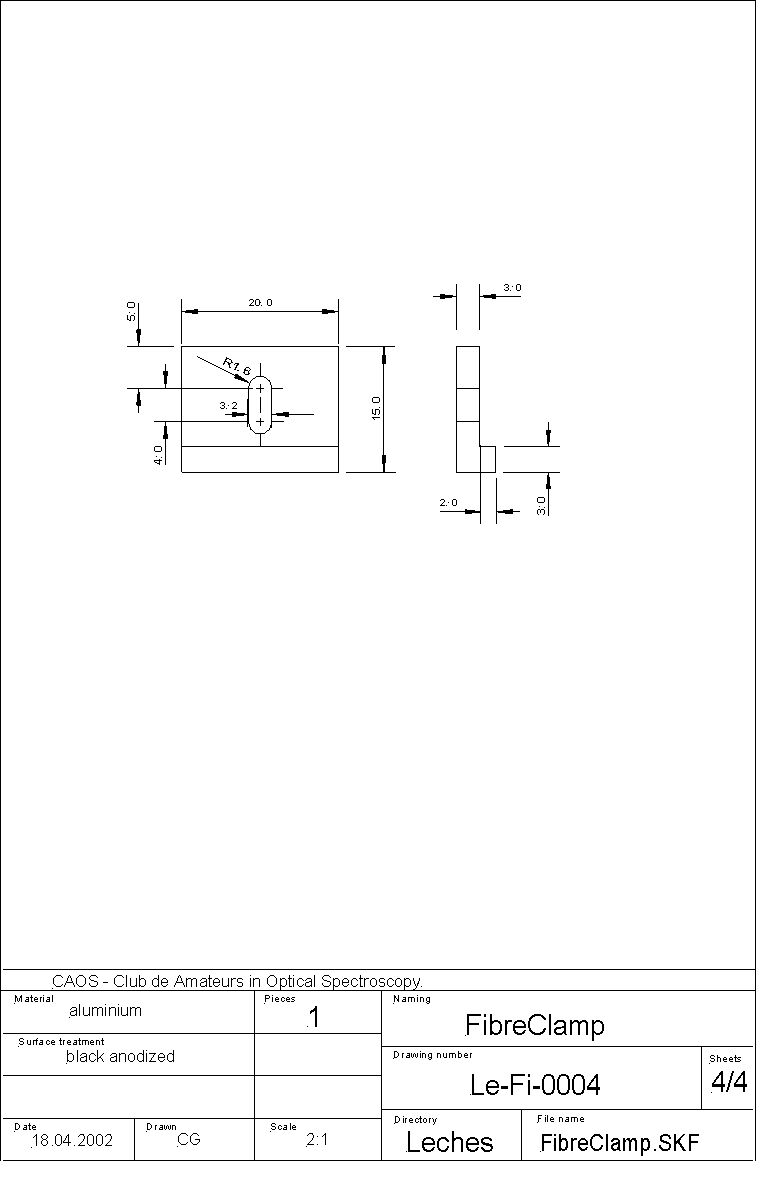

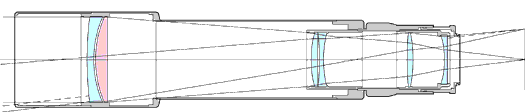

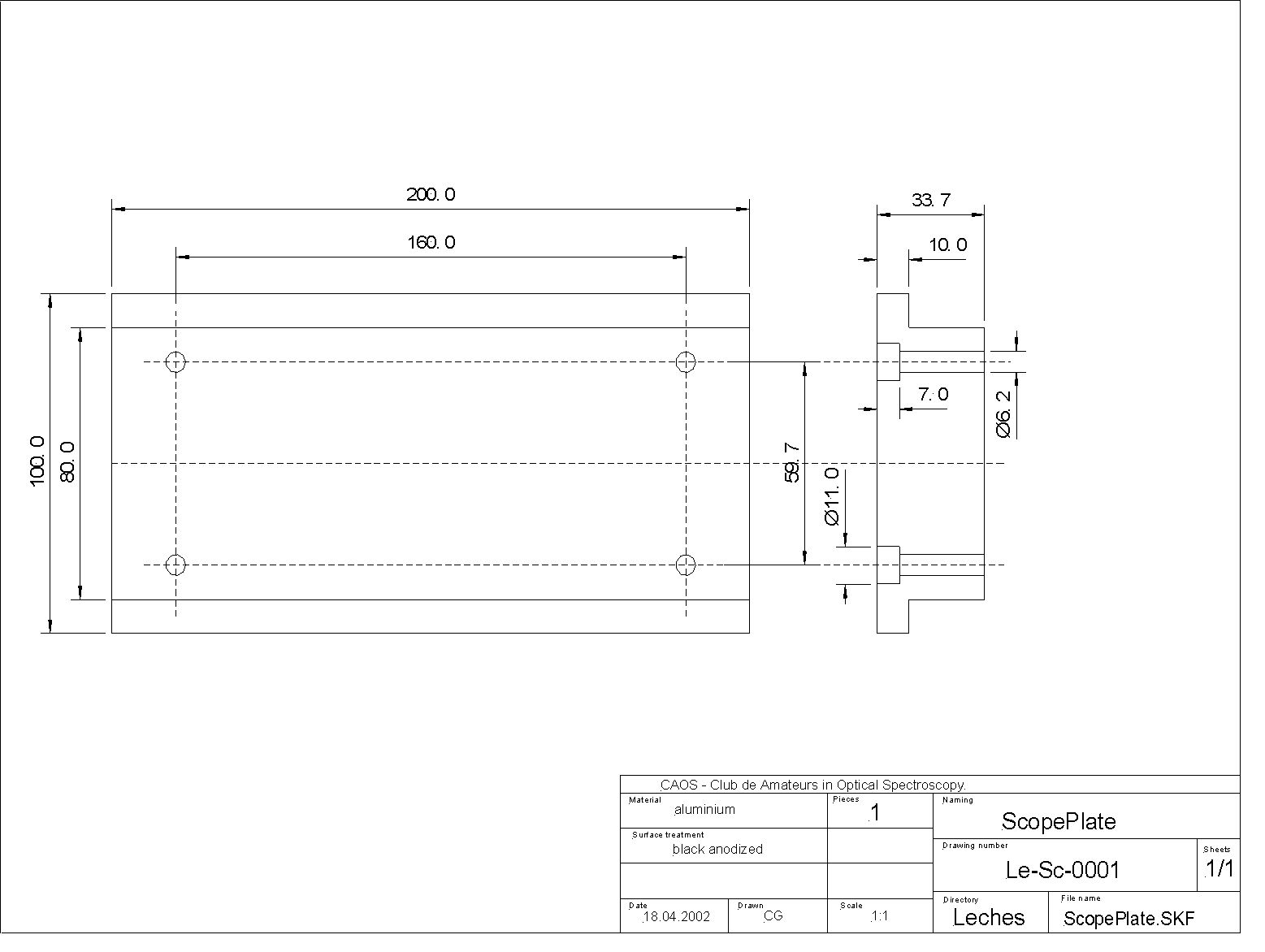

BorgRing115.jpg, BorgBaseRing115.jpg, Borg125ED-F2.8.jpg, Borg125ED-F4.jpg, Borg125ED-F2.8Lenses.gif, Borg125ED-F4Lenses.gif, ScopePlate.jpg,
