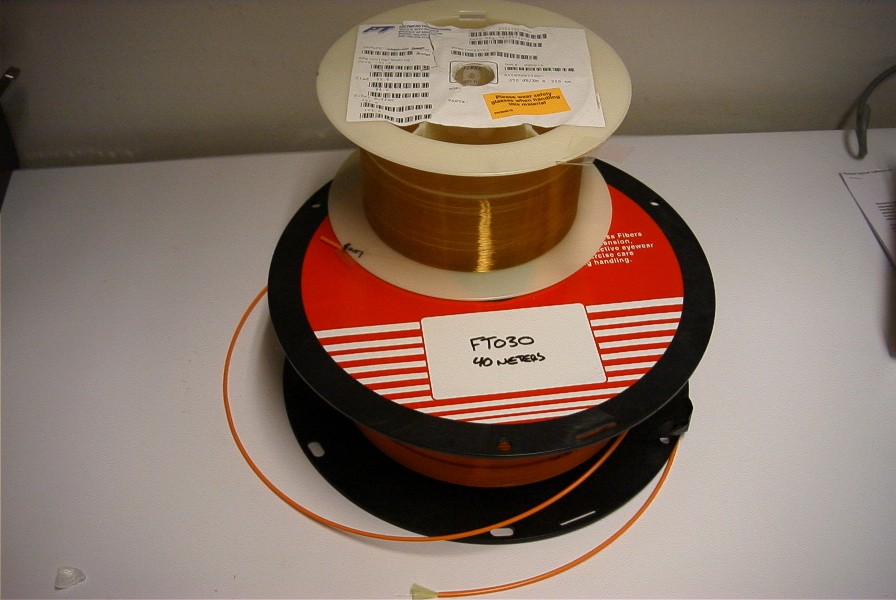

Bare fibre 100 micros core diameter and 125 microns polyimide buffer. Protection cable of 3.1 mm diameter.

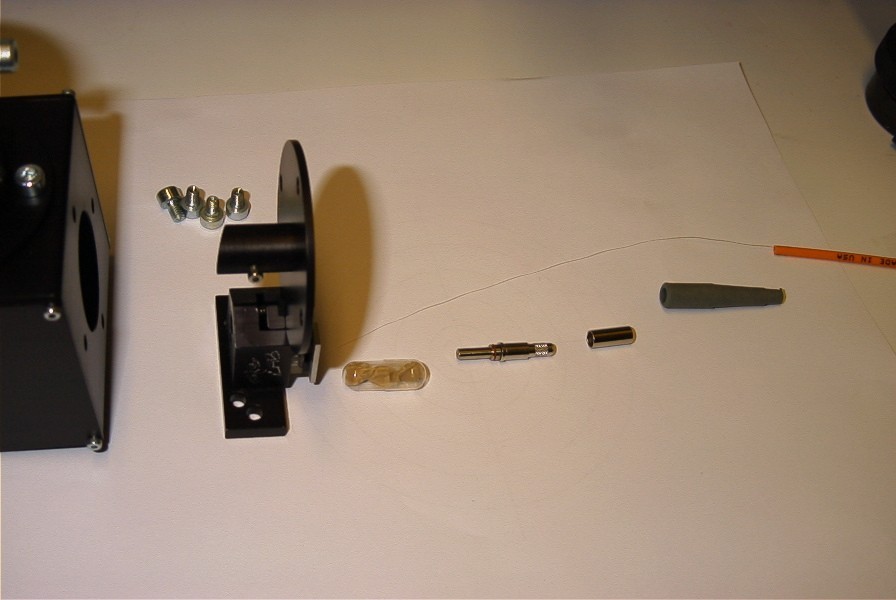

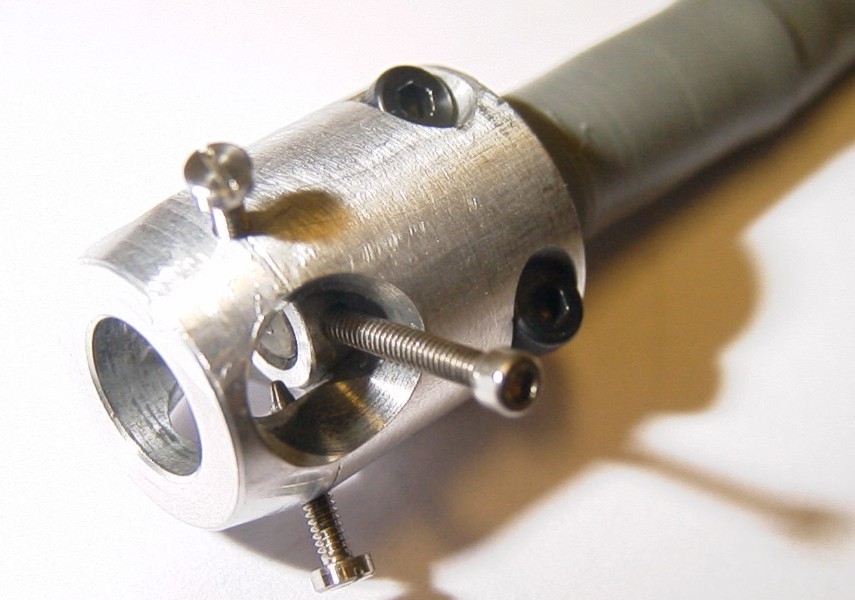

Exploded layout: head, interface, grin-lens, ferrule, kevlar holder, protector, fibre and jacket

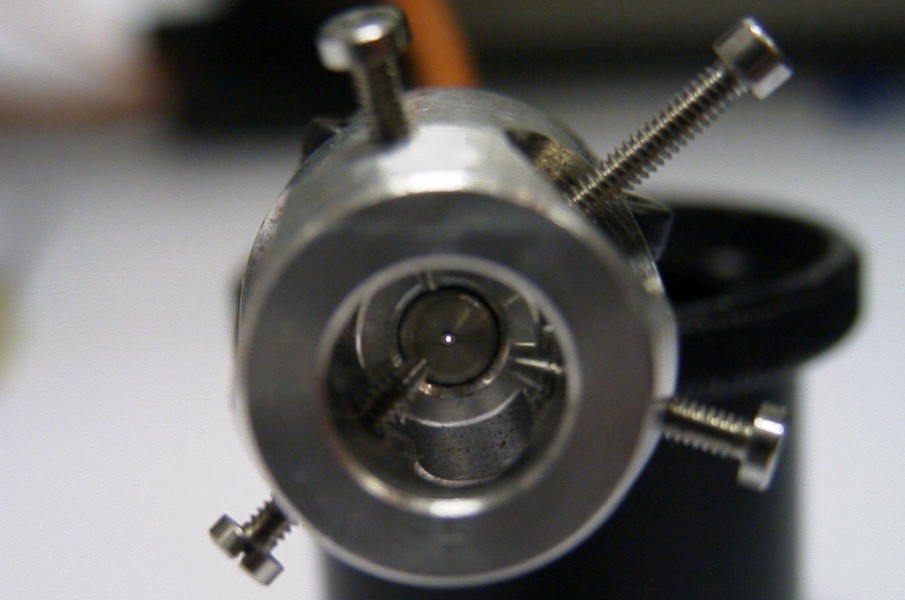

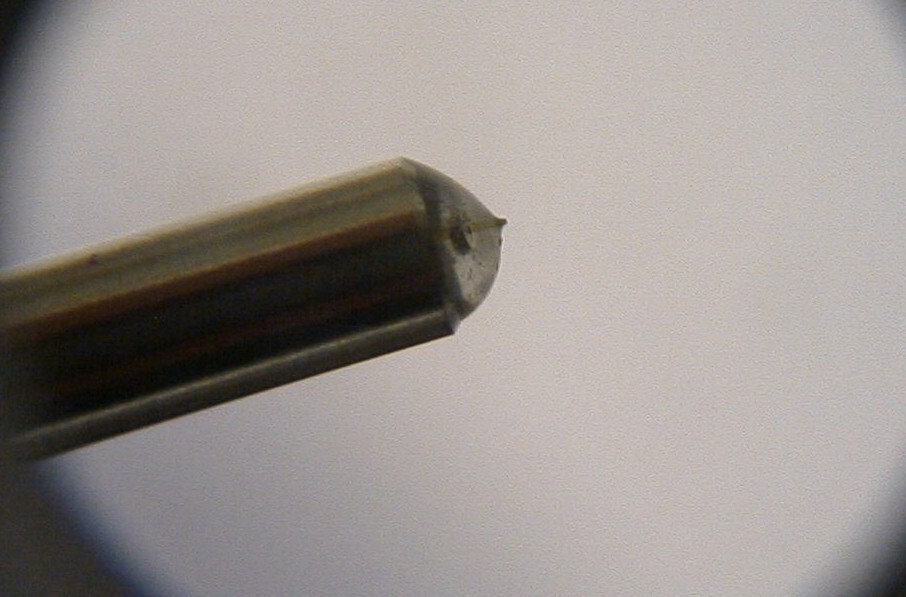

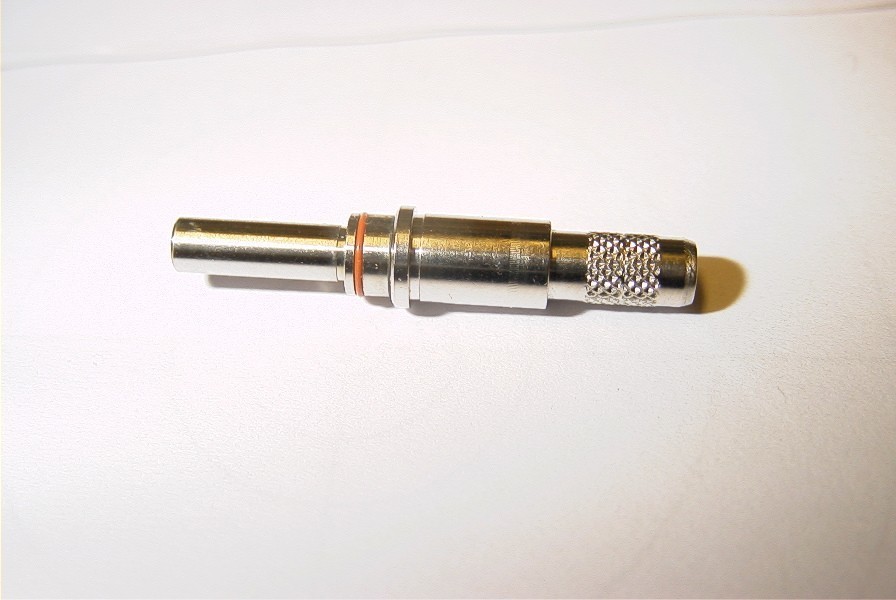

Close up of an SMA ferrule

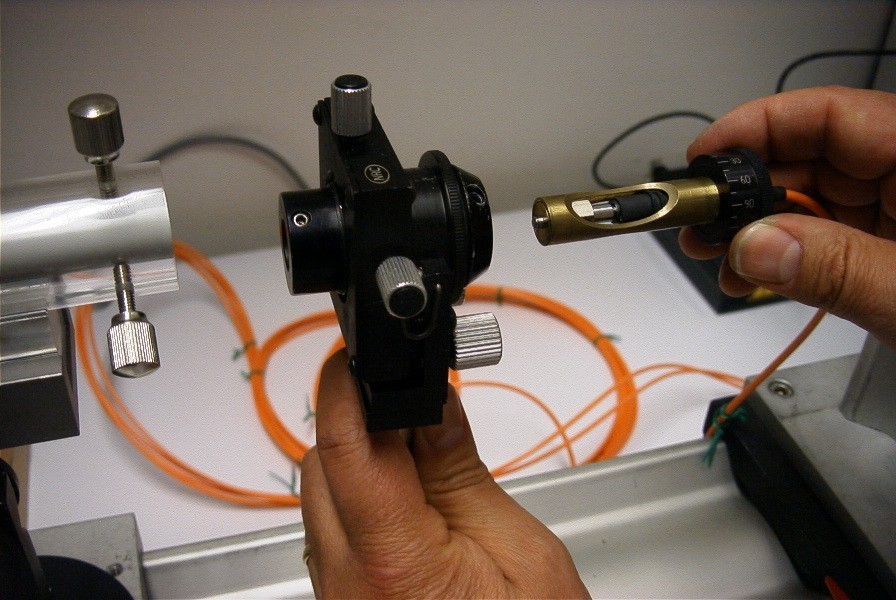

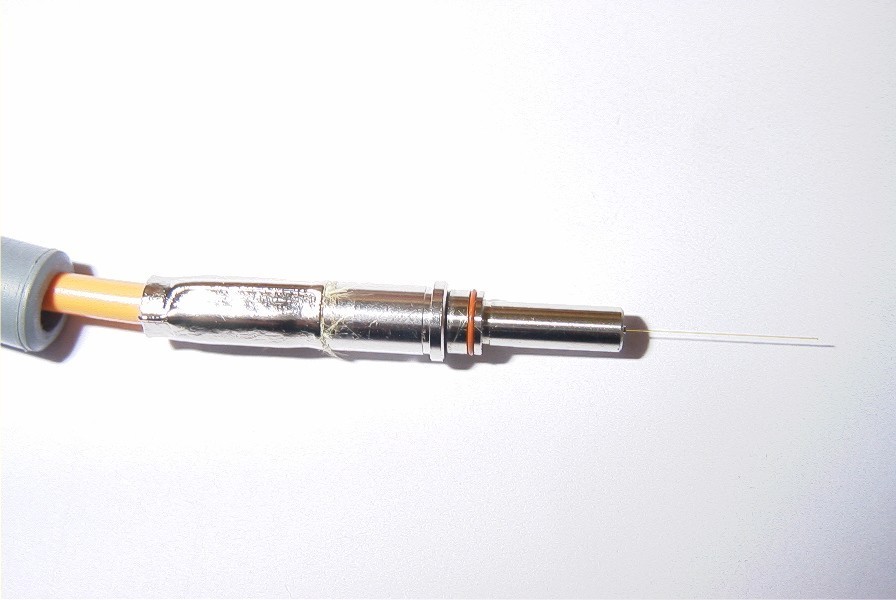

close up of cramped kevlar over the ferrule with fibre ready for gluing

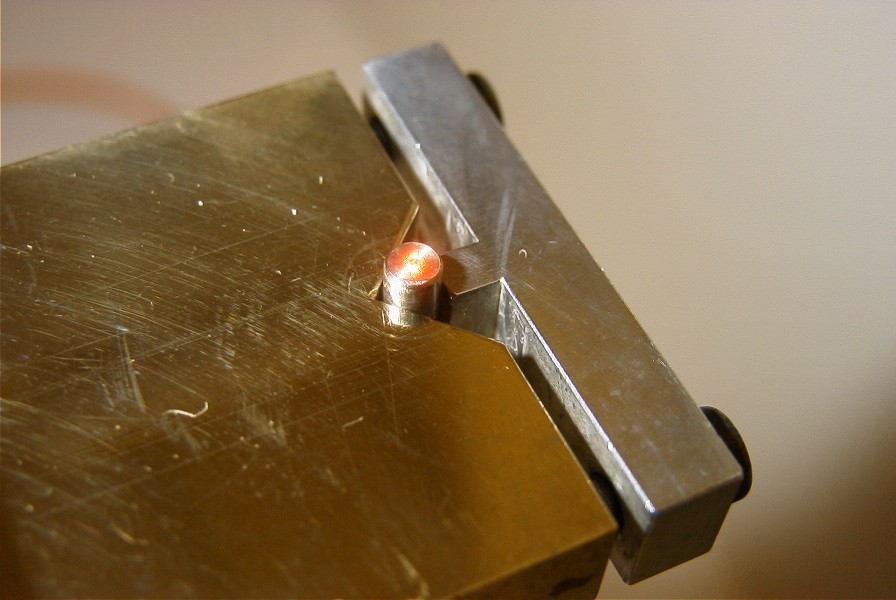

Close up of fibre glued to ferrule

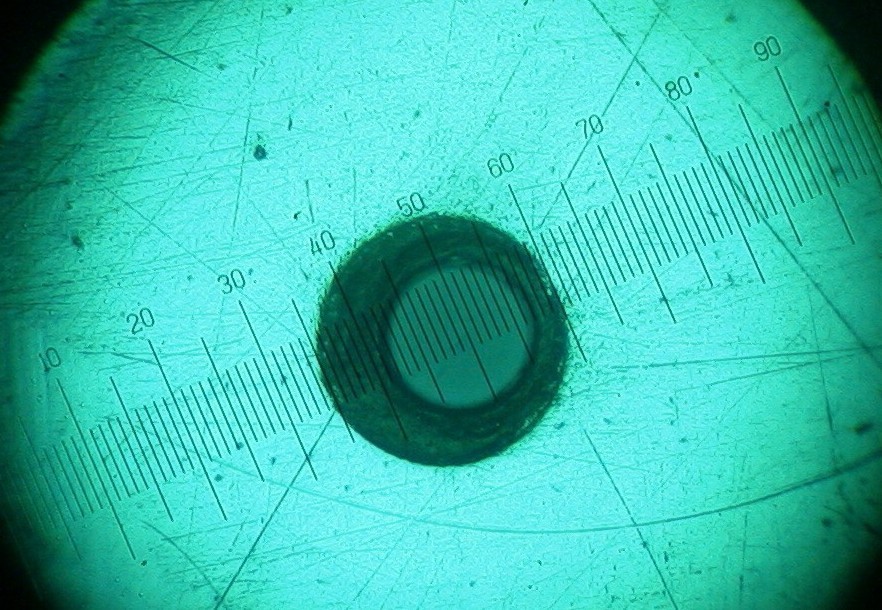

Microscopic view of polished fibre in ferrule (both ends).

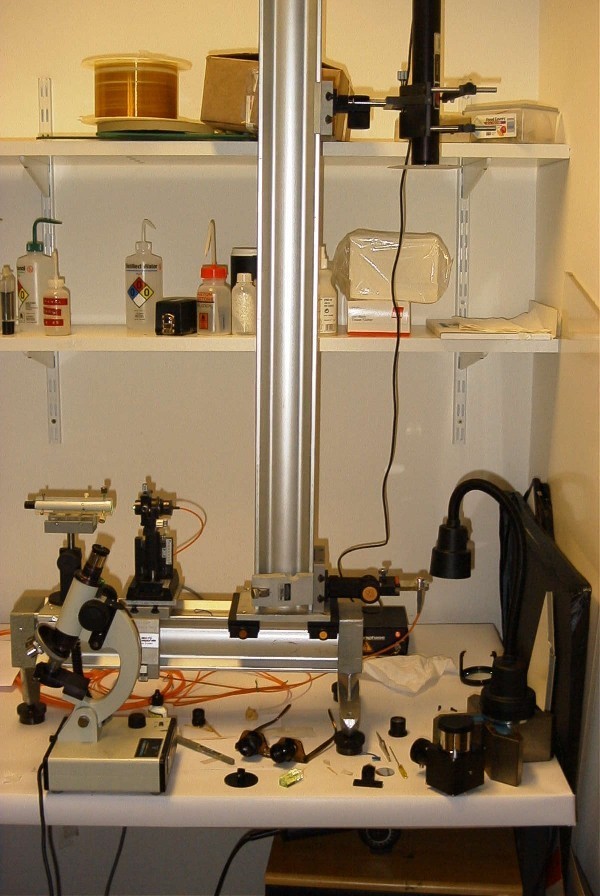

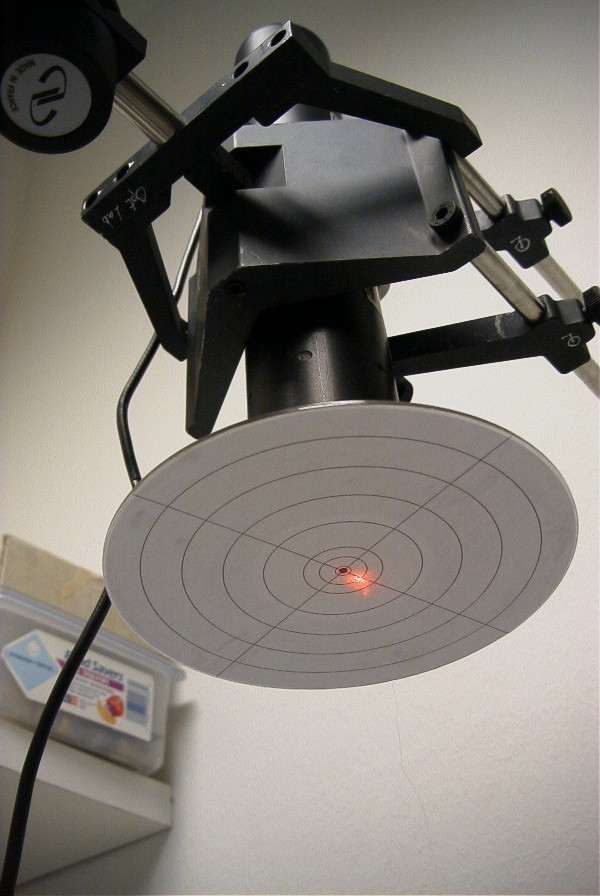

Optical bench: green laser for back illumination, autocolimation on ferrule with red laser (vertical)

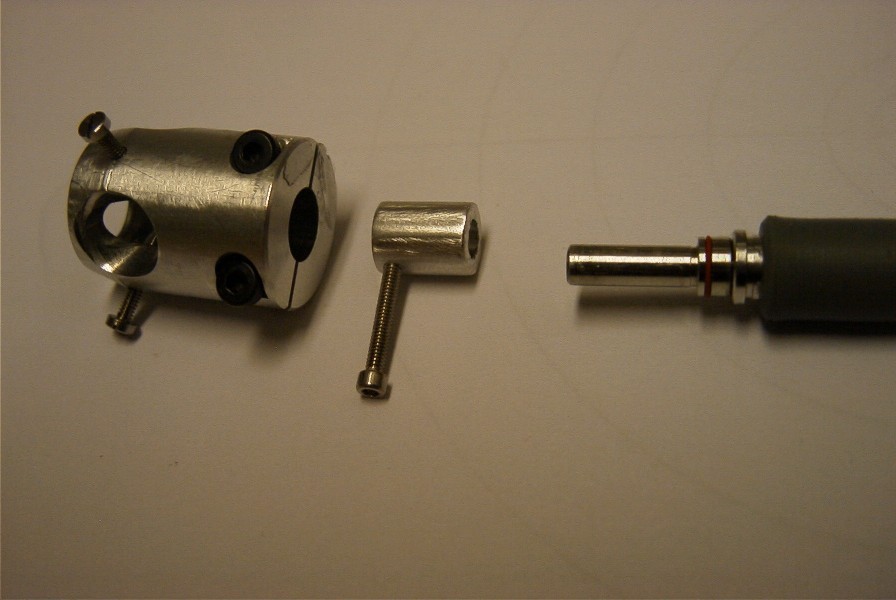

Ferrule holder on optical alignment bench

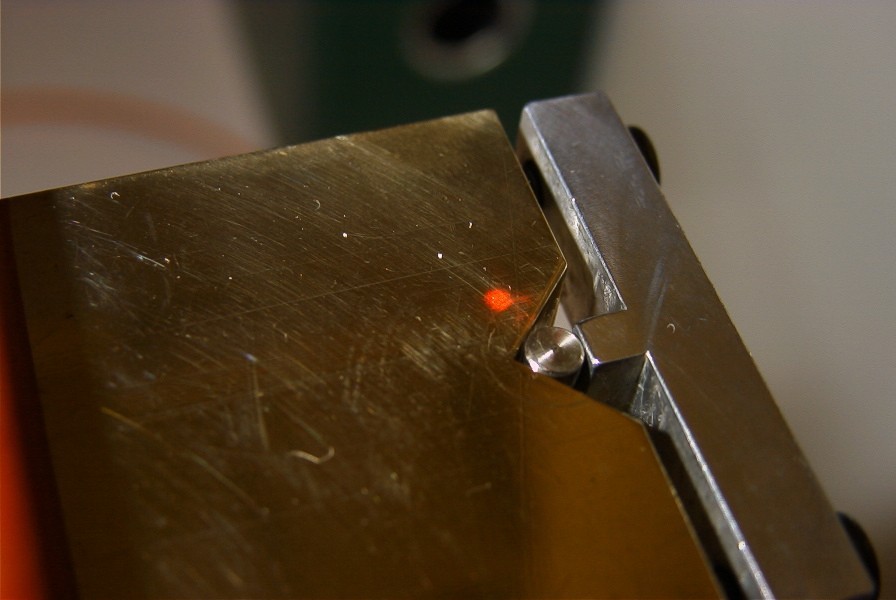

Ferrule holder wih laser dot during autocollimation procedure
Laser centered on ferrule and autocollimated

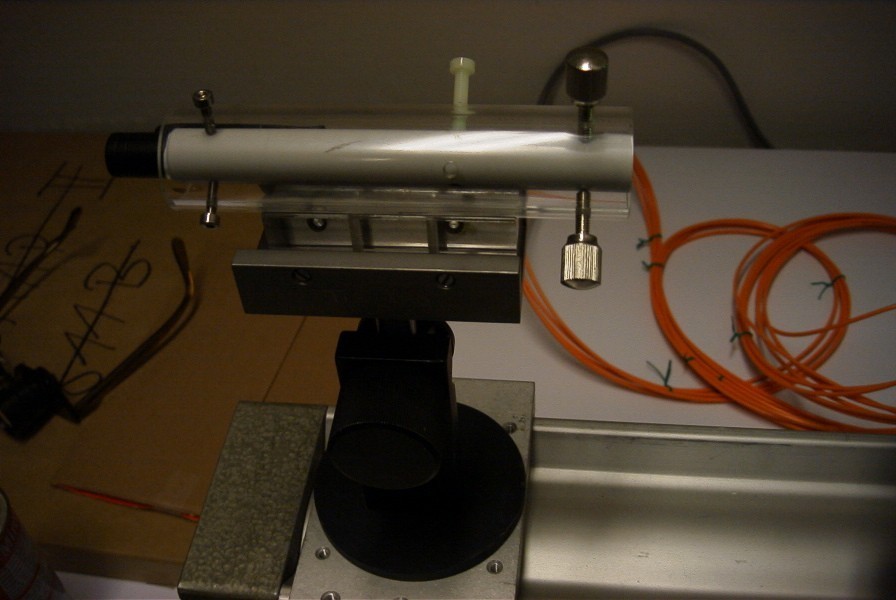

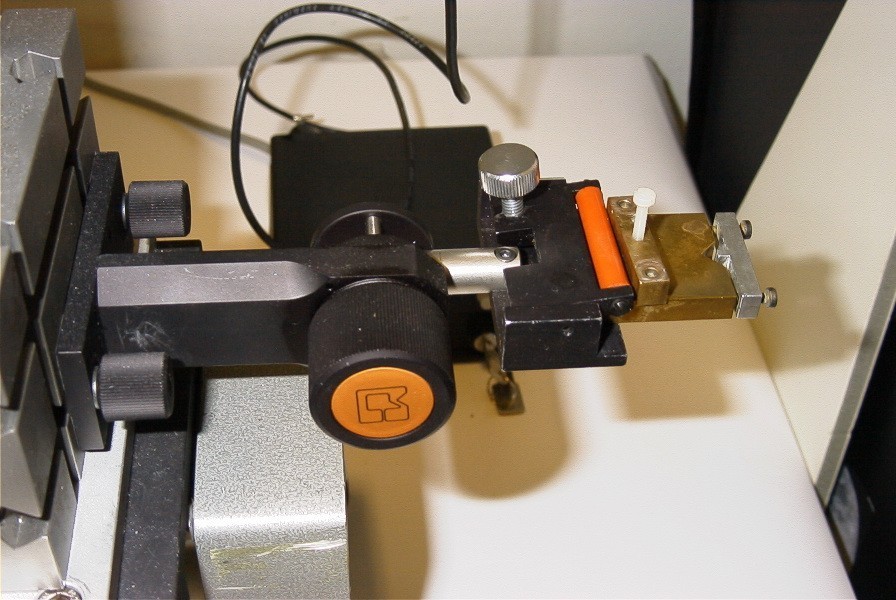

Red laser autocollimated on ferrule holder
Green laser

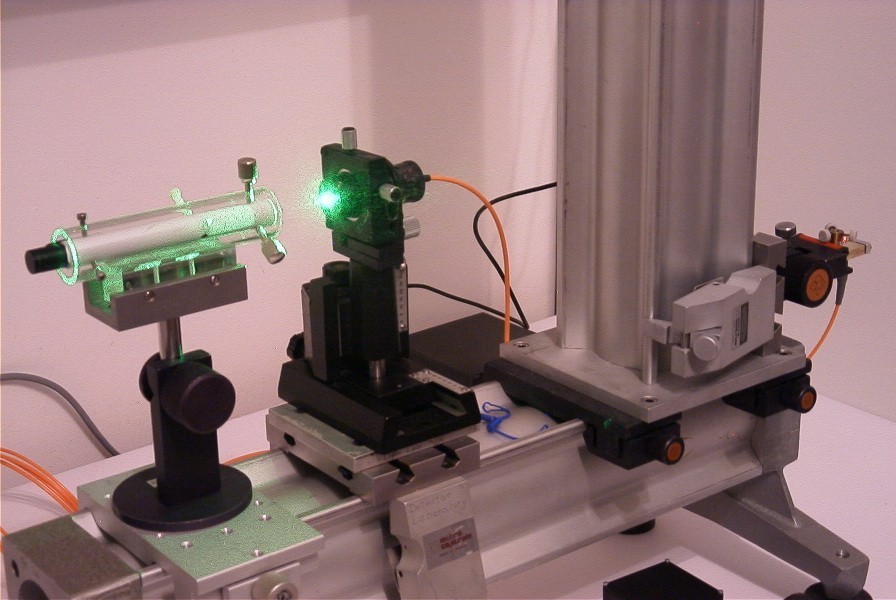

Green laser for fibre back illumination
Green laser injecting in fibre back illumination
Grin-lens aligment tool, holder and ferrule
Mounting of ferrule inside the alignment tool

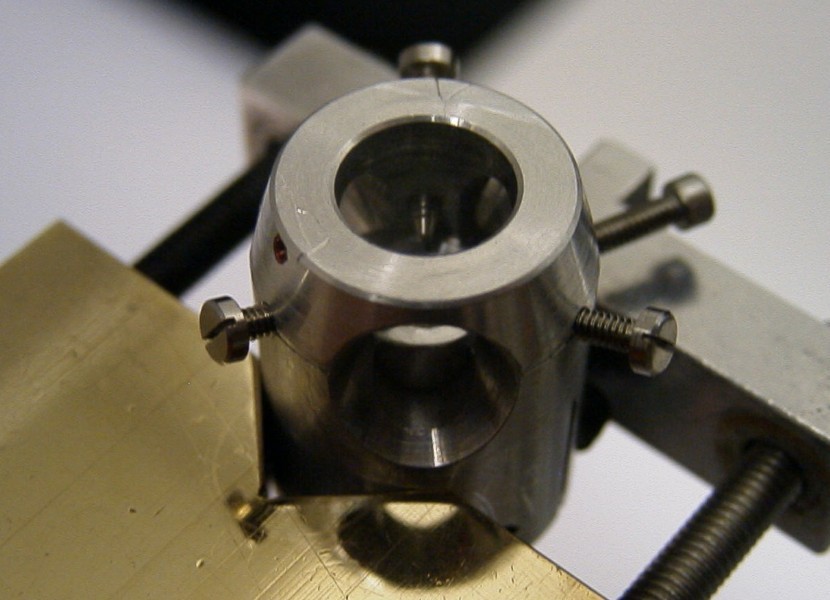

Close up of ferrule inside alignment tool
Front view of the lens alignment tool
Alignment tool on autocolliation holder

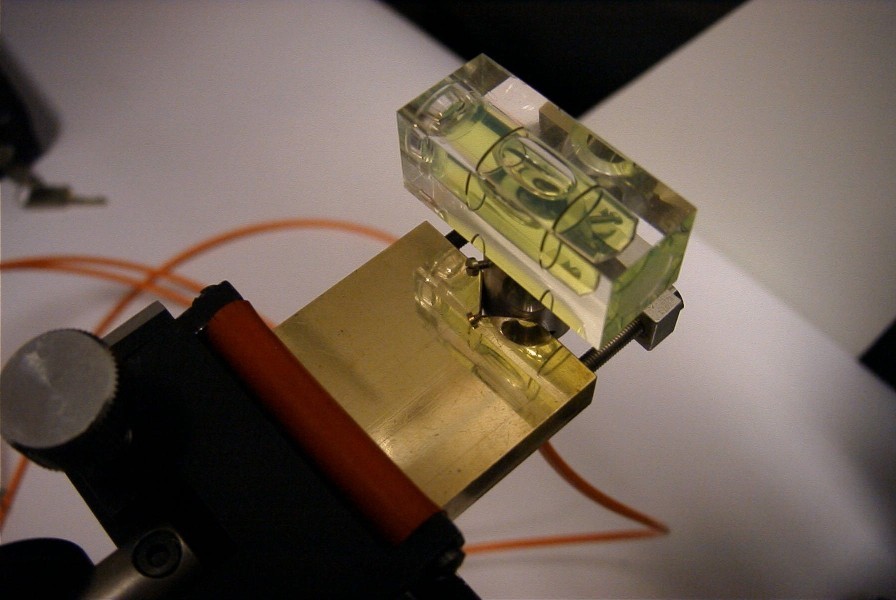

Leveling of the aligment tool holder
