Parameters
ACS provides support for parameter sets.
- In general terms, a parameter set is a group of related parameters (i.e.
variables) with some additional metadata describing various aspects of the
parameters.
- The parameter set mechanism was designed specifically to address the needs
of the Offline team in the realm of Offline tasks, wherein data processing
or reduction tasks will be defined (by a task author) by formally describing
the input/output parameters (output parameters not yet
implemented), plus some additional metadata such as help information,
valid ranges, default values, whether the parameters are required or optional,
etc.
- While the parameter set implementation was developed specifically with the
Offline team's needs in mind, it is general enough in design that it may prove
useful in other contexts; any application that needs to define and use sets
of parameters (described in XML), with the parameter set instances parsed
and validated against constraints (defined in metadata) may find it useful.
XML has been chosen as the description language for both parameter set meta-data
and parameter set instance data.
- Parameter set meta-data includes things like which parameters in a parameter
set are optional vs. which are required, default values for parameters, help
information, valid ranges (e.g. max, min, etc.), and additional information
which does not describe the actual data for a particular instance of the parameter
set.
- The parameter set (instance) data is a set of values describing a particular
instance of a parameter set, with actual values defined for the parameters.
For example, a simple parameter set metadata description might define 3 parameters:
an optional integer X, a required double Y, and a required string Z, while
the parameter set instance data for a particular "run" for this parameter
set might be: X=1, Y=2.5, Z="vlafiller-output".
The following use cases are envisioned:
Parameter set metadata is defined in XML
The metadata is described in an XML file. The metadata for a parameter set
includes defining the number and types of parameters, default values, validity
constraints (e.g. max, min, ranges, etc.), help information, whether a parameter
is optional or required, and other such pre-runtime information about parameters.
The parameter set metadata is defined in a particular XML format with the schema
(xsd file) provided by ACS. A simple text editor or an XML-savvy editor such
as XML Spy can be used to create the metadata XML file.
Parameter set instance data is defined in XML
The instance data for a parameter set is a set of actual values for a particular
"run" or "instance" of a parameter set. This is defined in XML with the schema
(xsd file) provided by ACS. A simple text editor or an XML-savvy editor such
as XML Spy may be used to create the parameter set instance data XML file. It
is also envisioned that parameter set data files may be created programmatically
in certain contexts, e.g. a graphical user interface may prompt a user for data,
then construct the XML data file based on the user's responses.
Parameter set metadata and instance data XML are parsed and validated, building
an in-memory object model
This use case is performed by the system automatically, by constructing two
ACS-provided classes. The input necessary to construct the classes is simply
to designate the parameter set metadata and instance data XML files to be used.
A set of ACS classes have been written to take the XML files as input, parse
them, validate them, spit out errors or warnings (if any), and finally - upon
successful validation - create an in-memory object model of both the metadata
and the instance data which can be manipulated and interrogated programmatically
using a well-defined API.
Parameter set metadata and instance data object model are manipulated programmatically
ACS provides two classes (implemented only in C++)
to represent the in-memory metadata and instance data for a parameter set. ParamSetDef
is a class which represents the metadata for a parameter set. ParameterSet represents
the instance data for a parameter set. Each of these classes has methods which
may be useful for developers who need to manipulate a parameter set programmatically
after it has been parsed and validated.
Architecture and design
The object model for the in-memory representation of a parameter set's metadata
and instance data are depicted in the following three figures (more compact diagrams
are available in the online mode, but it was impossible to have them printed in
a readable way in this document). The API allows for querying the data in a relatively
straightforward manner.

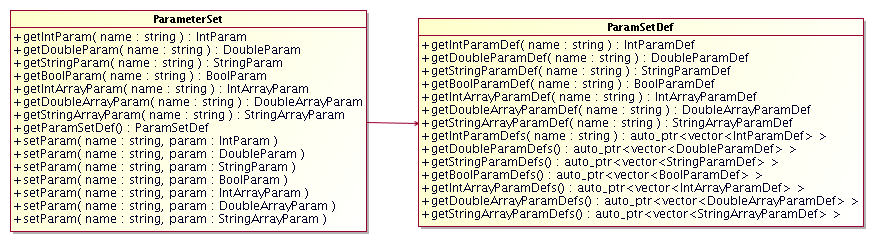

Figure 3.10: Parameter Set instance
data (ParameterSet) and Parameter Set Metadata (ParamSetDef) classes

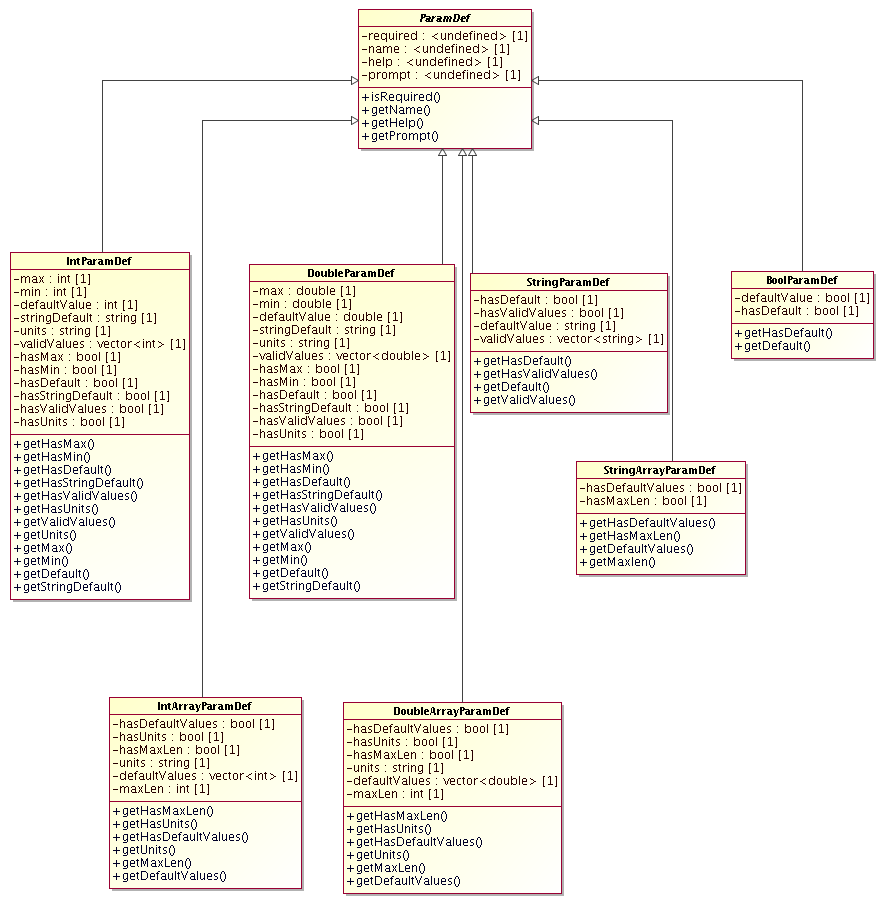

Figure 3.11-a: Parameter Metadata
types. Subclasses of ParamDef used to build a ParamSetDef

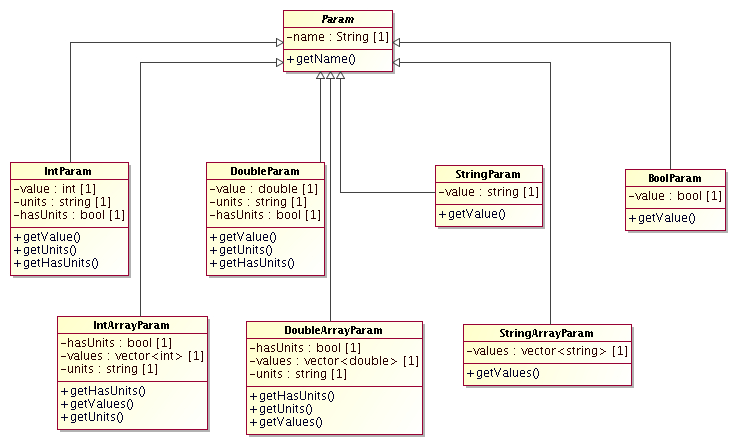

Figure 3.11-b: Parameter instance
types. Subclasses of Param used to build a ParamSet
