Instantiation and
de-instantiation of Components.
Instances of Components are
created when needed or when requested and destroyed when not needed
any more.
System startup and shutdown.
At system startup all needed Components are created and
initialized in the proper order.
Location of Components in the
system.
A client does not need to know where a Component
resides and objects can be relocated when necessary, for example to
recover from failure, for testing purposes or for load balancing.
Version control.
If a
newer version of a Component is available, or if its configuration
data changes, it must be possible to upgrade or reconfigure the
service without interfering with its clients.
Different versions
of the same Component can be loaded or relocated for testing
purposes without requiring changes in clients.
Administration control.
Administrative users must
have an overview and control over the current state of the system,
including existing services and clients, and must have the
possibility to manually manage services. Administration
functionality includes startup and shutdown of the whole ACS,
Manager, Services and Containers.

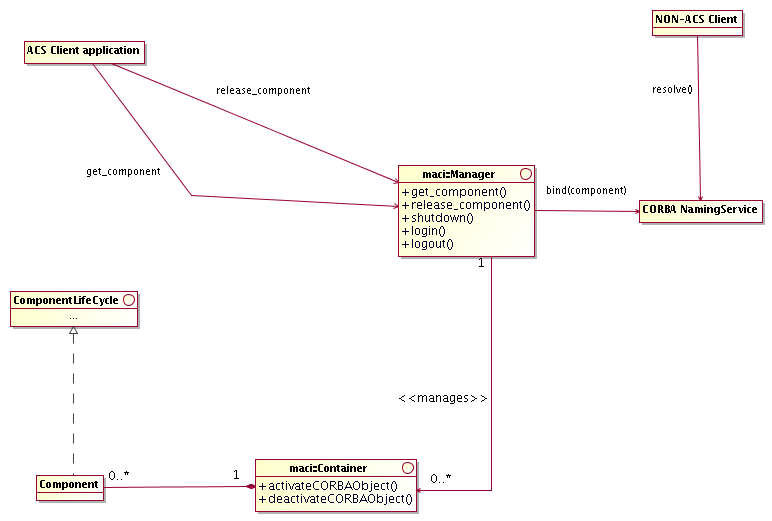

Figure 3.12: Management and Access Control architecture
regular Components are instantiated on demand when they are first requested.
startup Components are instantiated when the system is brought online, i.e. when the Container where they are supposed to live in is started.
It is the communication entry point. A client requesting a Component service can do so by querying the Manager. Security is tied to this functionality by requiring every client to pass the authorization protocol and subsequently tag every request to the manager with a security token generated by the manager upon successful authentication. Manager serves also as a broker for objects that were activated outside of MACI (non-Components). It provides a mechanism for binding and resolving references to such objects, relying on the CORBA naming service.
It performs as a name service, resolving CURLs into object references. If a CURL is passed that is outside the current Manager’s domain, the Manager forwards the request to the Manager closest to the destination domain to resolve.
It delegates the Component life cycle management to the Container objects and therefore creates no Components directly. However, it does maintain a list of all available Containers.
The Manager uses the configuration database to retrieve relevant configuration for individual Components in the domain, as well as locations of other Managers.
This allows applications to implement deployment recipes, for example for load balancing or for selecting the deployment configuration that satisfies specific application needs, without having to know explicitly the deployment of Containers or, more in general, the topology of the system.
For example
a pipeline application might deploy load balancing Components on all pipeline nodes at system configuration/
a load balancing master Component can request information from load balancing Components (disk space, memory, load, performance characteristics....)
based on this information can determine the best node where to run a specific pipeline stage Component
it can then deploy the pipeline stage "collocated" with the selected load balancing Component
this does not require to the application any explicit knowledge of the host and Container where the pipeline stage needs to be deployed.
the load balancing Component need to be deployed at configuration time or using administration tools written for that specific purpose, but transparently to applications.
The Pipeline/Offline teams define the requirements for process management by the Manager and described above, like redistribution of processes/containers for load balancing, dynamic allocation of components to container or redundancy and replication of components.

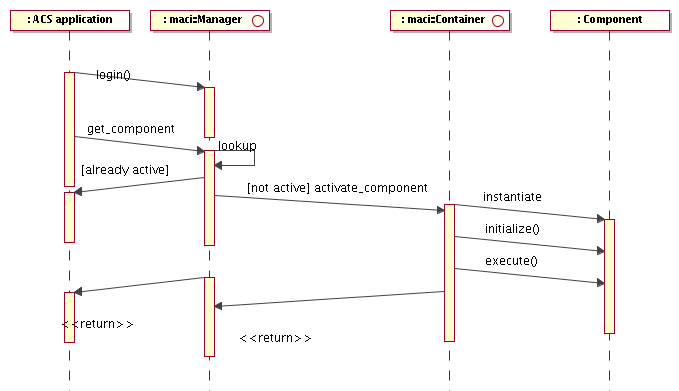

Figure 3.13: Component activation sequence
Every Container runs in its own process.
Manager sends the Container the request to construct/activate a specific Component by passing it the name, type and the path of executable code (depending on the implementation language) of the Component.
The Container loads the executable code and begins executing it. Depending on the implementation language, if the dependant executables are not loaded automatically by the operating system (as is the case on the VxWorks platform), Container loads them prior to executing any code.
The Container also deactivates Components, when so instructed by the Manager and is able to shutdown by disabling all Components.
Container maintains a list of all Components it has activated and is able to return information about an individual Component's implementation (such file path of the loaded code, version and build date).
Container
implements the ContainerServices
interface to allow the Components it hosts to perform their
MACI-related tasks, such as issuing requests to the Manager and
activating other CORBA objects and to get hold of all the general
services they may need.
Java, C++ and Python Containers will
provide slightly different services, since the three languages are
supposed to be used in different application domains.
It is
expected that new services will be added to one or the other
Container based on the application requests.
The Java ContainerServices interface defines a number of services. Look at the documentation for more details. The most important are:
Logger getLogger ()
Retrieves the logging system service object
void assignUniqueEntityId
(EntityT entity) throws ContainerException
Get a Unique Entity
Id assigned by the archive to entity data
org.omg.CORBA.Object getComponent
(String componentUrl) throws ContainerException
Retrieves e
reference to another Component. This exists in a number of
variants.
void releaseComponent (String
componentUrl)
Releases another component
DAL getCDB()
to access the
Configuration Database.
Object getTransparentXmlComponent
(Class transparentXMLInterface, org.omg.CORBA.Object
componentReference, Class flatXmlInterface) throws
ContainerException
Converts a "flat-XML" component
interface to a "transparent-XML" component interface.
The C++ ContainerServices is functionally equivalent to the Java one, but does not provide services equivalent to assignUniqueEntityId() and createXmlBindingWrapper(). The getLogger() method is provided directly by the Component base implementation classes and not through the ContainerServices.
The Python ContainerServices is functionally equivalent to the Java one, but does not provide services equivalent to assignUniqueEntityId() and createXmlBindingWrapper().
Porous Container
A Porous
Container returns to clients directly the CORBA reference to the
managed Components. Once they have received the reference, clients
will communicate directly with the Component itself and the
Container will only be responsible for the lifecycle management and
the general services the Container provides to Components, like
Logging.
Tight Container
A tight Container returns to clients a
reference to an internally handled proxy to the managed Components.
In this way the communication between client and Component is
decoupled allowing us to implement transparently in the proxy layer
extra security and optimization functionality, at the expense of an
additional layer of indirection, with some
performance
implication.

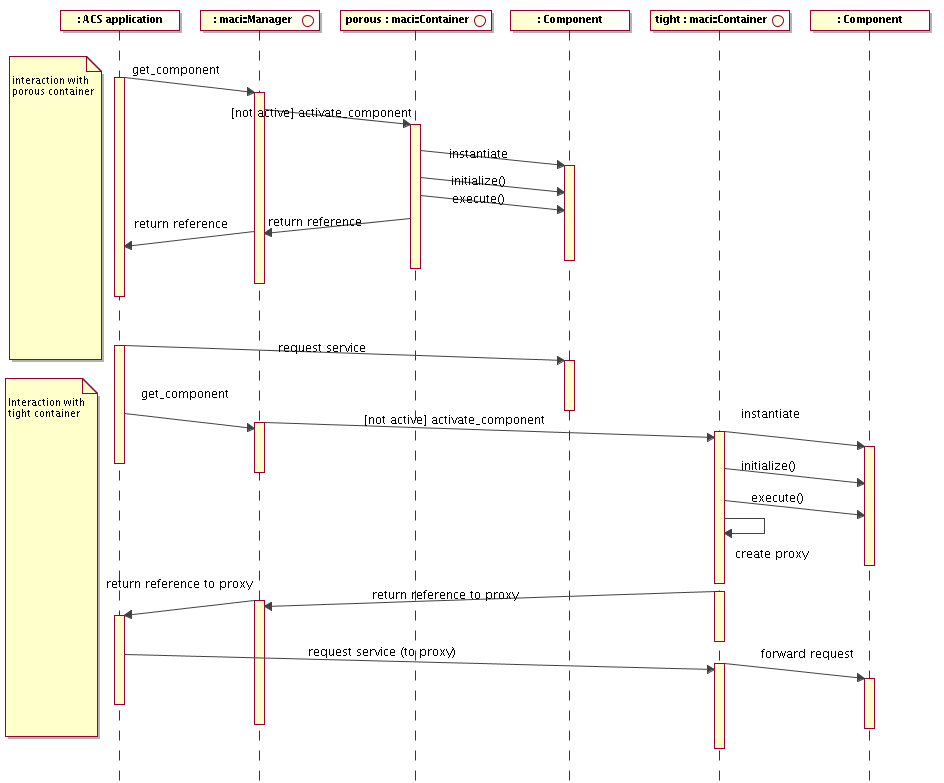

Figure 3.14: Porous vs. Tight Container access sequence
C++ Container
A C++ Container
is a “porous” Container to allow better performance avoiding the
extra level of indirection introduced by the tight Container
wrapper. A C++ Component is assumed to be part of a Dynamically
Loaded Library (DLL). Whenever the Manager requests a Component from
a C++ Container, it passes the reference to the DLL to be loaded.
The DLL is loaded dynamically and the Component instantiated and
activated. When the Component is released, the DLL is unloaded.
Java Container
A Java Container
is a "tight" Container. The Java Class for a Component is
dynamically loaded on request by the Container and unloaded when not
needed any more. The "tight" implementation allows the
transparent implementation of the (de)-serialization of entity
(data) objects that appear in the parameter lists of operations.
This functionality is very important for high-level Java
applications. This means that a Java "binding class" which
is a type-safe representation of XML data is transported across
processes in the form of an XML string, even though the client and
server component only see the real Java classes. This is also true
for sequences of entity objects, or structures that contain entity
objects.
There will be one JVM for each Java Container. In each
Container we will have many Components, all running in the same JVM.
This protects in a better way one Container from another and
resource balancing is done re-deploying Components from one
Container to another in the same or in another host.
On the
other hand, starting up and keeping alive JVMs is quite expensive.
This is particularly important for user interfaces: a user can start
at wish many GUIs on the same console, easily overloading the host.
Therefore GUIs will have the capability of running inside the same
JVM (when a new application/GUI is started, it looks for an existing
JVM able to host it. This mechanism is implemented in ABeans 3. GUIs
can be just clients for Components or they can be Components
themselves.
Python Container
A Python Container is a "porous"
Container. A Python package for a Component is dynamically loaded on
request by the Container and unloaded when not needed any more.
Python is used to implement Component that have a strong requirement
for flexible and easily editable procedures. Typical examples are
pipeline and data reduction recipes. Such recipes are often edited
by astronomers or by operators also during operation and are
therefore better implemented using a scripting language; the Python
components typically use and interact with C++ and or Java
Components that implement CPU intensive algorithms, for example
interfacing with Fortran legacy procedures..
It is possible to create new Container implementations for specific application purposes.
ACS Containers are implemented as classes that can be inherited from and extended. For example, specific initialization of legacy systems or data reduction packages to be used together with ACS components can be delegated to specialized containers
specialized Containers can also be used to implement statically linked ACS executables. The Container will look from the Client and Manager point of view as a standard Container, but the libraries implementing Components are statically linked and instances of Components can be predefined in the linked executable. This was discussed for the implementation of the Offline Data Reduction Framework and ACS can, upon request, provide a standardized implementation for a few specialized containers.
The Task (see Task section) is a specialized Container that can be run as an executable and does not require Manager or ACS services.
The Client interface allows the client to act as a secure party in the communication with the Components, to receive general-purpose string messages from the MACI components and to be notified when any change happens to the Components that the client utilizes.
The log in and other requests are issued to the Manager, which serves as a portal to other services.
Each Client logs in to the MACI system before any other requests are made, and in turn it obtains a security token, which it must use in every subsequent request to the MACI (Partially implemented).
The authentication can be implemented using a plugin design. If the Archive User Repository is available and if desired, the corresponding plugin will allow to authenticate clients based on the User Repository (Implementation not foreseen for ALMA).
Whenever a client needs a CORBA reference for a Component, a request to Manager is done for the corresponding Component.
If the object is not already instantiated, the Manager asks the Container to create it.
When an object contains hierarchical references to contained objects, the dependency is expressed via Component URLs and resolved through requests to the Manager. In this way, the Manager can automatically achieve instantiation of not already active nested objects. This guaranties that all objects are automatically created in the right order and when needed.
Some objects are needed immediately at bootstrap. They are directly specified in a Manager configuration table (stored in the Configuration Database) and the Manager instantiates them as soon as the Container responsible for their deployment is bootstrapped.
If there is a root top-level object, just putting this object in the Manager table will trigger a cascade instantiation of all dependent objects.
It is not allowed to directly pass a CORBA reference to a Component from one Component (or more in general, client) to another.
Whenever a Client needs to access a Component, it shall request the reference by name from the Manager, by using the service calls provided by the ContainerServices, or by using directly the Manager's IDL interfaces
If a Client needs to pass to another client information about a Component to be accessed, this shall be done by passing the Component's name. The Client will then have to get the component reference from the Manager using this name.
In exceptional situations, Components need to instantiate objects that are accessible remotely, and need to pass them around to other Clients. The ACS::OffShoot interface is a base interface defined for this purpose. ACS::OffShoot objects are instantiated by a Component, who is responsible for their whole lifecycle. Their lifetime is limited to the lifetime of the Component who created and handed them over to clients. Mostly ACS:OffShoots are used internally by ACS, for examples ACS:Callback and ACS:Monitor objects.
This is because the Manager needs to keep directly track of
all the Client-Component associations to be able to handle failures
and restarts of Components and to allow administrator Clients to get
a realistic picture of the status of the system.
The Object Explorer is equivalent and covers the requirements of the Device Browser Tool described in the [RD45 - EVLA Engineering Software Requirements, 1.1 Accessing a Single Device]. In order to cover all detailed requirements expressed in [RD45], extensions to the Object Explored will need to be implemented.
All objects in the system can be reached by navigating the hierarchy and all object information can be retrieved and edited, including accessibility for a given user . For example, it is possible to graphically browse the hierarchy of Components in the system, based on the naming hierarchy, reach every single Component and view/edit all values of Properties and Characteristics.
The Object Explorer allows to browse the interface [RD45 - 1.1-R4] and send any command supported by a Component [RD45 - 1.1-R5]
It is possible to monitor and draw trend-plots for each property [RD45 - 1.1-R3]
The Object Explorer uses the CORBA Interface Repository to retrieve information on the interfaces provided by the Components in the system.
Requirements in [RD45 - 1.1] not covered by the current Object Explorer implementation are:
1.1-R2 - Tabular representation of multiple monitor points
1.1-R3 - Plot multiple monitor points on the same plot (this is possible with the ACS Sampling System)
1.1-R5.4 - Send a command repetitively
1.1-R5.5, 5.7- Save, read and execute sets of commands from file
1.1-R8 - Save tabular data with monitor values (this is possible with the ACS Sampling System)
1.3 Accessing Multiple Devices
allows to start/stop ACS Services, Manager, Containers and Components on the local system or remotely
displays the information about objects in the system. This includes Components, Managers and Containers. Both currently active Components and potentially active Components (i.e. Components that the Manager is able to bring online on request) are displayed.
interacts with the Manager through IDL maci::Administrator interface, by receiving notifications about other clients and activators in the system from the Manager.
acts as a central user interface for starting up administration utilities (logging client, object explorer, event monitor and others), providing a configurable menu structure.
makes available to developers an API and GUI elements to
implement administration applications and GUI.
The ALMA Executive
is an application based on this API and GUI building blocks.
