Summary of reduction options

The two following diagrams summarise the successive steps performed by high-level procedures RESPONSE/ECHELLE and REDUCE/ECHELLE depending on the main options:

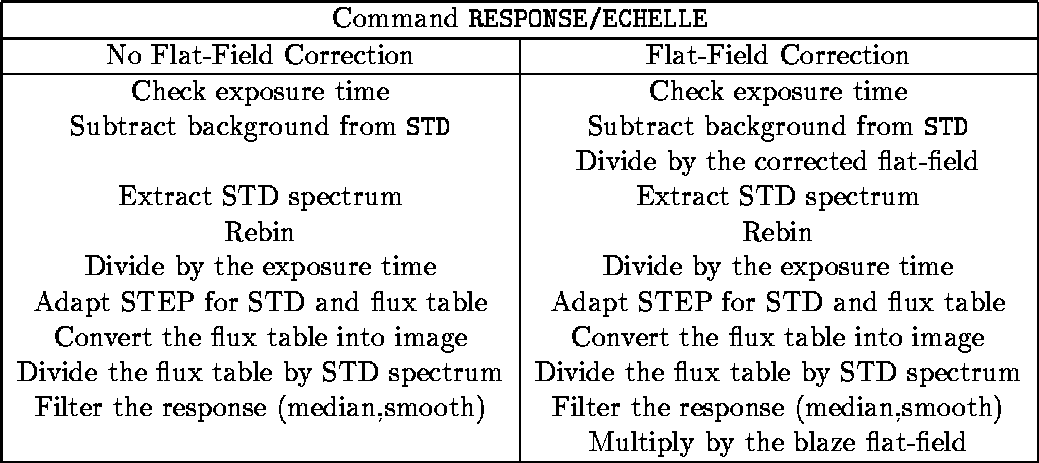

Figure D.1: Response/Echelle
\begin{figure}
\begin{center}
\begin{tabular}{\vert c\vert c\vert}
\hline
\mu...
...ply by the blaze flat-field \\
\hline
\end{tabular} \end{center} \end{figure}

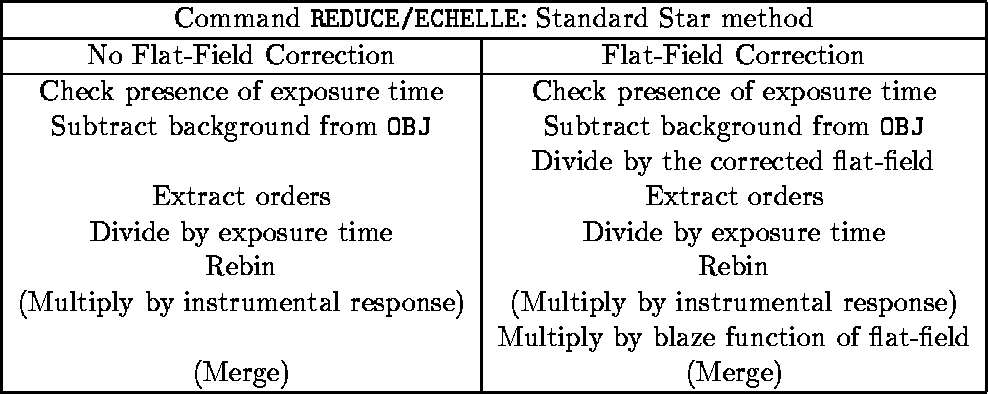

Figure D.2: Reduce/Echelle (1)
\begin{figure}
\begin{center}
\begin{tabular}{\vert c\vert c\vert}
\hline
\mu...
...ield \\
(Merge) & (Merge) \\
\hline
\end{tabular} \end{center} \end{figure}



Figure D.3: Reduce/Echelle (2)
\begin{figure}
\begin{center}
\begin{tabular}{\vert c\vert c\vert}
\hline
\mu...
...PLE/ECH} \\
Merge & Merge \\
\hline
\end{tabular} \end{center} \end{figure}
