CCD Dimensions and Format

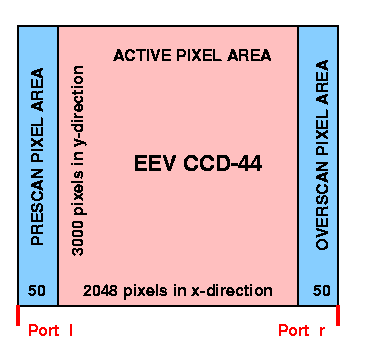

UVES Blue CCD Data Format

Note : Not drawn to scale.

There are 50 prescan and 50 overscan pixels visible on the image.

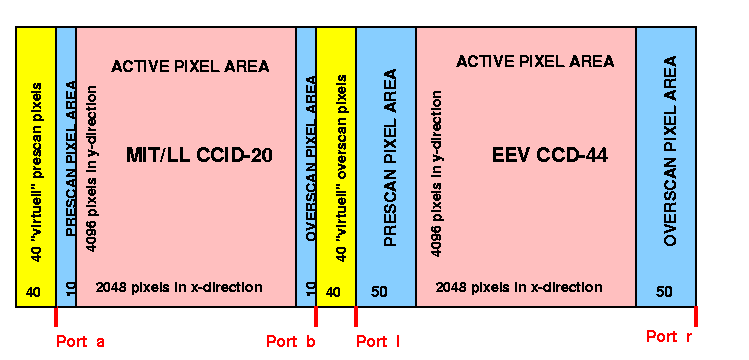

UVES Red CCD Data Format

Note : Not drawn to scale.

Note :

There is a physical gap of 0.96 mm between the last light sensitive pixel of the MIT and the first light sensitive pixel on the EEV CCD.
