Cosmetic for UVES Blue Upgrade

flat field

For the flat field we use three wavelengths, 350nm, 600nm and 900nm. For each wavelength we make two images, high level (45000 ADU) and low level (1000 ADU).

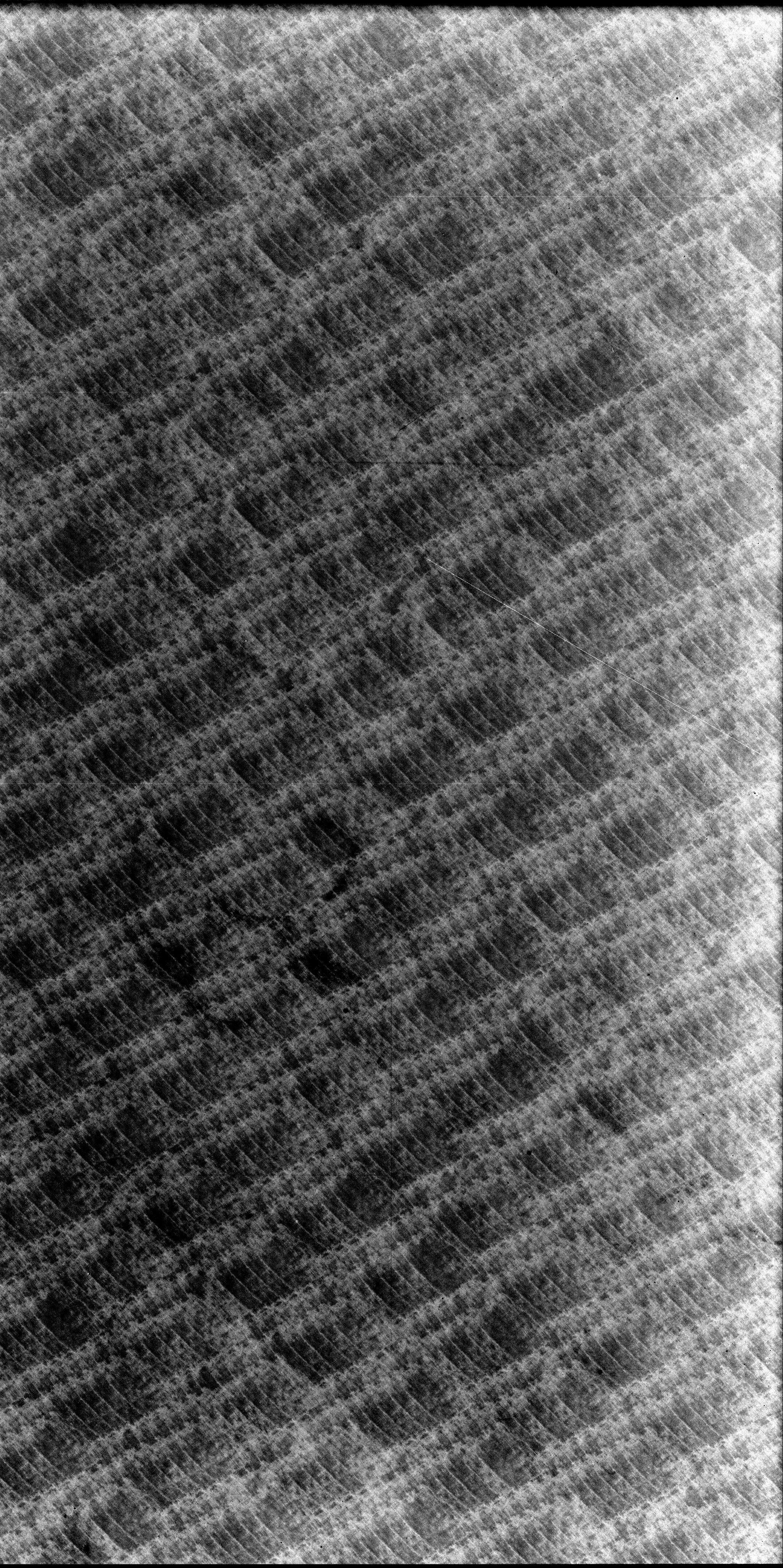

350nm (UV), Bandwidth 5nm, High gain mode, High level

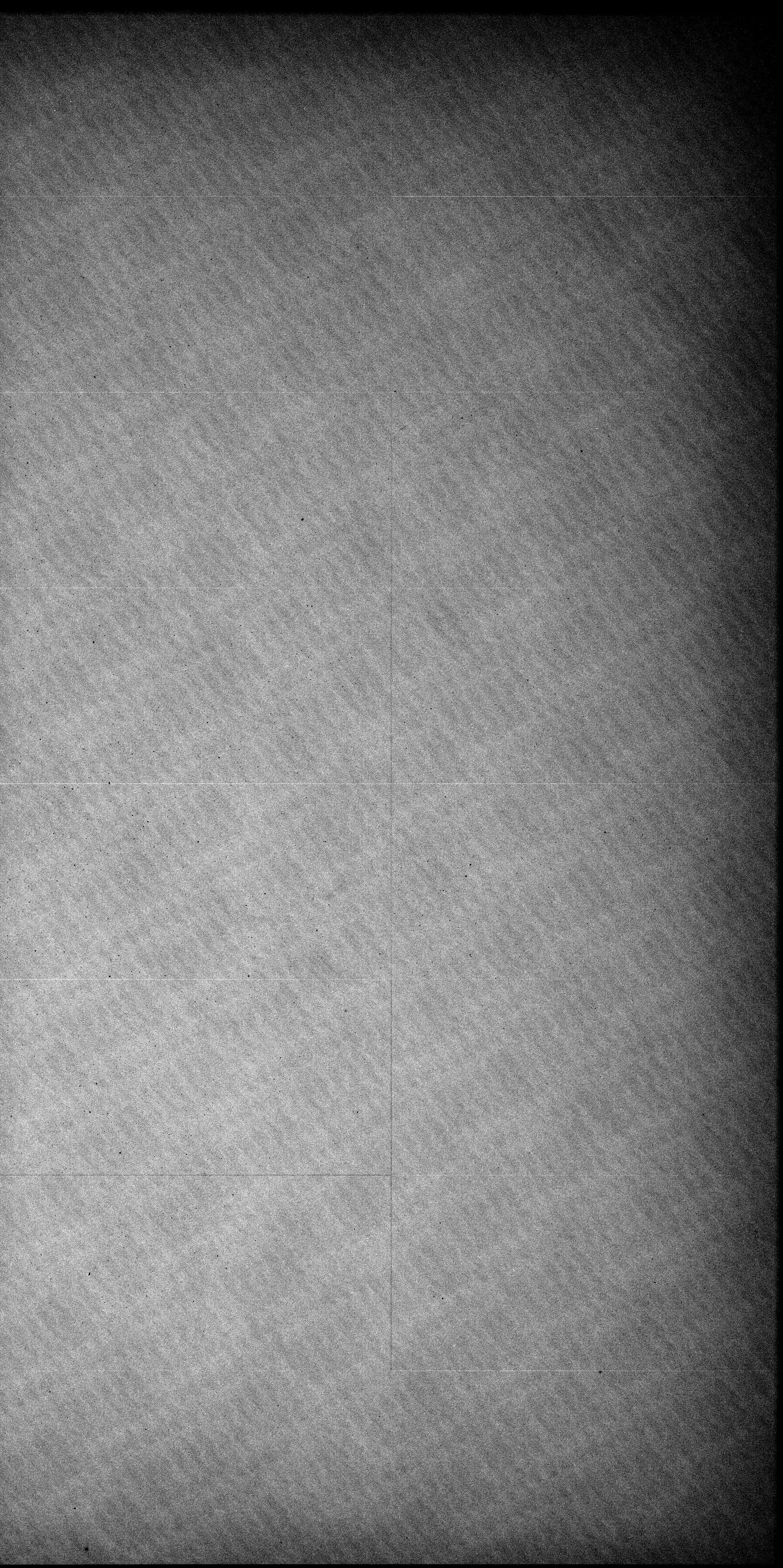

475nm, Bandwidth 5nm, High gain mode, High level

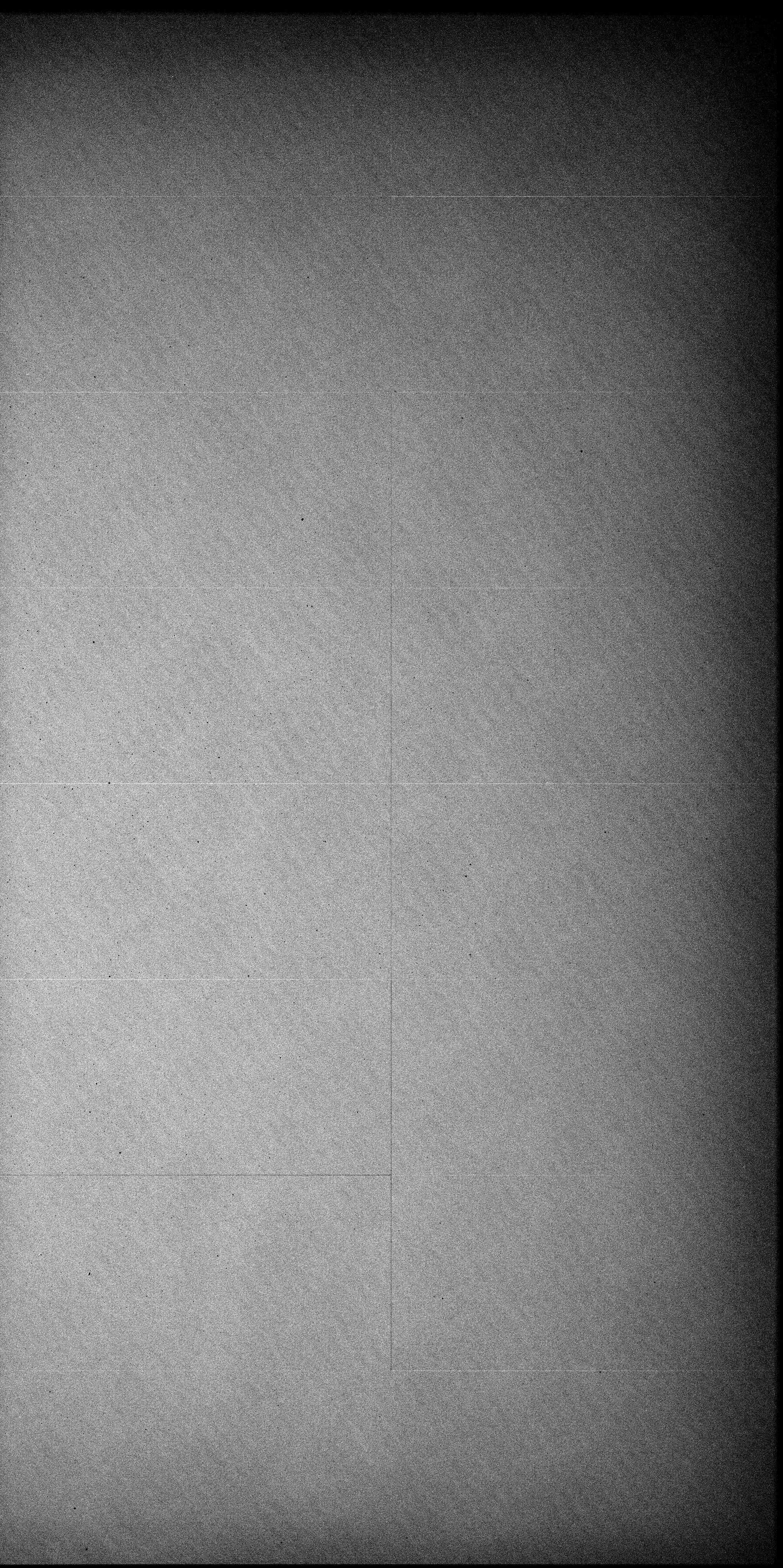

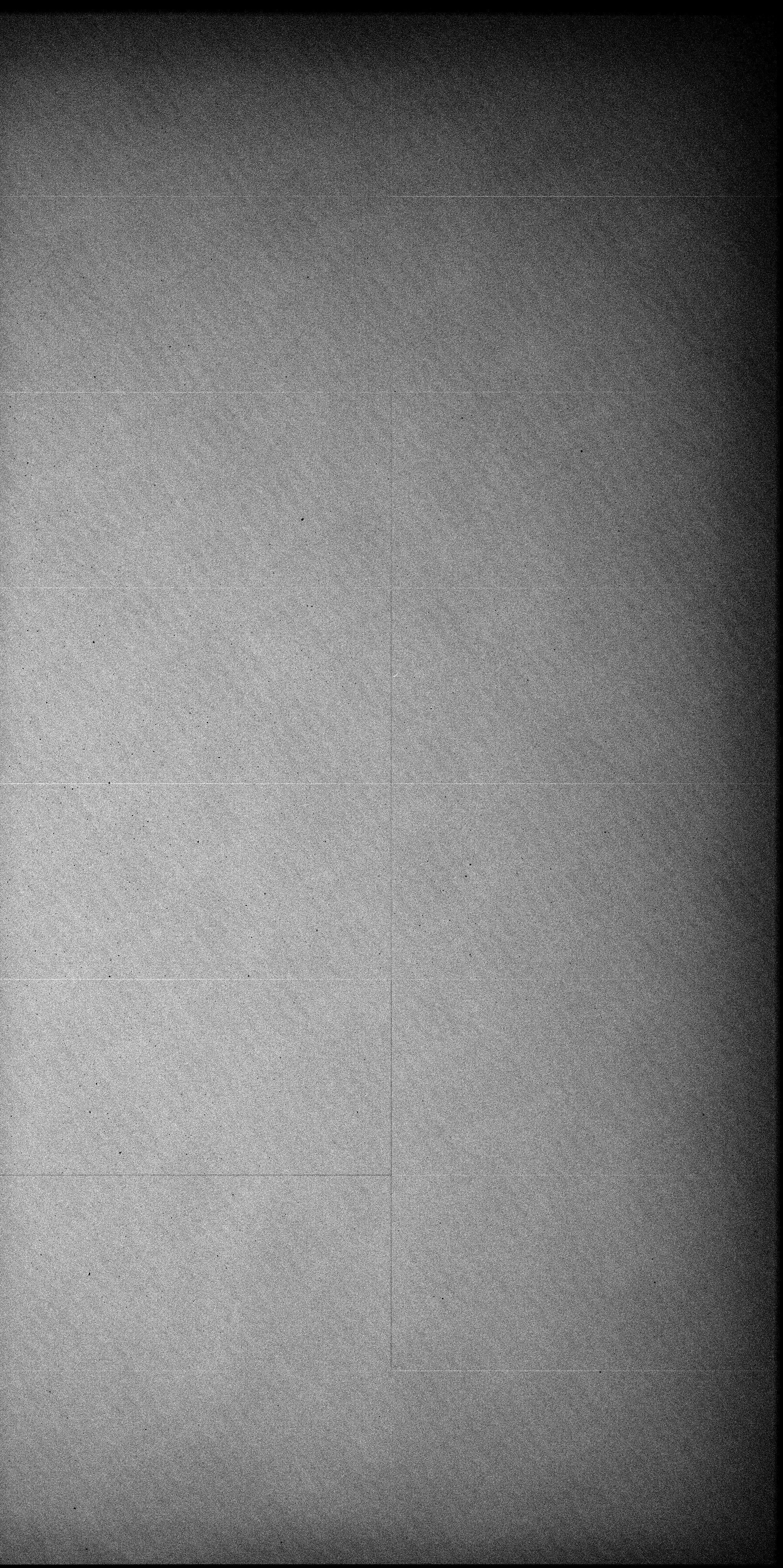

600nm, Bandwidth 5nm, High gain mode, High level

750nm, Bandwidth 5nm, High gain mode, High level

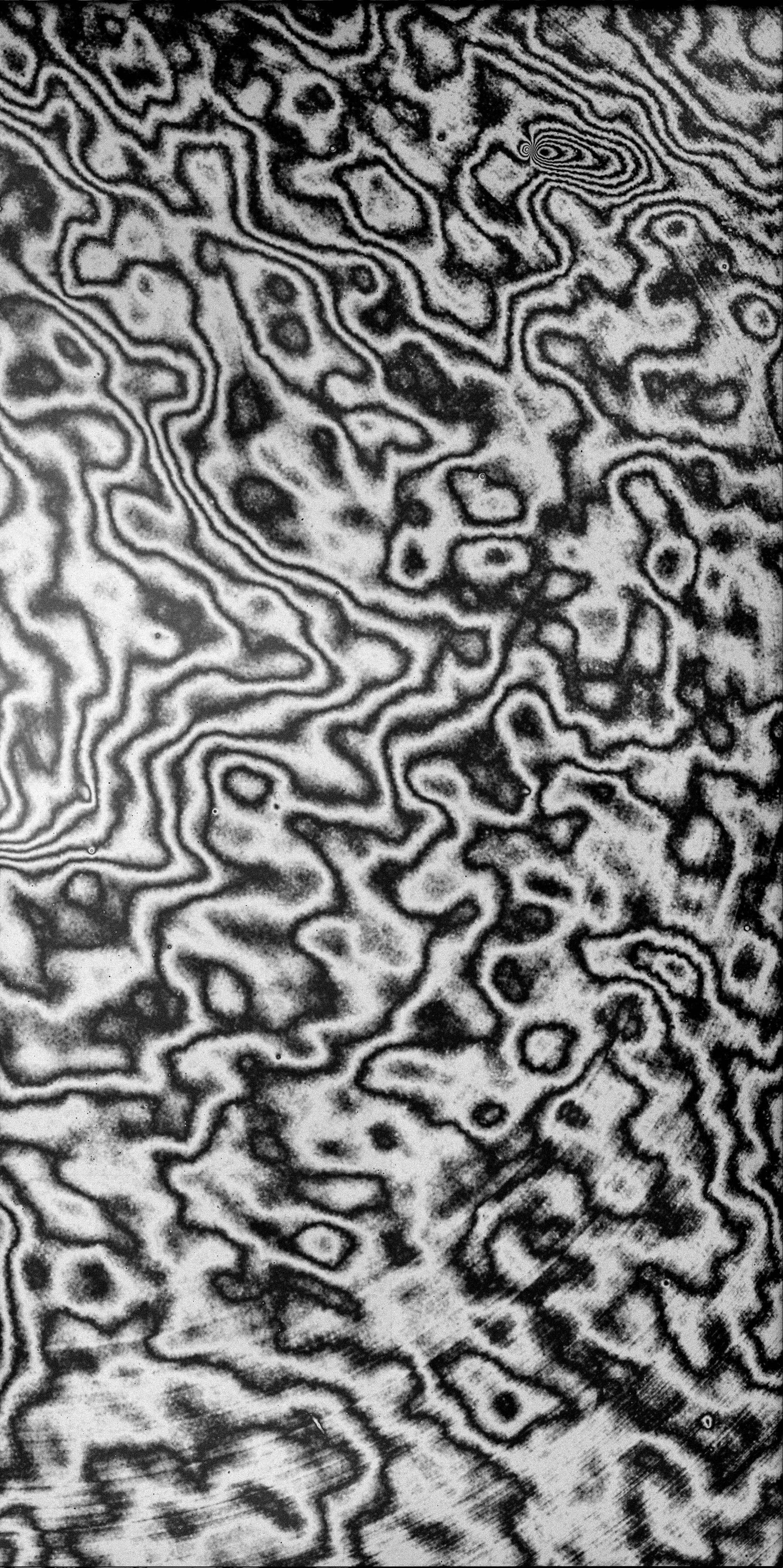

900nm, Bandwidth 5nm, High gain mode, High level

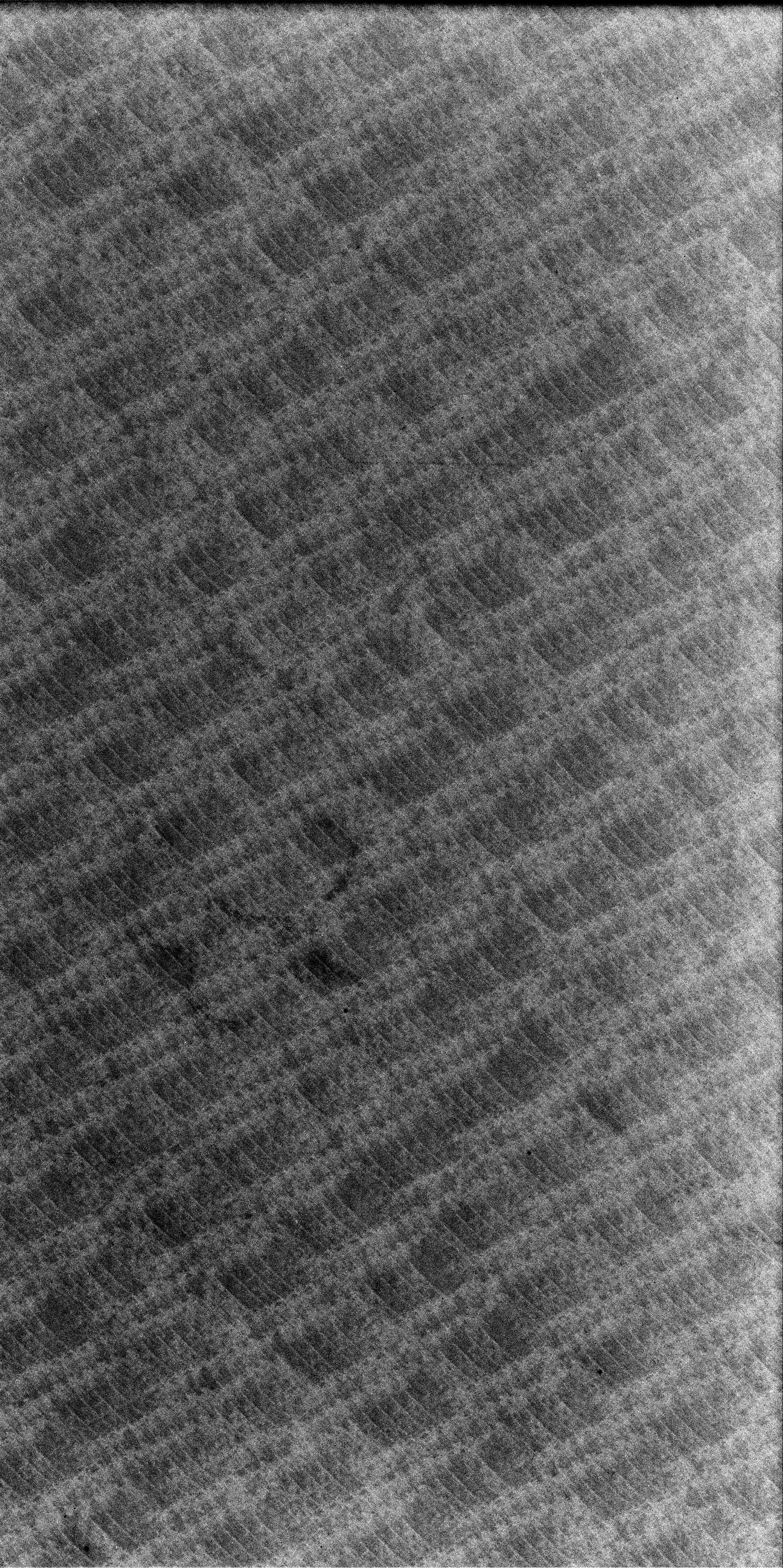

350nm (UV), bandwidth 5nm, High gain mode, Low level

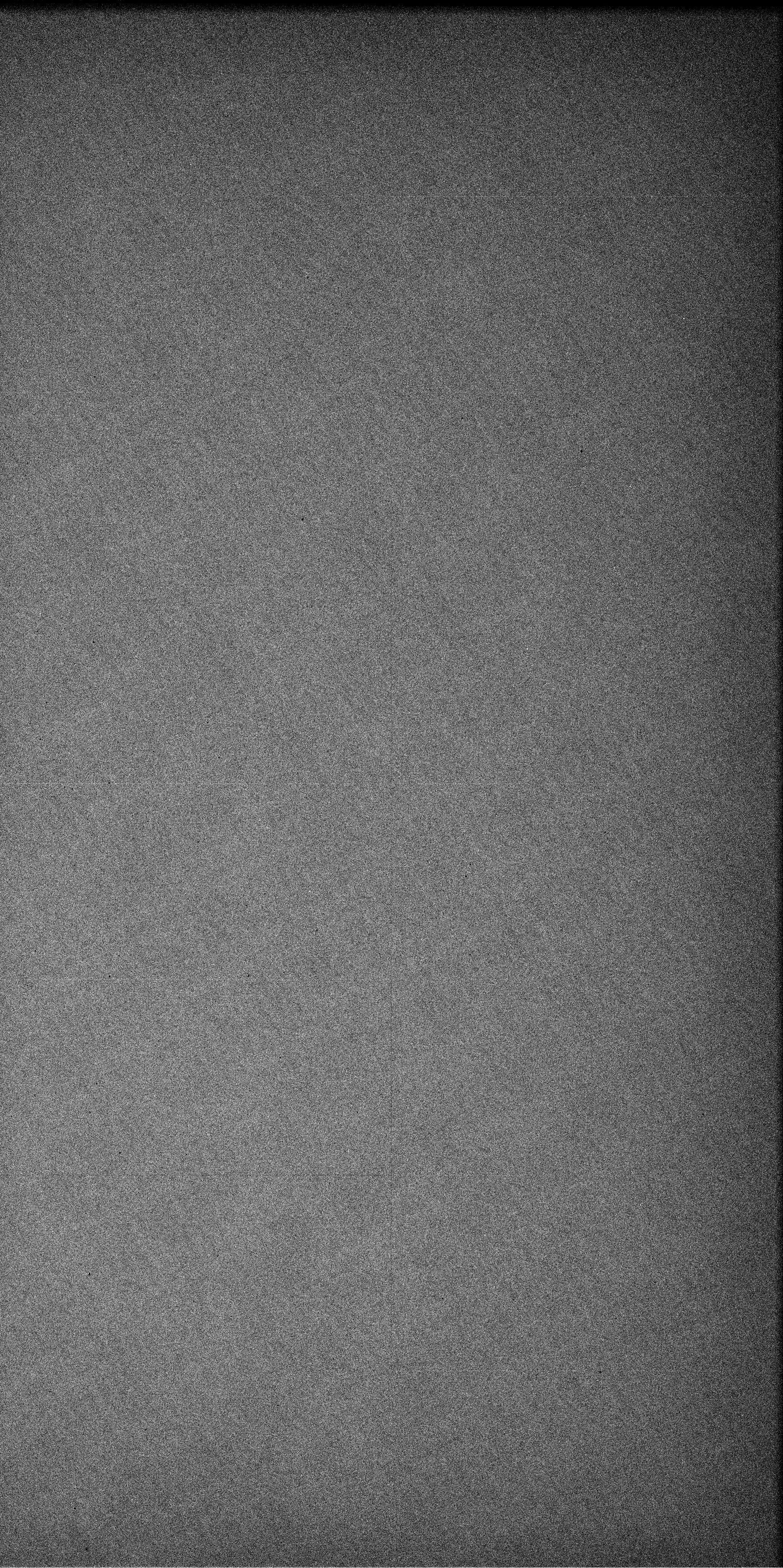

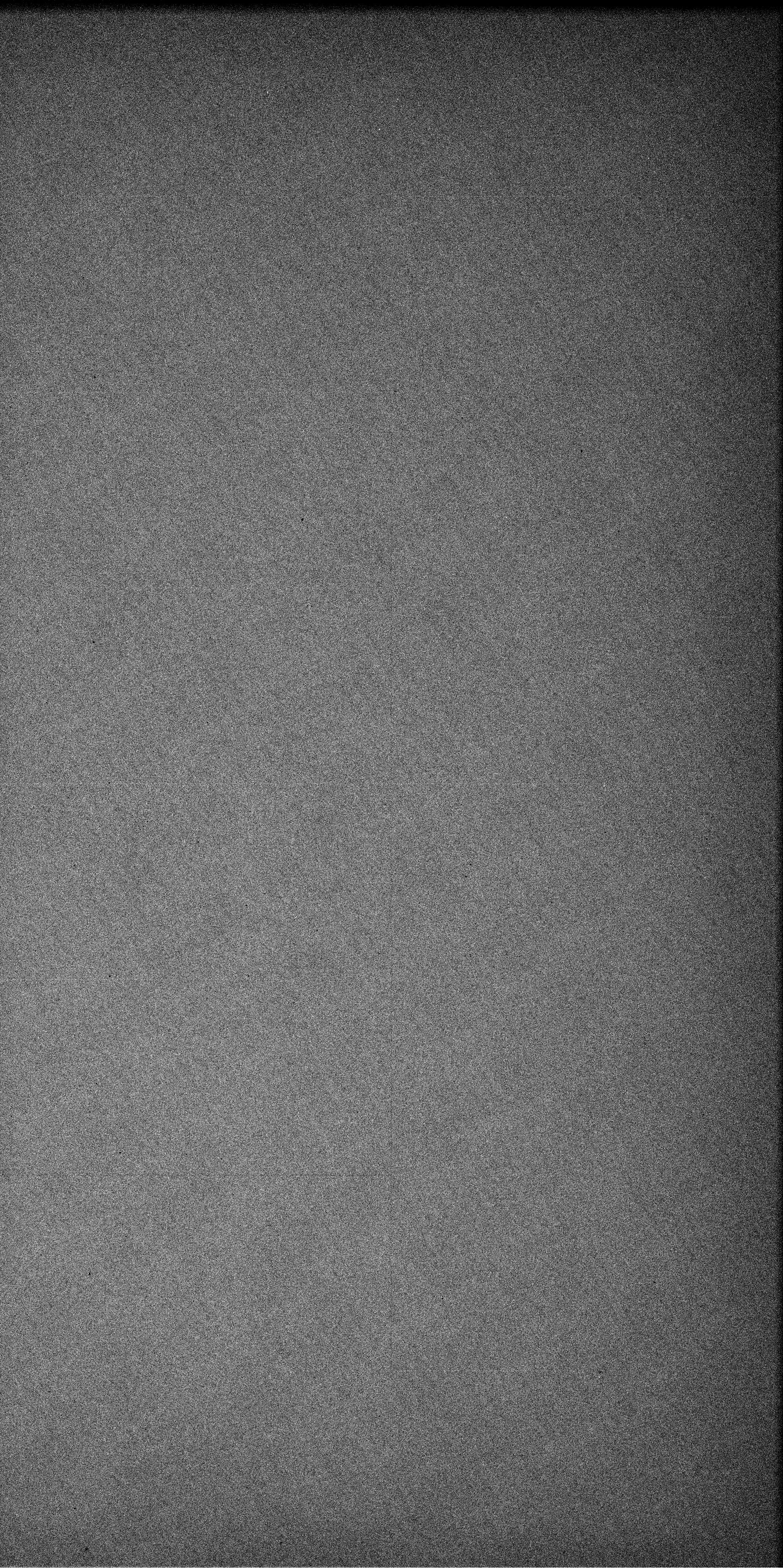

475nm, bandwidth 5nm, High gain mode, Low level

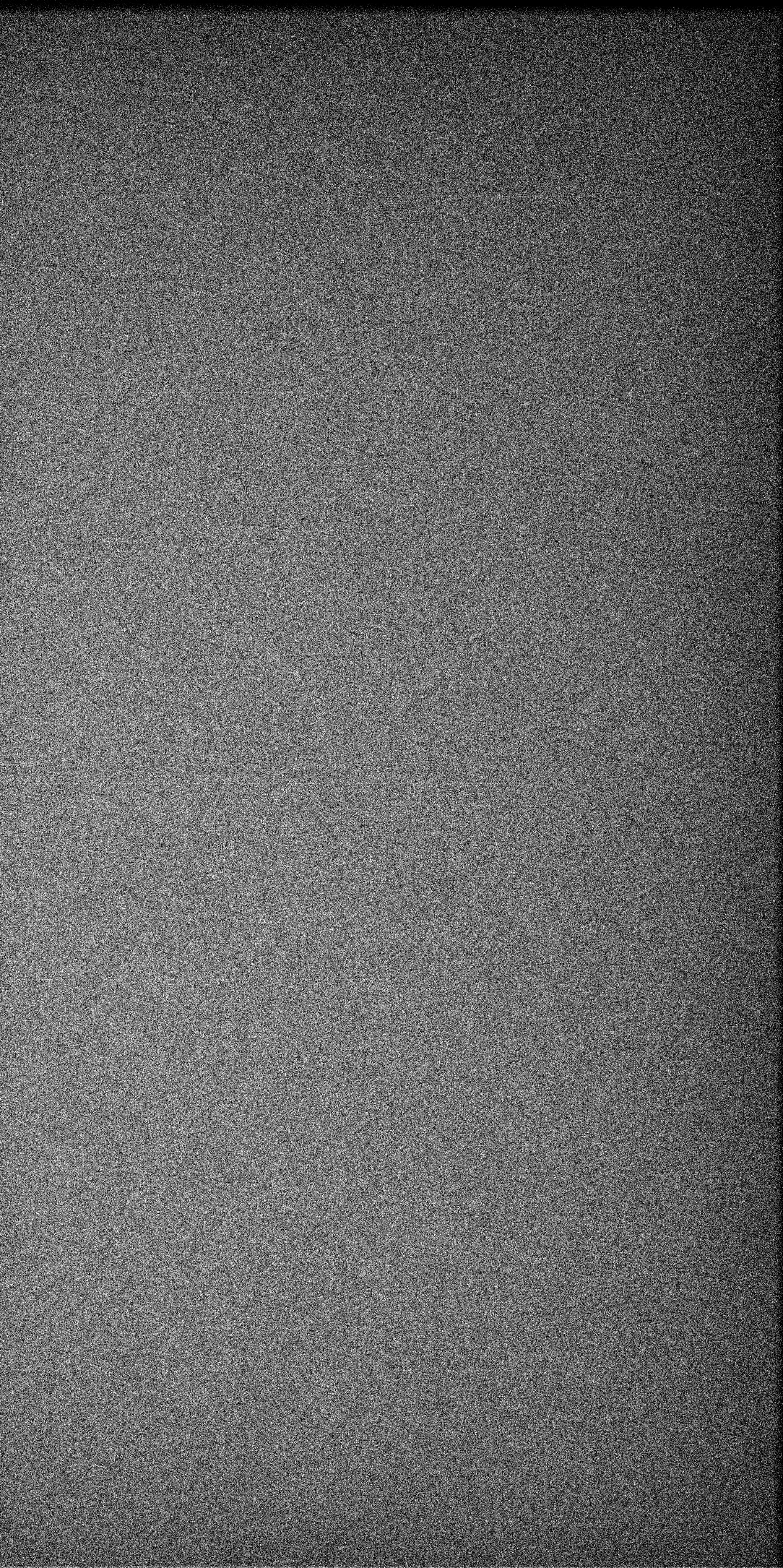

600nm, bandwidth 5nm, High gain mode, Low level

750nm, bandwidth 5nm, High gain mode, Low level

900nm, bandwidth 5nm, High gain mode, Low level

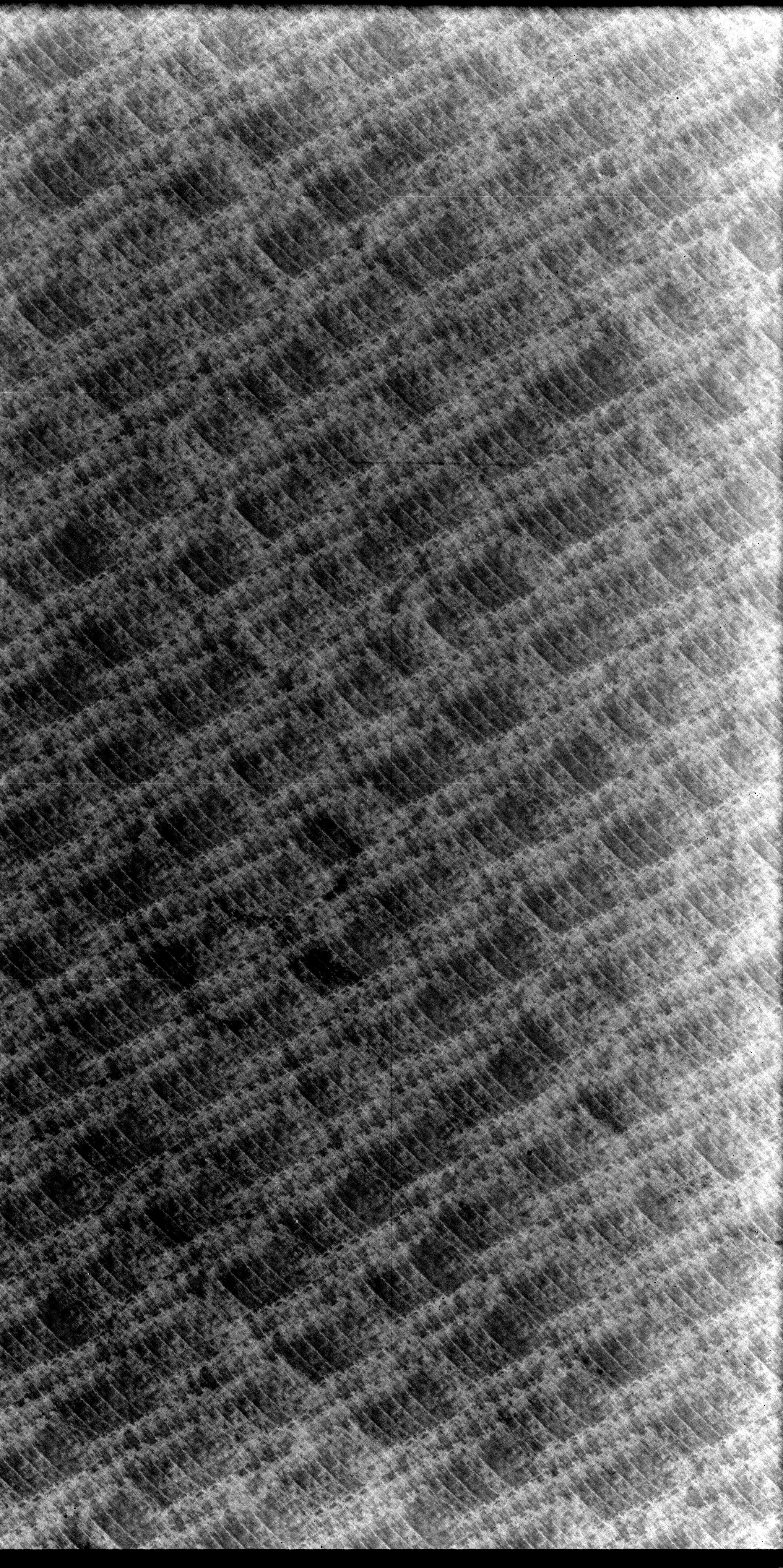

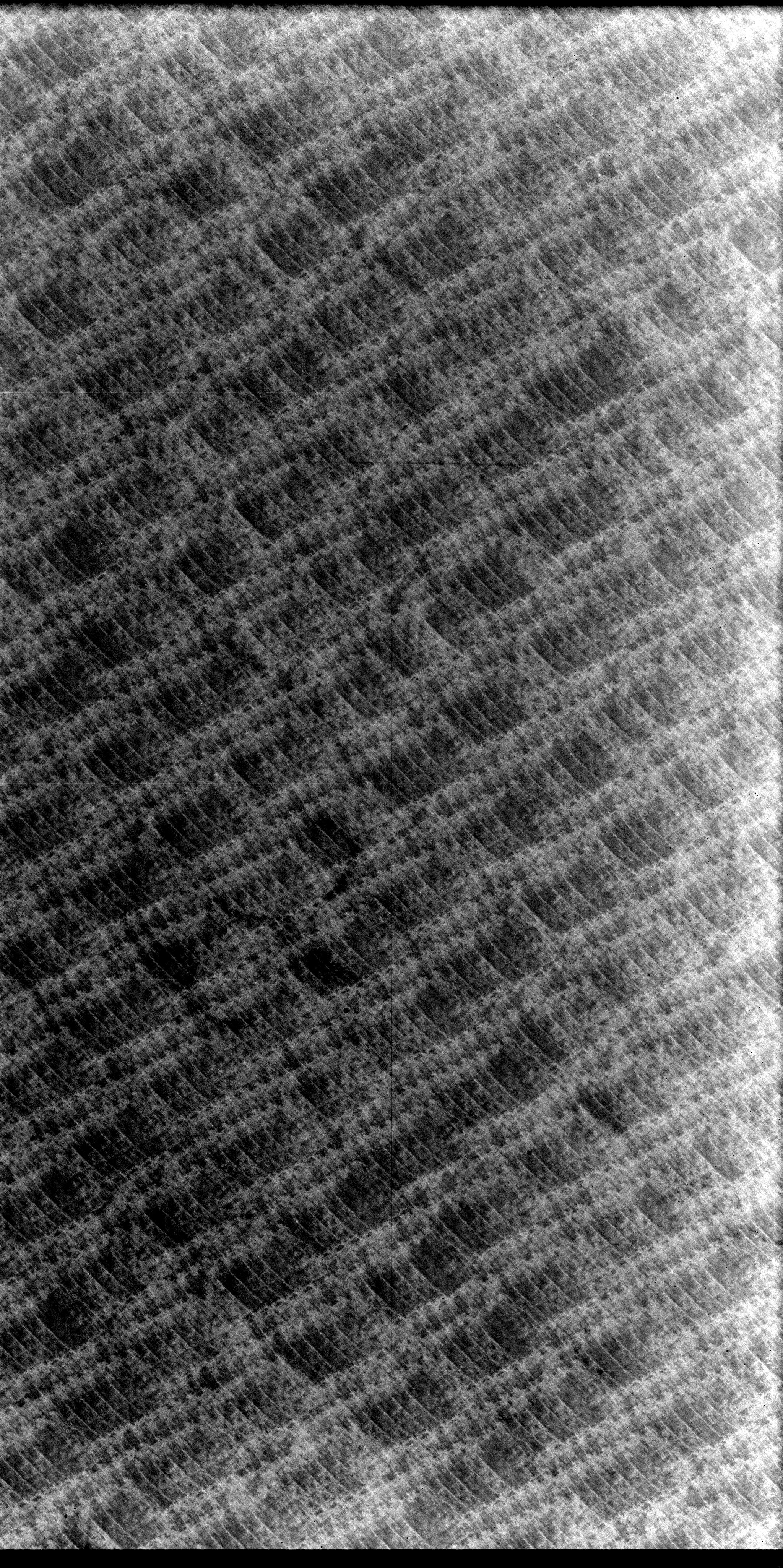

350nm (UV), bandwidth 5nm, Low gain mode, High level

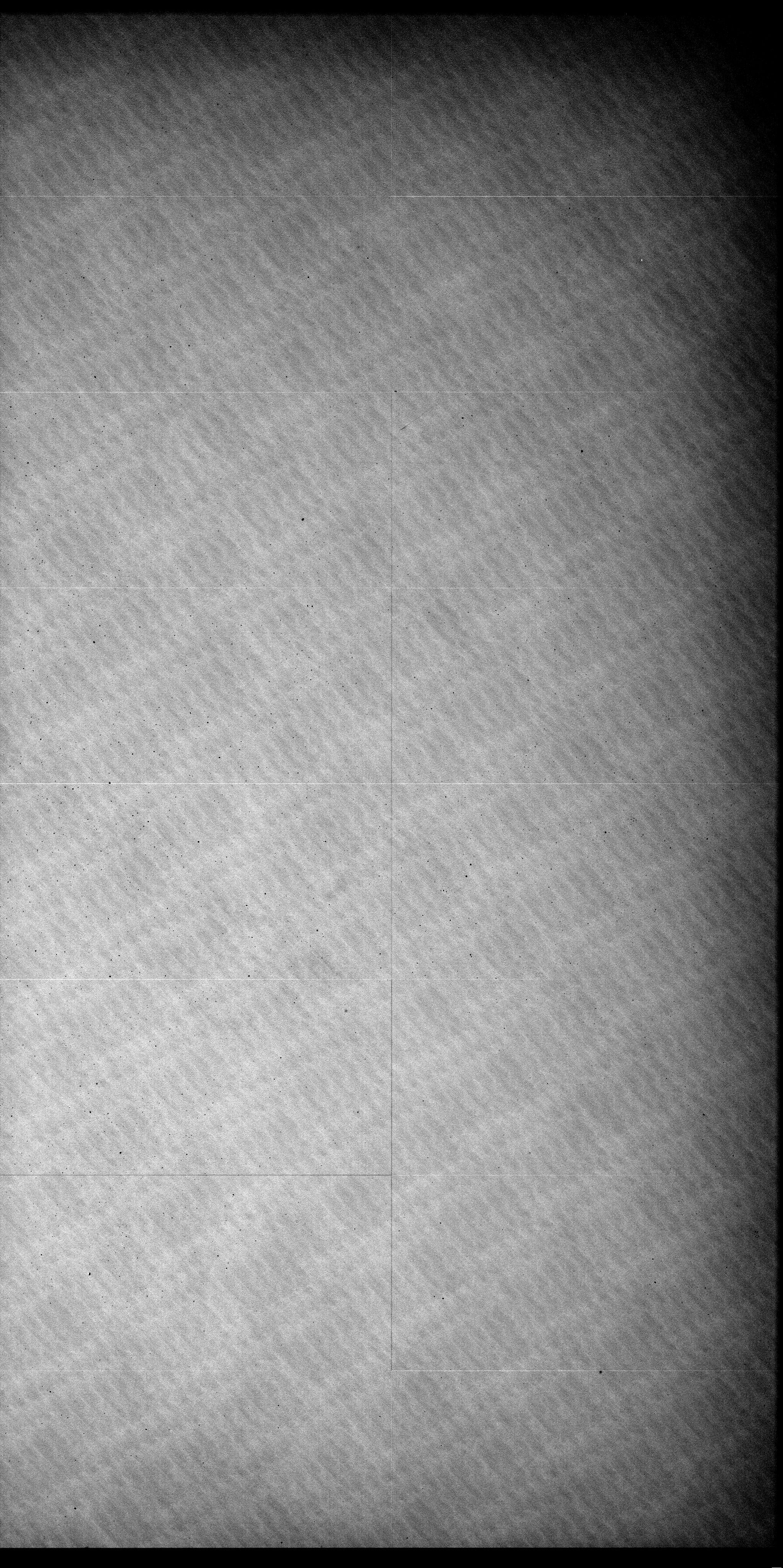

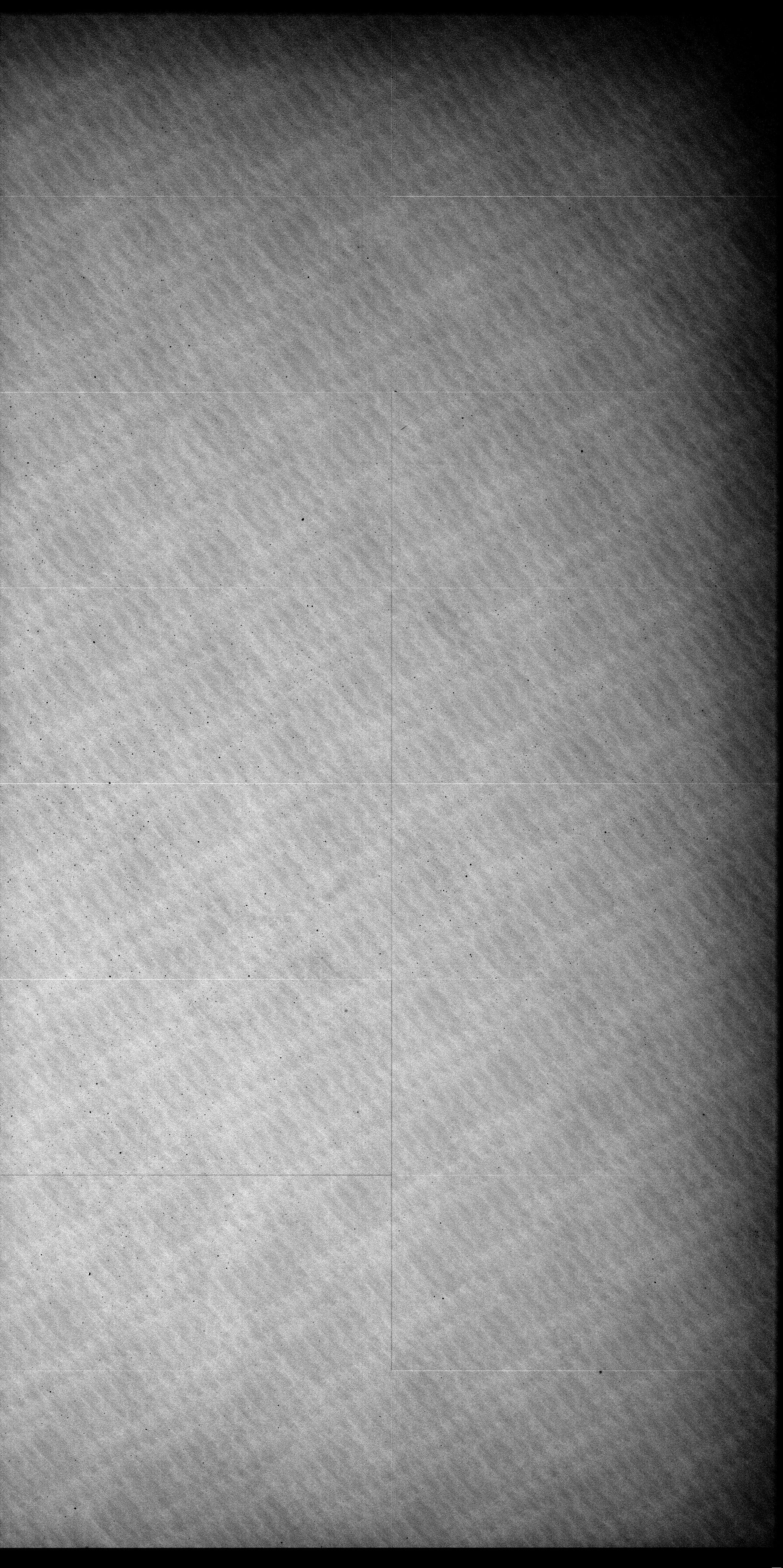

475nm (UV), bandwidth 5nm, Low gain mode, High level

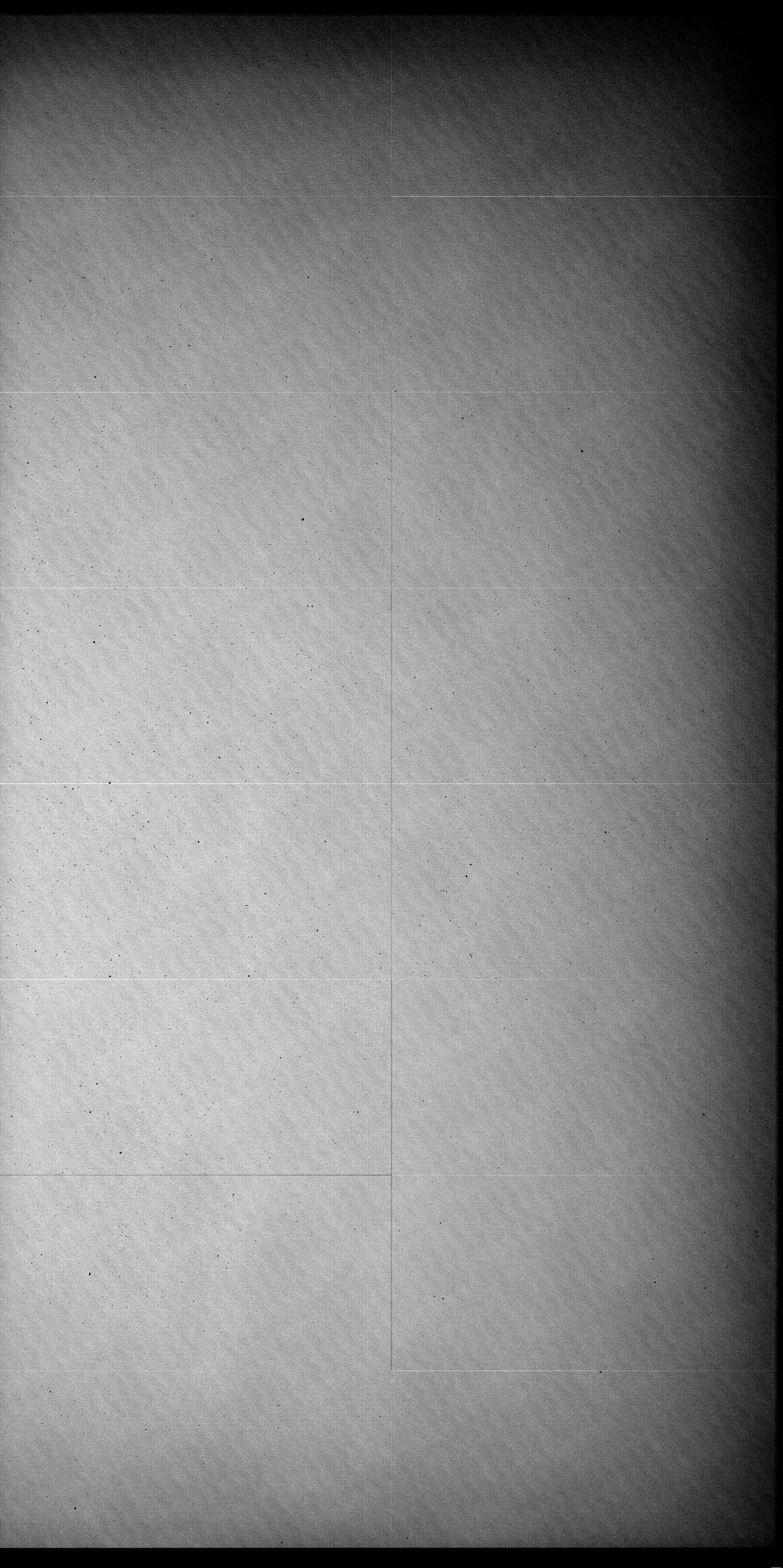

600nm (UV), bandwidth 5nm, Low gain mode, High level

750nm (UV), bandwidth 5nm, Low gain mode, High level

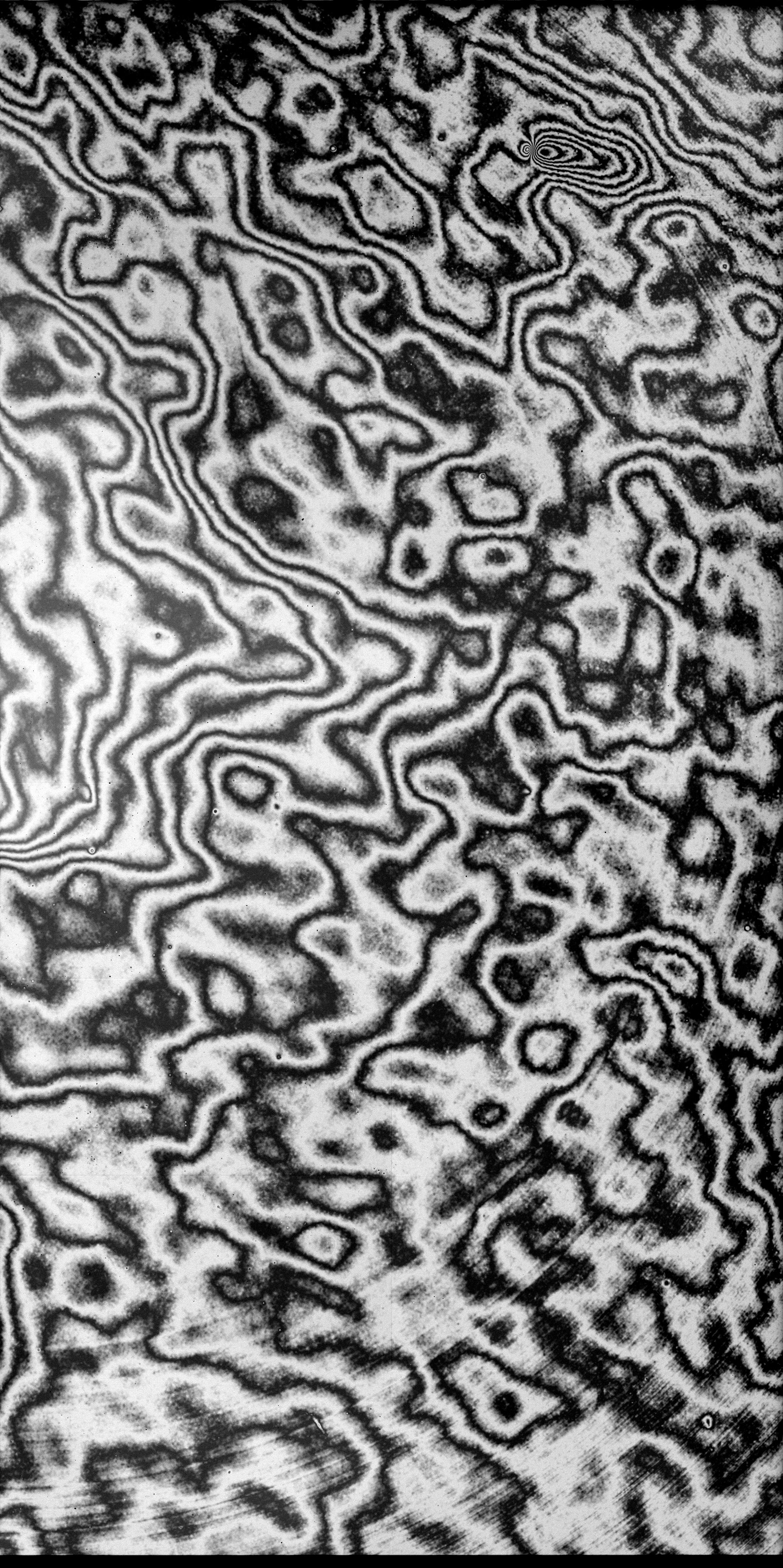

900nm (UV), bandwidth 5nm, Low gain mode, High level

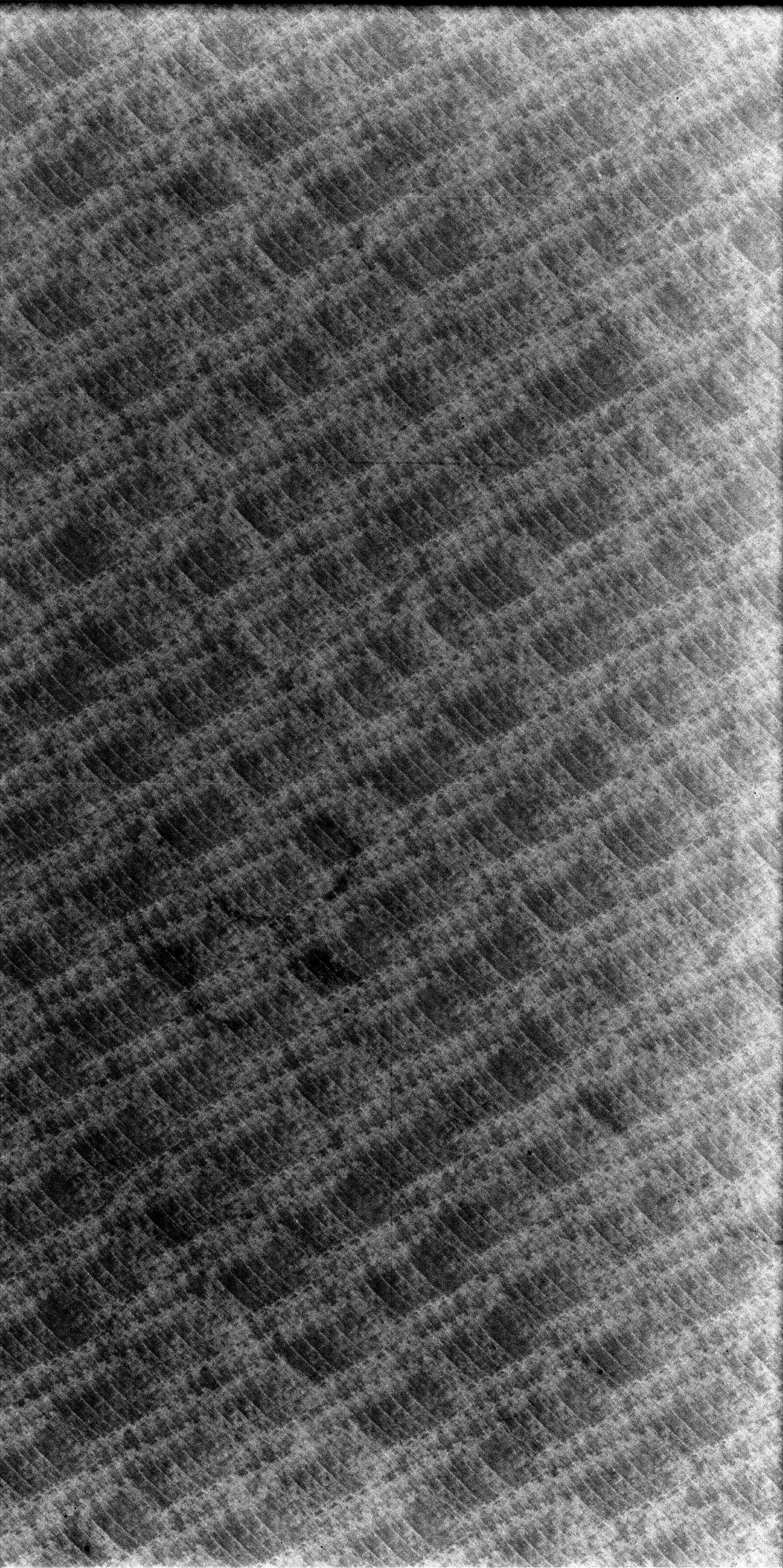

350nm (UV), bandwidth 5nm, Low gain mode, Low level

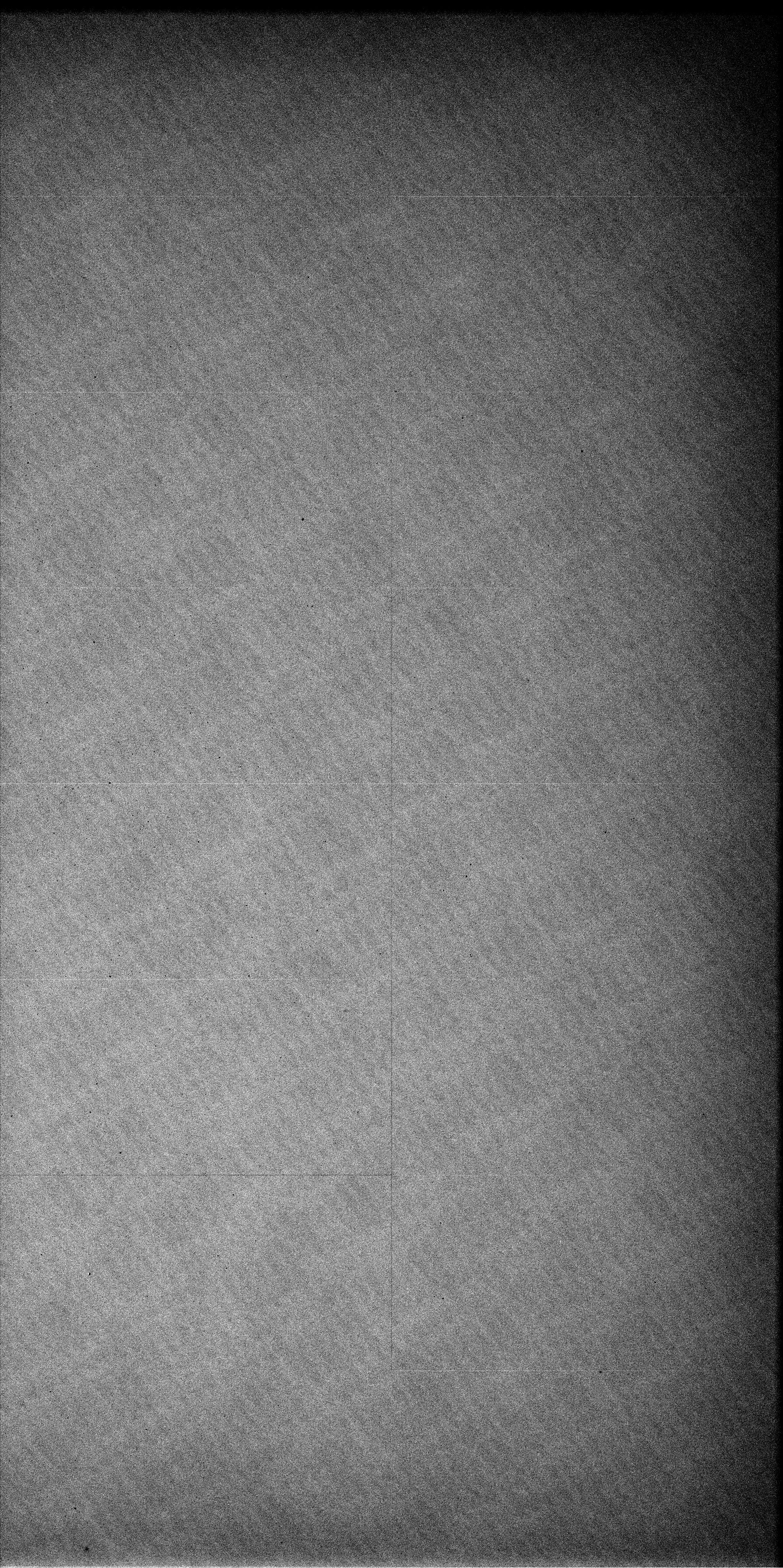

475nm (UV), bandwidth 5nm, Low gain mode, Low level

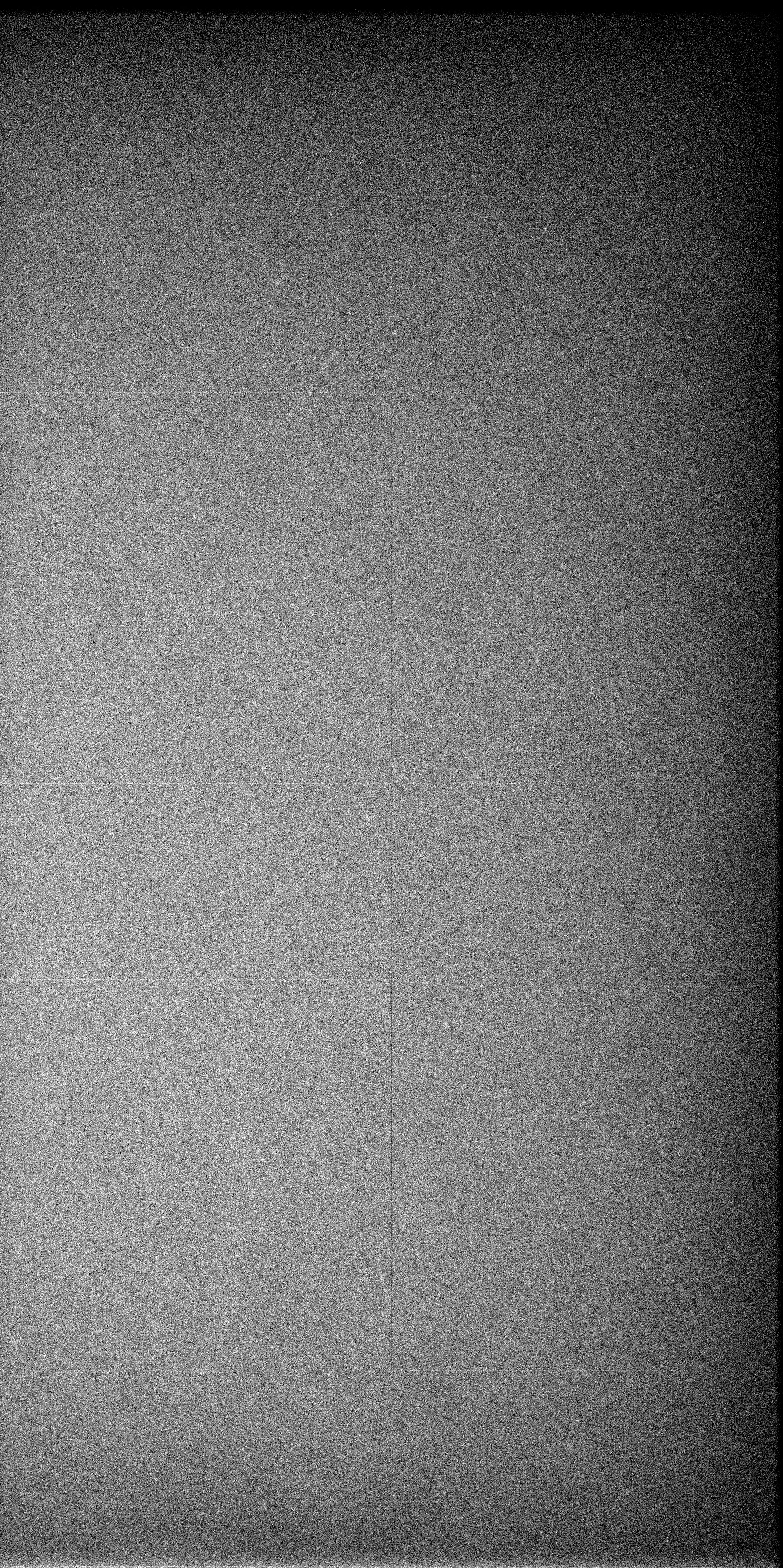

600nm (UV), bandwidth 5nm, Low gain mode, Low level

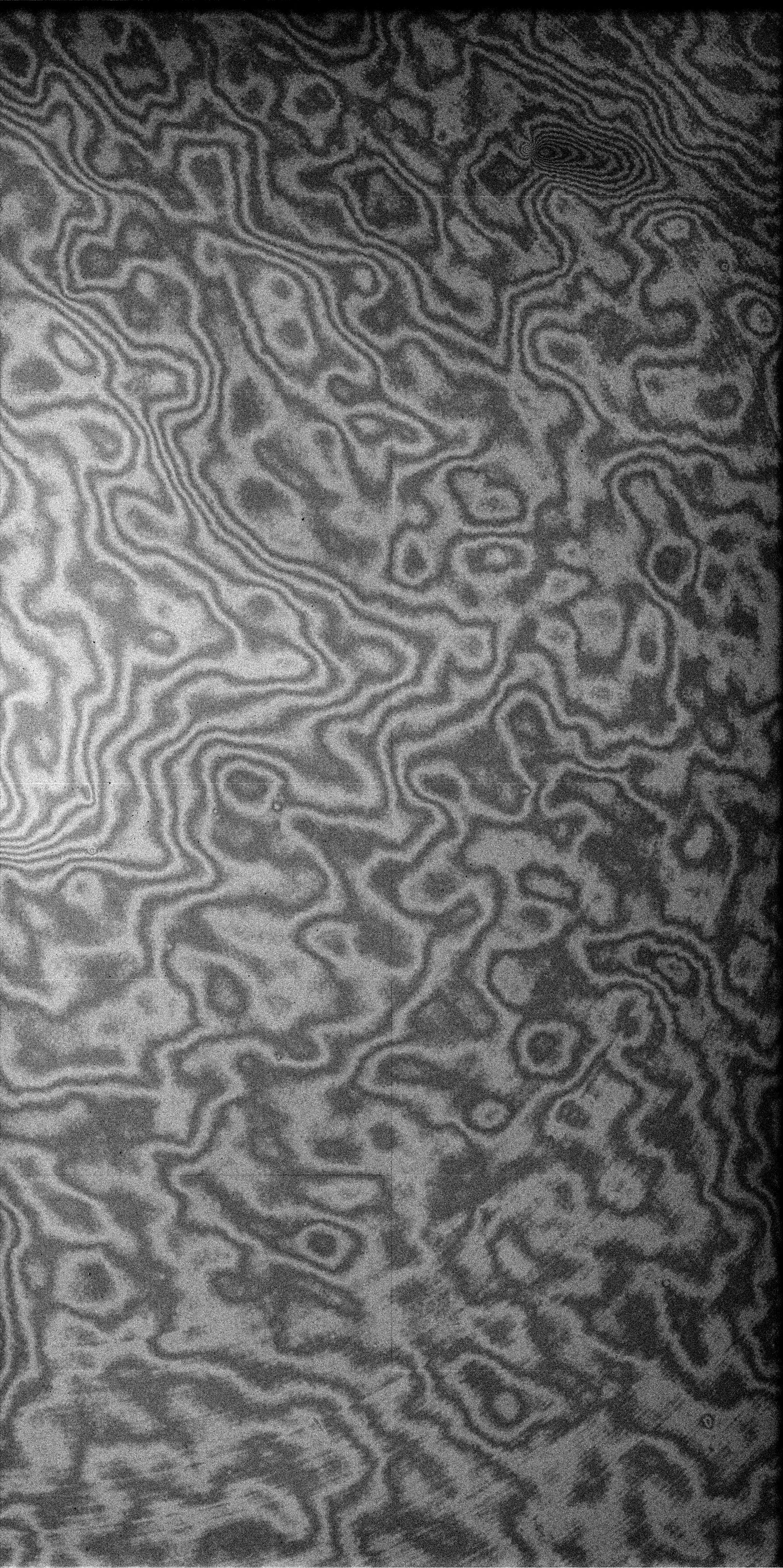

750nm (UV), bandwidth 5nm, Low gain mode, Low level

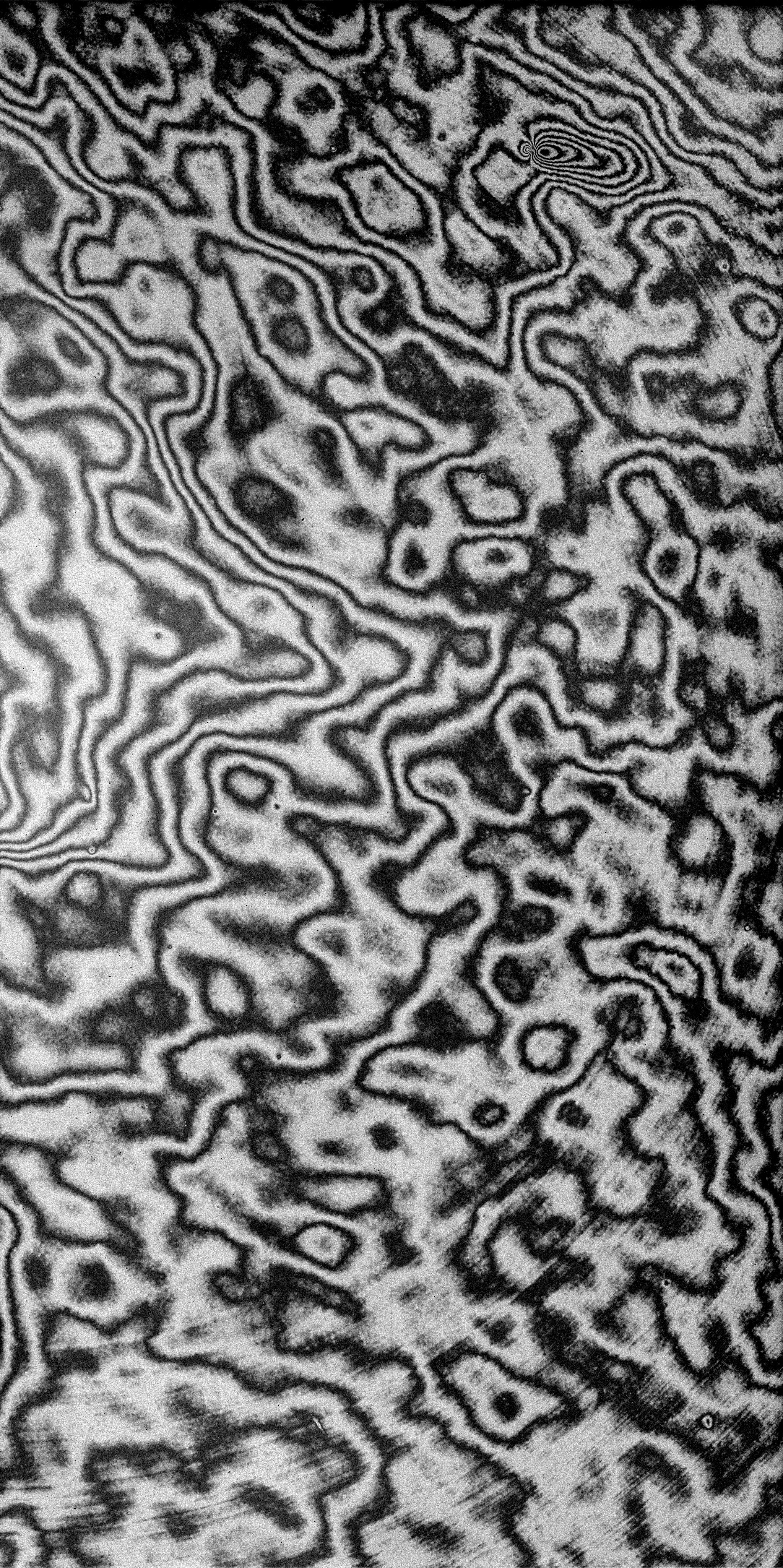

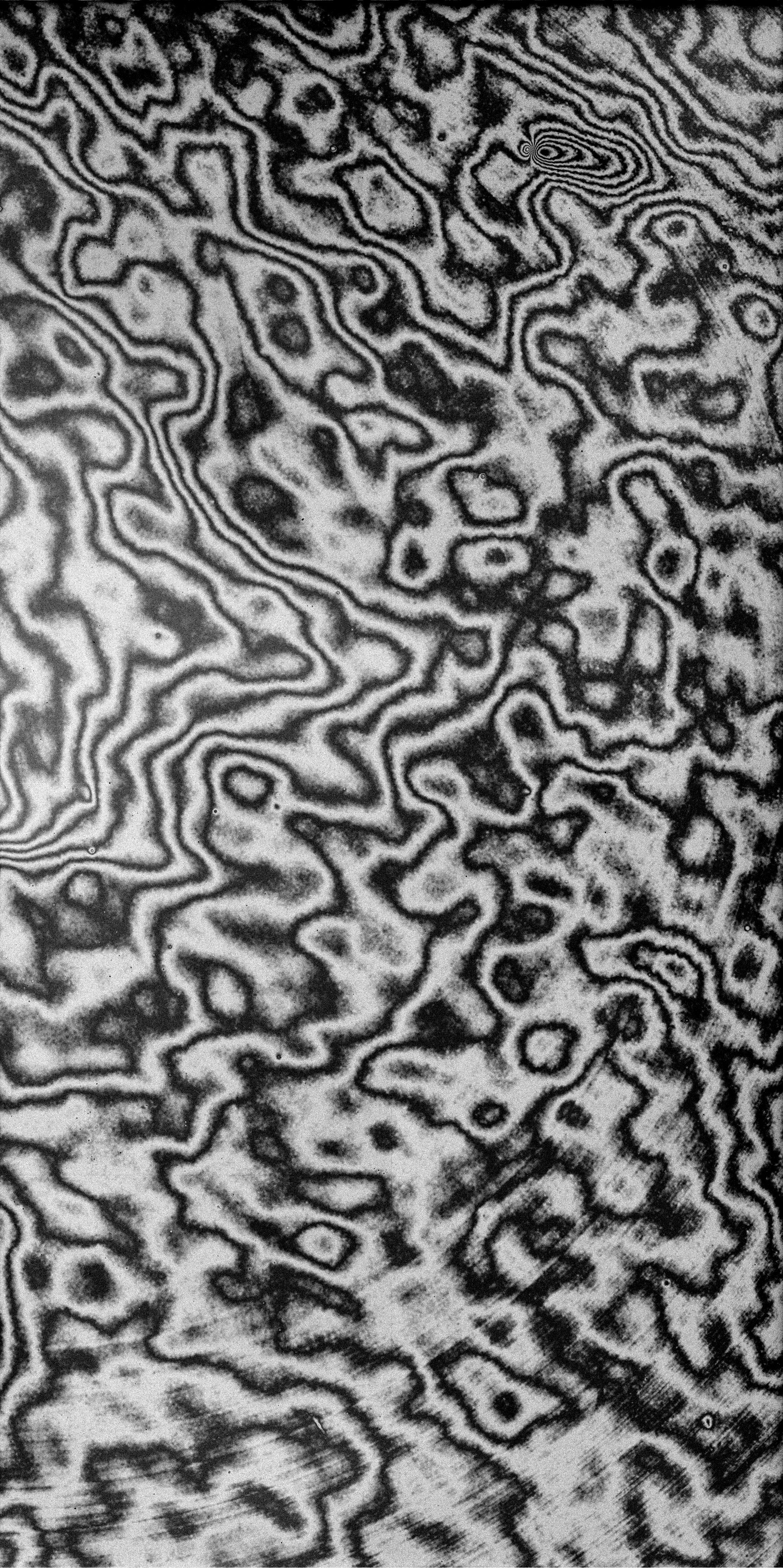

900nm (UV), bandwidth 5nm, Low gain mode, Low level



Table 1: Flat field for three wavelengths.
