Readout speed: 225kps
Conversion Factor= 0.547e-/ADU ±0.002 for 19844.3ADU
RMS noise = 4.0e- ±0.2
CCD temperature : -135.10001Cº
Window area is : X1= 64 X2= 2091 Y1= 12 Y2= 505
Bandwidth 5nm

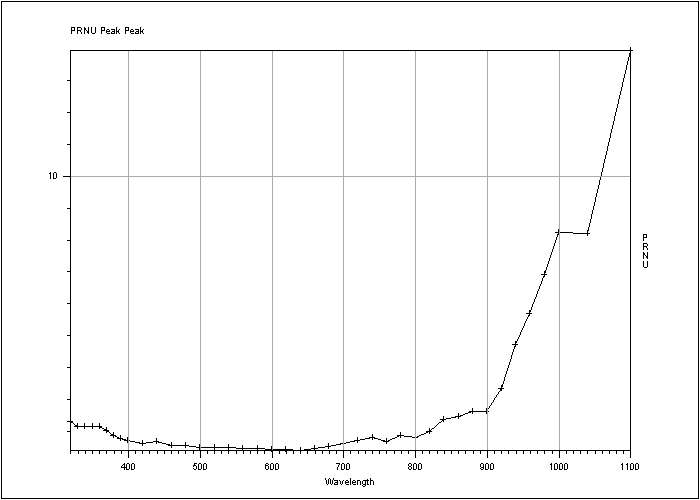

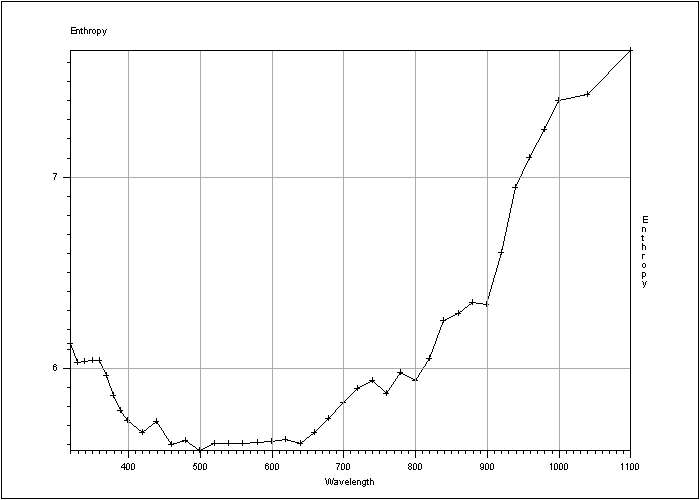

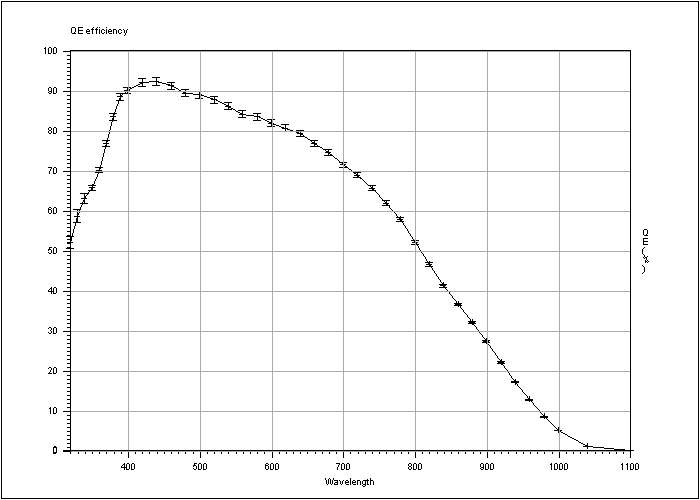

Wav. QE% PRNU rms% Phase=
320 52 ±1.5 2.27 6.125997
330 58.6 ±1.7 2.11 6.028146
340 63 ±1.2 2.12 6.030178
350 65.7 ±0.64 2.13 6.038196
360 70.1 ±0.69 2.13 6.036355
370 76.9 ±0.76 2.02 5.960715
380 83.4 ±0.82 1.85 5.852493
390 88.5 ±0.91 1.74 5.773544
400 90.2 ±0.92 1.68 5.722613
420 92 ±0.93 1.6 5.658869
440 92.3 ±0.92 1.64 5.71878
460 91.2 ±0.92 1.52 5.599422
480 89.3 ±0.9 1.52 5.616957
500 88.9 ±0.89 1.46 5.56632
520 87.7 ±0.88 1.48 5.605516
540 86.1 ±0.87 1.46 5.604696
560 84.1 ±0.84 1.44 5.60359
580 83.4 ±0.83 1.43 5.607141
600 81.8 ±0.81 1.41 5.612066
620 80.6 ±0.79 1.41 5.623606
640 79.2 ±0.77 1.37 5.601625
660 76.7 ±0.74 1.42 5.65966
680 74.4 ±0.71 1.5 5.735599
700 71.4 ±0.67 1.6 5.818209
720 68.8 ±0.63 1.7 5.890136
740 65.6 ±0.6 1.77 5.93051
760 61.8 ±0.55 1.67 5.862796
780 57.8 ±0.51 1.84 5.974855
800 52 ±0.45 1.77 5.933493
820 46.5 ±0.4 1.97 6.048335
840 41.2 ±0.35 2.36 6.245497
860 36.6 ±0.31 2.45 6.282308
880 31.9 ±0.26 2.61 6.341496
900 27.2 ±0.22 2.59 6.330776
920 22 ±0.17 3.33 6.605219
940 17.1 ±0.13 4.71 6.942351
960 12.6 ±0.097 5.69 7.097695
980 8.44 ±0.064 6.92 7.24597
1000 5.09 ±0.038 8.24 7.400656
1040 0.911 ±0.0068 8.18 7.428894
1100 0.116 ±0.00086 13.9 7.660152
Cosmetic Defects
Flat Field

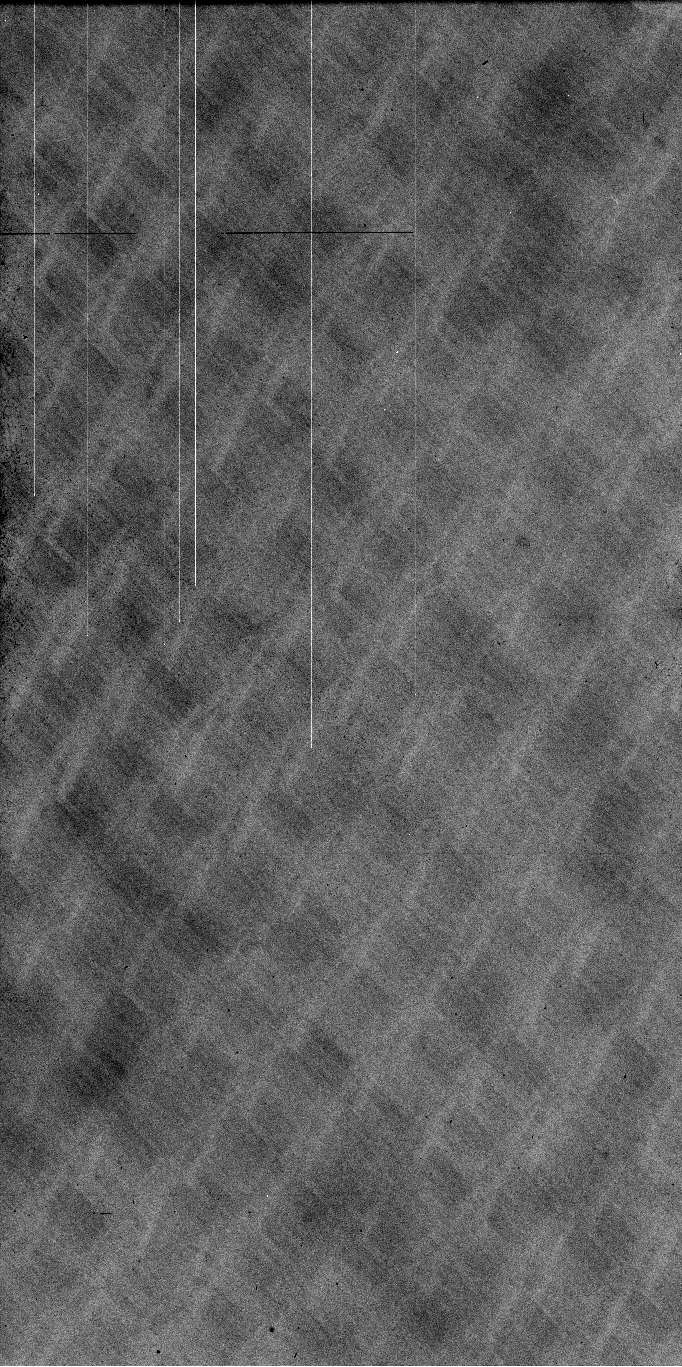

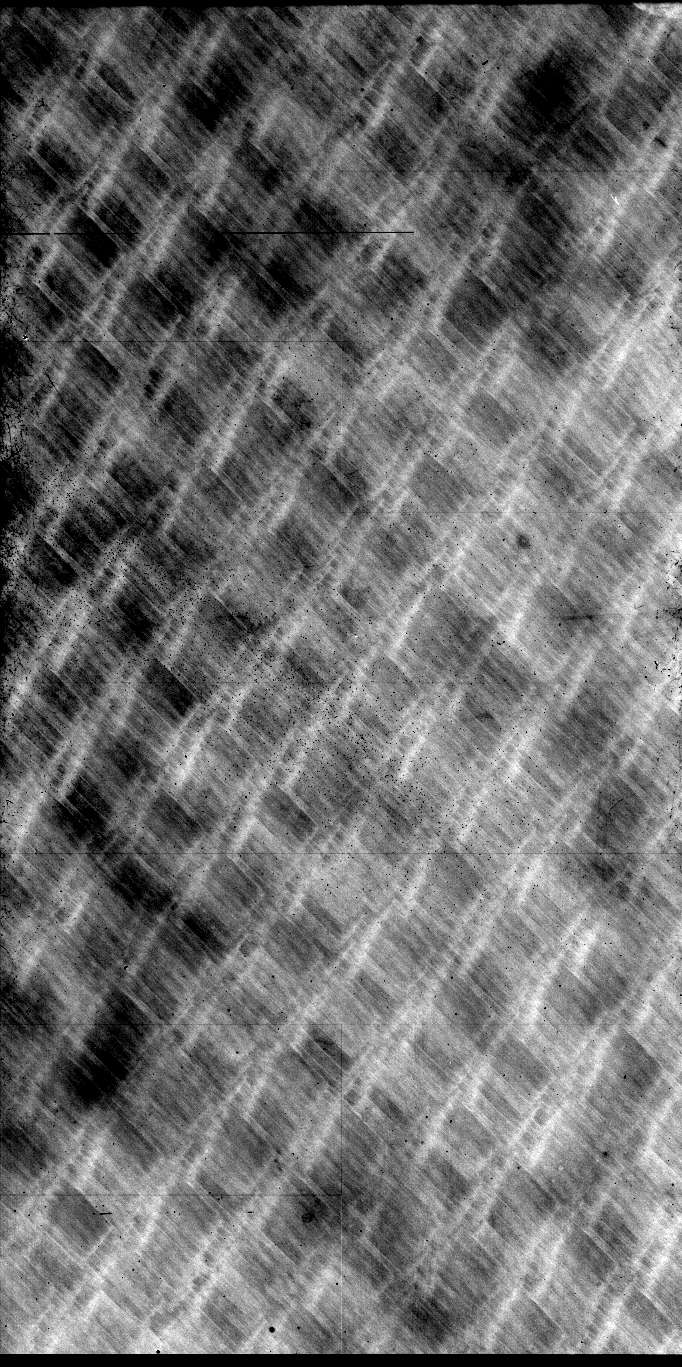

350 nm (UV), bandwidth 5 nm
High level
Low level
600 nm, bandwidth 5 nm
High level
Low level

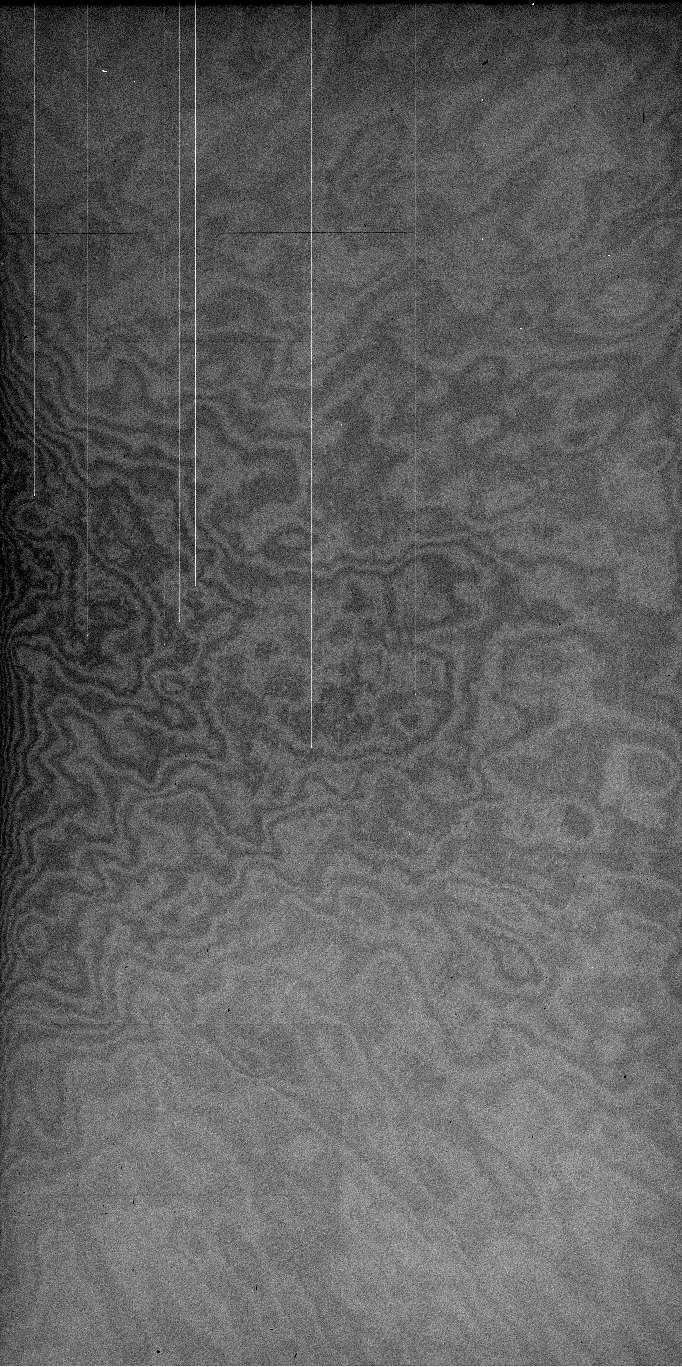

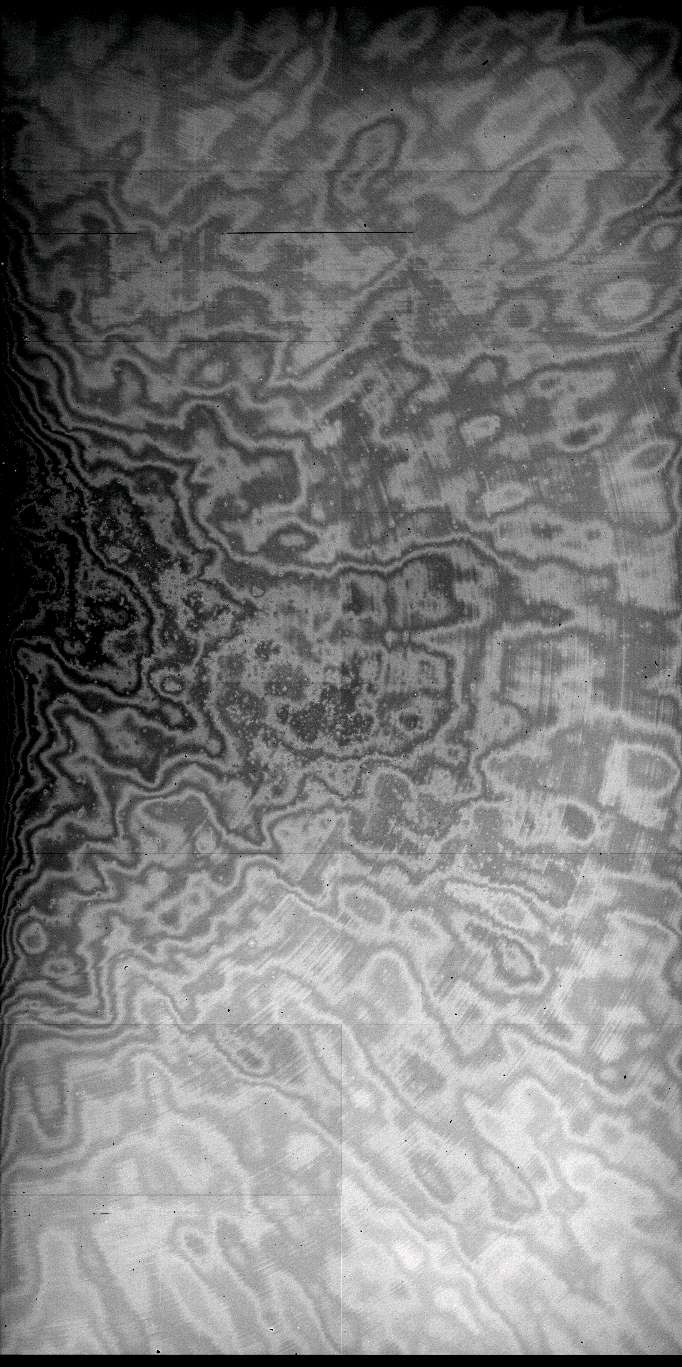

900 nm, bandwidth 5 nm
High level
| Type of defect | Location (x,y) | Number of pixels affected |
| Hot pixel | (539, 2238),(585, 2347),(936, 1862),(104, 2616) | 7000 |

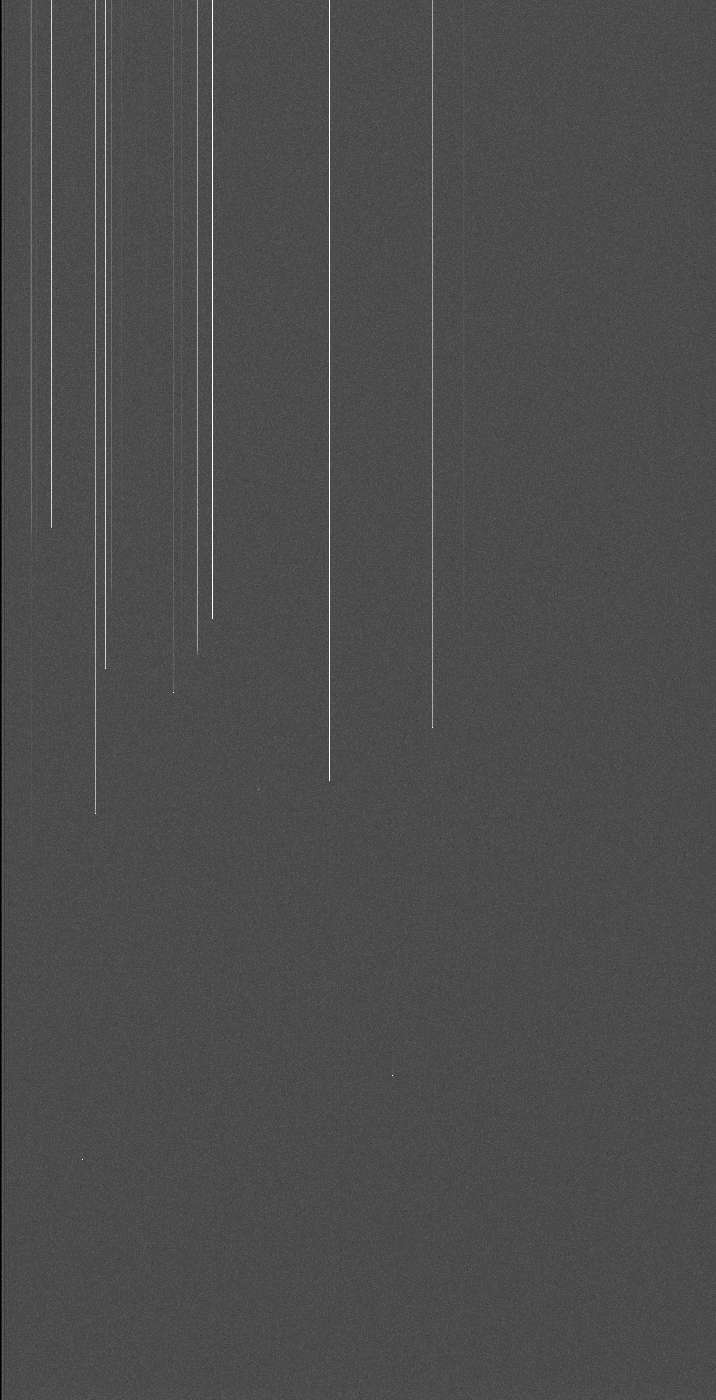

Bias
| Type of defect | Location | Number of pixels affected |
| Hot pixel | (539, 2238),(585, 2347),(936, 1862),(104, 2616),(523, 2122) | 9000 |

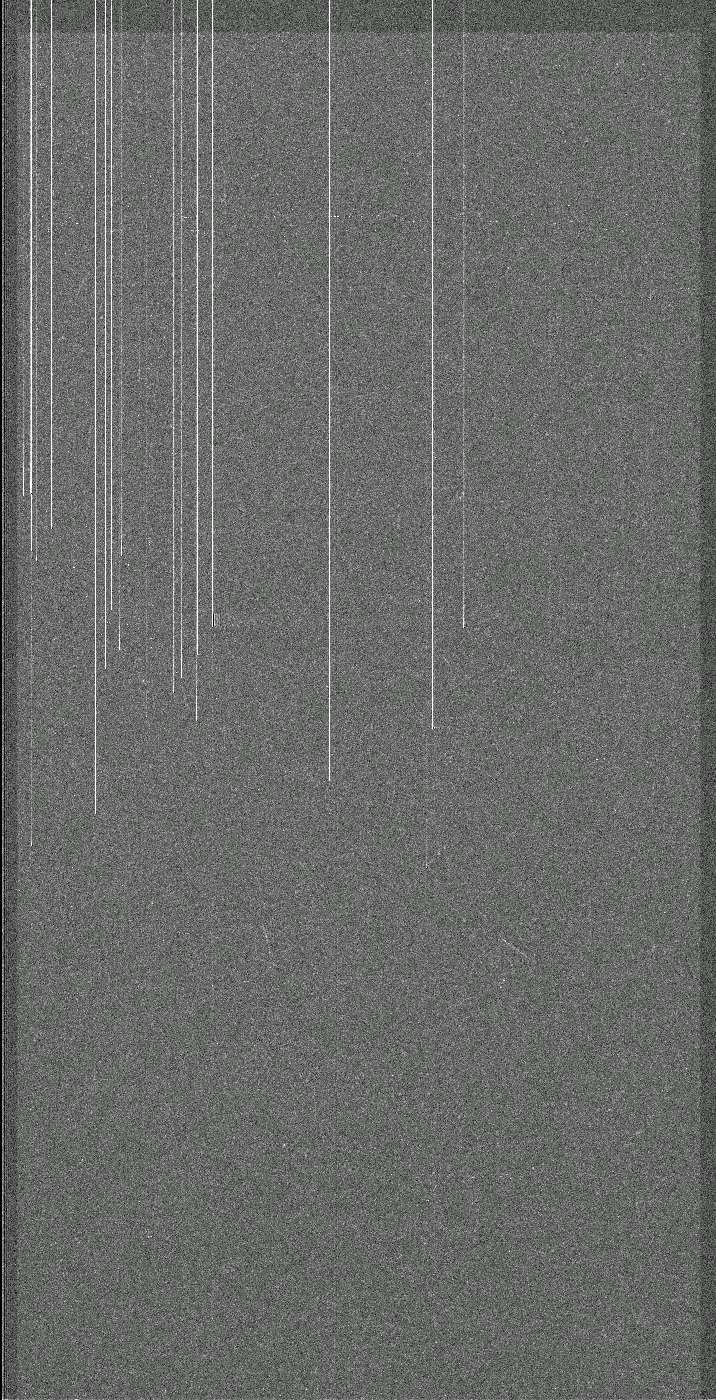

Long exposure dark image
| Type of defect | Location | Number of pixels affected |
| Hot pixel | (539, 2238),(585, 2347),(936, 1862),(104, 2616),(523, 2122) | 9000 |
Readout noise/Conversion factor
Readout speed: 225kps Conversion Factor= 0.545e-/ADU ±0.001 for 21329ADU RMS noise = 4.0e- ±0.2 Readout speed: 50kps Conversion Factor= 0.565e-/ADU ±0.001 for 27211.2ADU RMS noise = 2.6e- ±0.1
Linearity (TDI method)
RMS non linearity (%) = 0.08 Peak to peak non linearity (%)= 0.58
Dark Current
Exposure time (s) = 3600 Dark current : 0.7 ± 0.01 ADU Dark current : 0.39 ± 0.05 e-/hour/pixel
Charge Transfer Efficiency (CTE)
Horizontal CTE = 0.999994 Vertical CTE = 0.999997
