FORS 2 Upgrade - CCD System

Quantum efficiency

Quantum efficiency and PRNU of CCD "Belenos"

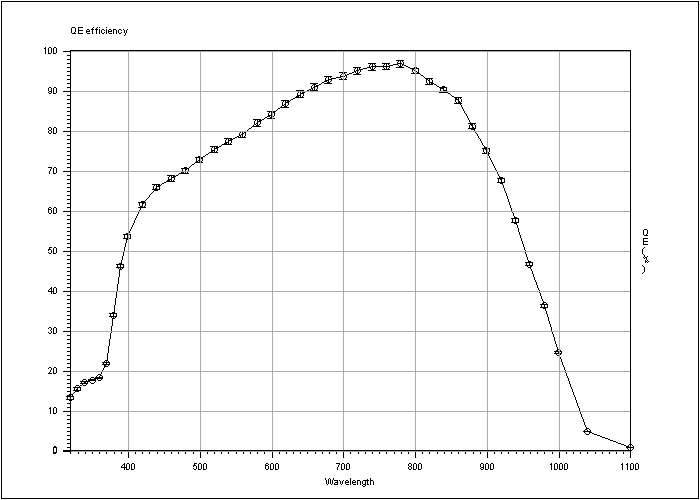

Quantum efficiency of CCD Belenos

Quantum efficiency of CCD "Belenos"

Wave- length [nm]	320	330	340	350	360	370	380	390	400	420	440	460	480	500	520	540	560	580	600	620	640
PRNU [rms %]	7.35	7.26	7.19	7.19	7.17	6.59	4.85	3.65	3.11	2.67	2.52	2.54	2.47	2.47	2.43	2.41	2.37	2.36	2.32	2.28	2.24
QE [%]	13.2	15.4	17.0	17.6	18.1	21.8	33.8	46.1	53.5	61.5	65.9	68.0	69.9	72.6	75.2	77.2	79.0	81.9	84.0	86.6	89.0



Wave- length [nm]	660	680	700	720	740	760	780	800	820	840	860	880	900	920	940	960	980	1000	1040	1100
PRNU [rms %]	2.19	2.14	2.09	2.07	2.00	2.01	1.99	1.87	1.78	1.80	1.68	1.60	1.74	1.62	1.65	1.66	1.82	1.77	1.76	2.88
QE [%]	90.8	92.7	93.5	95.0	95.9	96.0	96.7	94.9	92.2	90.1	87.6	81.1	74.9	67.4	57.5	46.6	36.1	24.5	4.66	0.737

Quantum efficiency and PRNU of CCD "Belenos"

Quantum efficiency and PRNU of CCD "Thor"

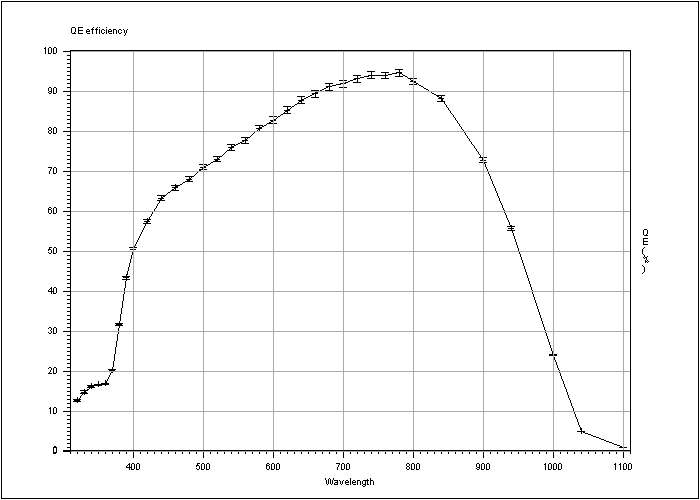

Quantum efficiency of CCD Thor

Quantum efficiency of CCD "Thor"

Wave- length [nm]	320	330	340	350	360	370	380	390	400	420	440	460	480	500	520	540	560	580
PRNU [rms %]	8.84	8.70	8.67	8.70	8.74	8.18	5.89	4.33	3.55	2.90	2.64	2.52	2.48	2.47	2.51	2.50	2.47	2.47
QE [%]	12.5	14.6	16.0	16.4	16.6	20.0	31.5	43.2	50.3	57.4	63.0	65.7	67.9	70.8	72.8	75.7	77.6	80.5



Wave- length [nm]	600	620	640	660	680	700	720	740	760	780	800	840	900	940	1000	1040	1100
PRNU [rms %]	2.43	2.38	2.34	2.29	2.23	2.18	2.17	2.11	2.03	2.00	2.00	1.79	1.62	1.83	3.00	2.67	4.09
QE [%]	82.6	85.1	87.5	89.2	91.0	91.6	93.0	93.8	93.8	94.4	92.2	88.1	72.5	55.5	23.8	4.73	0.728

Quantum efficiency and PRNU of CCD "Thor"
