FORS 2 Upgrade - CCD System
HOME INDEX SEARCH HELP NEWS

Cosmetic defects

Cosmetic defects of CCD "Belenos"

Flat field images

400 nm
(bandwidth 5 nm)		 600 nm
(bandwidth 5 nm)		 900 nm
(bandwidth 5 nm)
High level

400 nm high level flat field image of CCD Belenos

 Low level

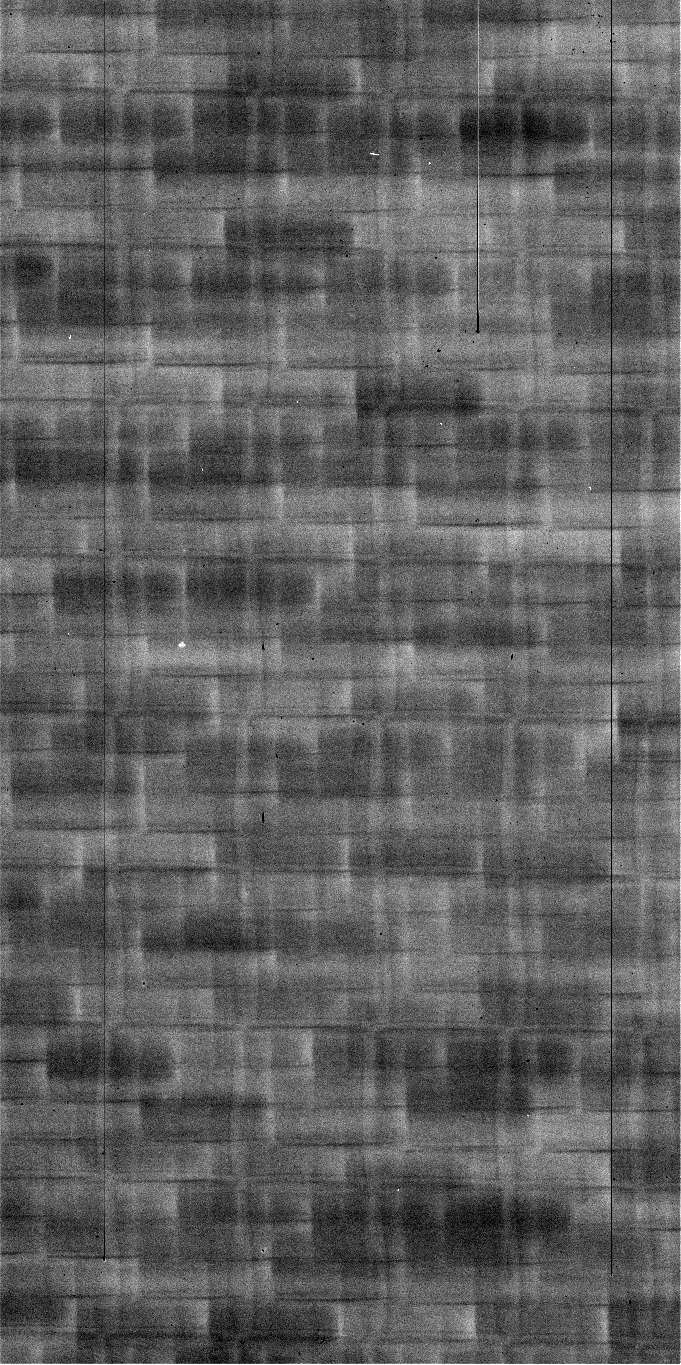

400 nm low level flat field image of CCD Belenos

 High level

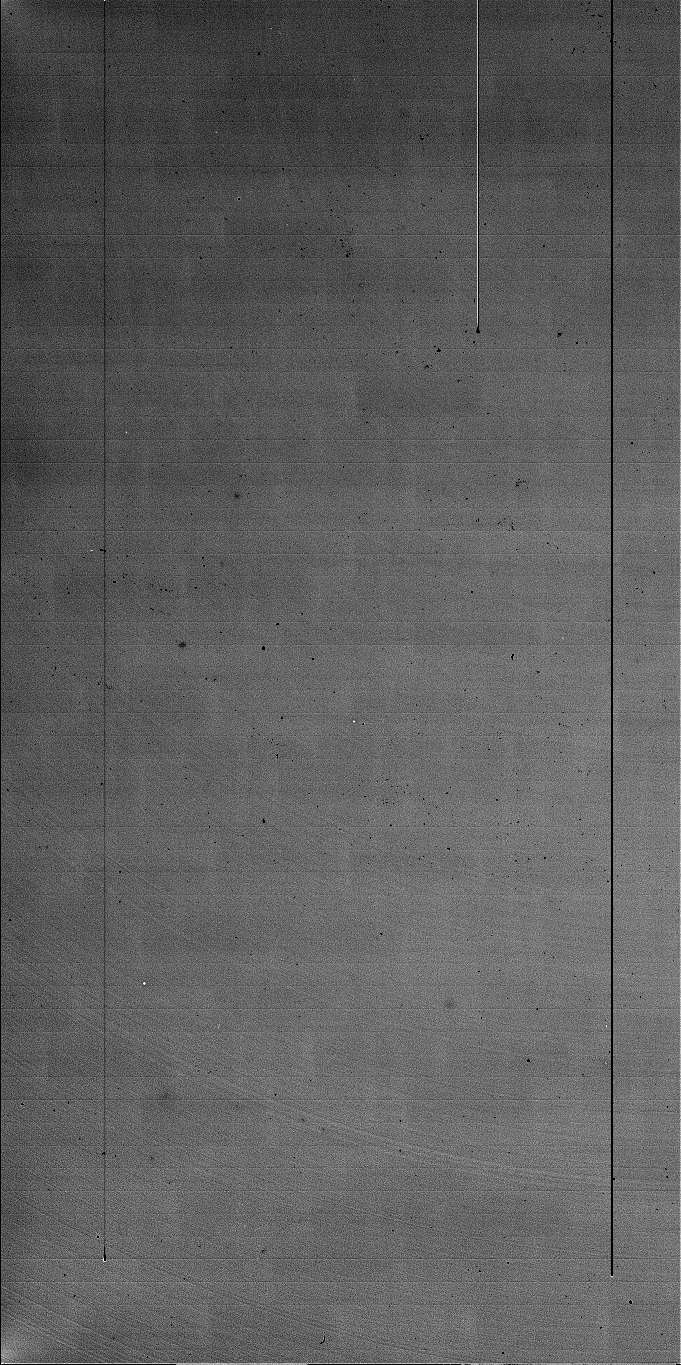

600 nm high level flat field image of CCD Belenos

 Low level

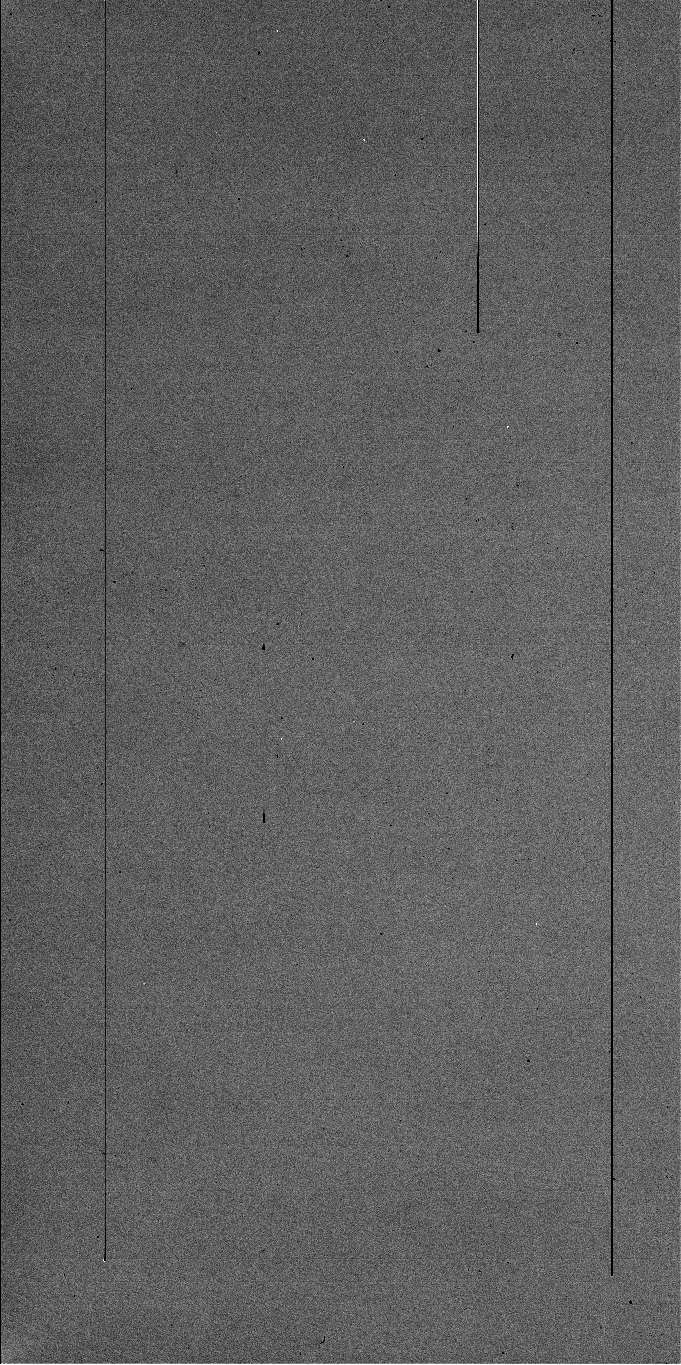

600 nm low level flat field image of CCD Belenos

 High level

900 nm high level flat field image of CCD Belenos

 Low level

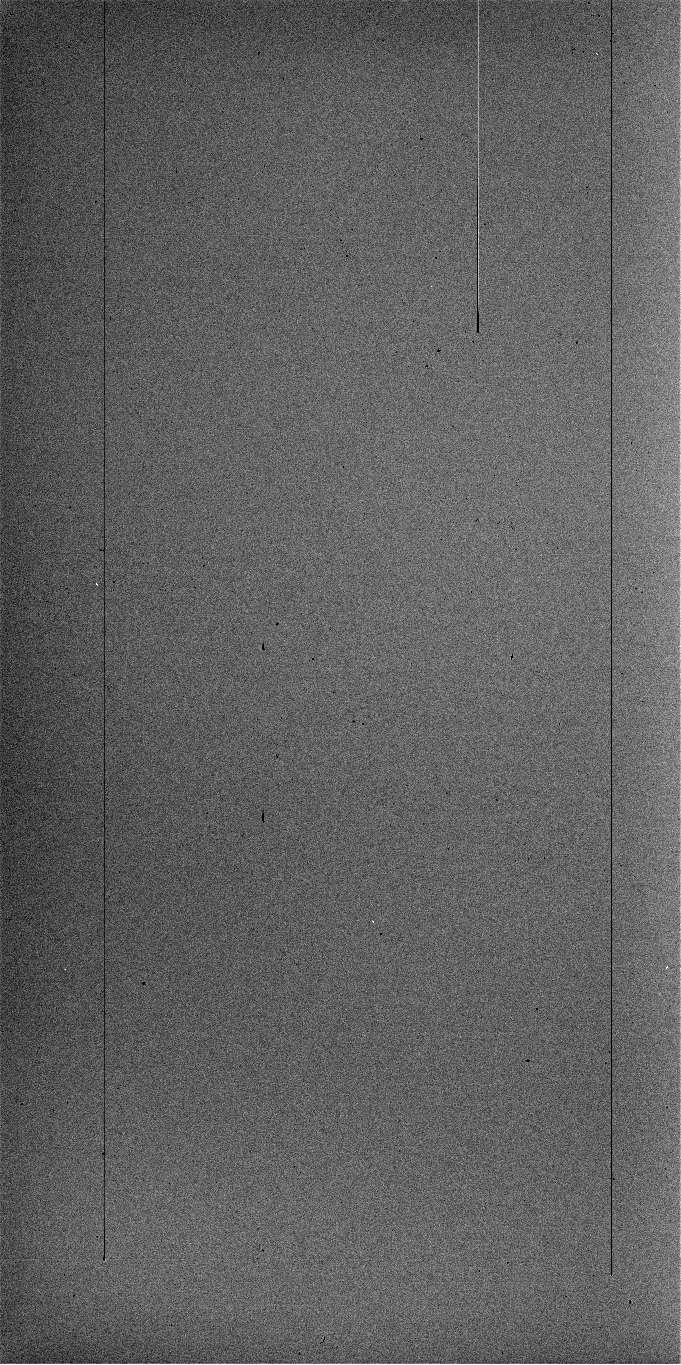

900 nm low level flat field image of CCD Belenos

Bias image

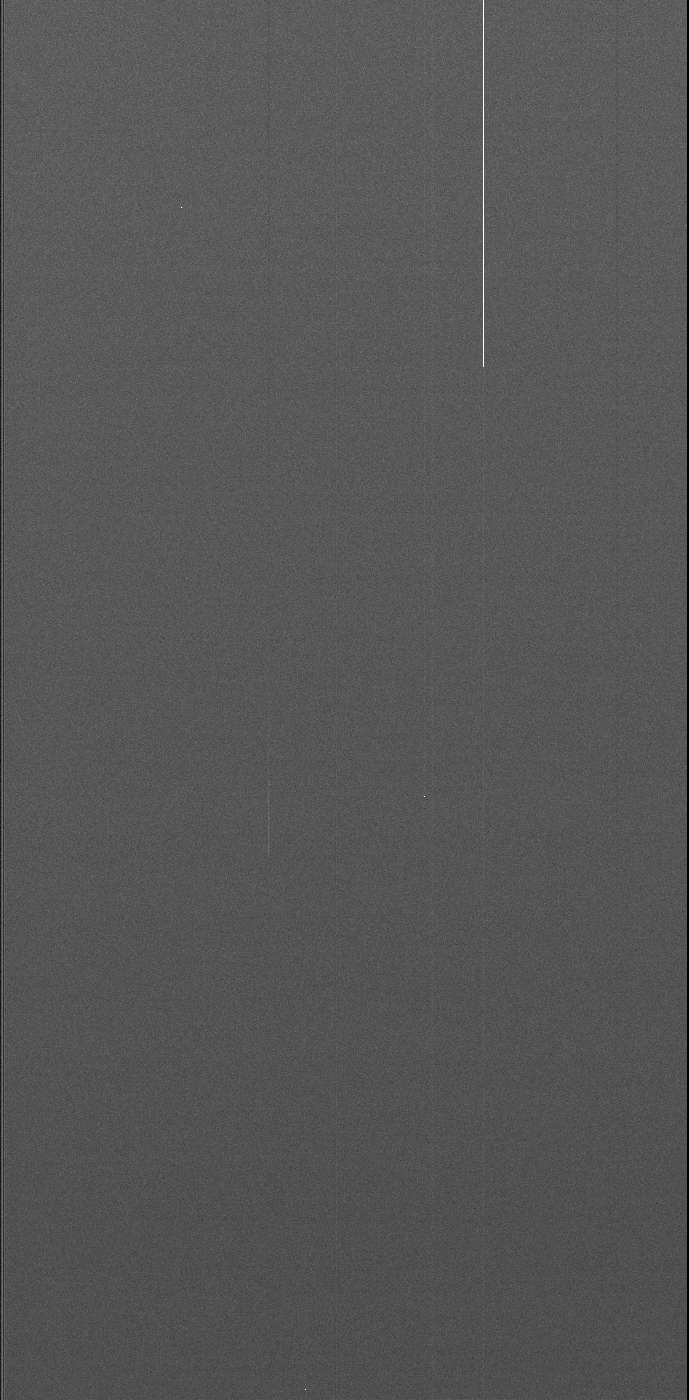

Bias image of CCD Belenos

 Long exposure dark image

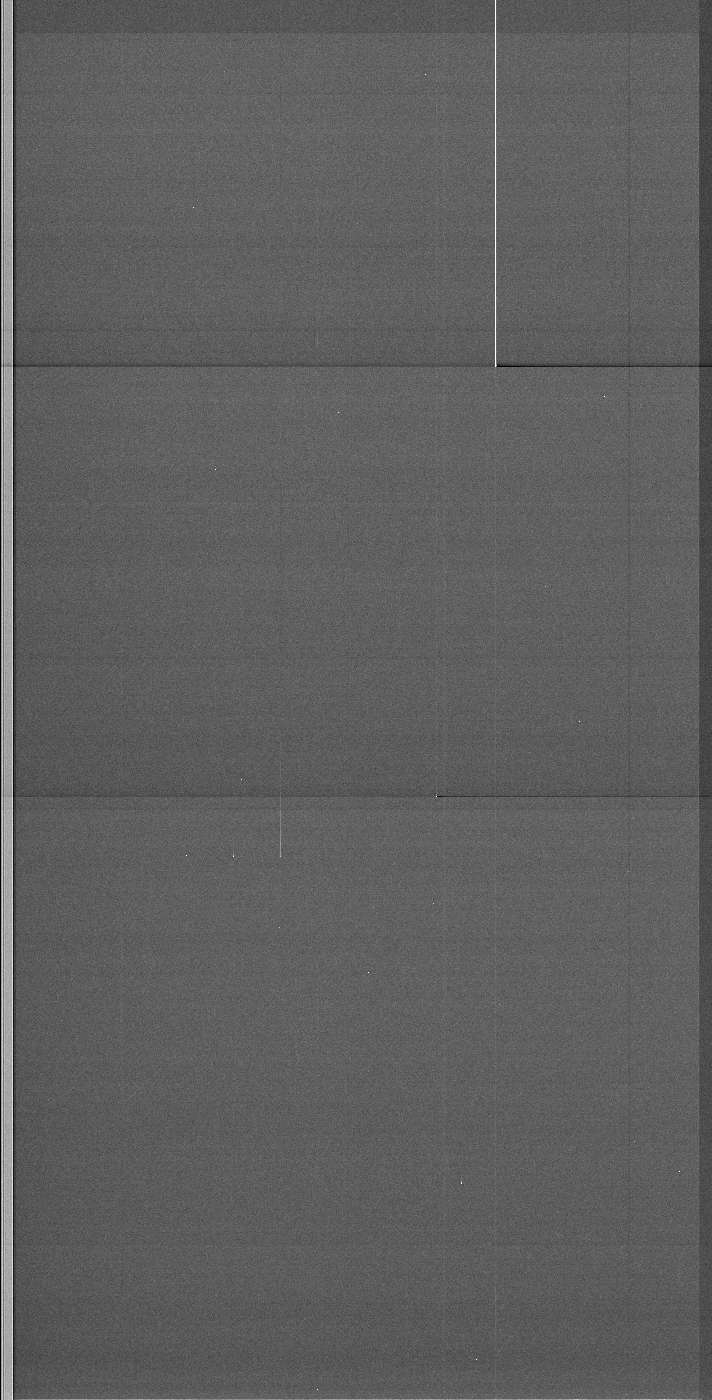

Long exposure dark image of CCD Belenos

Cosmetic defects of CCD "Thor"

Flat field images

400 nm
(bandwidth 5 nm)		 600 nm
(bandwidth 5 nm)		 900 nm
(bandwidth 5 nm)
High level

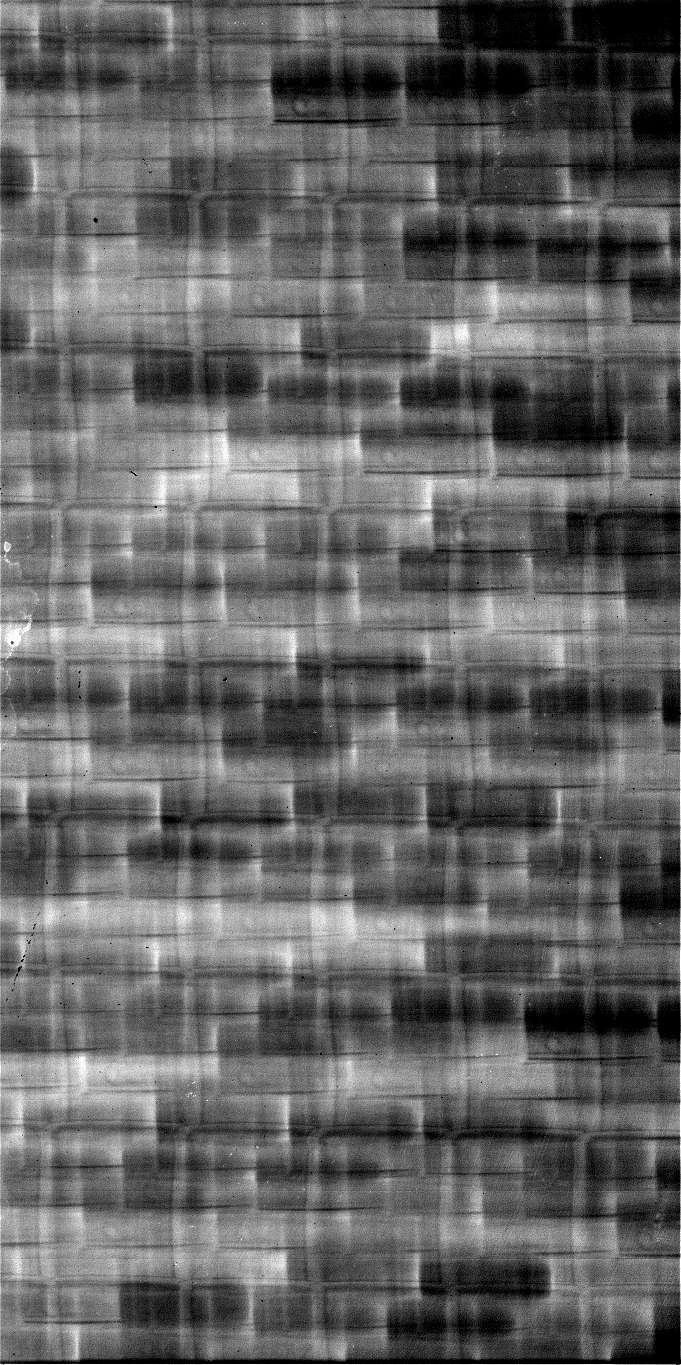

400 nm high level flat field image of CCD Thor

 Low level

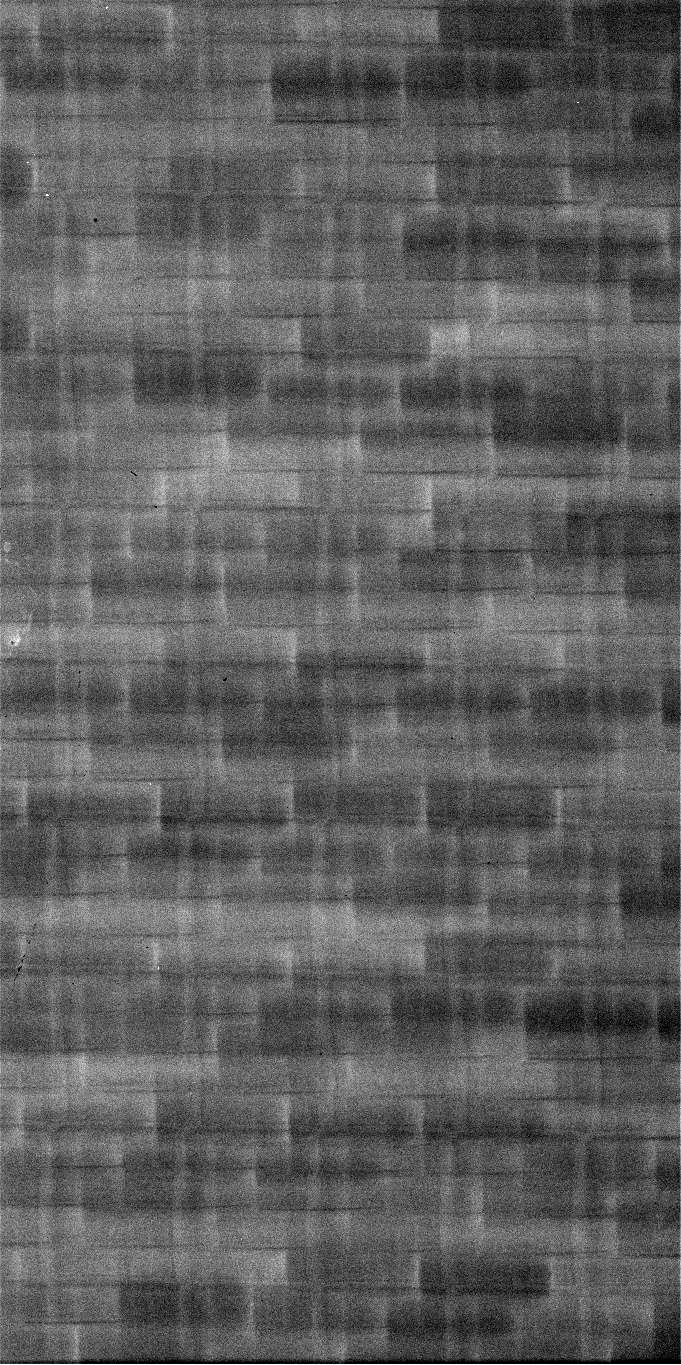

400 nm low level flat field image of CCD Thor

 High level

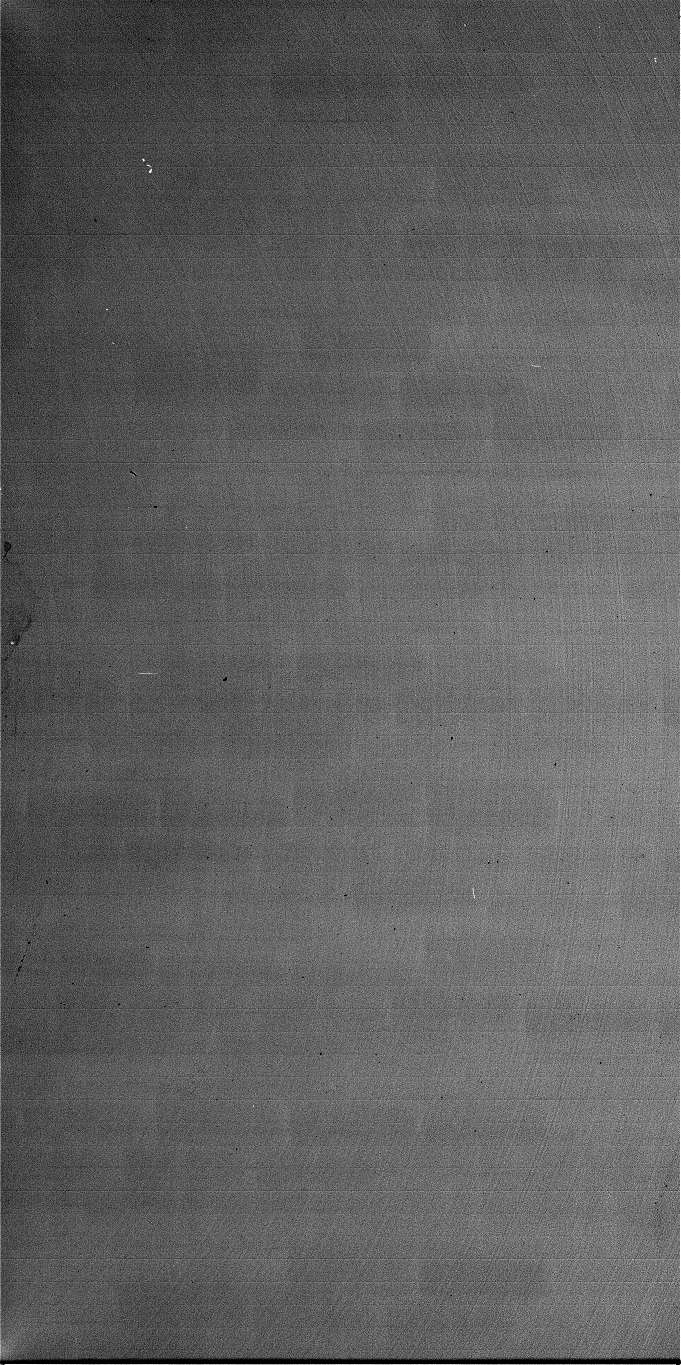

600 nm high level flat field image of CCD Thor

 Low level

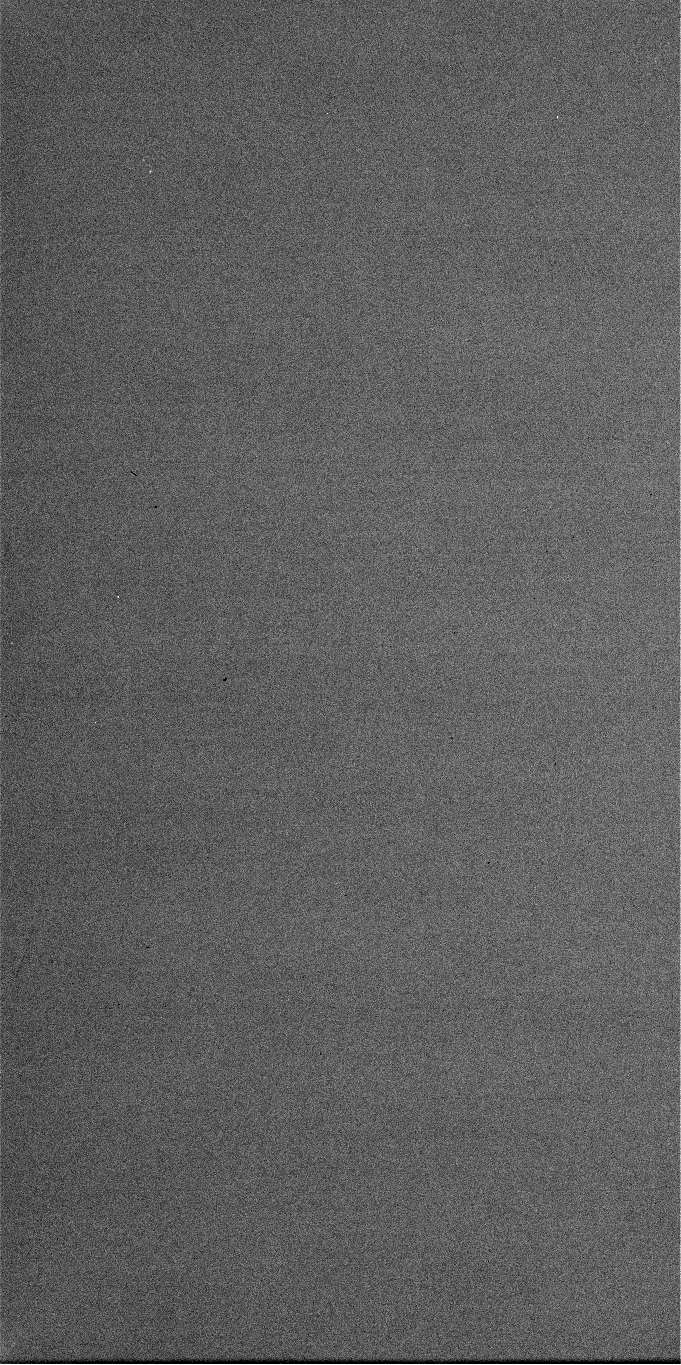

600 nm low level flat field image of CCD Thor

 High level

900 nm high level flat field image of CCD Thor

 Low level

900 nm low level flat field image of CCD Thor

Bias image

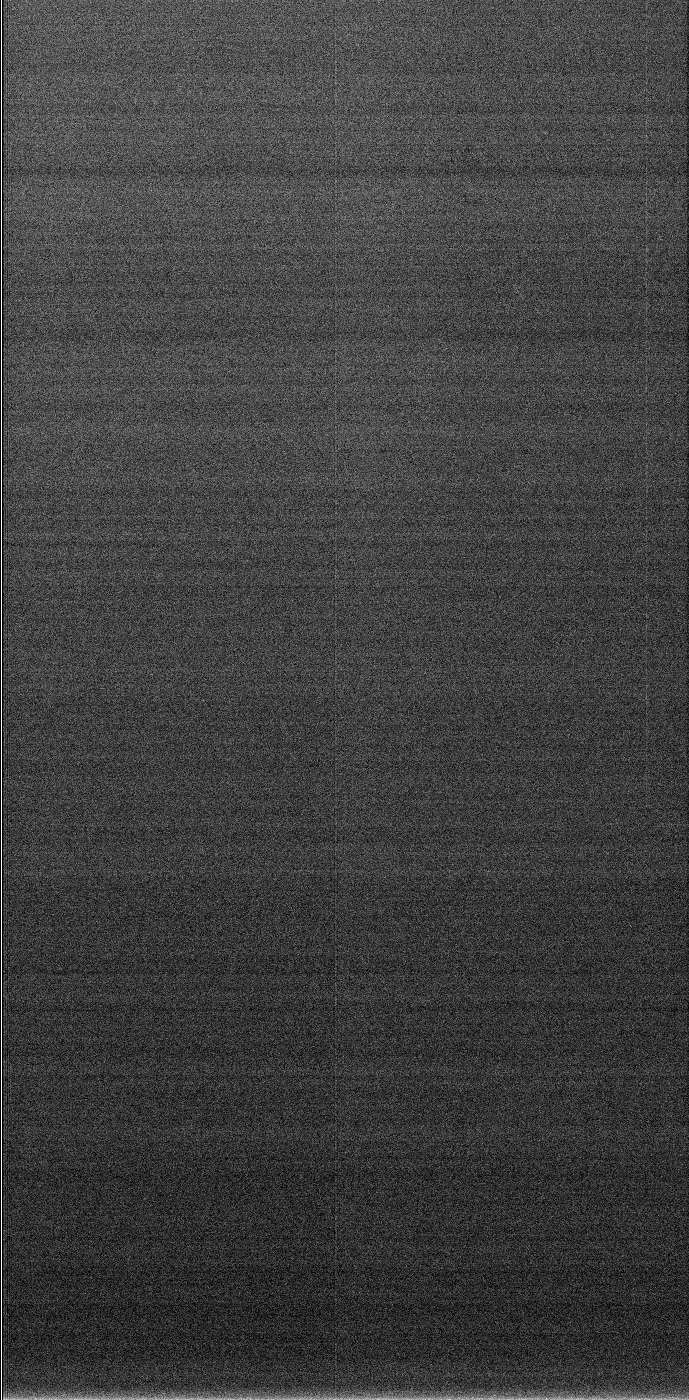

Bias image of CCD Thor

 Long exposure dark image

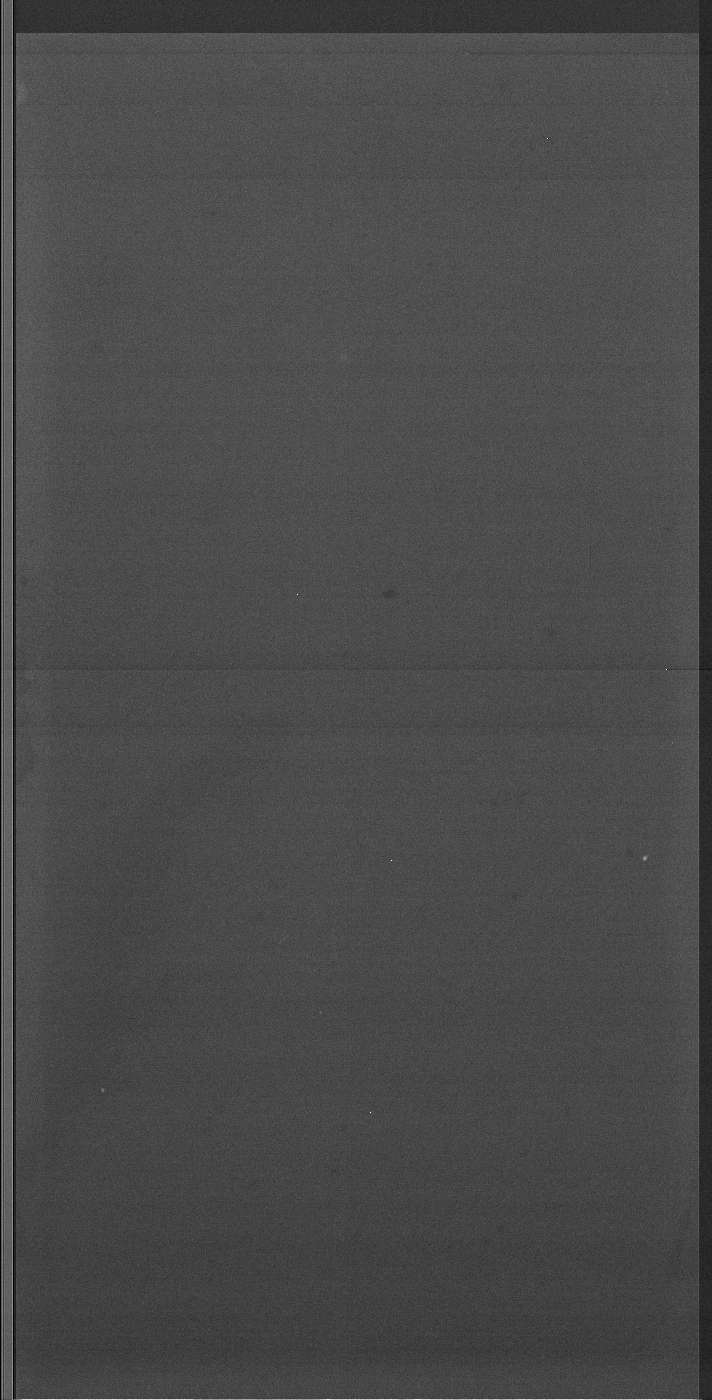

Long exposure dark image of CCD Thor
