FORS 2 - CCD System |
||||
|
|
|
FORS 2 - CCD System |
||||
|
| Type : | SiTE SI-424A, backside illuminated, AR coated |
| CCD Serial Number : | 4441ABR12-01 |
| Number of photosensitive pixels : | [H] 2048, [V] 2048 |
| Number of outputs : | 4 |
| Pixel size : | 24 x 24 microns |
| Overall rating : | Science chip |
 CCD close up view. The imaging array is 49 x 49 mm. |

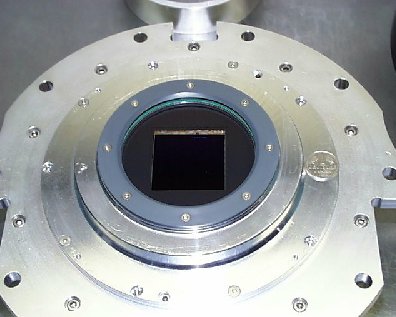

 Entrance window CCD view. This picture shows a flat window, indeed a field lense has been installed as the latest optical of the focal reductor element and to compensate the CCD bow. |
