IRACE for VISTA

HOME INDEX SEARCH HELP NEWS

Status of VISTA system:

First test system, 32 channel, was delivered to ATC in sep. 2002.

Second test system, 32 channel, was delivered to RAL in July 2003.

Final 256 channel system has been made and successful tested:

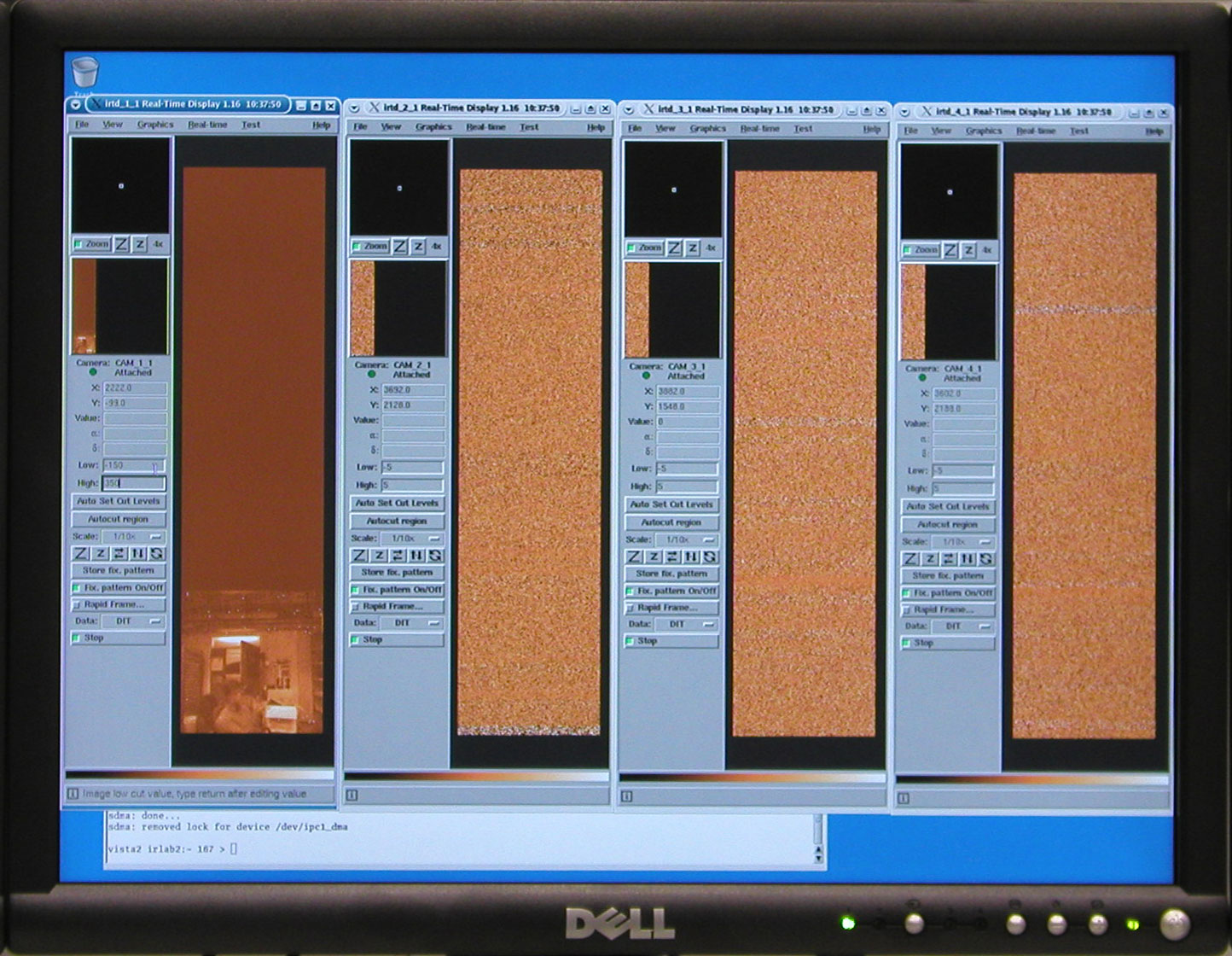

Four RTD to display 16 VIRGO detectors
Four RTD, each one displays 4 detectors (4 x 2k x 2k), totaly 16 VIRGO detectors

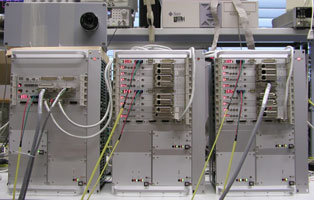

Final 256 channel system
256 channel system, which includes a master rack and two slave racks

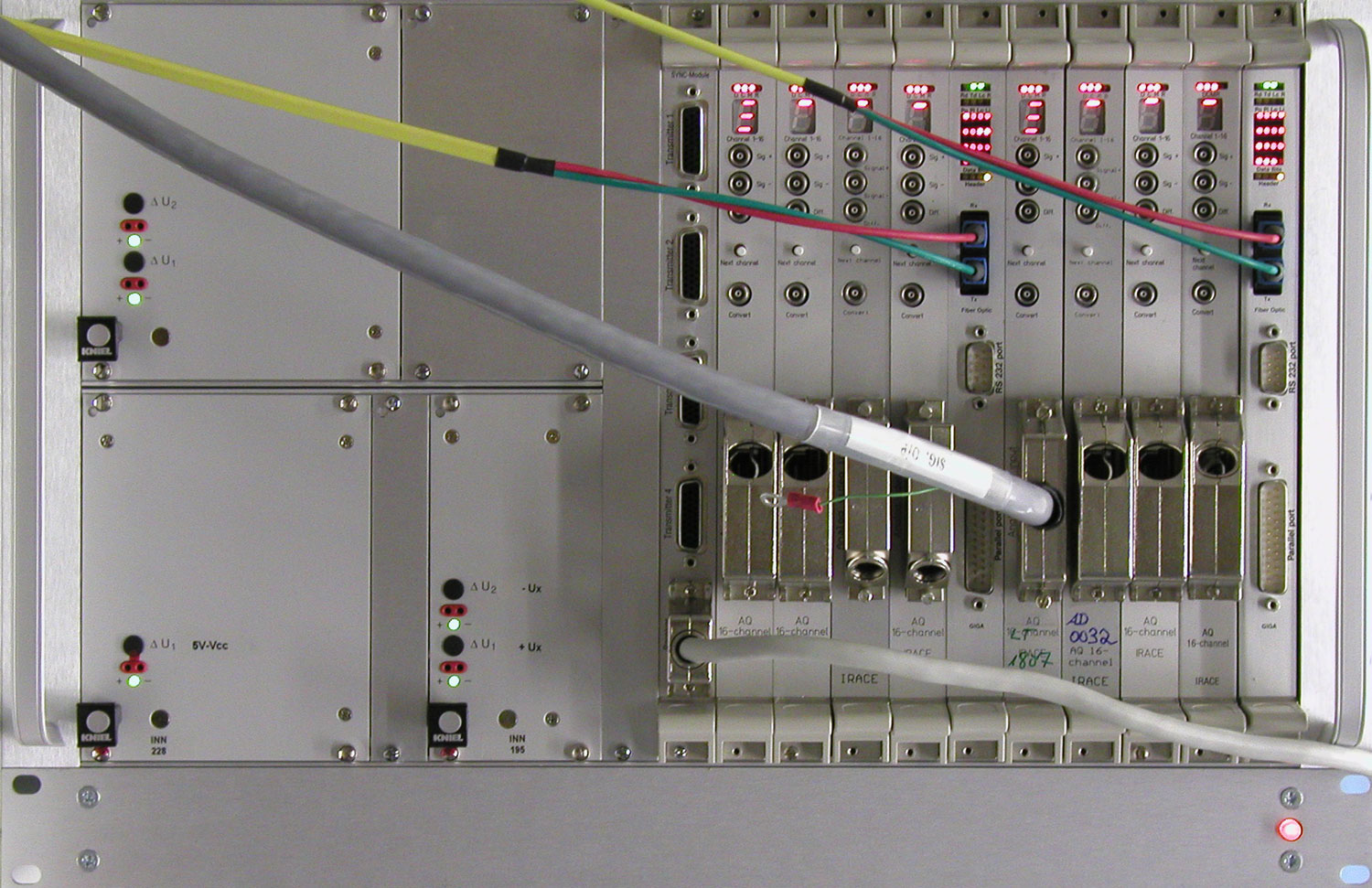

Slave one

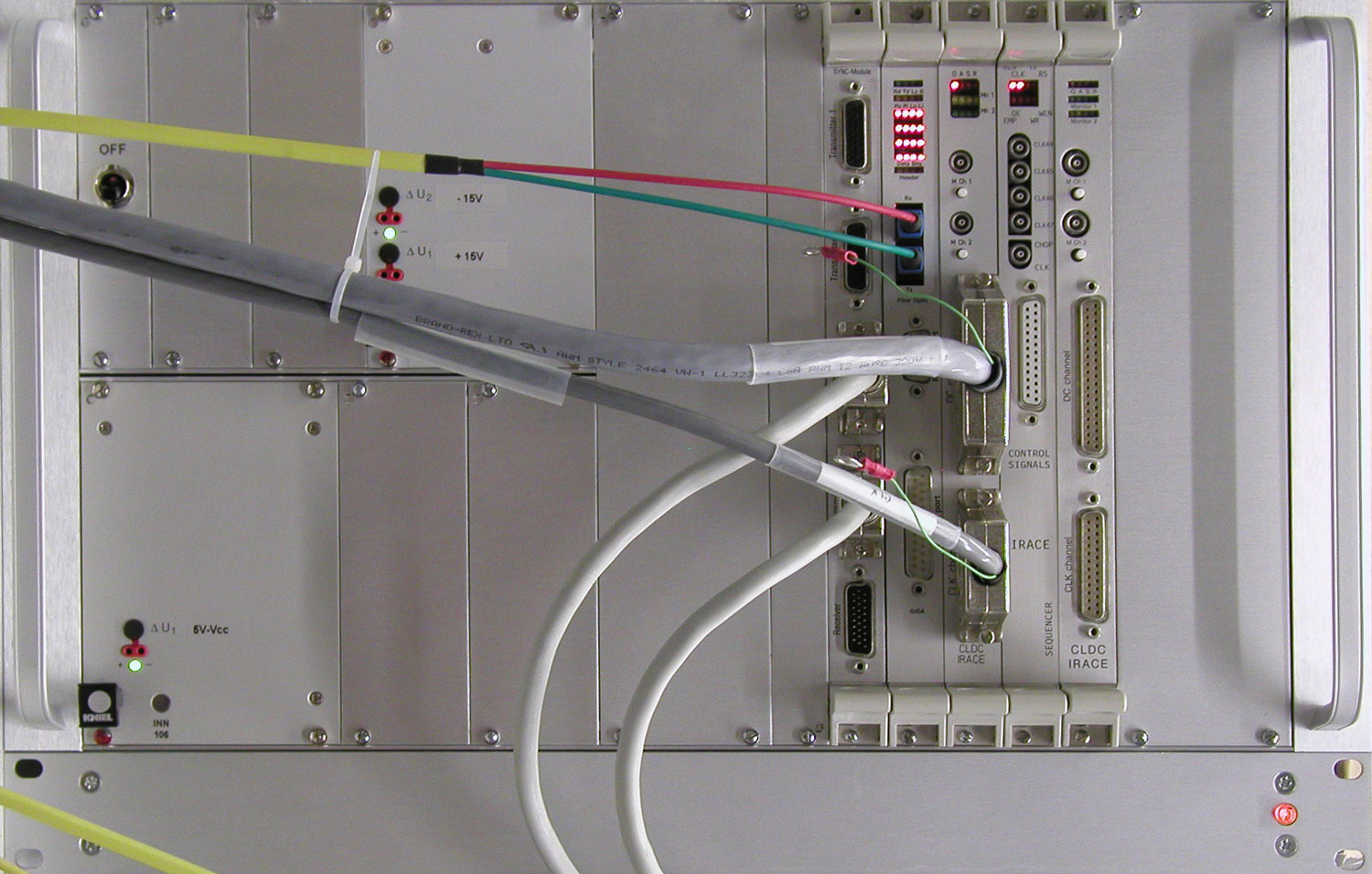

Master rack

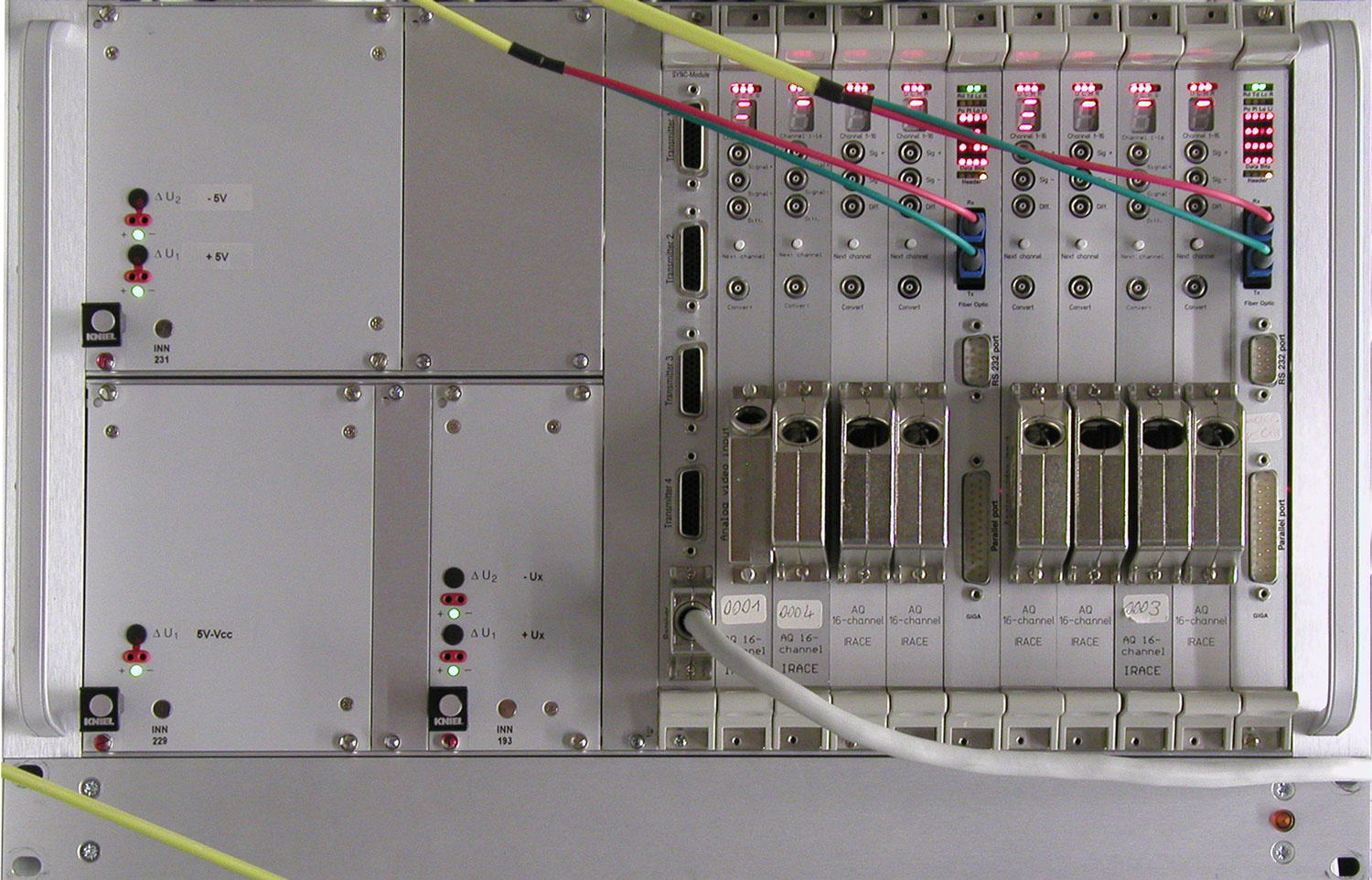

Slave 2
Slave one, which contains 128 ADC channels Master rack, which generates sys clock and detector control signals Slave two, which contains 128 ADC channels
