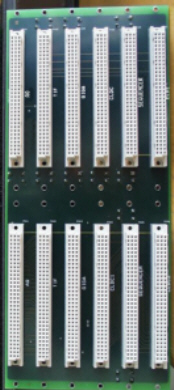

Front-end Backplane (CS-P-1863-A)

Features

  • Integration of System TTL master clock
  • VME bus compatible (only P1)
  • One AQ modules can plug in
  • Slot ID are adjustable on AQ modules
  • Master/Slave properties can be set on AQ modules
{GIGA module}

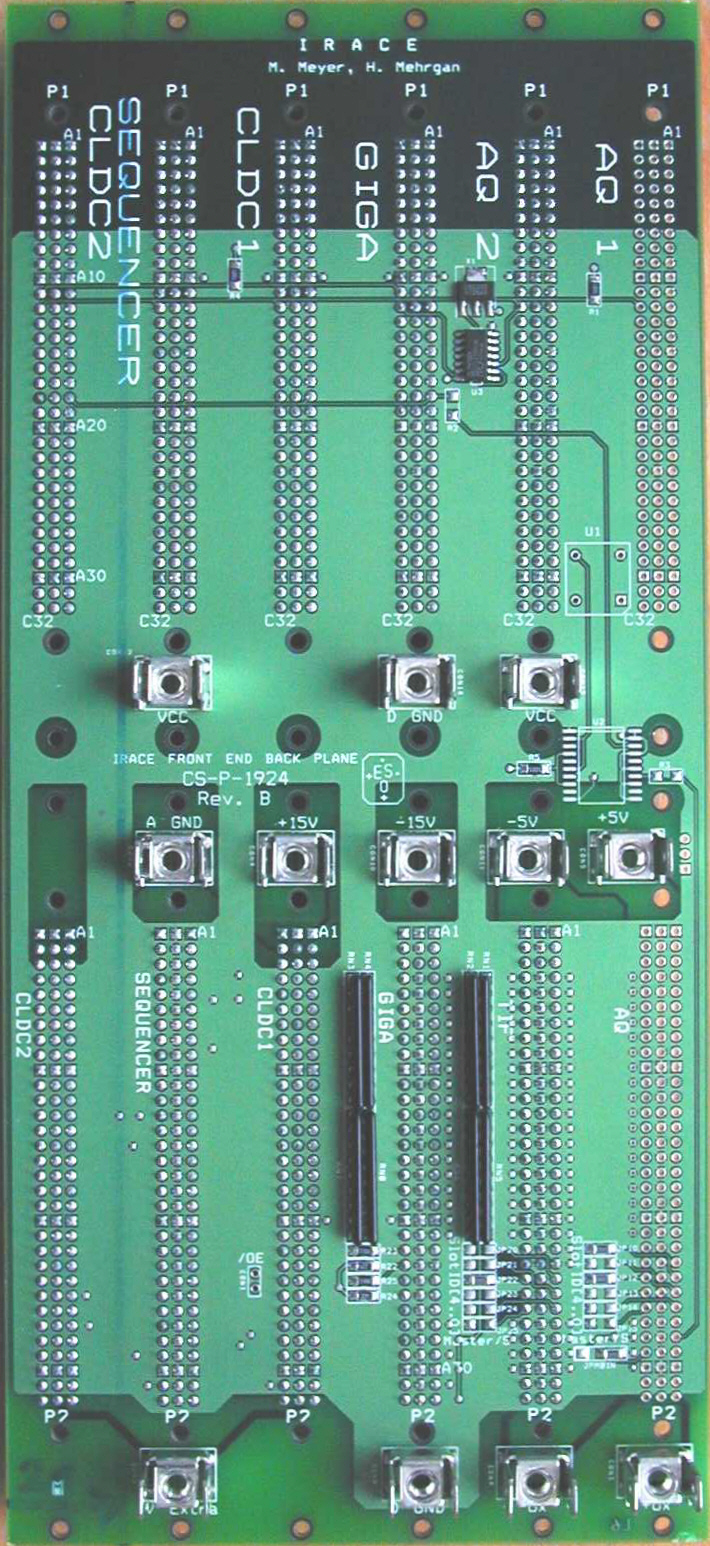

Front-end Backplane(CS-P-1924-B)

Features

  • Integration of System TTL master clock
  • VME bus compatible (P1 and P2)
  • Two AQ modules can plug in
  • Slot ID are adjustable on backplane ((JPx3..JPx0)
  • Master/Slave properties can be set on backplane (JPx5)
  • Data bus and control signals can be terminated on backplane
  • Stripline are imbedded within the PCB groung layers
  • A stripline exhibits better signal integrity because the reference planes shield the conductor from damaging EMI fields.
{GIGA module}

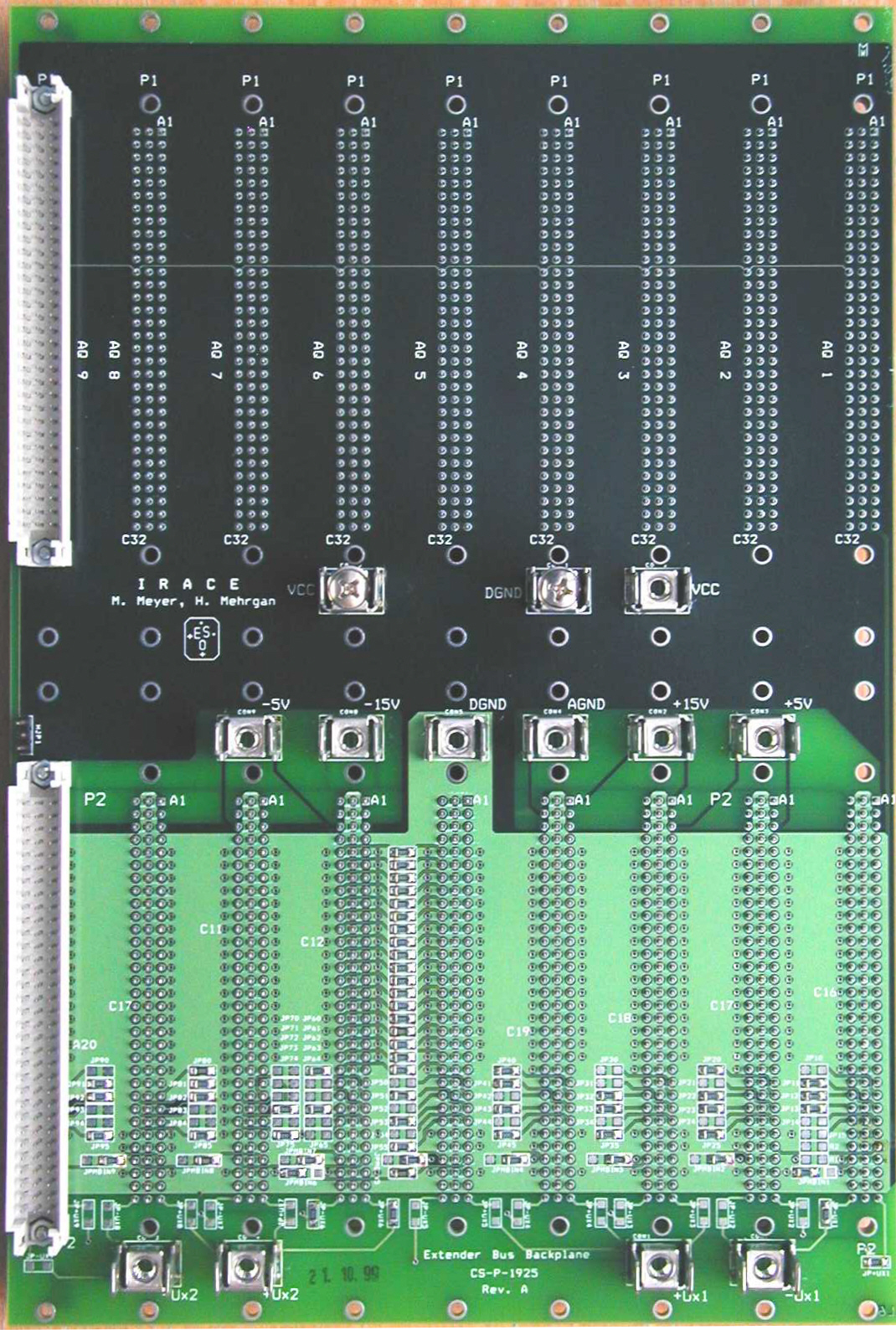

Extended Front-end Backplane(CS-P-1925-A)

Features

  • VME bus compatible (P1 and P2)
  • Up to 9 AQ modules can plug in
  • Slot ID are adjustable on backplane ((JPx3..JPx0)
  • Master/Slave properties can be set on backplane (JPx5)
  • Stripline are imbedded within the PCB groung layers
  • A stripline exhibits better signal integrity because the reference planes shield the conductor from damaging EMI fields.
  • To get higher bandwidth the bus can be split up in two part, so that a data rate of 160 MB can be achived.
{GIGA module}




Back-end Backplane(CS-P-1947-A)

Features

  • VME bus compatible (P1 and P2)
  • Up to 4 modules can plug in
  • The bus is terminated.
  • Stripline are imbedded within the PCB groung layers
{GIGA module}
