Outgassing of CCD components in the vacuum - Parylene Coated fiberglass epoxy plates

Components with slight outgassing

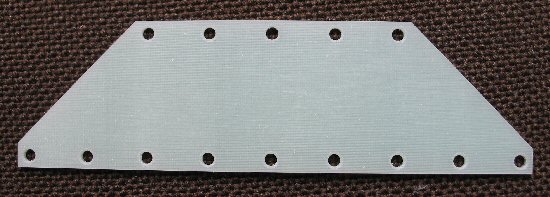

Parylene Coated fiberglass epoxy plates

Two samples were tested at 85 °C, one was uncoated, one was coated with Parylene. The difference of the two spectra show a few critical lines at higher amu-values.

Permanent new lines were found at:

Line [amu]	Possible fragment ion
74	C₅N
101	C₇H₃N
102	C₇H₂O
172	C₉H₁₈NO₂
173	C₉H₁₉NO₂

Even though we found many new lines (most of them non-permanent), these were all very small and the overall emission of the heating element did not exceed the background's contribution substantially.

Last update: Jul 12, 2007
