Components with strong outgassing

Dark vacuum grease     (FM 090, Balzers)

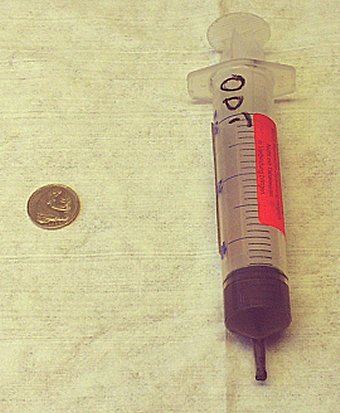

Dark Vacuum Grease

To ensure a vacuum dense sealing, vacuum greases are also needed. At room temperature already a strong emission of the following elements occurred:

Line [amu] Fragment ions
31 CF+
47 (not identifiable)
50 CF2+
69 CF3+
119 (not identifiable)

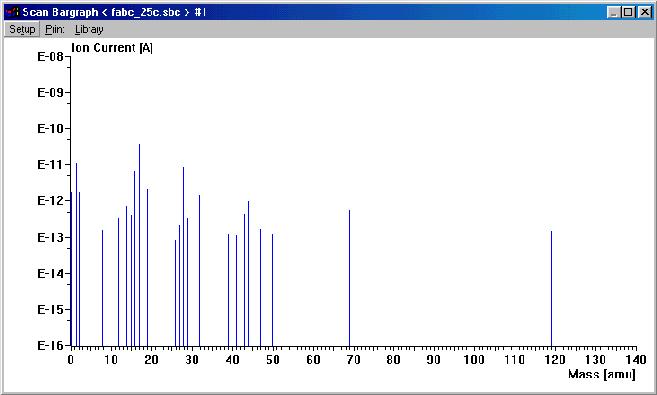

Outgassing of the dark vacuum grease at 25° C.

Back to    "Outgassing of CCD components in the vacuum - homepage"
Send comments to   <odt@eso.org>
Last update: Mar 15, 2004
