Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:50:02
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband I
Total Exposure Time (seconds) 8998
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #879
Right Ascension (hh:mm:ss.s) 05:05:24.3
Declinaton (dd:mm:ss.s) -28:48:59
Interval between First/Last Contributing Frames (days) 1.03
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.74
PSF Distortion (rms) 0.04
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 2320.0
Reference Pixel: Y 1307.0
Photometry
Number of nights with independent zeropoints 2
Zeropoint of Product (Vega magnitudes) 23.33
Zeropoint Error (Zp error) 0.005
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:50:02
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband I
Total Exposure Time (seconds) 8998
General Properties
Right Ascension (decimal degrees) 76.3513
Declination (decimal degrees) -28.8164
Galactic Longitude, l 230.6626
Galactic Latitude, b -34.5986
Total Exposure Time (seconds) 8998
Number of Contributing Frames 4
First Contributing Frame MJD 52676.0899
Lsat Contributing Frame MJD 52677.1227
First Contributing Frame Civil Date 2003-02-06
Last Contributing Frame Civil Date 2003-02-07
Interval between First/Last Contributing Frames (days) 1.03
Number of Photometric Contributing Frames 3
Number of Rejected Frames 1
Number of Stacked Frames 3
Effective Gain 19612.1
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1041.0
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 26.66 25.91 25.47 25.15 24.91
2.0 25.7 24.95 24.51 24.2 23.96
3.0 24.84 24.08 23.64 23.33 23.09
4.0 24.36 23.6 23.16 22.85 22.61
5.0 24.13 23.37 22.93 22.62 22.38
6.0 23.73 22.98 22.54 22.23 21.99

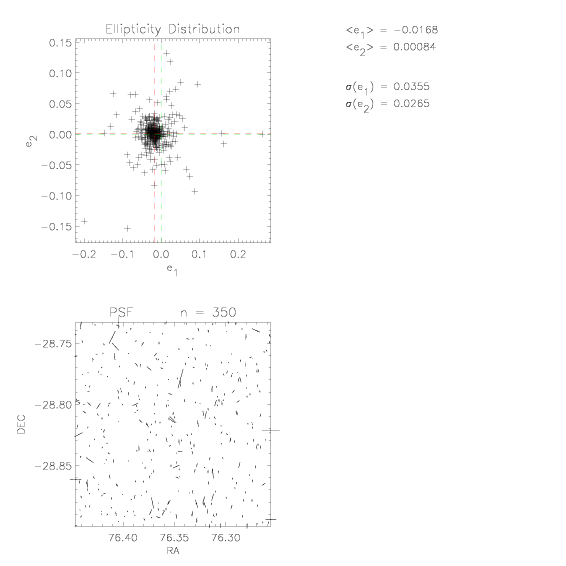

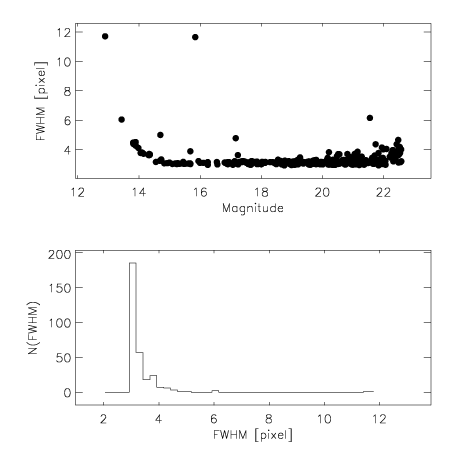

PSF
Measured Seeing (arcsec) 0.738
Measured Seeing (pixels) 3.1
PSF Distortion along X-axis (E-W), e1 -0.017
PSF Distortion along Y-axis (N-S), e2 0.001
PSF Distortion rms 0.044
Pixel Distribution
Mean Count (ADU) 0.059
Standard Deviation of Count (ADU) 3.066
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.014
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:50:02
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband I
Total Exposure Time (seconds) 8998
Stack Blocks (SB)
Number of Original Frames Input 4
Number of Photometric Frames 3
Number of Rejected Frames 1
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.52
Mean Seeing of Contributing Frames (arcsec) 0.9
Mean of rms PSF Distortions of Contributing Frames 0.089
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 18.85
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 76.3323 -28.8181 I 52669.1261631 2003-01-30 1.12676061742 1499.5875
2 76.3329 -28.8182 I 52676.0898921 2003-02-06 1.11211287829 2999.1745
3 76.3649 -28.8218 I 52677.0599503 2003-02-07 1.05023171892 2999.1728
4 76.3561 -28.8092 I 52677.1227186 2003-02-07 1.25812409958 2999.1747

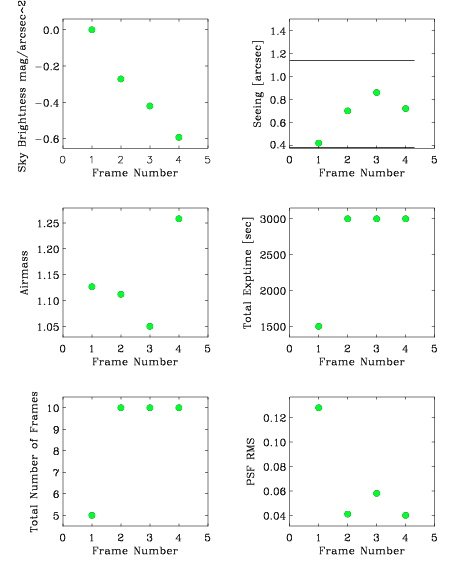

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #879 0.238 5 GSC2.2 PHOTOM D
2 WFI #879 0.238 10 GSC2.2 PHOTOM B
3 WFI #879 0.238 10 GSC2.2 PHOTOM B
4 WFI #879 0.238 10 GSC2.2 PHOTOM B
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.42 0.128 19.34 N/A
2 0.7 0.041 19.14 N/A
3 0.86 0.058 19.0 N/A
4 0.72 0.04 18.81 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52668.625 2003-01-29 N/A 23.26 0.053 0.089 0.053
2 52675.625 2003-02-05 N/A 23.31 0.005 0.067 0.0549
3 52676.625 2003-02-06 N/A 23.34 0.007 0.089 0.0069
4 52676.625 2003-02-06 N/A 23.34 0.007 0.089 0.0069
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 1902.0 1209.0 76.5 -29.0
2 TAN DEFAULT GSC2.2 2064.0 1235.0 76.5 -29.0
3 TAN DEFAULT GSC2.2 2321.0 1307.0 76.5 -29.0
4 TAN DEFAULT GSC2.2 2207.0 1112.0 76.5 -29.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:50:02
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband I
Total Exposure Time (seconds) 8998

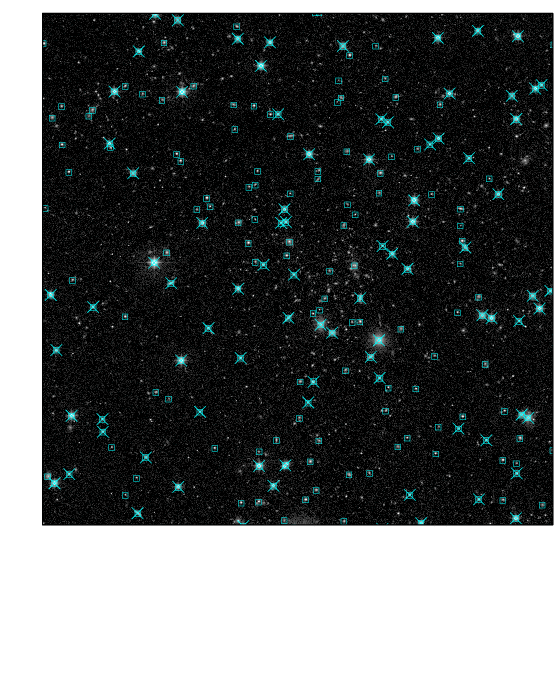

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 889 9.57 19.5
USNO Blue boxes 1985 8.6 18.0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.13 23.26 0.05 0.09 0.053
2 1.11 23.31 0.01 0.07 0.055 1.07
3 1.05 23.34 0.01 0.09 0.007 1.09
4 1.26 23.34 0.01 0.09 0.007 1.11
Relative Photometry

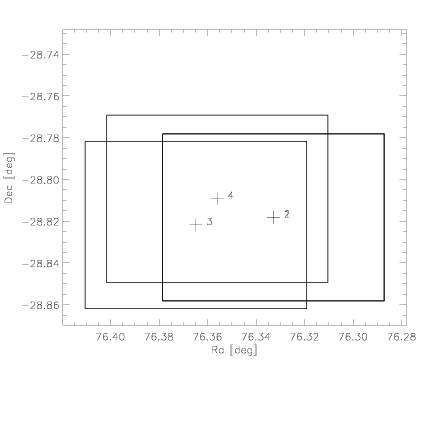

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 795 -0.008 0.115 23.04
2 1,3 744 0.008 0.114 14.3
3 1,4 754 0.002 0.117 15.27

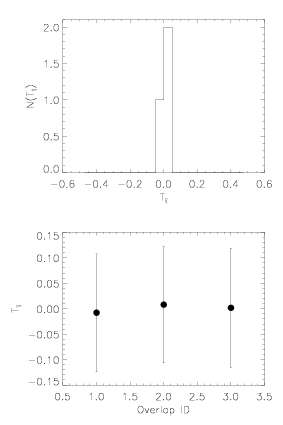

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.001
Standard Deviation 0.008
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 16-Nov-2004
Product Creation Time 01:43:17
User eisdata
Session 71094
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband I
Total Exposure Time (seconds) 8997.522
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
