Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 22:09:56
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband B
Total Exposure Time (seconds) 1800
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #878
Right Ascension (hh:mm:ss.s) 10:56:59.2
Declinaton (dd:mm:ss.s) -03:37:05
Interval between First/Last Contributing Frames (days) 0.02
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.17
PSF Distortion (rms) 0.04
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 8031.0
Reference Pixel: Y -1721.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 24.86
Zeropoint Error (Zp error) 0.021
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 22:09:56
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband B
Total Exposure Time (seconds) 1800
General Properties
Right Ascension (decimal degrees) 164.2466
Declination (decimal degrees) -3.6182
Galactic Longitude, l 256.5665
Galactic Latitude, b 48.674
Total Exposure Time (seconds) 1800
Number of Contributing Frames 3
First Contributing Frame MJD 52704.1569
Lsat Contributing Frame MJD 52704.1734
First Contributing Frame Civil Date 2003-03-06
Last Contributing Frame Civil Date 2003-03-06
Interval between First/Last Contributing Frames (days) 0.02
Number of Photometric Contributing Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 4627.7
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1041.1
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 28.08 27.32 26.88 26.57 26.33
2.0 27.05 26.3 25.86 25.55 25.31
3.0 26.55 25.8 25.36 25.04 24.8
4.0 26.07 25.32 24.88 24.56 24.32
5.0 25.66 24.9 24.46 24.15 23.91
6.0 25.29 24.54 24.1 23.78 23.54

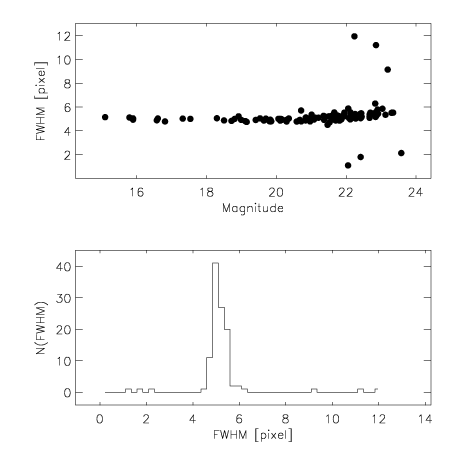

PSF
Measured Seeing (arcsec) 1.166
Measured Seeing (pixels) 4.901

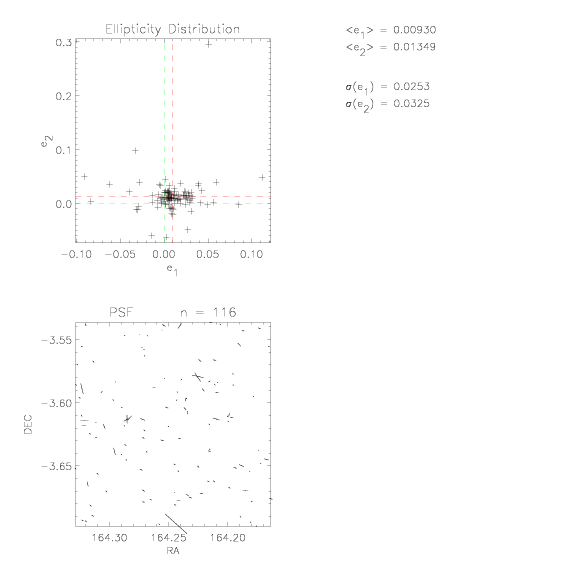

PSF Distortion along X-axis (E-W), e1 0.009
PSF Distortion along Y-axis (N-S), e2 0.013
PSF Distortion rms 0.041
Pixel Distribution
Mean Count (ADU) 0.023
Standard Deviation of Count (ADU) 1.78
Mean Sigma-Clipped Background Count (ADU) -0.0
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.018
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 22:09:56
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband B
Total Exposure Time (seconds) 1800
Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.13
Mean Seeing of Contributing Frames (arcsec) 1.207
Mean of rms PSF Distortions of Contributing Frames 0.08
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 22.36
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 164.24952 -3.62409 B 52704.1568793 2003-03-06 1.14325905945 359.9052
2 164.2304 -3.61821 B 52704.1624321 2003-03-06 1.13029102645 719.835
3 164.25989 -3.61241 B 52704.1733974 2003-03-06 1.11706201505 719.9088
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #878 0.238 1 GSC2.2 PHOTOM A
2 WFI #878 0.238 2 GSC2.2 PHOTOM A
3 WFI #878 0.238 2 GSC2.2 PHOTOM A

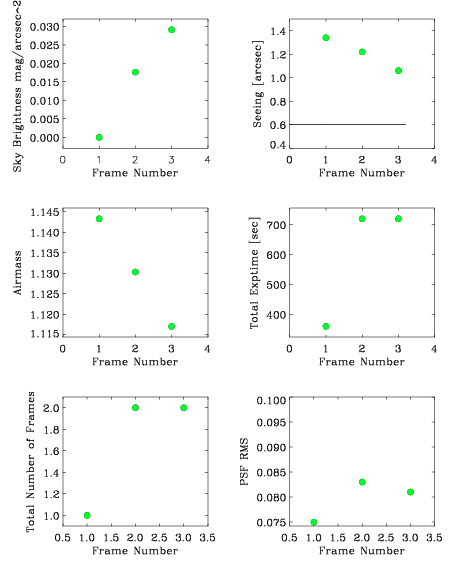

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.34 0.075 22.07 N/A
2 1.22 0.083 22.09 N/A
3 1.06 0.081 22.1 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52703.625 2003-03-05 N/A 24.86 0.009 0.242 0.0357
2 52703.625 2003-03-05 N/A 24.86 0.009 0.242 0.0357
3 52703.625 2003-03-05 N/A 24.86 0.009 0.242 0.0357
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 7744.0 -1896.0 164.0 -4.0
2 TAN DEFAULT GSC2.2 7598.0 -1721.0 164.0 -4.0
3 TAN DEFAULT GSC2.2 8032.0 -1810.0 164.0 -4.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 22:09:56
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband B
Total Exposure Time (seconds) 1800

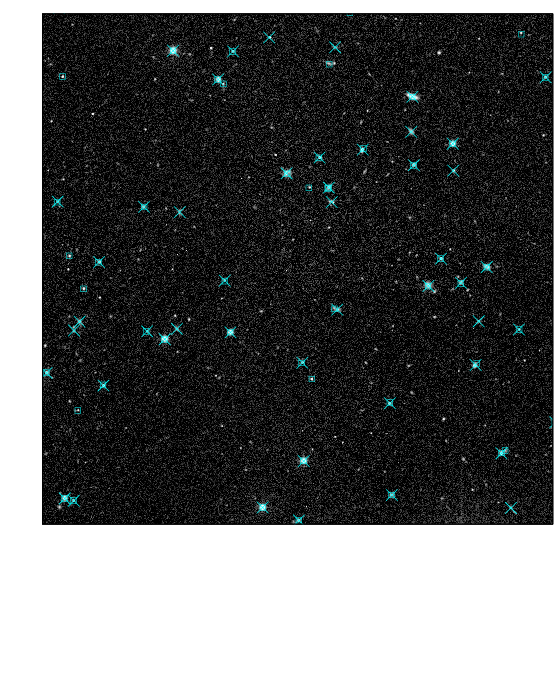

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 577 9.27 19.49
USNO Blue boxes 717 8.9 19.9
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.14 24.86 0.01 0.24 0.036 1.29
2 1.13 24.86 0.01 0.24 0.036 1.29
3 1.12 24.86 0.01 0.24 0.036 1.28

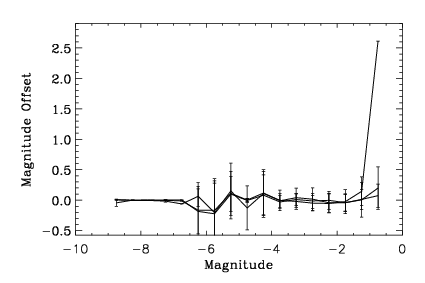

Relative Photometry

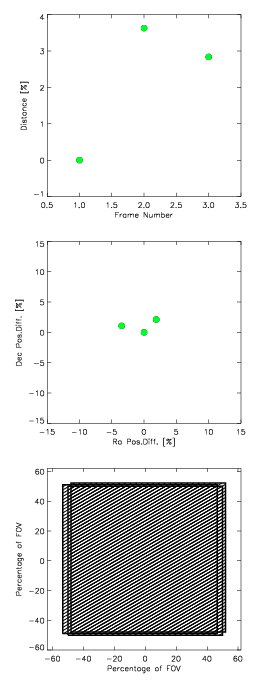

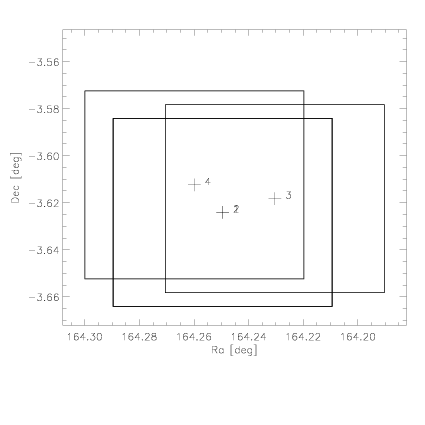

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 187 -0.014 0.113 23.04
2 1,3 240 0.005 0.071 16.25
3 1,4 244 0.006 0.067 17.13

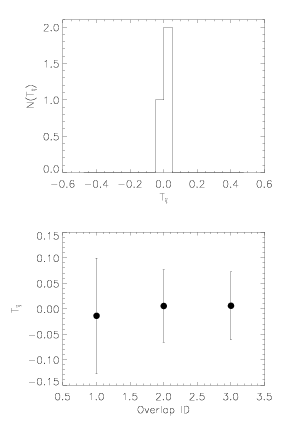

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference -0.001
Standard Deviation 0.011
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 16-Nov-2004
Product Creation Time 01:35:42
User eisdata
Session 71094
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-04
Field MS1054.4-0321
Passband B
Total Exposure Time (seconds) 1799.649
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
