Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:49:03
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband R
Total Exposure Time (seconds) 14998
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 05:05:14.3
Declinaton (dd:mm:ss.s) -28:48:35
Interval between First/Last Contributing Frames (days) 87.92
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.85
PSF Distortion (rms) 0.06
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 2173.0
Reference Pixel: Y 1463.0
Photometry
Number of nights with independent zeropoints 3
Zeropoint of Product (Vega magnitudes) 24.396
Zeropoint Error (Zp error) 0.01
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:49:03
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband R
Total Exposure Time (seconds) 14998
General Properties
Right Ascension (decimal degrees) 76.3096
Declination (decimal degrees) -28.81
Galactic Longitude, l 230.6439
Galactic Latitude, b -34.6323
Total Exposure Time (seconds) 14998
Number of Contributing Frames 6
First Contributing Frame MJD 52578.2103
Lsat Contributing Frame MJD 52666.1318
First Contributing Frame Civil Date 2002-10-31
Last Contributing Frame Civil Date 2003-01-27
Interval between First/Last Contributing Frames (days) 87.92
Number of Photometric Contributing Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 6
Effective Gain 32057.8
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1043.0
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.646 26.896 26.456 26.146 25.896
2.0 26.096 25.346 24.906 24.596 24.346
3.0 25.246 24.496 24.056 23.746 23.496
4.0 24.676 23.926 23.486 23.176 22.936
5.0 23.876 23.116 22.676 22.366 22.126
6.0 23.666 22.906 22.466 22.156 21.916

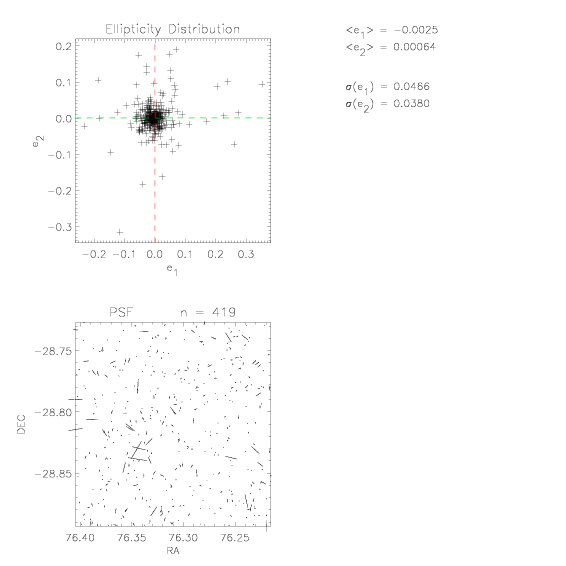

PSF

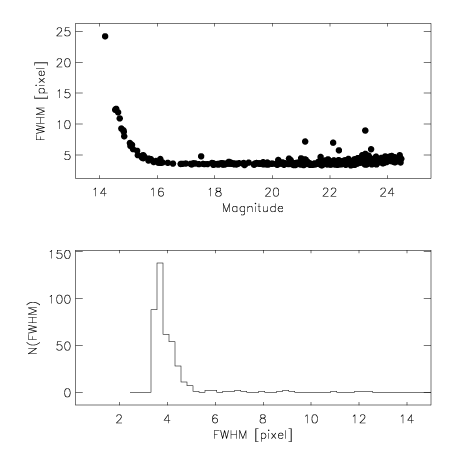

Measured Seeing (arcsec) 0.846
Measured Seeing (pixels) 3.554
PSF Distortion along X-axis (E-W), e1 -0.003
PSF Distortion along Y-axis (N-S), e2 0.001
PSF Distortion rms 0.06
Pixel Distribution
Mean Count (ADU) 0.065
Standard Deviation of Count (ADU) 2.26
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.01
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:49:03
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband R
Total Exposure Time (seconds) 14998
Stack Blocks (SB)
Number of Original Frames Input 6
Number of Photometric Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 6
Mean Airmass of Contributing Frames 1.05
Mean Seeing of Contributing Frames (arcsec) 0.928
Mean of rms PSF Distortions of Contributing Frames 0.123
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.71
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 76.311655 -28.80274 R 52578.2103445 2002-10-31 1.10800665649 1199.8349
2 76.308768 -28.81366 R 52580.2431074 2002-11-02 1.01417265261 2999.5872
3 76.313901 -28.79217 R 52580.2861192 2002-11-02 1.00306971778 2999.5753
4 76.306639 -28.82449 R 52587.275512 2002-11-09 1.00259102352 1799.7521
5 76.305904 -28.82411 R 52666.083946 2003-01-27 1.03559409277 2999.5869
6 76.310966 -28.80258 R 52666.1317983 2003-01-27 1.14951203953 2999.5873
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 2 GSC2.2 PHOTOM A
2 WFI #844 0.238 5 GSC2.2 PHOTOM A
3 WFI #844 0.238 5 GSC2.2 PHOTOM A
4 WFI #844 0.238 3 GSC2.2 - A
5 WFI #844 0.238 5 GSC2.2 PHOTOM A
6 WFI #844 0.238 5 GSC2.2 PHOTOM A

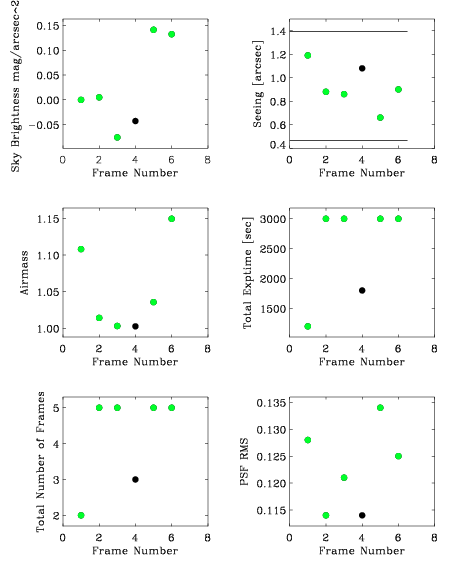

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.19 0.128 20.61 N/A
2 0.88 0.114 20.63 N/A
3 0.86 0.121 20.55 N/A
4 1.08 0.114 20.72 N/A
5 0.66 0.134 20.73 N/A
6 0.9 0.125 20.72 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52577.625 2002-10-30 N/A 24.41 0.004 0.085 0.0164
2 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
3 52579.625 2002-11-01 N/A 24.41 0.021 0.079 0.021
4 52587.275512 2002-11-09 N/A 24.47 -2.0 0.07 -2.0
5 52665.625 2003-01-26 N/A 24.38 0.047 0.079 0.0469
6 52665.625 2003-01-26 N/A 24.38 0.047 0.079 0.0469
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 1533.0 1324.0 76.5 -29.0
2 TAN DEFAULT GSC2.2 2013.0 1422.0 76.5 -29.0
3 TAN DEFAULT GSC2.2 2041.0 1425.0 76.5 -29.0
4 TAN DEFAULT GSC2.2 1645.0 1400.0 76.5 -29.0
5 TAN DEFAULT GSC2.2 2173.0 1463.0 76.5 -29.0
6 TAN DEFAULT GSC2.2 2102.0 1433.0 76.5 -29.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:49:03
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband R
Total Exposure Time (seconds) 14998

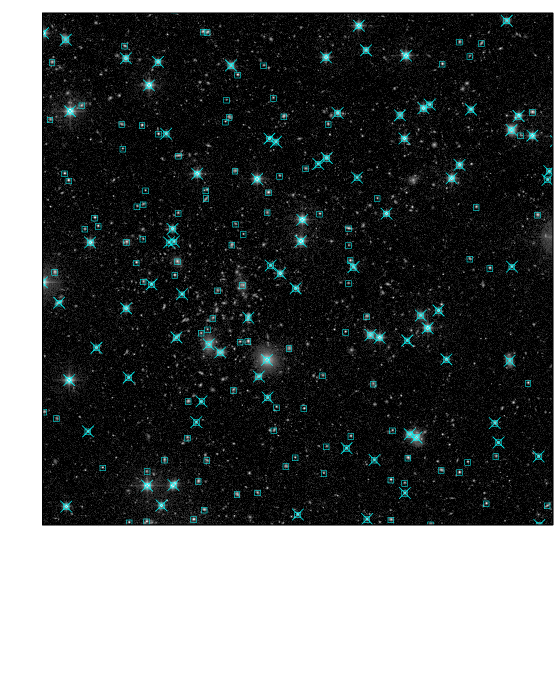

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 878 9.84 19.5
USNO Blue boxes 1961 8.6 18.0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.11 24.41 0.0 0.09 0.016 1.09
2 1.01 24.41 0.02 0.08 0.021 1.08
3 1.0 24.41 0.02 0.08 0.021 1.08
5 1.04 24.38 0.05 0.08 0.047 1.08
6 1.15 24.38 0.05 0.08 0.047 1.09
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
4 1.0 24.47 -2.0

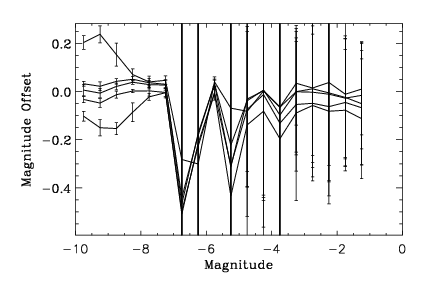

Relative Photometry

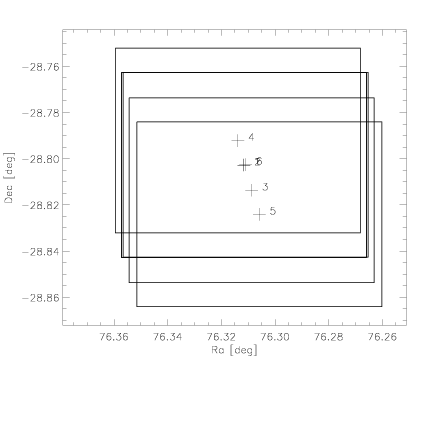

Overlap Information
Number of Fields 1
Number of Overlaps 6
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 694 0.038 0.139 23.04
2 1,3 822 0.009 0.123 19.27
3 1,4 827 0.008 0.124 19.5
4 1,5 834 -0.052 0.14 15.82
5 1,6 829 -0.03 0.131 22.82

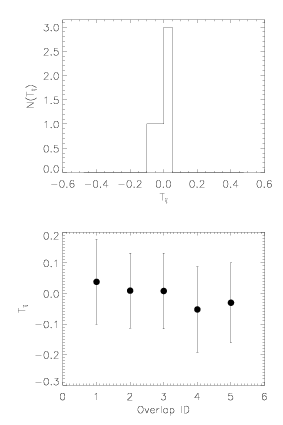

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference -0.006
Standard Deviation 0.036
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:07:26
User eisdata
Session 71096
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-06
Field SHARC-2
Passband R
Total Exposure Time (seconds) 14997.9237
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
