Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:26:30
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband R
Total Exposure Time (seconds) 11748
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 22:05:07.3
Declinaton (dd:mm:ss.s) -01:55:01
Interval between First/Last Contributing Frames (days) 53.94
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.88
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 8714.0
Reference Pixel: Y 3033.0
Photometry
Number of nights with independent zeropoints 3
Zeropoint of Product (Vega magnitudes) 24.48
Zeropoint Error (Zp error) 0.019
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:26:30
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband R
Total Exposure Time (seconds) 11748
General Properties
Right Ascension (decimal degrees) 331.2802
Declination (decimal degrees) -1.9171
Galactic Longitude, l 58.0631
Galactic Latitude, b -42.8926
Total Exposure Time (seconds) 11748
Number of Contributing Frames 5
First Contributing Frame MJD 52858.2568
Lsat Contributing Frame MJD 52912.1937
First Contributing Frame Civil Date 2003-08-07
Last Contributing Frame Civil Date 2003-09-30
Interval between First/Last Contributing Frames (days) 53.94
Number of Photometric Contributing Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 5
Effective Gain 26865.4
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1015.9
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.73 26.98 26.54 26.23 25.98
2.0 26.18 25.43 24.99 24.68 24.43
3.0 25.33 24.58 24.14 23.83 23.58
4.0 24.76 24.01 23.57 23.26 23.02
5.0 23.96 23.2 22.76 22.45 22.21
6.0 23.75 22.99 22.55 22.24 22.0

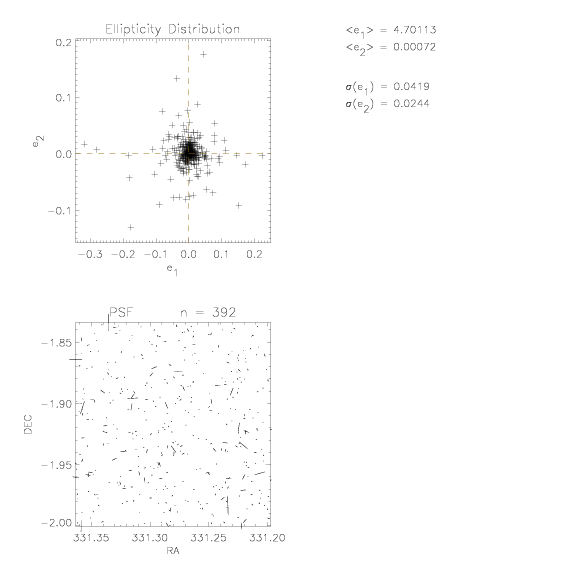

PSF

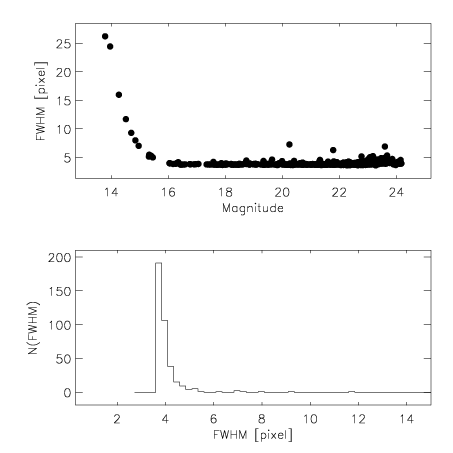

Measured Seeing (arcsec) 0.882
Measured Seeing (pixels) 3.707
PSF Distortion along X-axis (E-W), e1 0.0
PSF Distortion along Y-axis (N-S), e2 0.001
PSF Distortion rms 0.049
Pixel Distribution
Mean Count (ADU) 0.067
Standard Deviation of Count (ADU) 2.453
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.013
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:26:30
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband R
Total Exposure Time (seconds) 11748
Stack Blocks (SB)
Number of Original Frames Input 5
Number of Photometric Frames 5
Number of Rejected Frames 0
Number of Stacked Frames 5

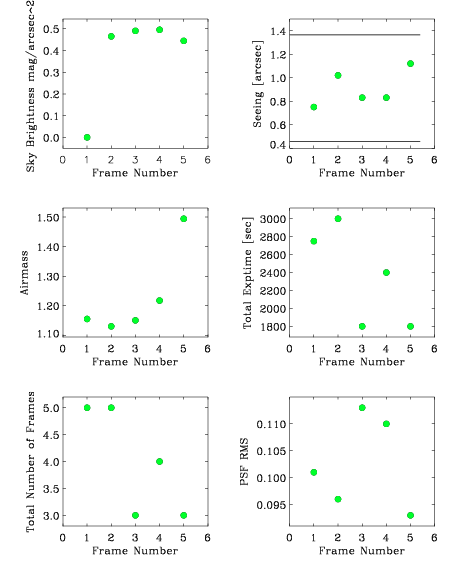

Mean Airmass of Contributing Frames 1.23
Mean Seeing of Contributing Frames (arcsec) 0.91
Mean of rms PSF Distortions of Contributing Frames 0.103
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.56
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 331.266279 -1.9281 R 52858.2567753 2003-08-07 1.15473015332 2749.587
2 331.26913 -1.91703 R 52906.0824977 2003-09-24 1.12981179046 2999.5871
3 331.26942 -1.91695 R 52912.1140624 2003-09-30 1.15006664947 1799.7523
4 331.30343 -1.91263 R 52912.1386614 2003-09-30 1.21712150647 2399.6694
5 331.29288 -1.91102 R 52912.193684 2003-09-30 1.49438994913 1799.7518
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 5 GSC2.2 PHOTOM C
2 WFI #844 0.238 5 GSC2.2 PHOTOM C
3 WFI #844 0.238 3 GSC2.2 PHOTOM C
4 WFI #844 0.238 4 GSC2.2 PHOTOM C
5 WFI #844 0.238 3 GSC2.2 PHOTOM C
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.75 0.101 20.14 N/A
2 1.02 0.096 20.52 N/A
3 0.83 0.113 20.52 N/A
4 0.83 0.11 20.52 N/A
5 1.12 0.093 20.44 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52857.667 2003-08-06 N/A 24.71 0.007 0.251 0.0357
2 52905.667 2003-09-23 N/A 24.43 0.081 0.079 0.081
3 52911.667 2003-09-29 N/A 24.4 0.04 0.079 0.0396
4 52911.667 2003-09-29 N/A 24.4 0.04 0.079 0.0396
5 52911.667 2003-09-29 N/A 24.4 0.04 0.079 0.0396
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 8676.0 2929.0 331.0 -2.0
2 TAN DEFAULT GSC2.2 8671.0 3018.0 331.0 -2.0
3 TAN DEFAULT GSC2.2 8342.0 2801.0 331.0 -2.0
4 TAN DEFAULT GSC2.2 8639.0 3033.0 331.0 -2.0
5 TAN DEFAULT GSC2.2 8714.0 2996.0 331.0 -2.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:26:30
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband R
Total Exposure Time (seconds) 11748
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 730 8.93 19.5
USNO Blue boxes 919 8.7 19.5
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.15 24.71 0.01 0.25 0.036 1.31
2 1.13 24.43 0.08 0.08 0.081 1.09
3 1.15 24.4 0.04 0.08 0.04 1.09
4 1.22 24.4 0.04 0.08 0.04 1.09
5 1.49 24.4 0.04 0.08 0.04 1.11

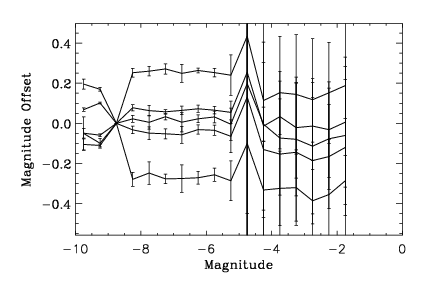

Relative Photometry

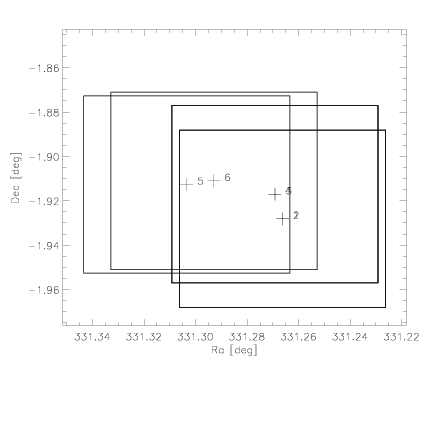

Overlap Information
Number of Fields 1
Number of Overlaps 6
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 592 0.23 0.113 23.04
2 1,3 617 0.046 0.093 19.14
3 1,4 509 0.007 0.107 19.05
4 1,5 622 -0.064 0.108 9.96
5 1,6 466 -0.271 0.144 12.1

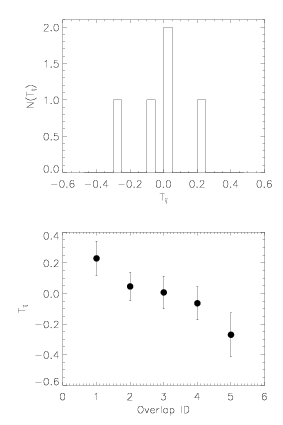

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference -0.011
Standard Deviation 0.181
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:06:42
User eisdata
Session 71096
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband R
Total Exposure Time (seconds) 11748.3476
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
