Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:50:23
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-02
Field J0720.4-3125
Passband I
Total Exposure Time (seconds) 5998
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #879
Right Ascension (hh:mm:ss.s) 07:20:29.5
Declinaton (dd:mm:ss.s) -31:25:24
Interval between First/Last Contributing Frames (days) 0.07
Airmass 1.01
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.94
PSF Distortion (rms) 0.08
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 5909.0
Reference Pixel: Y 10555.0
Photometry
Number of nights with independent zeropoints 0
Zeropoint of Product (Vega magnitudes) 23.37
Zeropoint Error (Zp error) -1.0
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:50:23
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-02
Field J0720.4-3125
Passband I
Total Exposure Time (seconds) 5998
General Properties
Right Ascension (decimal degrees) 110.1227
Declination (decimal degrees) -31.4234
Galactic Longitude, l 244.1604
Galactic Latitude, b -8.1471
Total Exposure Time (seconds) 5998
Number of Contributing Frames 3
First Contributing Frame MJD 52673.149
Lsat Contributing Frame MJD 52673.2156
First Contributing Frame Civil Date 2003-02-03
Last Contributing Frame Civil Date 2003-02-03
Interval between First/Last Contributing Frames (days) 0.07
Number of Photometric Contributing Frames 0
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 11953.8
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1021.1
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 26.24 25.49 25.05 24.74 24.5
2.0 25.12 24.37 23.93 23.62 23.37
3.0 24.6 23.85 23.41 23.09 22.85
4.0 23.49 22.74 22.3 21.99 21.75
5.0 23.09 22.34 21.9 21.59 21.34
6.0 22.93 22.18 21.74 21.43 21.18

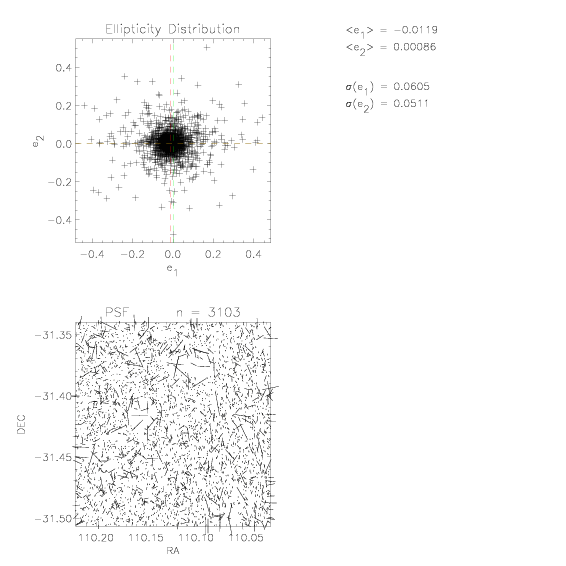

PSF
Measured Seeing (arcsec) 0.944
Measured Seeing (pixels) 3.965
PSF Distortion along X-axis (E-W), e1 -0.012
PSF Distortion along Y-axis (N-S), e2 0.001
PSF Distortion rms 0.079
Pixel Distribution
Mean Count (ADU) 0.258
Standard Deviation of Count (ADU) 5.422
Mean Sigma-Clipped Background Count (ADU) -0.006
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.022
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:50:23
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-02
Field J0720.4-3125
Passband I
Total Exposure Time (seconds) 5998

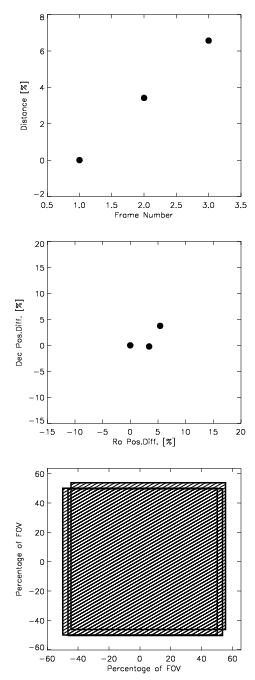

Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 0
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.08
Mean Seeing of Contributing Frames (arcsec) 0.983
Mean of rms PSF Distortions of Contributing Frames 0.072
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 19.38
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 110.1038 -31.4299 I 52673.1489552 2003-02-03 1.01419012912 1799.5049
2 110.1258 -31.4311 I 52673.1790229 2003-02-03 1.06279641395 2099.4227
3 110.1386 -31.4093 I 52673.2156229 2003-02-03 1.16395605024 2099.4225
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #879 0.238 6 GSC2.2 - A
2 WFI #879 0.238 7 GSC2.2 - A
3 WFI #879 0.238 7 GSC2.2 - A

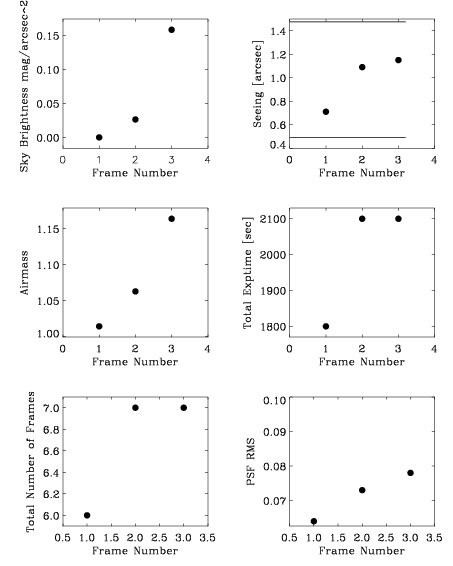

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.71 0.064 19.32 N/A
2 1.09 0.073 19.34 N/A
3 1.15 0.078 19.48 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52673.1489552 2003-02-03 N/A 23.37 -2.0 0.0 -2.0
2 52673.1790229 2003-02-03 N/A 23.37 -2.0 0.0 -2.0
3 52673.2156229 2003-02-03 N/A 23.37 -2.0 0.0 -2.0
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 5587.0 10555.0 110.0 -31.0
2 TAN DEFAULT GSC2.2 5616.0 10494.0 110.0 -31.0
3 TAN DEFAULT GSC2.2 5909.0 10368.0 110.0 -31.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:50:23
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-02
Field J0720.4-3125
Passband I
Total Exposure Time (seconds) 5998

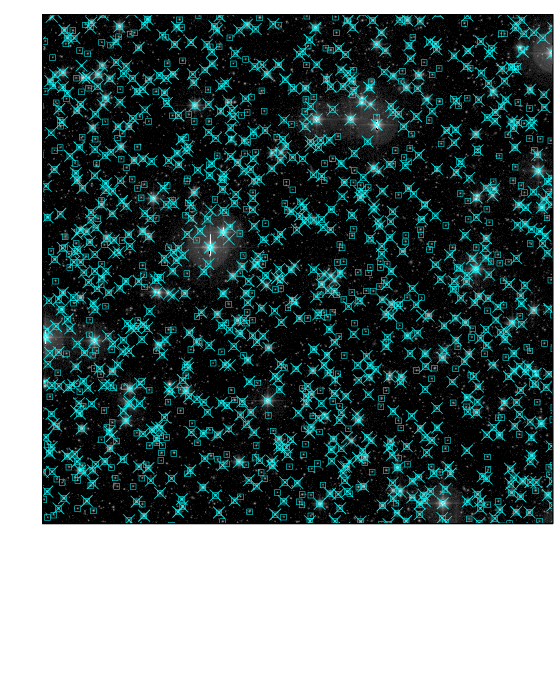

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 8424 8.71 19.5
USNO Blue boxes 12481 8.7 17.9
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.01 23.37 -2.0 1.0
2 1.06 23.37 -2.0 1.01
3 1.16 23.37 -2.0 1.0

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 16-Nov-2004
Product Creation Time 01:31:07
User eisdata
Session 71094
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-02
Field J0720.4-3125
Passband I
Total Exposure Time (seconds) 5998.3501
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
