Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:40:27
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband R
Total Exposure Time (seconds) 15698
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 22:15:29.6
Declinaton (dd:mm:ss.s) -17:43:39
Interval between First/Last Contributing Frames (days) 52.8
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.03
PSF Distortion (rms) 0.06
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 2659.0
Reference Pixel: Y 177.0
Photometry
Number of nights with independent zeropoints 3
Zeropoint of Product (Vega magnitudes) 24.517
Zeropoint Error (Zp error) 0.027
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:40:27
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband R
Total Exposure Time (seconds) 15698
General Properties
Right Ascension (decimal degrees) 333.8735
Declination (decimal degrees) -17.7275
Galactic Longitude, l 39.2759
Galactic Latitude, b -52.9185
Total Exposure Time (seconds) 15698
Number of Contributing Frames 6
First Contributing Frame MJD 52858.2126
Lsat Contributing Frame MJD 52911.0114
First Contributing Frame Civil Date 2003-08-07
Last Contributing Frame Civil Date 2003-09-29
Interval between First/Last Contributing Frames (days) 52.8
Number of Photometric Contributing Frames 4
Number of Rejected Frames 0
Number of Stacked Frames 6
Effective Gain 35304.6
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 941.6
Fraction of instrument FOV of area of stacked image with maximum overlap 0.8
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 28.347 27.597 27.157 26.837 26.597
2.0 27.207 26.457 26.017 25.707 25.467
3.0 26.347 25.597 25.157 24.837 24.597
4.0 25.747 24.997 24.557 24.247 24.007
5.0 25.217 24.457 24.017 23.707 23.467
6.0 24.787 24.037 23.597 23.277 23.037

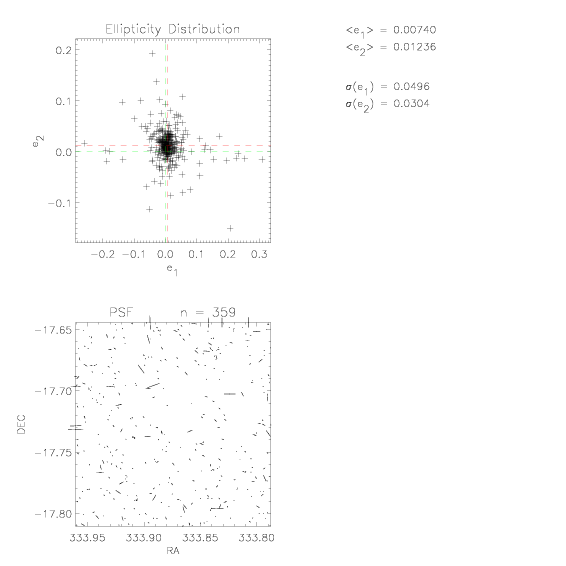

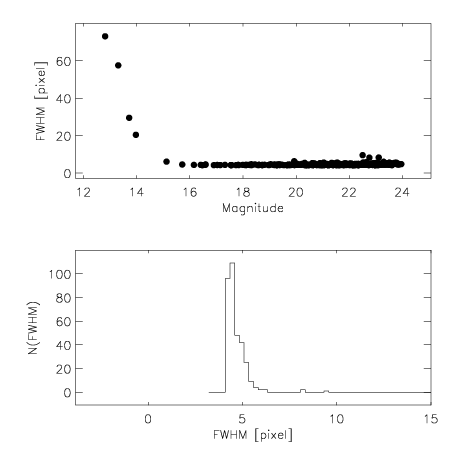

PSF
Measured Seeing (arcsec) 1.028
Measured Seeing (pixels) 4.318
PSF Distortion along X-axis (E-W), e1 0.007
PSF Distortion along Y-axis (N-S), e2 0.012
PSF Distortion rms 0.058
Pixel Distribution
Mean Count (ADU) 0.07
Standard Deviation of Count (ADU) 2.516
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.012
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:40:27
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband R
Total Exposure Time (seconds) 15698
Stack Blocks (SB)
Number of Original Frames Input 6
Number of Photometric Frames 4
Number of Rejected Frames 0
Number of Stacked Frames 6
Mean Airmass of Contributing Frames 1.05
Mean Seeing of Contributing Frames (arcsec) 0.997
Mean of rms PSF Distortions of Contributing Frames 0.134
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.53
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 333.858784 -17.73059 R 52858.212603 2003-08-07 1.02656230108 2999.5869
2 333.86362 -17.70874 R 52906.1270276 2003-09-24 1.02958419407 1799.752
3 333.88821 -17.75835 R 52906.1521922 2003-09-24 1.06116350215 1799.7522
4 333.8638 -17.70847 R 52910.0457239 2003-09-28 1.05020651454 2999.5871
5 333.90467 -17.73947 R 52910.1039512 2003-09-28 1.03160646223 3349.5043
6 333.86162 -17.71965 R 52911.0114055 2003-09-29 1.12011421177 2749.5873
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 5 GSC2.2 PHOTOM C
2 WFI #844 0.238 3 GSC2.2 PHOTOM B
3 WFI #844 0.238 3 GSC2.2 PHOTOM B
4 WFI #844 0.238 5 GSC2.2 - A
5 WFI #844 0.238 6 GSC2.2 - A
6 WFI #844 0.238 5 GSC2.2 PHOTOM A

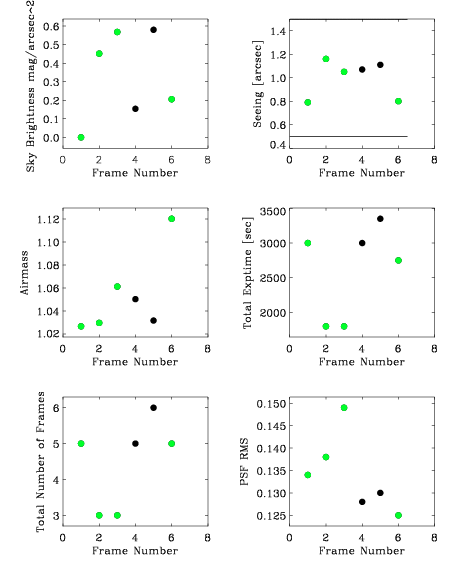

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.79 0.134 20.16 N/A
2 1.16 0.138 20.5 N/A
3 1.05 0.149 20.62 N/A
4 1.07 0.128 20.33 N/A
5 1.11 0.13 20.75 N/A
6 0.8 0.125 20.23 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52857.667 2003-08-06 N/A 24.71 0.007 0.251 0.0357
2 52905.667 2003-09-23 N/A 24.43 0.081 0.079 0.081
3 52905.667 2003-09-23 N/A 24.43 0.081 0.079 0.081
4 52910.0457239 2003-09-28 N/A 24.47 -2.0 0.07 -2.0
5 52910.1039512 2003-09-28 N/A 24.47 -2.0 0.07 -2.0
6 52910.667 2003-09-28 N/A 24.42 0.061 0.088 0.0608

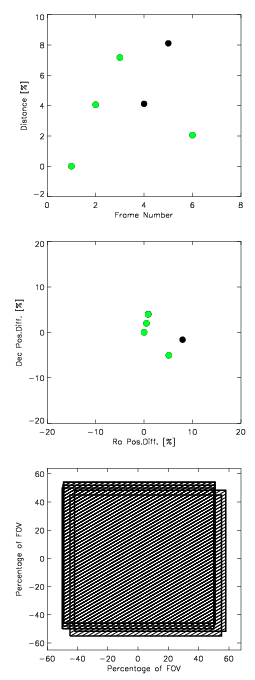

Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 2480.0 177.0 334.0 -18.0
2 TAN DEFAULT GSC2.2 2302.0 -65.0 334.0 -18.0
3 TAN DEFAULT GSC2.2 2594.0 169.0 334.0 -18.0
4 TAN DEFAULT GSC2.2 2631.0 148.0 334.0 -18.0
5 TAN DEFAULT GSC2.2 2659.0 115.0 334.0 -18.0
6 TAN DEFAULT GSC2.2 2438.0 96.0 334.0 -18.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:40:27
User eisdata
Session 71096
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband R
Total Exposure Time (seconds) 15698

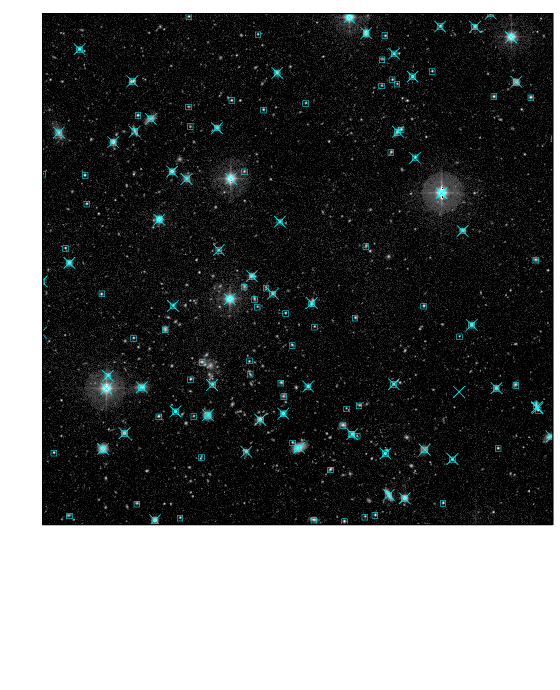

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 681 9.63 19.5
USNO Blue boxes 1632 8.6 25.8
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.03 24.71 0.01 0.25 0.036 1.27
2 1.03 24.43 0.08 0.08 0.081 1.08
3 1.06 24.43 0.08 0.08 0.081 1.08
6 1.12 24.42 0.06 0.09 0.061 1.1
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
4 1.05 24.47 -2.0
5 1.03 24.47 -2.0

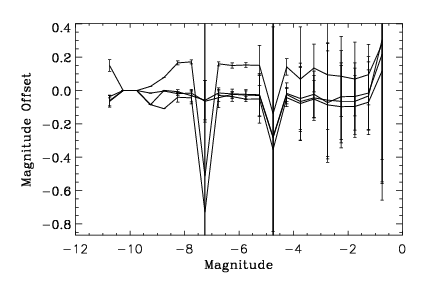

Relative Photometry

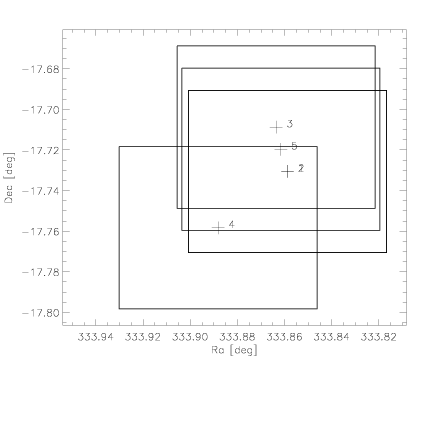

Overlap Information
Number of Fields 1
Number of Overlaps 5
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 572 0.14 0.108 23.04
2 1,3 613 -0.014 0.128 15.78
3 1,4 656 0.022 0.374 9.77
4 1,5 695 -0.036 0.416 19.22

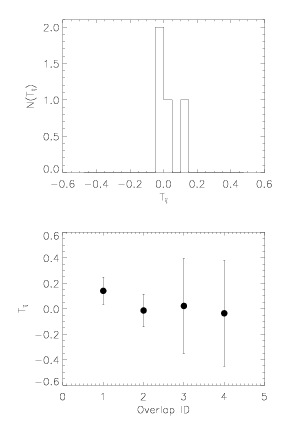

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.028
Standard Deviation 0.079
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 23:05:07
User eisdata
Session 71096
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband R
Total Exposure Time (seconds) 15697.7698
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
