Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:24:05
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband I
Total Exposure Time (seconds) 9297
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #879
Right Ascension (hh:mm:ss.s) 11:06:35.4
Declinaton (dd:mm:ss.s) -18:21:07
Interval between First/Last Contributing Frames (days) 0.1
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.95
PSF Distortion (rms) 0.06
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 6612.0
Reference Pixel: Y 9430.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 23.29
Zeropoint Error (Zp error) 0.04
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:24:05
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband I
Total Exposure Time (seconds) 9297
General Properties
Right Ascension (decimal degrees) 166.6475
Declination (decimal degrees) -18.3521
Galactic Longitude, l 270.8407
Galactic Latitude, b 37.9003
Total Exposure Time (seconds) 9297
Number of Contributing Frames 3
First Contributing Frame MJD 52706.1979
Lsat Contributing Frame MJD 52706.3012
First Contributing Frame Civil Date 2003-03-08
Last Contributing Frame Civil Date 2003-03-08
Interval between First/Last Contributing Frames (days) 0.1
Number of Photometric Contributing Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 20491.4
Effective Non-linearity N/A
Effective Saturation N/A

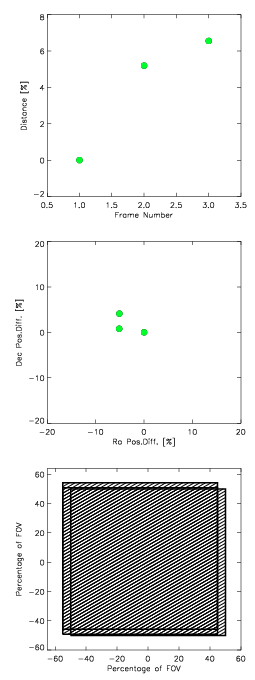

Area of maximum overlap in stacked image (arcmin2) 1022.2
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 26.47 25.72 25.28 24.97 24.72
2.0 25.45 24.7 24.26 23.94 23.7
3.0 24.99 24.24 23.8 23.49 23.24
4.0 24.51 23.76 23.32 23.0 22.76
5.0 24.16 23.4 22.96 22.65 22.41
6.0 23.77 23.02 22.58 22.26 22.02

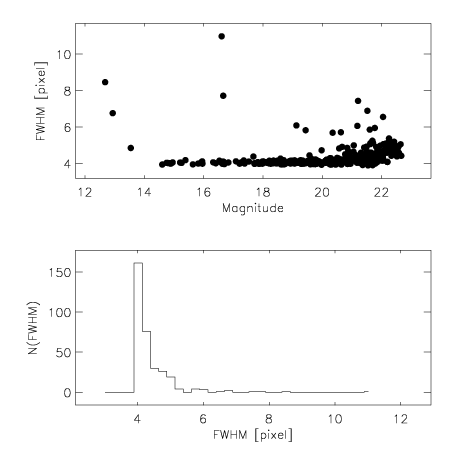

PSF
Measured Seeing (arcsec) 0.954
Measured Seeing (pixels) 4.008
PSF Distortion along X-axis (E-W), e1 -0.013
PSF Distortion along Y-axis (N-S), e2 0.007
PSF Distortion rms 0.064
Pixel Distribution
Mean Count (ADU) 0.037
Standard Deviation of Count (ADU) 2.201
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.013
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:24:05
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband I
Total Exposure Time (seconds) 9297
Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.17
Mean Seeing of Contributing Frames (arcsec) 0.997
Mean of rms PSF Distortions of Contributing Frames 0.068
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 19.28
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 166.6673 -18.3611 I 52706.1978686 2003-03-08 1.02871582535 2699.2576
2 166.63754 -18.35673 I 52706.2478356 2003-03-08 1.12184631937 3299.0924
3 166.63775 -18.33845 I 52706.3011713 2003-03-08 1.37288076728 3299.0961
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #879 0.238 9 GSC2.2 PHOTOM A
2 WFI #879 0.238 11 GSC2.2 PHOTOM A
3 WFI #879 0.238 11 GSC2.2 PHOTOM A

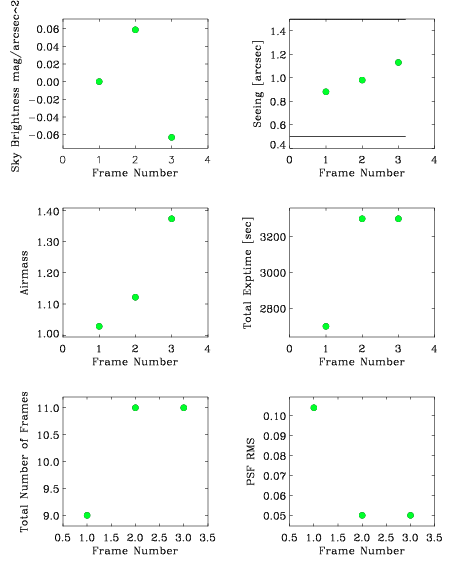

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.88 0.104 19.19 N/A
2 0.98 0.05 19.24 N/A
3 1.13 0.05 19.09 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52705.625 2003-03-07 N/A 23.29 0.069 0.089 0.0685
2 52705.625 2003-03-07 N/A 23.29 0.069 0.089 0.0685
3 52705.625 2003-03-07 N/A 23.29 0.069 0.089 0.0685
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 6607.0 9430.0 166.5 -18.0
2 TAN DEFAULT GSC2.2 6613.0 9243.0 166.5 -18.0
3 TAN DEFAULT GSC2.2 6188.0 9304.0 166.5 -18.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:24:05
User eisdata
Session 71094
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband I
Total Exposure Time (seconds) 9297

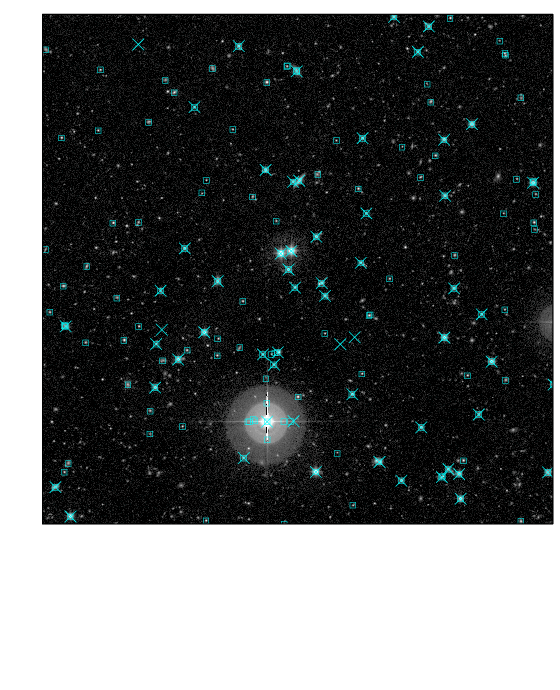

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 773 9.99 19.5
USNO Blue boxes 1629 9.7 19.5
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.03 23.29 0.07 0.09 0.069 1.09
2 1.12 23.29 0.07 0.09 0.069 1.1
3 1.37 23.29 0.07 0.09 0.069 1.12

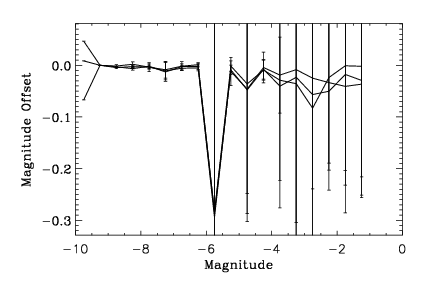

Relative Photometry

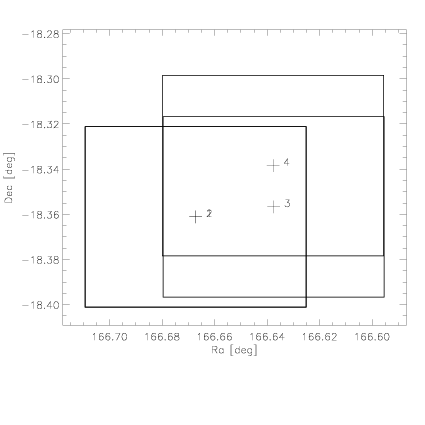

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 697 0.002 0.08 23.04
2 1,3 707 -0.006 0.071 14.1
3 1,4 781 -0.009 0.093 10.73

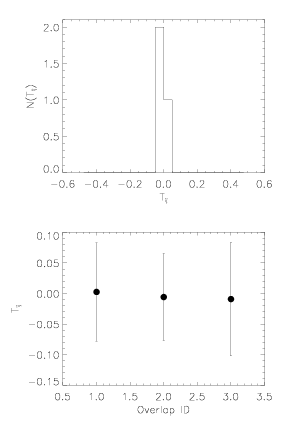

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference -0.004
Standard Deviation 0.006
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 16-Nov-2004
Product Creation Time 01:29:14
User eisdata
Session 71094
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-03
Field HE1104-1805
Passband I
Total Exposure Time (seconds) 9297.4461
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
