Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:04:55
User eisdata
Session 71095
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband V
Total Exposure Time (seconds) 4399
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #843
Right Ascension (hh:mm:ss.s) 22:15:30.8
Declinaton (dd:mm:ss.s) -17:44:20
Interval between First/Last Contributing Frames (days) 28.82
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.1
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 2599.0
Reference Pixel: Y -36.0
Photometry
Number of nights with independent zeropoints 2
Zeropoint of Product (Vega magnitudes) 24.205
Zeropoint Error (Zp error) 0.016
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:04:55
User eisdata
Session 71095
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband V
Total Exposure Time (seconds) 4399
General Properties
Right Ascension (decimal degrees) 333.8785
Declination (decimal degrees) -17.7391
Galactic Longitude, l 39.261
Galactic Latitude, b -52.9272
Total Exposure Time (seconds) 4399
Number of Contributing Frames 3
First Contributing Frame MJD 52821.3676
Lsat Contributing Frame MJD 52850.1845
First Contributing Frame Civil Date 2003-07-01
Last Contributing Frame Civil Date 2003-07-30
Interval between First/Last Contributing Frames (days) 28.82
Number of Photometric Contributing Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 10840.1
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1080.1
Fraction of instrument FOV of area of stacked image with maximum overlap 1.0
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.885 27.135 26.695 26.385 26.135
2.0 27.125 26.365 25.925 25.615 25.375
3.0 26.395 25.645 25.205 24.885 24.645
4.0 25.785 25.035 24.595 24.285 24.045
5.0 25.475 24.725 24.285 23.965 23.725
6.0 24.995 24.235 23.795 23.485 23.245

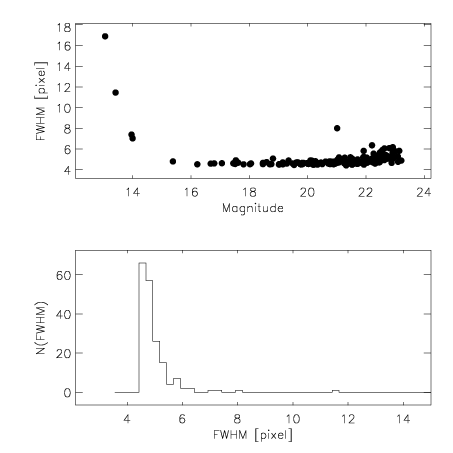

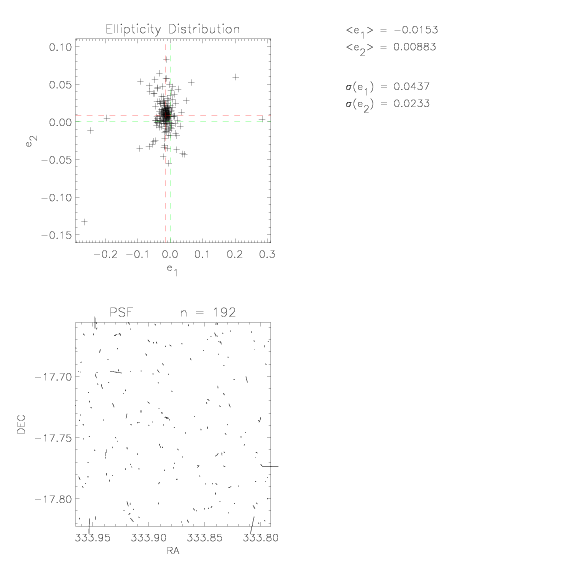

PSF
Measured Seeing (arcsec) 1.095
Measured Seeing (pixels) 4.602
PSF Distortion along X-axis (E-W), e1 -0.015
PSF Distortion along Y-axis (N-S), e2 0.009
PSF Distortion rms 0.05
Pixel Distribution
Mean Count (ADU) 0.037
Standard Deviation of Count (ADU) 2.095
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.012
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:04:55
User eisdata
Session 71095
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband V
Total Exposure Time (seconds) 4399
Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.12
Mean Seeing of Contributing Frames (arcsec) 1.1
Mean of rms PSF Distortions of Contributing Frames 0.091
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 21.63
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 333.88172 -17.73507 V 52821.3675937 2003-07-01 1.04195435123 2199.587
2 333.88157 -17.73523 V 52850.1718234 2003-07-30 1.18541201092 879.835
3 333.87219 -17.74699 V 52850.1845405 2003-07-30 1.12490271395 1319.7521

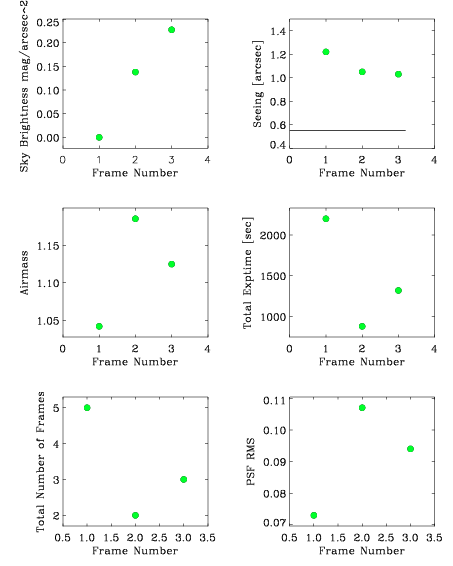

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #843 0.238 5 GSC2.2 PHOTOM A
2 WFI #843 0.238 2 GSC2.2 PHOTOM B
3 WFI #843 0.238 3 GSC2.2 PHOTOM B
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.22 0.073 21.25 N/A
2 1.05 0.107 21.45 N/A
3 1.03 0.094 21.55 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52820.667 2003-06-30 N/A 24.22 0.002 0.264 0.0244
2 52849.667 2003-07-29 N/A 24.19 0.032 0.153 0.0316
3 52849.667 2003-07-29 N/A 24.19 0.032 0.153 0.0316

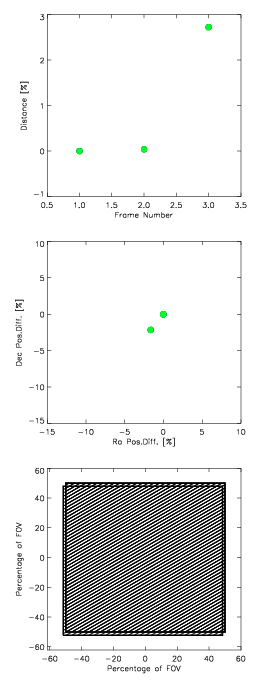

Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 2512.0 -36.0 334.0 -18.0
2 TAN DEFAULT GSC2.2 2326.0 -221.0 334.0 -18.0
3 TAN DEFAULT GSC2.2 2600.0 -46.0 334.0 -18.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 20:04:55
User eisdata
Session 71095
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband V
Total Exposure Time (seconds) 4399
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 677 9.63 19.5
USNO Blue boxes 1622 8.6 25.8
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.04 24.22 0.0 0.26 0.024 1.29
2 1.19 24.19 0.03 0.15 0.032 1.18
3 1.12 24.19 0.03 0.15 0.032 1.17

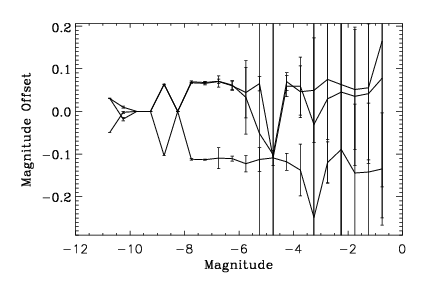

Relative Photometry

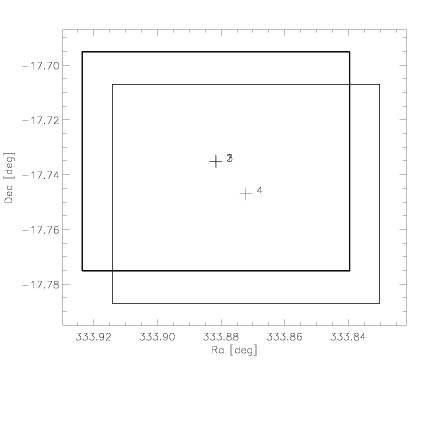

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 391 -0.109 0.074 23.04
2 1,3 316 0.078 0.076 22.95
3 1,4 368 0.069 0.077 17.38
Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.013
Standard Deviation 0.105
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 15-Nov-2004
Product Creation Time 21:20:20
User eisdata
Session 71095
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-07
Field LBQS_2212-1759
Passband V
Total Exposure Time (seconds) 4399.1741
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
