Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 11:29:36
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband U
Total Exposure Time (seconds) 74693
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #877
Right Ascension (hh:mm:ss.s) 22:55:06.2
Declinaton (dd:mm:ss.s) -40:12:27
Interval between First/Last Contributing Frames (days) 300.2
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.31
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 12426.0
Reference Pixel: Y 4658.0
Photometry
Number of nights with independent zeropoints 10
Zeropoint of Product (Vega magnitudes) 22.361
Zeropoint Error (Zp error) 0.013
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 11:29:36
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband U
Total Exposure Time (seconds) 74693
General Properties
Right Ascension (decimal degrees) 343.7759
Declination (decimal degrees) -40.2076
Galactic Longitude, l 356.8831
Galactic Latitude, b -62.6671
Total Exposure Time (seconds) 74693
Number of Contributing Frames 20
First Contributing Frame MJD 51844.0278
Lsat Contributing Frame MJD 52144.2251
First Contributing Frame Civil Date 2000-10-27
Last Contributing Frame Civil Date 2001-08-23
Interval between First/Last Contributing Frames (days) 300.2
Number of Photometric Contributing Frames 17
Number of Rejected Frames 1
Number of Stacked Frames 19
Effective Gain 306387.2
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 829.6
Fraction of instrument FOV of area of stacked image with maximum overlap 0.7
Aperture Limiting Magnitudes

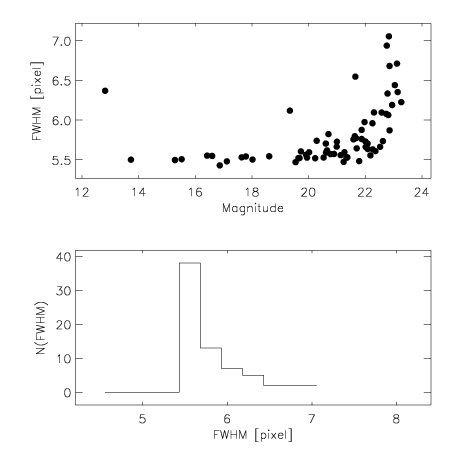

PSF
Measured Seeing (arcsec) 1.306
Measured Seeing (pixels) 5.489

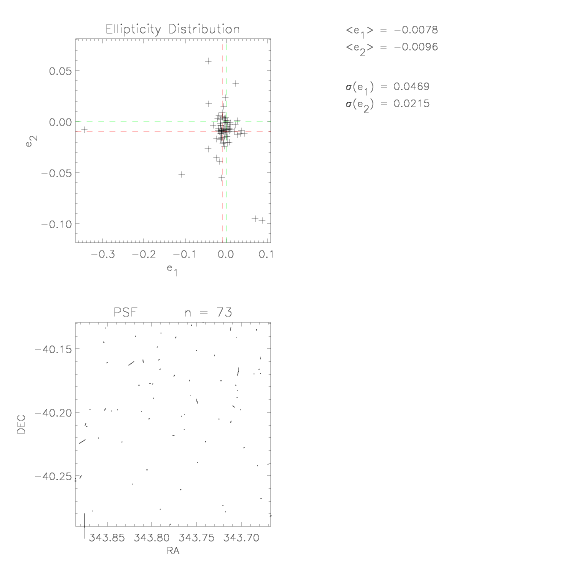

PSF Distortion along X-axis (E-W), e1 -0.008
PSF Distortion along Y-axis (N-S), e2 -0.01
PSF Distortion rms 0.052
Pixel Distribution
Mean Count (ADU) 0.001
Standard Deviation of Count (ADU) 0.18
Mean Sigma-Clipped Background Count (ADU) -0.0
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.001
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 11:29:36
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband U
Total Exposure Time (seconds) 74693
Stack Blocks (SB)
Number of Original Frames Input 20
Number of Photometric Frames 17
Number of Rejected Frames 1
Number of Stacked Frames 19
Mean Airmass of Contributing Frames 1.06
Mean Seeing of Contributing Frames (arcsec) 0.312
Mean of rms PSF Distortions of Contributing Frames 0.062
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 22.62
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 343.7609 -40.2152 U 51844.0277637 2000-10-27 1.02262308082 4499.588
2 343.79 -40.2069 U 51844.0974507 2000-10-27 1.1018025616 4499.585
3 343.798 -40.2195 U 51845.0207505 2000-10-28 1.02347402151 4499.588
4 343.7773 -40.2278 U 51845.096258 2000-10-28 1.10178785656 4499.587
5 343.7535 -40.1944 U 52111.295073 2001-07-21 1.02207374193 4499.588
6 343.7805 -40.1903 U 52112.389032 2001-07-22 1.16931317602 4499.594
7 343.7632 -40.2234 U 52113.298418 2001-07-23 1.0236676579 4499.588
8 343.726 -40.2277 U 52113.36684 2001-07-23 1.11376770699 4499.587
9 343.8178 -40.1859 U 52114.313677 2001-07-24 1.02392089195 2699.753
10 343.827 -40.2319 U 52115.286294 2001-07-25 1.0204196135 2699.751
11 343.8413 -40.2204 U 52115.320572 2001-07-25 1.03151215454 2699.752
12 343.7178 -40.1817 U 52116.280269 2001-07-26 1.02211590526 4499.589
13 343.8183 -40.1859 U 52117.28446 2001-07-27 1.0229373492 4499.586
14 343.7563 -40.1948 U 52141.226927 2001-08-20 1.025716715 4499.5878
15 343.7829 -40.1905 U 52141.2879292 2001-08-20 1.10805082349 4499.5871
16 343.7656 -40.224 U 52142.2144721 2001-08-21 1.02011862161 2699.7525
17 343.7794 -40.2117 U 52142.2495431 2001-08-21 1.0397792945 3599.6701
18 343.703 -40.2223 U 52142.2999552 2001-08-21 1.13135957089 3599.6697
19 343.7836 -40.1906 U 52144.2250638 2001-08-23 1.02150676842 2699.7527

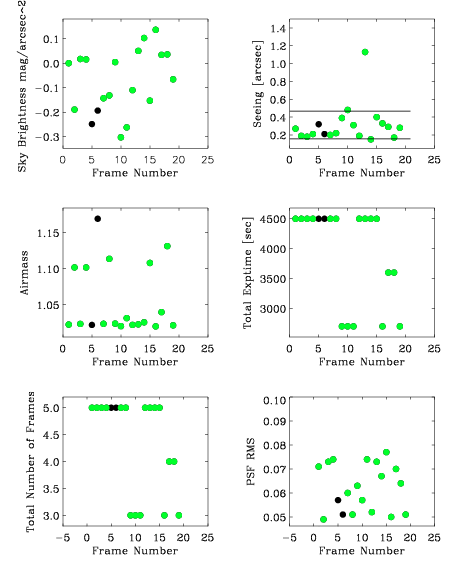

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #877 0.238 5 GSC2.2 PHOTOM B
2 WFI #877 0.238 5 GSC2.2 PHOTOM B
3 WFI #877 0.238 5 GSC2.2 PHOTOM B
4 WFI #877 0.238 5 GSC2.2 PHOTOM B
5 WFI #877 0.238 5 GSC2.2 - B
6 WFI #877 0.238 5 GSC2.2 - B
7 WFI #877 0.238 5 GSC2.2 PHOTOM B
8 WFI #877 0.238 5 GSC2.2 PHOTOM A
9 WFI #877 0.238 3 GSC2.2 PHOTOM B
10 WFI #877 0.238 3 GSC2.2 PHOTOM B
11 WFI #877 0.238 3 GSC2.2 PHOTOM B
12 WFI #877 0.238 5 GSC2.2 PHOTOM B
13 WFI #877 0.238 5 GSC2.2 PHOTOM B
14 WFI #877 0.238 5 GSC2.2 PHOTOM B
15 WFI #877 0.238 5 GSC2.2 PHOTOM B
16 WFI #877 0.238 3 GSC2.2 PHOTOM B
17 WFI #877 0.238 4 GSC2.2 PHOTOM B
18 WFI #877 0.238 4 GSC2.2 PHOTOM B
19 WFI #877 0.238 3 GSC2.2 PHOTOM B
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.27 0.071 22.07 N/A
2 0.19 0.049 21.83 N/A
3 0.18 0.073 22.08 N/A
4 0.21 0.074 22.03 N/A
5 0.32 0.057 22.15 N/A
6 0.21 0.051 22.21 N/A
7 0.2 0.06 21.9 N/A
8 0.22 0.051 21.84 N/A
9 0.39 0.063 21.85 N/A
10 0.48 0.057 21.72 N/A
11 0.31 0.074 21.75 N/A
12 0.19 0.052 21.94 N/A
13 1.13 0.073 22.13 N/A
14 0.15 0.067 22.07 N/A
15 0.4 0.077 21.77 N/A
16 0.33 0.05 22.15 N/A
17 0.29 0.07 22.03 N/A
18 0.17 0.064 21.98 N/A
19 0.28 0.051 21.98 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 51843.625 2000-10-26 N/A 22.36 0.003 0.619 0.074
2 51843.625 2000-10-26 N/A 22.36 0.003 0.619 0.074
3 51844.625 2000-10-27 N/A 22.32 0.002 0.587 0.092
4 51844.625 2000-10-27 N/A 22.32 0.002 0.587 0.092
5 52110.667 2001-07-20 N/A 22.06 -1.0 0.48 0.109
6 52111.667 2001-07-21 N/A 22.06 -1.0 0.48 0.107
7 52112.667 2001-07-22 N/A 22.45 0.008 0.735 0.047
8 52112.667 2001-07-22 N/A 22.45 0.008 0.735 0.047
9 52113.667 2001-07-23 N/A 22.28 0.082 0.758 0.082
10 52114.667 2001-07-24 N/A 22.36 0.011 0.667 0.056
11 52114.667 2001-07-24 N/A 22.36 0.011 0.667 0.056
12 52115.667 2001-07-25 N/A 22.38 0.011 0.662 0.051
13 52116.667 2001-07-26 N/A 22.71 0.029 0.947 0.073
14 52140.667 2001-08-19 N/A 22.15 0.009 0.512 0.048
15 52140.667 2001-08-19 N/A 22.15 0.009 0.512 0.048
16 52141.667 2001-08-20 N/A 22.34 0.004 0.658 0.046
17 52141.667 2001-08-20 N/A 22.34 0.004 0.658 0.046
18 52141.667 2001-08-20 N/A 22.34 0.004 0.658 0.046
19 52143.667 2001-08-22 N/A 22.46 0.01 0.742 0.043
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 11775.0 4318.0 343.1 -40.2
2 TAN DEFAULT GSC2.2 12105.0 4184.0 343.1 -40.2
3 TAN DEFAULT GSC2.2 12200.0 4378.0 343.1 -40.2
4 TAN DEFAULT GSC2.2 11952.0 4496.0 343.1 -40.2
5 TAN DEFAULT GSC2.2 11598.0 4171.0 343.1 -40.2
6 TAN DEFAULT GSC2.2 11961.0 3983.0 343.1 -40.2
7 TAN DEFAULT GSC2.2 11716.0 4498.0 343.1 -40.2
8 TAN DEFAULT GSC2.2 11278.0 4546.0 343.1 -40.2
9 TAN DEFAULT GSC2.2 12019.0 3973.0 343.1 -40.2
10 TAN DEFAULT GSC2.2 12136.0 4658.0 343.1 -40.2
11 TAN DEFAULT GSC2.2 12427.0 4571.0 343.1 -40.2
12 TAN DEFAULT GSC2.2 11153.0 3885.0 343.1 -40.2
13 TAN DEFAULT GSC2.2 12383.0 3944.0 343.1 -40.2
14 TAN DEFAULT GSC2.2 11579.0 4076.0 343.1 -40.2
15 TAN DEFAULT GSC2.2 11891.0 4017.0 343.1 -40.2
16 TAN DEFAULT GSC2.2 11392.0 4540.0 343.1 -40.2
17 TAN DEFAULT GSC2.2 11684.0 4454.0 343.1 -40.2
18 TAN DEFAULT GSC2.2 11253.0 4600.0 343.1 -40.2
19 TAN DEFAULT GSC2.2 11597.0 4029.0 343.1 -40.2
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 11:29:36
User eisdata
Session 70531
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband U
Total Exposure Time (seconds) 74693
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 83 13.71 19.48
USNO Blue boxes 176 12.3 18.0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.02 22.36 0.0 0.62 0.074 1.79
2 1.1 22.36 0.0 0.62 0.074 1.87
3 1.02 22.32 0.0 0.59 0.092 1.74
4 1.1 22.32 0.0 0.59 0.092 1.81
7 1.02 22.45 0.01 0.74 0.047 2.0
8 1.11 22.45 0.01 0.74 0.047 2.13
9 1.02 22.28 0.08 0.76 0.082 2.04
10 1.02 22.36 0.01 0.67 0.056 1.87
11 1.03 22.36 0.01 0.67 0.056 1.88
12 1.02 22.38 0.01 0.66 0.051 1.86
13 1.02 22.71 0.03 0.95 0.073 2.44
14 1.03 22.15 0.01 0.51 0.048 1.62
15 1.11 22.15 0.01 0.51 0.048 1.69
16 1.02 22.34 0.0 0.66 0.046 1.86
17 1.04 22.34 0.0 0.66 0.046 1.88
18 1.13 22.34 0.0 0.66 0.046 1.99
19 1.02 22.46 0.01 0.74 0.043 2.01
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
5 1.02 22.06 -1.0
6 1.17 22.06 -1.0

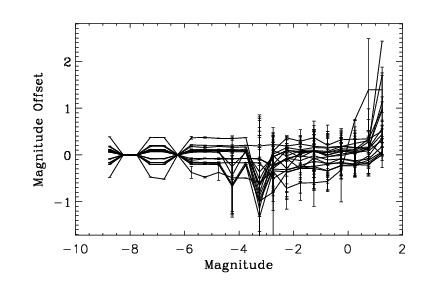

Relative Photometry

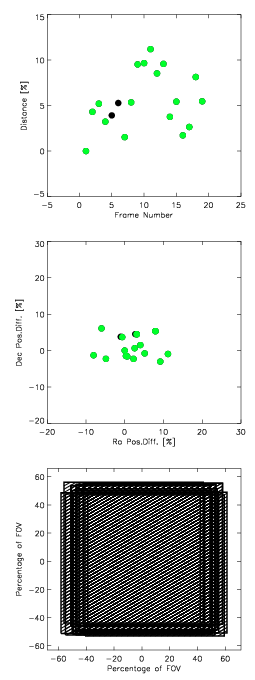

Overlap Information
Number of Fields 1
Number of Overlaps 18
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 173 -0.142 0.146 23.04
2 1,3 105 -0.137 0.172 14.9
3 1,4 178 -0.206 0.173 14.09
4 1,5 140 -0.189 0.215 16.38
5 1,6 181 0.195 0.152 20.24
6 1,7 159 0.187 0.172 12.97
7 1,8 77 -0.464 0.422 6.66
8 1,9 147 0.128 0.227 6.74
9 1,10 155 0.122 0.152 5.02
10 1,11 184 0.111 0.168 7.87
11 1,12 220 0.37 0.171 6.61
12 1,13 169 -0.058 0.148 16.39
13 1,14 169 -0.068 0.157 12.57
14 1,15 144 0.063 0.183 19.6
15 1,16 136 0.089 0.17 18.14
16 1,17 149 0.103 0.182 9.4
17 1,18 152 0.127 0.201 12.48

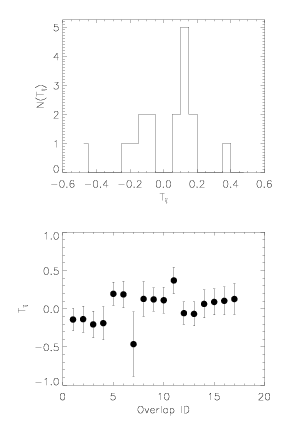

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.014
Standard Deviation 0.198
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 22:03:33
User eisdata
Session 70531
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1a
Passband U
Total Exposure Time (seconds) 74693.1559
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
