Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 00:33:52
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3c
Passband I
Total Exposure Time (seconds) 23993
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #845
Right Ascension (hh:mm:ss.s) 11:20:09.1
Declinaton (dd:mm:ss.s) -21:42:22
Interval between First/Last Contributing Frames (days) 5.94
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.98
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 914.0
Reference Pixel: Y 4118.0
Photometry
Number of nights with independent zeropoints 4
Zeropoint of Product (Vega magnitudes) 23.168
Zeropoint Error (Zp error) 0.02
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 00:33:52
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3c
Passband I
Total Exposure Time (seconds) 23993
General Properties
Right Ascension (decimal degrees) 170.0379
Declination (decimal degrees) -21.7062
Galactic Longitude, l 276.3339
Galactic Latitude, b 36.4063
Total Exposure Time (seconds) 23993
Number of Contributing Frames 8
First Contributing Frame MJD 52081.0421
Lsat Contributing Frame MJD 52086.9807
First Contributing Frame Civil Date 2001-06-21
Last Contributing Frame Civil Date 2001-06-26
Interval between First/Last Contributing Frames (days) 5.94
Number of Photometric Contributing Frames 6
Number of Rejected Frames 0
Number of Stacked Frames 8
Effective Gain 54582.8
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 957.6
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 26.778 26.028 25.588 25.278 25.028
2.0 25.578 24.828 24.388 24.078 23.828
3.0 24.938 24.188 23.748 23.438 23.198
4.0 24.138 23.378 22.938 22.628 22.388
5.0 23.978 23.228 22.788 22.478 22.228
6.0 23.458 22.698 22.258 21.948 21.708

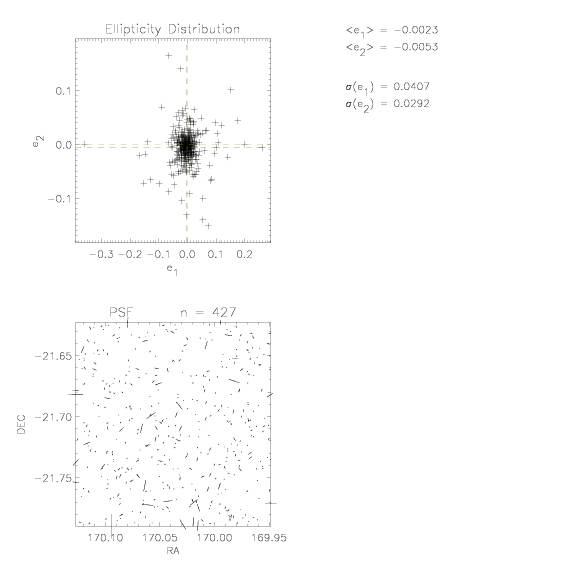

PSF

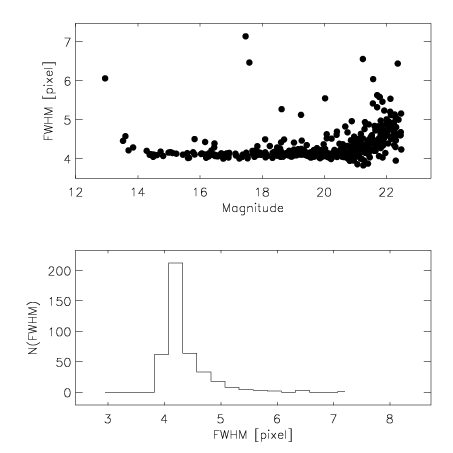

Measured Seeing (arcsec) 0.981
Measured Seeing (pixels) 4.121
PSF Distortion along X-axis (E-W), e1 -0.002
PSF Distortion along Y-axis (N-S), e2 -0.005
PSF Distortion rms 0.05
Pixel Distribution
Mean Count (ADU) 0.065
Standard Deviation of Count (ADU) 3.151
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.012
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 00:33:52
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3c
Passband I
Total Exposure Time (seconds) 23993
Stack Blocks (SB)
Number of Original Frames Input 8
Number of Photometric Frames 6
Number of Rejected Frames 0
Number of Stacked Frames 8
Mean Airmass of Contributing Frames 1.26
Mean Seeing of Contributing Frames (arcsec) 1.05
Mean of rms PSF Distortions of Contributing Frames 0.046
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 18.4
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 170.037 -21.7084 I 52081.042072 2001-06-21 1.46850398352 2999.174
2 170.0597 -21.6999 I 52081.974173 2001-06-21 1.11951549351 2999.173
3 170.067 -21.7125 I 52082.028452 2001-06-22 1.38017009712 2999.162
4 170.0521 -21.7209 I 52083.013485 2001-06-23 1.30133734975 2999.161
5 170.0141 -21.7169 I 52084.983602 2001-06-24 1.18111515608 2999.174
6 170.007 -21.704 I 52085.960855 2001-06-25 1.11233036452 2999.173
7 170.0217 -21.6958 I 52086.008167 2001-06-26 1.31849322489 2999.175
8 170.0443 -21.6915 I 52086.98069 2001-06-26 1.19137799657 2999.174
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #845 0.238 10 GSC2.2 PHOTOM C
2 WFI #845 0.238 10 GSC2.2 PHOTOM B
3 WFI #845 0.238 10 GSC2.2 PHOTOM C
4 WFI #845 0.238 10 GSC2.2 - C
5 WFI #845 0.238 10 GSC2.2 PHOTOM B
6 WFI #845 0.238 10 GSC2.2 PHOTOM C
7 WFI #845 0.238 10 GSC2.2 PHOTOM C
8 WFI #845 0.238 10 GSC2.2 - A

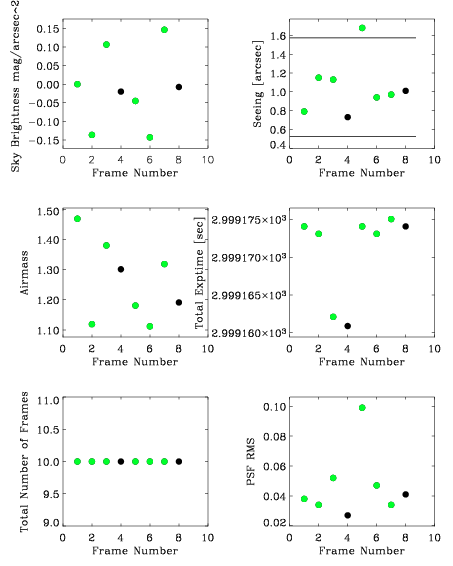

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.79 0.038 18.31 N/A
2 1.15 0.034 18.17 N/A
3 1.13 0.052 18.39 N/A
4 0.73 0.027 18.37 N/A
5 1.68 0.099 18.28 N/A
6 0.94 0.047 18.19 N/A
7 0.97 0.034 18.46 N/A
8 1.01 0.041 18.38 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52080.667 2001-06-20 N/A 23.29 0.01 0.156 0.053
2 52081.667 2001-06-21 N/A 23.14 0.007 0.079 0.062
3 52081.667 2001-06-21 N/A 23.14 0.007 0.079 0.062
4 52082.667 2001-06-22 N/A 23.14 -1.0 0.1 0.178
5 52084.667 2001-06-24 N/A 23.16 0.005 0.076 0.054
6 52085.667 2001-06-25 N/A 23.14 0.009 0.057 0.039
7 52085.667 2001-06-25 N/A 23.14 0.009 0.057 0.039
8 52086.667 2001-06-26 N/A 23.14 -1.0 0.1 0.138

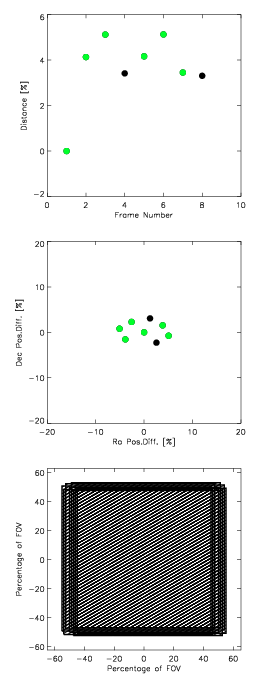

Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 478.0 3899.0 170.3 -21.7
2 TAN DEFAULT GSC2.2 778.0 3783.0 170.3 -21.7
3 TAN DEFAULT GSC2.2 914.0 3954.0 170.3 -21.7
4 TAN DEFAULT GSC2.2 693.0 4118.0 170.3 -21.7
5 TAN DEFAULT GSC2.2 78.0 4033.0 170.3 -21.7
6 TAN DEFAULT GSC2.2 45.0 3864.0 170.3 -21.7
7 TAN DEFAULT GSC2.2 272.0 3721.0 170.3 -21.7
8 TAN DEFAULT GSC2.2 473.0 3674.0 170.3 -21.7
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 00:33:52
User eisdata
Session 70483
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3c
Passband I
Total Exposure Time (seconds) 23993
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 0
USNO Blue boxes 0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.47 23.29 0.01 0.16 0.053 1.23
2 1.12 23.14 0.01 0.08 0.062 1.08
3 1.38 23.14 0.01 0.08 0.062 1.11
5 1.18 23.16 0.01 0.08 0.054 1.09
6 1.11 23.14 0.01 0.06 0.039 1.06
7 1.32 23.14 0.01 0.06 0.039 1.07
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
4 1.3 23.14 -1.0
8 1.19 23.14 -1.0
Relative Photometry

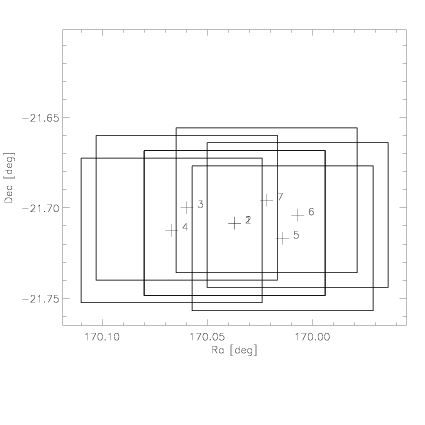

Overlap Information
Number of Fields 1
Number of Overlaps 7

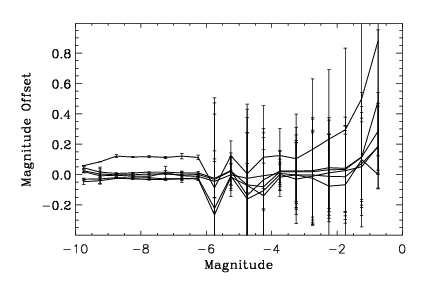

Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 567 0.237 0.334 23.04
2 1,3 605 0.044 0.148 15.15
3 1,4 597 0.057 0.179 14.26
4 1,5 507 0.0 0.16 15.14
5 1,6 656 0.016 0.151 14.19
6 1,7 690 0.024 0.152 15.96
Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.063
Standard Deviation 0.088
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 05-Nov-2004
Product Creation Time 01:59:49
User eisdata
Session 70483
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3c
Passband I
Total Exposure Time (seconds) 23993.366
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
