Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:09:20
User eisdata
Session 70481
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband V
Total Exposure Time (seconds) 5998
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #843
Right Ascension (hh:mm:ss.s) 11:17:43.8
Declinaton (dd:mm:ss.s) -21:42:16
Interval between First/Last Contributing Frames (days) 375.98
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.95
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X -7643.0
Reference Pixel: Y 4224.0
Photometry
Number of nights with independent zeropoints 2
Zeropoint of Product (Vega magnitudes) 24.04
Zeropoint Error (Zp error) 0.014
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:09:20
User eisdata
Session 70481
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband V
Total Exposure Time (seconds) 5998
General Properties
Right Ascension (decimal degrees) 169.4325
Declination (decimal degrees) -21.7045
Galactic Longitude, l 275.7042
Galactic Latitude, b 36.164
Total Exposure Time (seconds) 5998
Number of Contributing Frames 3
First Contributing Frame MJD 51967.3484
Lsat Contributing Frame MJD 52343.3324
First Contributing Frame Civil Date 2001-02-27
Last Contributing Frame Civil Date 2002-03-10
Interval between First/Last Contributing Frames (days) 375.98
Number of Photometric Contributing Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 13616.3
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1007.6
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.63 26.88 26.44 26.13 25.89
2.0 27.1 26.35 25.91 25.59 25.35
3.0 26.35 25.6 25.16 24.85 24.61
4.0 25.97 25.21 24.77 24.46 24.22
5.0 25.31 24.56 24.12 23.8 23.56
6.0 25.08 24.32 23.88 23.57 23.33

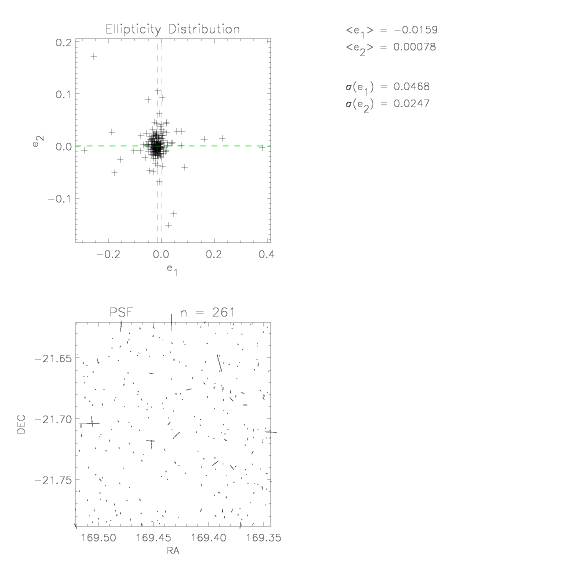

PSF

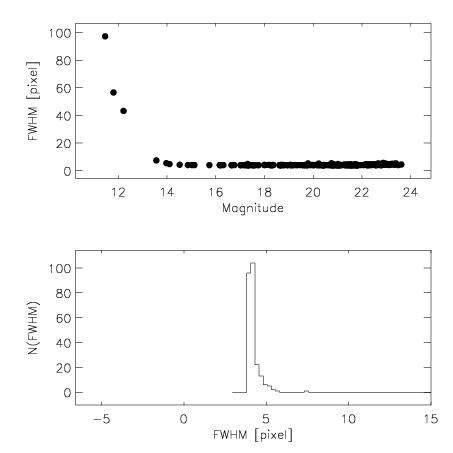

Measured Seeing (arcsec) 0.949
Measured Seeing (pixels) 3.988
PSF Distortion along X-axis (E-W), e1 -0.016
PSF Distortion along Y-axis (N-S), e2 0.001
PSF Distortion rms 0.053
Pixel Distribution
Mean Count (ADU) 0.034
Standard Deviation of Count (ADU) 2.218
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.013
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:09:20
User eisdata
Session 70481
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband V
Total Exposure Time (seconds) 5998

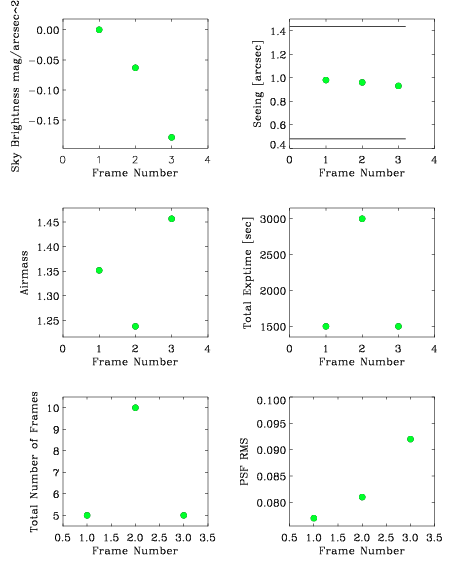

Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.35
Mean Seeing of Contributing Frames (arcsec) 0.957
Mean of rms PSF Distortions of Contributing Frames 0.083
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 21.17
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 169.4482 -21.706 V 51967.348449 2001-02-27 1.35163127356 1499.586
2 169.447 -21.7117 V 52343.0686175 2002-03-10 1.2377059046 2999.1788
3 169.4024 -21.6957 V 52343.3323962 2002-03-10 1.45663259748 1499.5881
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #843 0.238 5 GSC2.2 PHOTOM A
2 WFI #843 0.238 10 GSC2.2 PHOTOM A
3 WFI #843 0.238 5 GSC2.2 PHOTOM A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.98 0.077 21.13 N/A
2 0.96 0.081 21.05 N/A
3 0.93 0.092 20.91 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 51966.625 2001-02-26 N/A 24.07 0.022 0.11 0.022
2 52342.625 2002-03-09 N/A 24.03 0.005 0.102 0.027
3 52342.625 2002-03-09 N/A 24.03 0.005 0.102 0.027
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 -8202.0 4070.0 170.3 -21.7
2 TAN DEFAULT GSC2.2 -7643.0 4224.0 170.3 -21.7
3 TAN DEFAULT GSC2.2 -8328.0 3974.0 170.3 -21.7
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:09:20
User eisdata
Session 70481
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband V
Total Exposure Time (seconds) 5998
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 0
USNO Blue boxes 0
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.35 24.07 0.02 0.11 0.022 1.15
2 1.24 24.03 0.01 0.1 0.027 1.12
3 1.46 24.03 0.01 0.1 0.027 1.15

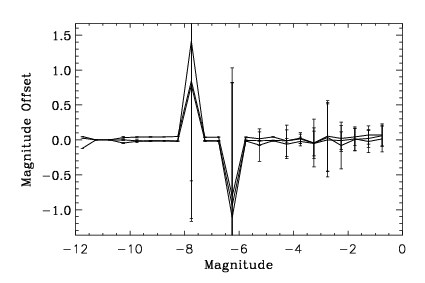

Relative Photometry

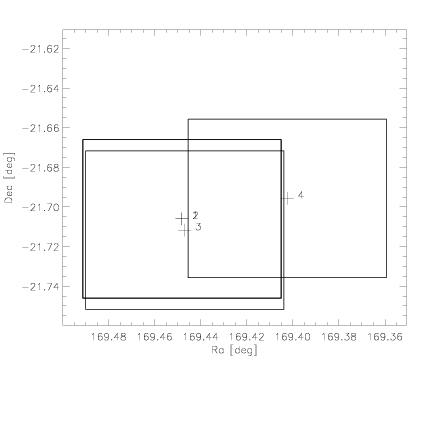

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 362 0.036 0.139 23.04
2 1,3 499 0.006 0.117 21.1
3 1,4 354 -0.012 0.143 9.4

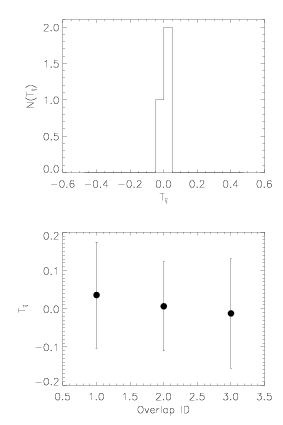

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.01
Standard Deviation 0.024
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:31:39
User eisdata
Session 70481
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP3
Field DEEP3d
Passband V
Total Exposure Time (seconds) 5998.3529
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
