Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 22:40:01
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2d
Passband R
Total Exposure Time (seconds) 2999
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 03:30:04.3
Declinaton (dd:mm:ss.s) -27:48:39
Interval between First/Last Contributing Frames (days) 1.0
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.07
PSF Distortion (rms) 0.08
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X -16989.0
Reference Pixel: Y 4413.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 24.5
Zeropoint Error (Zp error) 0.025
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 22:40:01
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2d
Passband R
Total Exposure Time (seconds) 2999
General Properties
Right Ascension (decimal degrees) 52.518
Declination (decimal degrees) -27.8111
Galactic Longitude, l 223.4449
Galactic Latitude, b -54.9618
Total Exposure Time (seconds) 2999
Number of Contributing Frames 2
First Contributing Frame MJD 51963.0245
Lsat Contributing Frame MJD 51964.0267
First Contributing Frame Civil Date 2001-02-23
Last Contributing Frame Civil Date 2001-02-24
Interval between First/Last Contributing Frames (days) 1.0
Number of Photometric Contributing Frames 1
Number of Rejected Frames 0
Number of Stacked Frames 2
Effective Gain 6248.6
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1064.5
Fraction of instrument FOV of area of stacked image with maximum overlap 1.0
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.5 26.75 26.31 26.0 25.76
2.0 26.54 25.79 25.35 25.03 24.79
3.0 25.72 24.97 24.53 24.22 23.98
4.0 25.3 24.55 24.11 23.8 23.56
5.0 24.55 23.79 23.35 23.04 22.8
6.0 24.44 23.69 23.24 22.93 22.69

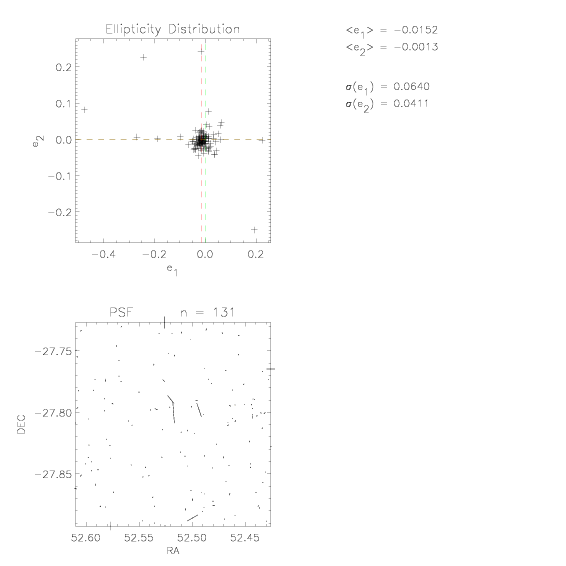

PSF

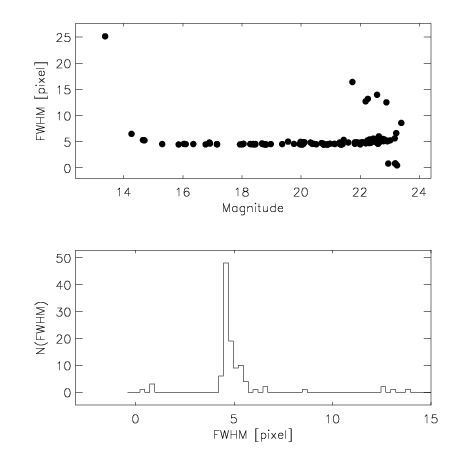

Measured Seeing (arcsec) 1.073
Measured Seeing (pixels) 4.507
PSF Distortion along X-axis (E-W), e1 -0.015
PSF Distortion along Y-axis (N-S), e2 -0.001
PSF Distortion rms 0.076
Pixel Distribution
Mean Count (ADU) 0.067
Standard Deviation of Count (ADU) 3.212
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.017
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 22:40:01
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2d
Passband R
Total Exposure Time (seconds) 2999
Stack Blocks (SB)
Number of Original Frames Input 2
Number of Photometric Frames 1
Number of Rejected Frames 0
Number of Stacked Frames 2
Mean Airmass of Contributing Frames 1.27
Mean Seeing of Contributing Frames (arcsec) 0.79
Mean of rms PSF Distortions of Contributing Frames 0.093
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.87
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 52.5063 -27.8153 R 51963.024513 2001-02-23 1.25604777882 1499.59
2 52.5297 -27.8069 R 51964.026719 2001-02-24 1.28084001989 1499.59
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 5 GSC2.2 - A
2 WFI #844 0.238 5 GSC2.2 PHOTOM A

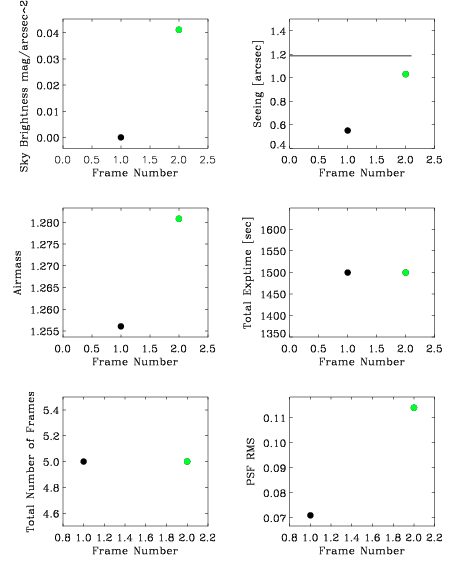

Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 0.55 0.071 20.82 N/A
2 1.03 0.114 20.78 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 51962.625 2001-02-22 N/A 24.47 -1.0 0.07 0.045
2 51963.625 2001-02-23 N/A 24.5 0.025 0.088 0.025
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 -17263.0 4413.0 54.1 -27.8
2 TAN DEFAULT GSC2.2 -16989.0 4276.0 54.1 -27.8
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 22:40:01
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2d
Passband R
Total Exposure Time (seconds) 2999
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 134 7.88 19.48
USNO Blue boxes 321 7.9 18.2
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
2 1.28 24.5 0.03 0.09 0.025 0.83
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.26 24.47 -1.0 1.0

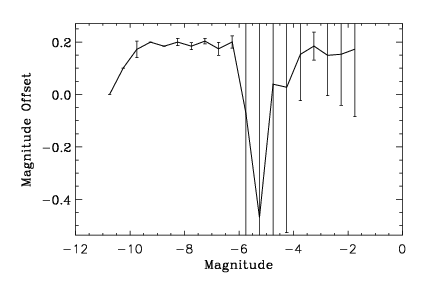

Relative Photometry

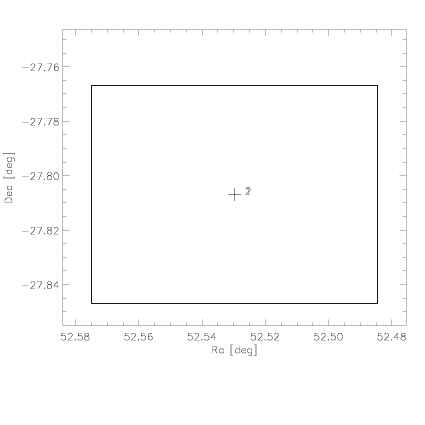

Overlap Information
Number of Fields 1
Number of Overlaps 2
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 101 0.183 0.027 23.04

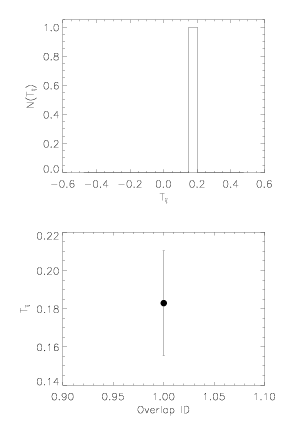

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.183
Standard Deviation 0.0
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:58:22
User eisdata
Session 70482
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP2
Field DEEP2d
Passband R
Total Exposure Time (seconds) 2999.18
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
