Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:45:25
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1c
Passband R
Total Exposure Time (seconds) 11997
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #844
Right Ascension (hh:mm:ss.s) 22:49:19.3
Declinaton (dd:mm:ss.s) -40:12:25
Interval between First/Last Contributing Frames (days) 3.93
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 0.97
PSF Distortion (rms) 0.05
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X -4416.0
Reference Pixel: Y 4490.0
Photometry
Number of nights with independent zeropoints 2
Zeropoint of Product (Vega magnitudes) 24.64
Zeropoint Error (Zp error) 0.034
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:45:25
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1c
Passband R
Total Exposure Time (seconds) 11997
General Properties
Right Ascension (decimal degrees) 342.3304
Declination (decimal degrees) -40.207
Galactic Longitude, l 357.6448
Galactic Latitude, b -61.622
Total Exposure Time (seconds) 11997
Number of Contributing Frames 6
First Contributing Frame MJD 52087.4143
Lsat Contributing Frame MJD 52091.3404
First Contributing Frame Civil Date 2001-06-27
Last Contributing Frame Civil Date 2001-07-01
Interval between First/Last Contributing Frames (days) 3.93
Number of Photometric Contributing Frames 2
Number of Rejected Frames 0
Number of Stacked Frames 6
Effective Gain 29370.8
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 987.0
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 27.98 27.23 26.79 26.48 26.24
2.0 26.89 26.14 25.7 25.38 25.14
3.0 25.87 25.12 24.68 24.36 24.12
4.0 25.42 24.67 24.23 23.92 23.68
5.0 24.73 23.98 23.54 23.22 22.98
6.0 24.42 23.67 23.23 22.92 22.67

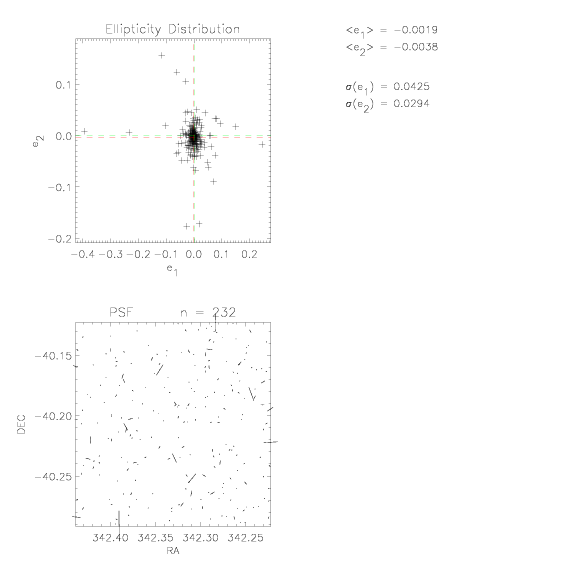

PSF
Measured Seeing (arcsec) 0.968
Measured Seeing (pixels) 4.066
PSF Distortion along X-axis (E-W), e1 -0.002
PSF Distortion along Y-axis (N-S), e2 -0.004
PSF Distortion rms 0.052
Pixel Distribution
Mean Count (ADU) 0.054
Standard Deviation of Count (ADU) 2.922
Mean Sigma-Clipped Background Count (ADU) -0.002
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.017
.

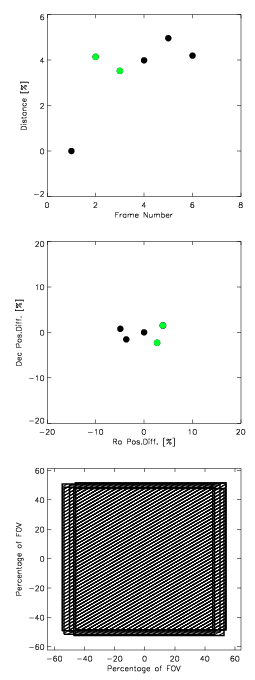

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:45:25
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1c
Passband R
Total Exposure Time (seconds) 11997
Stack Blocks (SB)
Number of Original Frames Input 6
Number of Photometric Frames 2
Number of Rejected Frames 0
Number of Stacked Frames 6
Mean Airmass of Contributing Frames 1.11
Mean Seeing of Contributing Frames (arcsec) 1.035
Mean of rms PSF Distortions of Contributing Frames 0.047
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.3
Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 342.3281 -40.207 R 52087.414306 2001-06-27 1.04500956399 1499.589
2 342.3559 -40.1987 R 52088.237748 2001-06-28 1.3009708696 1499.589
3 342.3474 -40.2196 R 52090.355214 2001-06-30 1.01995123176 1499.588
4 342.3016 -40.2155 R 52091.248409 2001-07-01 1.21405658201 1499.59
5 342.2928 -40.2027 R 52091.290999 2001-07-01 1.06485718689 2999.176
6 342.3563 -40.1987 R 52091.340421 2001-07-01 1.02240967281 2999.177

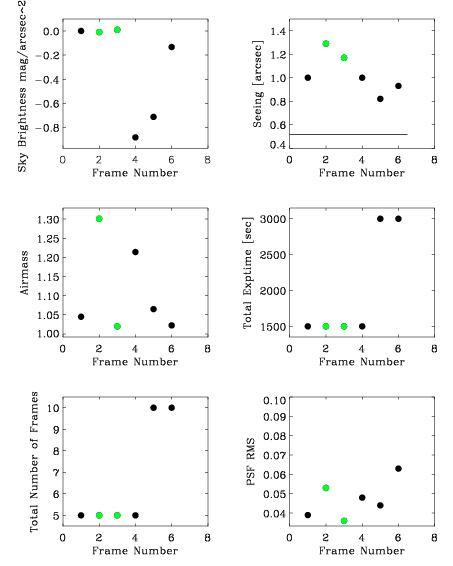

Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #844 0.238 5 GSC2.2 - A
2 WFI #844 0.238 5 GSC2.2 PHOTOM A
3 WFI #844 0.238 5 GSC2.2 PHOTOM B
4 WFI #844 0.238 5 GSC2.2 - B
5 WFI #844 0.238 10 GSC2.2 - A
6 WFI #844 0.238 10 GSC2.2 - A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.0 0.039 20.48 N/A
2 1.29 0.053 20.4 N/A
3 1.17 0.036 20.44 N/A
4 1.0 0.048 19.6 N/A
5 0.82 0.044 19.77 N/A
6 0.93 0.063 20.35 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52086.667 2001-06-26 N/A 24.47 -1.0 0.07 0.142
2 52087.667 2001-06-27 N/A 24.7 0.007 0.233 0.043
3 52089.667 2001-06-29 N/A 24.58 0.003 0.158 0.055
4 52090.667 2001-06-30 N/A 24.47 -1.0 0.07 0.363
5 52090.667 2001-06-30 N/A 24.47 -1.0 0.07 0.363
6 52090.667 2001-06-30 N/A 24.47 -1.0 0.07 0.363
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 -5614.0 4306.0 343.1 -40.2
2 TAN DEFAULT GSC2.2 -4498.0 4176.0 343.1 -40.2
3 TAN DEFAULT GSC2.2 -4629.0 4490.0 343.1 -40.2
4 TAN DEFAULT GSC2.2 -5136.0 4439.0 343.1 -40.2
5 TAN DEFAULT GSC2.2 -4416.0 4364.0 343.1 -40.2
6 TAN DEFAULT GSC2.2 -4531.0 4490.0 343.1 -40.2
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 21:45:25
User eisdata
Session 70482
Process 5000010
Product Type stack
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1c
Passband R
Total Exposure Time (seconds) 11997

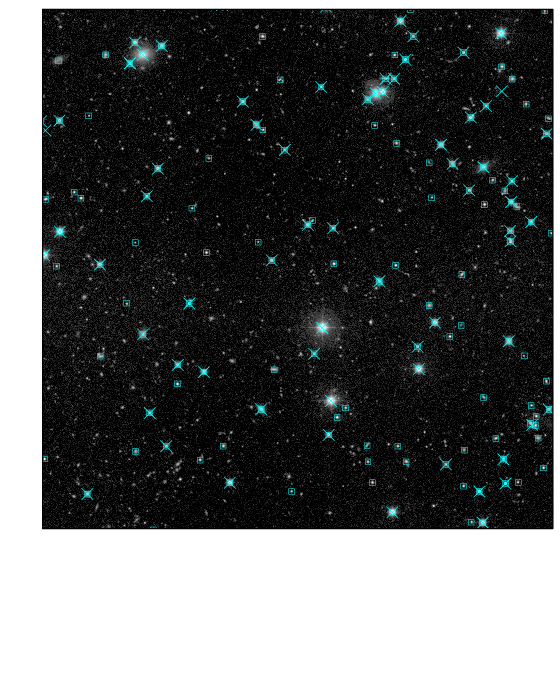

USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
GSC2 Blue cross 656 10.35 19.5
USNO Blue boxes 1461 10.2 25.1
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
2 1.3 24.7 0.01 0.23 0.043 1.32
3 1.02 24.58 0.0 0.16 0.055 1.16
Image Products: Calibration: Stack Non-Photometric...
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.05 24.47 -1.0
4 1.21 24.47 -1.0
5 1.06 24.47 -1.0
6 1.02 24.47 -1.0

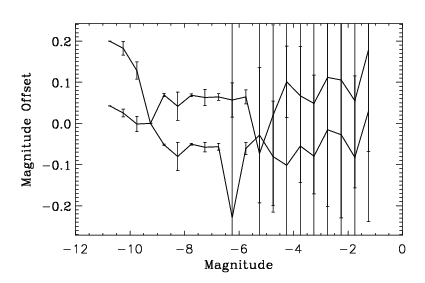

Relative Photometry

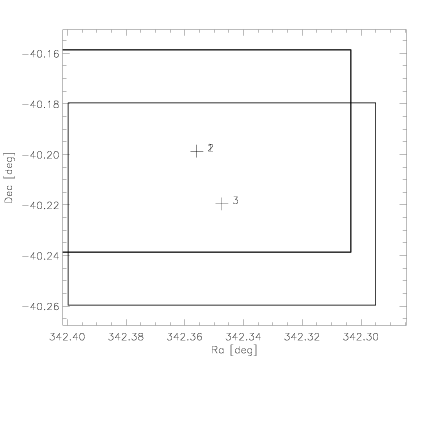

Overlap Information
Number of Fields 1
Number of Overlaps 3
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 437 0.093 0.121 23.04
2 1,3 586 -0.035 0.109 15.64

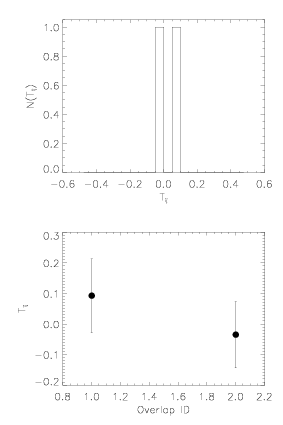

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.029
Standard Deviation 0.09
.

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 04-Nov-2004
Product Creation Time 23:56:10
User eisdata
Session 70482
Workflow N/A
Process N/A
Product Type Comparison
Survey DPS
Telescope MPI-2.2
Instrument WFI
Region DEEP1
Field DEEP1c
Passband R
Total Exposure Time (seconds) 11996.709
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
