Product Summary

Image Products >> Product Log >> Summary
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:58:07
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband B
Total Exposure Time (seconds) 1500
Associated Catalog
Product Type Single Passband Catalog
Product Name N/A
Summary at-a-glance
Instrument WFI
ESO Filter# #878
Right Ascension (hh:mm:ss.s) 22:05:08.6
Declinaton (dd:mm:ss.s) -01:54:34
Number of Contributing Frames 3
Interval between First/Last Contributing Frames (days) 0.01
Airmass 0.0
Final Pixel Scale of Product 0.24
Measured Seeing (arcsec) 1.12
PSF Distortion (rms) 0.03
Astrometry/Reference Grid
Projection TAN
Orientation (default is North up; East left) DEFAULT
Astrometric System GSC2.2
Reference Pixel: X 8686.0
Reference Pixel: Y 2999.0
Photometry
Number of nights with independent zeropoints 1
Zeropoint of Product (Vega magnitudes) 24.82
Zeropoint Error (Zp error) 0.024
.

Attributes

Image Products >> Product Log >> Attributes
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:58:07
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband B
Total Exposure Time (seconds) 1500
General Properties
Right Ascension (decimal degrees) 331.2858
Declination (decimal degrees) -1.9095
Galactic Longitude, l 58.0759
Galactic Latitude, b -42.8925
Total Exposure Time (seconds) 1500
Number of Contributing Frames 3
First Contributing Frame MJD 52858.1537
Lsat Contributing Frame MJD 52858.1681
First Contributing Frame Civil Date 2003-08-07
Last Contributing Frame Civil Date 2003-08-07
Interval between First/Last Contributing Frames (days) 0.01
Number of Photometric Contributing Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Effective Gain 3809.0
Effective Non-linearity N/A
Effective Saturation N/A
Area of maximum overlap in stacked image (arcmin2) 1014.7
Fraction of instrument FOV of area of stacked image with maximum overlap 0.9
Aperture Limiting Magnitudes
Aperture (arcsec) 1 sigma 2 sigma 3 sigma 4 sigma 5 sigma
1.0 26.76 26.01 25.57 25.25 25.01
2.0 25.76 25.01 24.57 24.25 24.01
3.0 25.21 24.46 24.02 23.71 23.47
4.0 24.89 24.14 23.7 23.38 23.14
5.0 24.56 23.81 23.37 23.06 22.82
6.0 24.16 23.41 22.97 22.66 22.41

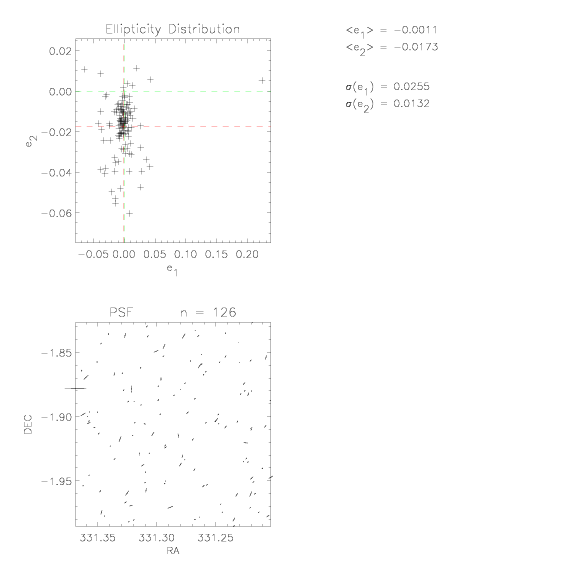

PSF

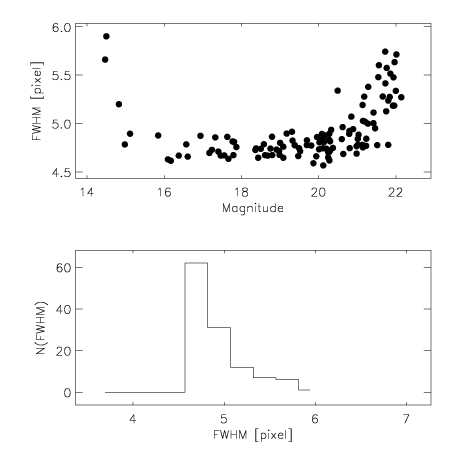

Measured Seeing (arcsec) 1.116
Measured Seeing (pixels) 4.687
PSF Distortion along X-axis (E-W), e1 -0.001
PSF Distortion along Y-axis (N-S), e2 -0.017
PSF Distortion rms 0.029
Pixel Distribution
Mean Count (ADU) 0.048
Standard Deviation of Count (ADU) 3.076
Mean Sigma-Clipped Background Count (ADU) -0.001
Standard Deviation of Sigma-Clipped Background Count (ADU) 0.052
.

Stack Blocks

Image Products >> Product Log >> Stack Blocks
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:58:07
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband B
Total Exposure Time (seconds) 1500
Stack Blocks (SB)
Number of Original Frames Input 3
Number of Photometric Frames 3
Number of Rejected Frames 0
Number of Stacked Frames 3
Mean Airmass of Contributing Frames 1.27
Mean Seeing of Contributing Frames (arcsec) 1.14
Mean of rms PSF Distortions of Contributing Frames 0.104
Mean Sky Brightness of Contributing Frames (magnitudes/arcsec2) 20.34

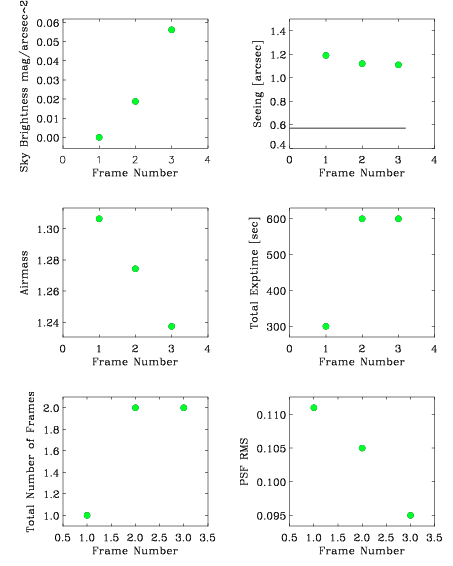

Frames in SB: Observations
# R.A. Dec. Passband MJD Civil Date Airmass Total Exposure Time
1 331.268875 -1.91755 B 52858.1536836 2003-08-07 1.30648797839 299.9176
2 331.284449 -1.89782 B 52858.1585246 2003-08-07 1.2743340618 599.8351
3 331.30401 -1.91326 B 52858.1680922 2003-08-07 1.23731339537 599.8352
Frames in SB: Properties
# Instrument Filter Pixel Scale NDIT Astrometric System Photometric Flag Visual Flag Automatic Flag
1 WFI #878 0.238 1 GSC2.2 PHOTOM A
2 WFI #878 0.238 2 GSC2.2 PHOTOM A
3 WFI #878 0.238 2 GSC2.2 PHOTOM A
Frames in SB: Attributes
# Seeing (arcsec) PSF Distortion (rms) Sky Brightness (magnitudes/arcsec2) Limiting magnitude (5 sigma - 2 arcsec)
1 1.19 0.111 20.05 N/A
2 1.12 0.105 20.08 N/A
3 1.11 0.095 20.12 N/A
Frames in SB: Photometry (Vega)
# MJD. Civil Date Solution Type Zeropoint Zp error Extinction Chi2
1 52857.667 2003-08-06 N/A 24.82 0.005 0.205 0.0421
2 52857.667 2003-08-06 N/A 24.82 0.005 0.205 0.0421
3 52857.667 2003-08-06 N/A 24.82 0.005 0.205 0.0421
Frames in SB: Astrometry
# Projection Orientation Astrometric Reference Catalogue Reference Pixel: X Reference Pixel: Y Reference Pointing: Right Ascension Reference Pointing: Declination
1 TAN DEFAULT GSC2.2 8096.0 2540.0 331.0 -2.0
2 TAN DEFAULT GSC2.2 8389.0 2771.0 331.0 -2.0
3 TAN DEFAULT GSC2.2 8686.0 2999.0 331.0 -2.0
.

Calibration

Image Products >> Product Log >> Calibration
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 19:58:07
User eisdata
Session 70206
Process 5000010
Product Type stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband B
Total Exposure Time (seconds) 1500
USNO x GSC2
Catalog Symbol Number of Objects Brightest Magnitude Faintest Magnitude
Night Solutions
# Airmass Zeropoint Zp error Extinction Chi2 Flux Scale
1 1.31 24.82 0.01 0.21 0.042 1.28
2 1.27 24.82 0.01 0.21 0.042 1.27
3 1.24 24.82 0.01 0.21 0.042 1.26

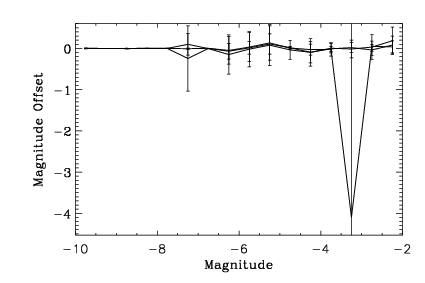

Relative Photometry

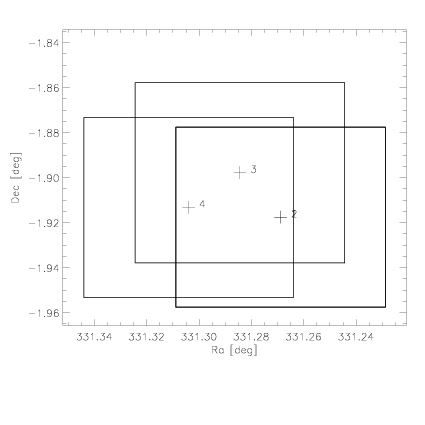

Overlap Information
Number of Fields 1
Number of Overlaps 4
Magnitude differences in overlaps
Overlap ID Fields Number of Objects Magnitude Difference Standard deviation Area
1 1,2 112 0.015 0.098 23.04
2 1,3 139 0.008 0.065 13.98
3 1,4 149 0.007 0.088 12.23

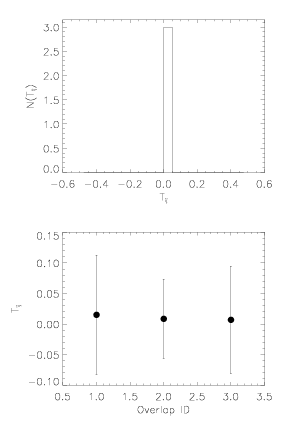

Distribution of Magnitude Differences: Tij
Mean Magnitude Difference 0.01
Standard Deviation 0.004
.

Verification

Image Products >> Product Log >> Verification
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 23:22:48
User eisdata
Session 70206
Process N/A
Product Type Stack
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband B
Total Exposure Time (seconds) 1499.5879

Comparison

Comparison
Product Identification
Real User Lisbeth Fogh Olsen
Product Creation Date 02-Nov-2004
Product Creation Time 22:57:48
User eisdata
Session 70206
Workflow N/A
Process N/A
Product Type Comparison
Survey XMM
Telescope MPI-2.2
Instrument WFI
Region XMM-10
Field PB5062
Passband B
Total Exposure Time (seconds) 1499.5879
.

QC Parameters

Image Products >> Product Log >> Quality Control Parameters (Image QCP)
.
