First 7-metre ALMA Antenna Arrives at Chajnantor

The first of twelve 7-metre diameter ALMA antennas has just been transported on 24 August 2011 to the 5000-metre-high Chajnantor plateau, where the Atacama Large Millimeter/submillimeter Array (ALMA) is under construction. ALMA is a giant radio telescope composed of an array of fifty 12-metre antennas, as well as a smaller array known as the Atacama Compact Array (ACA). This will have a total of four 12-metre antennas and the twelve 7-metre dishes.

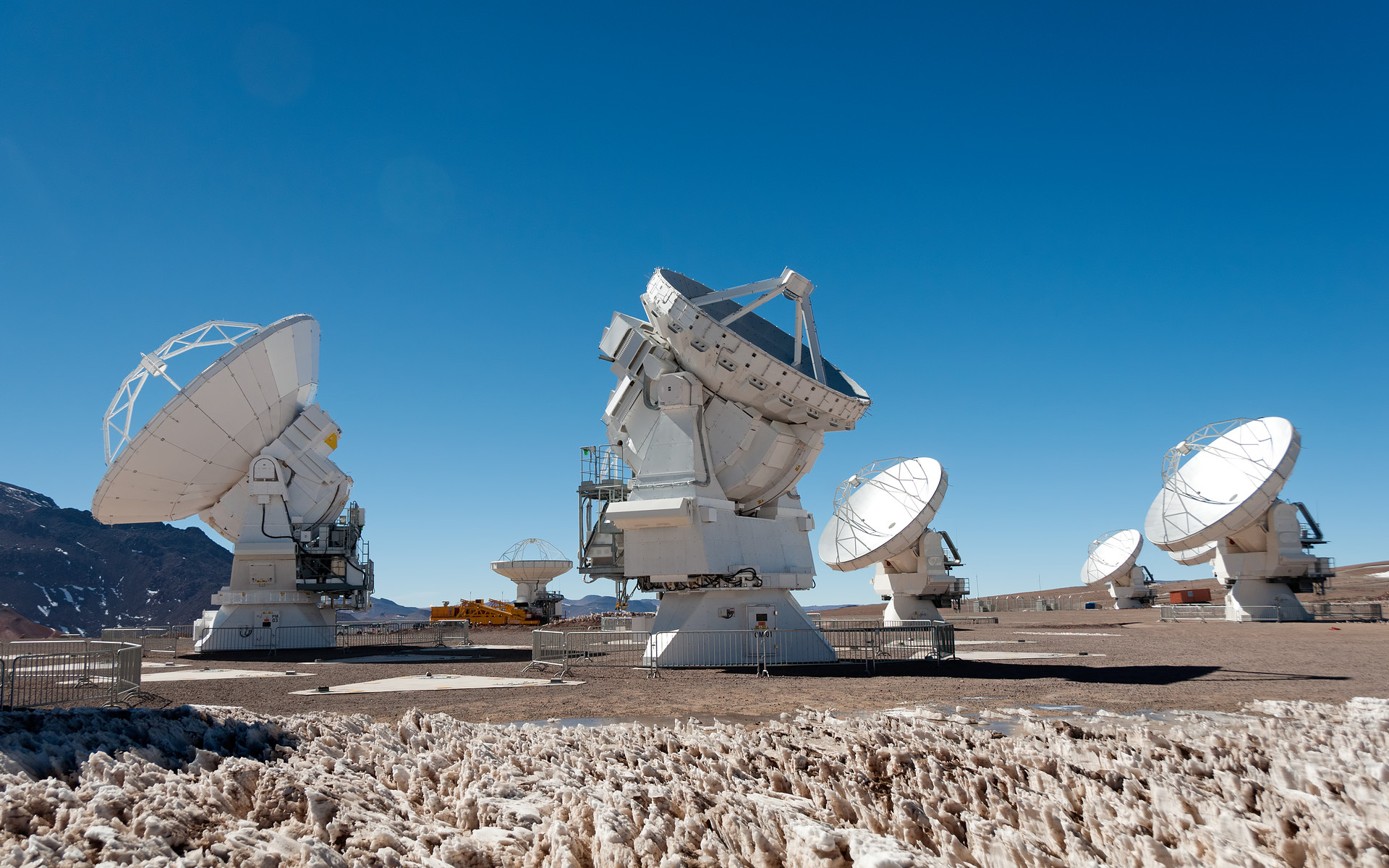

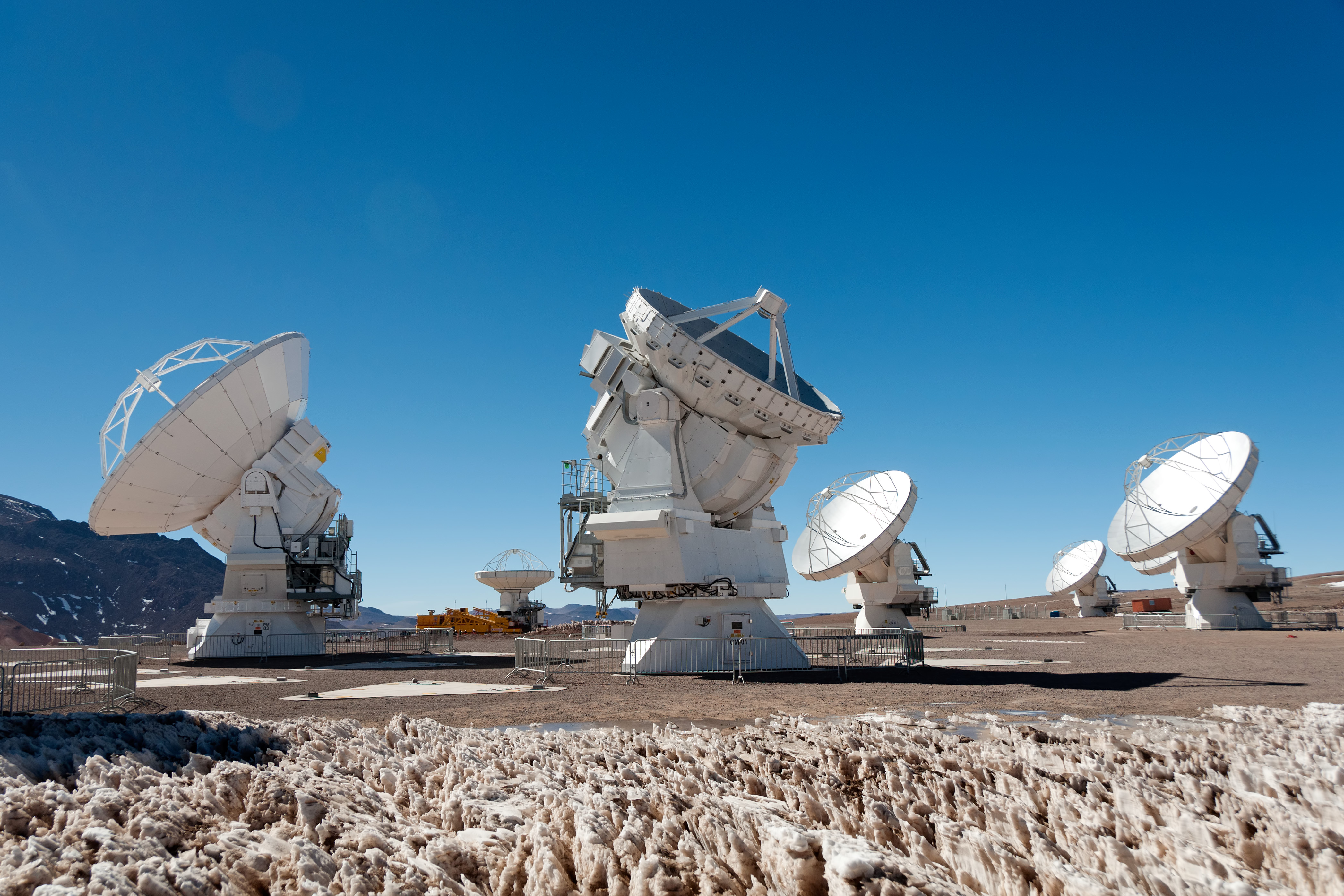

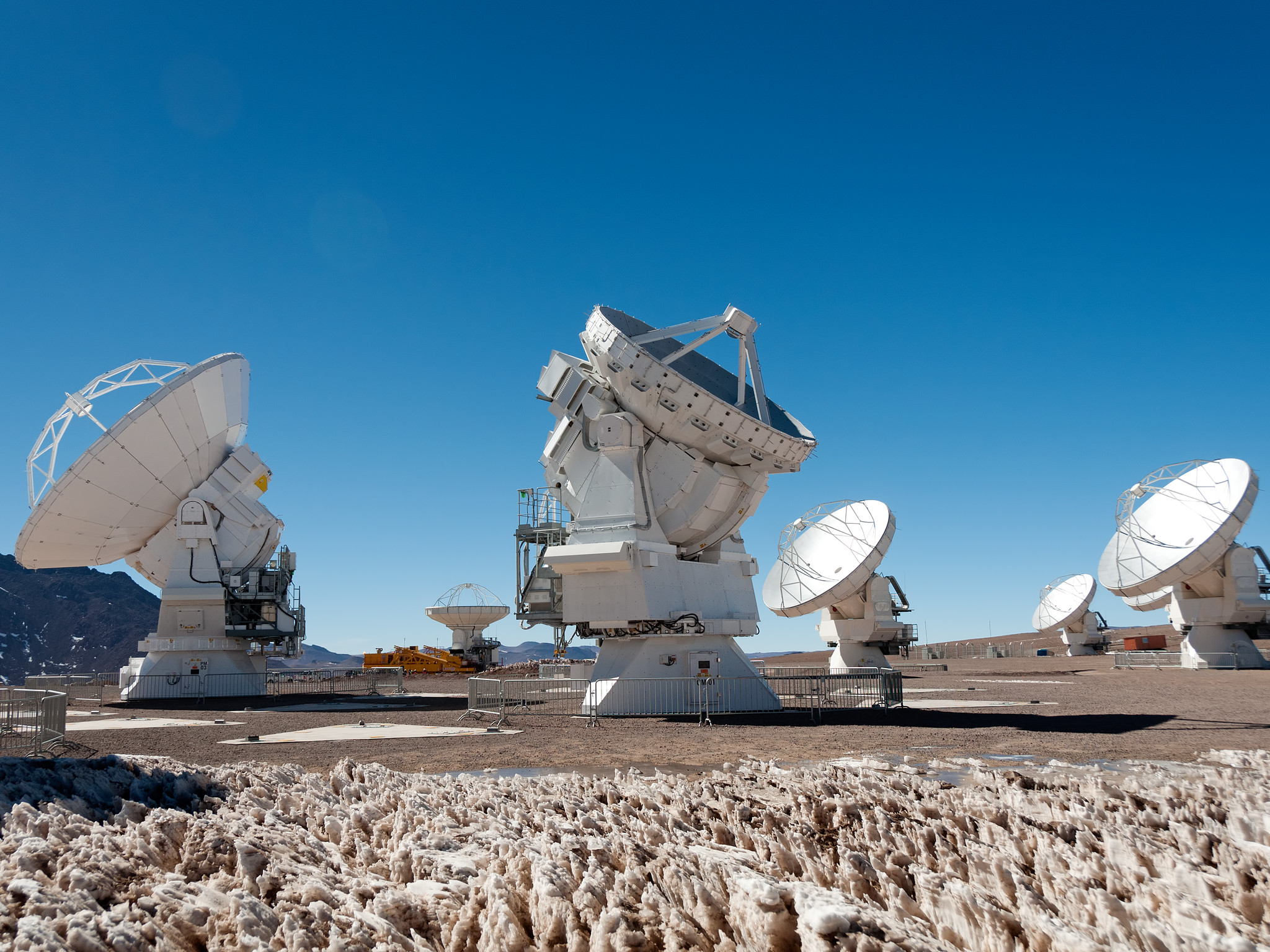

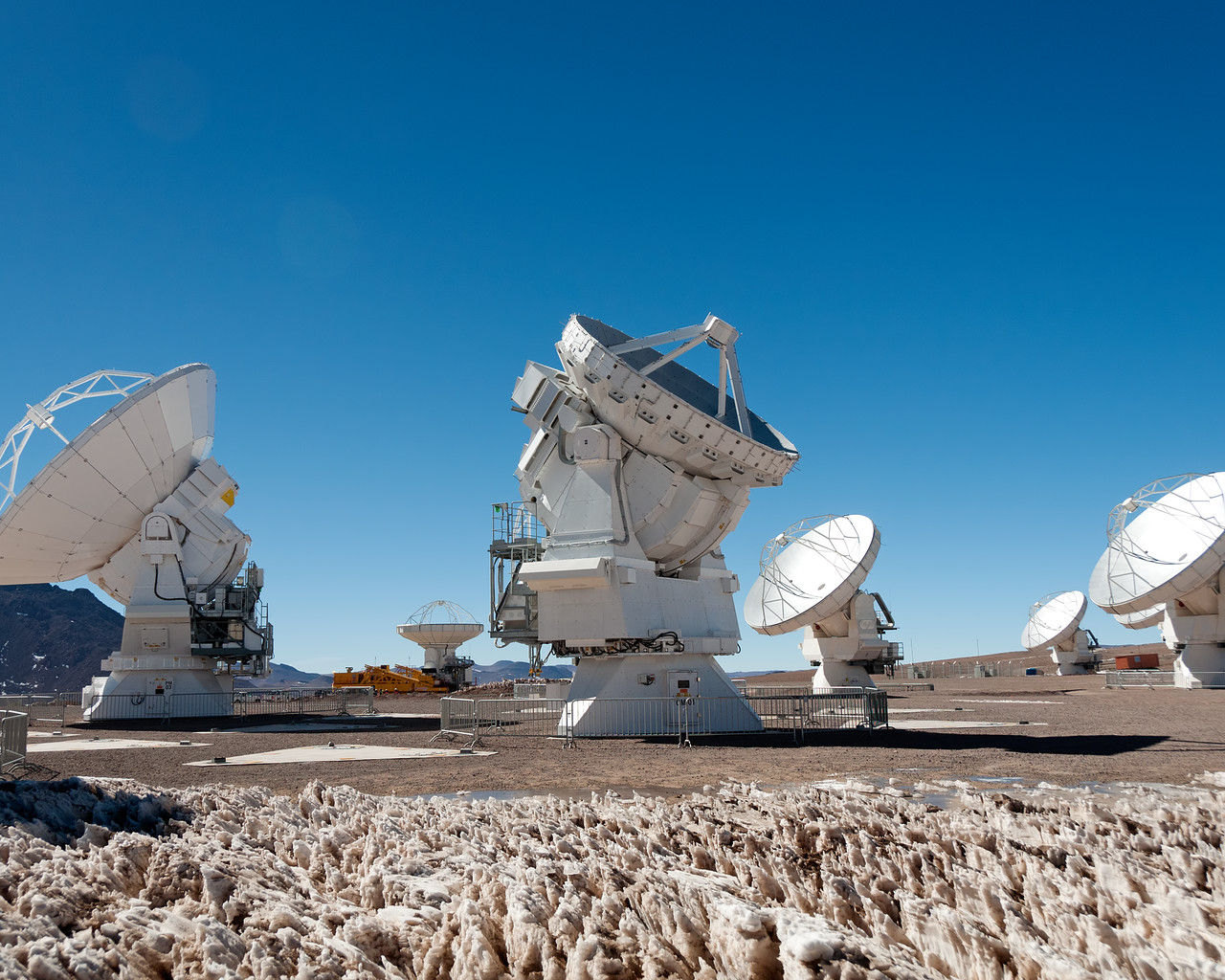

The four 12-metre ACA antennas have already been moved up to the high plateau, but this is the first of the smaller 7-metre dishes — which put the “compact” into Atacama Compact Array — to reach Chajnantor. It is seen in the centre of this photograph, surrounded by some of the other ALMA antennas. Penitentes ice formations are seen in the foreground.

The larger 12-metre antennas of the main array cannot be placed closer than 15 metres apart as they would otherwise bump into each other. This minimum separation between antennas governs the maximum scale of the features that they can detect in the sky. This means that the main array cannot observe the broadest features of extended objects such as giant clouds of molecular gas in the Milky Way, or nearby galaxies. The ACA is specifically designed to help ALMA make better observations of these extended objects. Its smaller 7-metre antennas can be placed closer together, making them better able to measure the broader structures that the main array misses.

ALMA, an international astronomy facility, is a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile. ALMA construction and operations are led on behalf of Europe by ESO, on behalf of North America by the National Radio Astronomy Observatory (NRAO), and on behalf of East Asia by the National Astronomical Observatory of Japan (NAOJ). The Joint ALMA Observatory (JAO) provides the unified leadership and management of the construction, commissioning and operation of ALMA.

All of the ACA antennas are being provided by Japan through a contract with MELCO (Mitsubishi Electric Corporation). ALMA will also have 25 12-metre antennas provided by ESO, and 25 by NRAO.

Links

Credit:

ALMA (ESO/NAOJ/NRAO), W. Garnier (ALMA)
