Picture of the Week

18 February 2013

Super-thin Mirror Under Test at ESO

This remarkable deformable thin-shell mirror has been delivered to ESO at Garching, Germany and is shown undergoing tests. It is 1120 millimetres across but just 2 millimetres thick, making it much thinner than most glass windows. The mirror is very thin so that it is flexible enough for magnetic forces applied to it to alter the shape of its reflective surface. When in use, the mirror's surface will be constantly changed by tiny amounts to correct for the blurring effects of the Earth’s atmosphere and so create much sharper images.

The new deformable secondary mirror (DSM) will replace the current secondary in one of the VLT’s four Unit Telescopes. The entire secondary structure includes a set of 1170 actuators that apply a force on 1170 magnets glued to the back face of the thin shell. Sophisticated special-purpose electronics control the behaviour of the thin shell mirror. The reflecting surface can be deformed up to a thousand times per second by the action of the actuators.

The complete DSM system was delivered to ESO by the Italian companies Microgate and ADS in December 2012 and concludes eight years of sustained development efforts and manufacturing. This is the largest deformable mirror ever produced for astronomical purposes and is the latest of a long line of such mirrors. The extensive experience of these contractors shows in the high performance of the system and its reliability. The installation on the VLT is scheduled to start in 2015.

The shell mirror (ann12015) itself was manufactured by the French company REOSC. It is a sheet of ceramic material that has been polished to a very accurate shape. The manufacturing process starts with a block of Zerodur ceramic, provided by Schott Glass (Germany) that is more than 70 millimetres thick. Most of this material is ground away to create the final thin shell that must be carefully supported at all times as it is extremely fragile.

Links


11 February 2013

Laser and Light Painting

On a clear night in Bavaria, ESO staff attended the filming of an ESOcast episode focusing on ESO’s new compact laser guide star unit, seen here in action at the Allgäu Public Observatory in Ottobeuren, Germany. Using the glow from their mobile phones, staff took advantage of the long-exposure photograph to draw the letters “ESO” in light, while standing in front of the observatory. Just left of the vertical laser beam, the Milky Way can be seen. Just above the horizon over the observatory, the dotted tracks of aircraft can be seen in the distance. The laser has a powerful beam of 20 watts, and to protect pilots and passengers a no-fly zone around the observatory was created by the Deutsche Flugsicherung (responsible for air traffic control in Germany) during the nighttime observing hours.

Laser guide stars are artificial stars created in the Earth’s atmosphere using a laser beam. The laser makes the sodium atoms in a layer 90 kilometres up in the atmosphere glow and so creates an artificial star in the sky that can be observed by a telescope. Using measurements of the artificial star, adaptive optics instruments can then correct the blurring effect of the atmosphere in the observations.

ESO’s innovative concept uses a powerful laser whose beam is launched with a small telescope, combined into a single modular unit which can be mounted directly on a large telescope. The concept, which has been patented and licensed by ESO, will be used to provide the Very Large Telescope (VLT) with four similar laser units. It will also play a key role in the units that will equip the future European Extremely Large Telescope (E-ELT).

At the time of filming, the unit was undergoing testing before being shipped to the ESO Paranal Observatory in Chile, home of the VLT.

Links


4 February 2013

Sunset at Paranal Observatory

Babak Tafreshi, an ESO Photo Ambassador, has captured a beautiful image of ESO’s Paranal Observatory illuminated by the sunset. The beautifully clear sky hints at the exceptional atmospheric conditions here; one major reason why ESO chose Paranal as the site of the Very Large Telescope (VLT), its flagship facility.

The VLT — which can be seen on Cerro Paranal, the highest peak in the image, with an altitude of 2600 metres —  is the world’s most advanced visible-light astronomical observatory. It consists of four Unit Telescopes, each with a primary mirror 8.2 metres across, and four 1.8-metre Auxiliary Telescope.. The VLT operates at visible and infrared wavelengths and among the pioneering observations carried out using the VLT have been the first direct image of an exoplanet (see eso0515) and the tracking of stars orbiting the Milky Way’s central black hole (see eso0846 and eso1151).

Also on Cerro Paranal is the VLT Survey Telescope (VST). Its smaller enclosure can just be made out in front of one of the larger VLT Unit Telescope enclosures on the mountaintop. The VST is the most recent addition to Paranal, with the first images released in 2011 (see eso1119). It sports a primary mirror 2.6 metres across, which makes it the largest telescope in the world designed for surveying the sky in visible light.

Another survey telescope at the Paranal Observatory is VISTA, the Visible and Infrared Survey Telescope for Astronomy, which can be seen on another peak, in the foreground of Cerro Paranal. VISTA is the world’s largest survey telescope, with a 4.1-metre mirror, and operates at near-infrared wavelengths. The telescope started work in 2009 (see eso0949).

Links


28 January 2013

An Intergalactic Heavyweight

This deep-field image shows what is known as a supercluster of galaxies — a giant group of galaxy clusters which are themselves clustered together. This one, known as Abell 901/902, comprises three separate main clusters and a number of filaments of galaxies, typical of such super-structures. One cluster, Abell 901a, can be seen above and just to the right of the prominent red foreground star near the middle of the image. Another, Abell 901b, is further to the right of Abell 901a, and slightly lower. Finally, the cluster Abell 902 is directly below the red star, towards the bottom of the image.

The Abell 901/902 supercluster is located a little over two billion light-years from Earth, and contains hundreds of galaxies in a region about 16 million light-years across. For comparison, the Local Group of galaxies — which contains our Milky Way among more than 50 others — measures roughly ten million light-years across.

This image was taken by the Wide Field Imager (WFI) camera on the MPG/ESO 2.2-metre telescope, located at the La Silla Observatory in Chile. Using data from the WFI and from the NASA/ESA Hubble Space Telescope, in 2008 astronomers were able to precisely map the distribution of dark matter in the supercluster, showing that the clusters and individual galaxies which comprise the super-structure reside within vast clumps of dark matter. To do this, astronomers looked at how the light from 60 000 faraway galaxies located behind the supercluster was being distorted by the gravitational influence of the dark matter it contains, thus revealing its distribution. The mass of the four main dark matter clumps of Abell 901/902 is thought to be around ten trillion times that of the Sun.

The observations shown here are part of the COMBO-17 survey, a survey of the sky undertaken in 17 different optical filters using the WFI camera. The COMBO-17 project has so far found over 25 000 galaxies.

Links


21 January 2013

APEX Under the Moon

Another starry night on the Chajnantor Plateau in the Chilean Andes. The first quarter Moon glows brightly in this exposure, outshining the surrounding celestial objects. However, for radio telescopes such as APEX (the Atacama Pathfinder Experiment), seen here, the brightness of the Moon is not a problem for observations. In fact, since the Sun itself is not too bright at radio wavelengths, and these wavelengths do not brighten the sky in the same way, this telescope can even be used during the daytime, as long as it is not pointed towards the Sun.

APEX is a 12-metre-diameter telescope that observes light at millimetre and submillimetre wavelengths. Astronomers observing with APEX can see phenomena which would be invisible at the shorter wavelengths of infrared or visible light. For instance, APEX can peer through dense interstellar clouds of gas and cosmic dust, revealing hidden regions of ongoing star formation which glow brightly at these wavelengths, but which may be obscured and dark in visible and infrared light. Some of the earliest and most distant galaxies are also excellent targets for APEX. Due to the expansion of the Universe over many billions of years, their light has been redshifted into APEX’s millimetre and submillimetre range.

APEX is a collaboration between the Max Planck Institute for Radio Astronomy (MPIfR), the Onsala Space Observatory (OSO) and ESO. Operation of APEX at Chajnantor is entrusted to ESO.

This stunning picture was taken by ESO Photo Ambassador Babak Tafreshi. It is part of a larger image, which is also available cropped in a different way.

Links


14 January 2013

ALMA Dwarfed by Mountain Peaks

At first glance, this view shows the mountainous scenery of Chile’s Chajnantor Plateau, with snow and ice scattered over the barren terrain. The main peaks from right to left are Cerro Chajnantor, Cerro Toco, Juriques, and the distinctive conical volcano Licancabur (see potw1240) —  impressive enough! However, the true stars of the picture are the tiny, barely visible structures in the very centre of the image — perceptible if you squint hard enough.

These structures, dwarfed by their mountainous neighbours, are the antennas that form the Atacama Large Millimeter/submillimeter Array (ALMA), a large radio telescope. While it may appear minute in this image, the array is actually composed of a collection of large 12- and 7-metre-diameter antennas, and when it’s complete, there will be a total of 66 of them, spread over distances of up to 16 kilometres across the plateau. Construction work for ALMA is expected to finish in 2013, but the telescope has begun the initial phase of Early Science observations, already returning incredible results (see for example eso1239). Since this photograph was taken, many more antennas have joined the array on the plateau.

ALMA, an international astronomy facility, is a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile. ALMA construction and operations are led on behalf of Europe by ESO, on behalf of North America by the National Radio Astronomy Observatory (NRAO), and on behalf of East Asia by the National Astronomical Observatory of Japan (NAOJ). The Joint ALMA Observatory (JAO) provides the unified leadership and management of the construction, commissioning and operation of ALMA.

Links


7 January 2013

Swirling Star Trails Over Yepun

This view shows one of the Unit Telescopes of ESO’s Very Large Telescope (VLT) sitting beneath bright star trails circling the south celestial pole, a point in the sky that lies in the southern constellation of Octans (The Octant). These trails are arcs of light that trace out a star’s observed movement across the sky as the Earth slowly rotates. To capture these star trails on camera, many exposures were taken over time and combined to give the final appearance of circular tracks.

Illuminated by moonlight, the telescope in the foreground is just one of the four Unit Telescopes (UTs) that make up the VLT at Paranal, Chile. Following the inauguration of the Paranal site in 1999, each UT was named in the language of the native Mapuche tribe. The names of the UTs — Antu, Kueyen, Melipal, and Yepun — represent four prominent and beautiful features of the sky: the Sun, the Moon, the constellation of the Southern Cross, and Venus, respectively. The UT in this photograph is Yepun, also known as UT4.

This image was taken by ESO Photo Ambassador Farid Char. Char works at ESO’s La Silla–Paranal Observatory, and is a member of the site-testing team for the European Extremely Large Telescope (E-ELT), a new ground-based telescope that will be the largest optical/near-infrared telescope in the world when it is completed in the early 2020s.

Links


31 December 2012

Whirling Southern Star Trails over ALMA

Babak Tafreshi, one of the ESO Photo Ambassadors, has captured the antennas of the Atacama Large Millimeter/submillimeter Array (ALMA) under the southern sky in another breathtaking image.

The dramatic whorls of stars in the sky are reminiscent of van Gogh’s Starry Night, or — for science fiction fans — perhaps the view from a spacecraft about to enter hyperspace. In reality, though, they show the rotation of the Earth, revealed by the photograph’s long exposure. In the southern hemisphere, as the Earth turns, the stars appear to move in circles around the south celestial pole, which lies in the dim constellation of Octans (The Octant), between the more famous Southern Cross and the Magellanic Clouds. With a long enough exposure, the stars mark out circular trails as they move.

The photograph was taken on the Chajnantor Plateau, at an altitude of 5000 metres in the Chilean Andes. This is the site of the ALMA telescope, whose antennas can be seen in the foreground. ALMA is the most powerful telescope for observing the cool Universe — molecular gas and dust, as well as the relic radiation of the Big Bang. When ALMA construction is complete in 2013, the telescope will have 54 of these 12-metre-diameter antennas, and twelve 7-metre antennas. However, early scientific observations with a partial array already began in 2011. Even though it is not fully constructed, the telescope is already producing outstanding results, outperforming all other telescopes of its kind. Some of the antennas are blurred in the photograph, as the telescope was in operation and moving during the shot.

ALMA, an international astronomy facility, is a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile. ALMA construction and operations are led on behalf of Europe by ESO, on behalf of North America by the National Radio Astronomy Observatory (NRAO), and on behalf of East Asia by the National Astronomical Observatory of Japan (NAOJ). The Joint ALMA Observatory (JAO) provides the unified leadership and management of the construction, commissioning and operation of ALMA.

Links


24 December 2012

ALMA’s Solitude

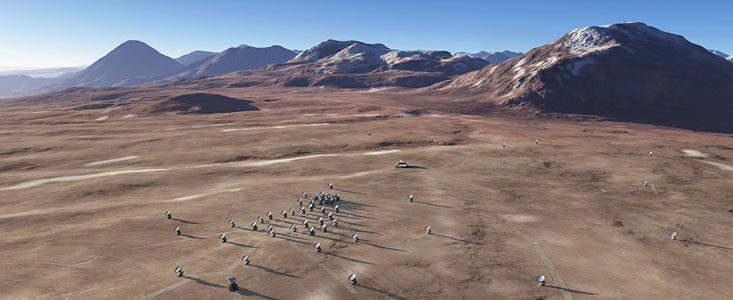

This panoramic view of the Chajnantor Plateau shows the site of the Atacama Large Millimeter/submillimeter Array (ALMA), taken from near the peak of Cerro Chico. Babak Tafreshi, an ESO Photo Ambassador, has succeeded in capturing the feeling of solitude experienced at the ALMA site, 5000 metres above sea level in the Chilean Andes. Light and shadow paint the landscape, enhancing the otherworldly appearance of the terrain. In the foreground of the image, clustered ALMA antennas look like a crowd of strange, robotic visitors to the plateau. When the telescope is completed in 2013, there will be a total of 66 such antennas in the array, operating together.

ALMA is already revolutionising how astronomers study the Universe at millimetre and submillimetre wavelengths. Even with a partial array of antennas, ALMA is more powerful than any previous telescope at these wavelengths, giving astronomers an unprecedented capability to study the cool Universe — molecular gas and dust as well as the relic radiation of the Big Bang. ALMA studies the building blocks of stars, planetary systems, galaxies, and life itself. By providing scientists with detailed images of stars and planets being born in gas clouds near the Solar System, and detecting distant galaxies forming at the edge of the observable Universe, which we see as they were roughly ten billion years ago, it will let astronomers address some of the deepest questions of our cosmic origins.

ALMA, an international astronomy facility, is a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile. ALMA construction and operations are led on behalf of Europe by ESO, on behalf of North America by the National Radio Astronomy Observatory (NRAO), and on behalf of East Asia by the National Astronomical Observatory of Japan (NAOJ). The Joint ALMA Observatory (JAO) provides the unified leadership and management of the construction, commissioning and operation of ALMA.

Links


17 December 2012

Paranal and the Shadow of the Earth

ESO Photo Ambassador, Babak Tafreshi has taken another outstanding panoramic photograph of ESO’s Paranal Observatory.

In the foreground is the dramatic, mountainous landscape of the Atacama Desert. On the left, on the highest peak, is the ESO Very Large Telescope (VLT), and in front of it, on a slightly lower peak, is the VISTA telescope (Visible and Infrared Survey Telescope for Astronomy).

In the background, the sunrise colours Paranal’s sky with a beautiful pastel palette. Extending beyond the horizon, the sea of clouds over the Pacific Ocean — which lies only 12 kilometres from Paranal — is visible.

Above the horizon, where the sea of clouds meets the sky, a dark band can be seen. This dark band is the Earth’s shadow, cast by the planet onto its atmosphere. This phenomenon can sometimes be seen around the times of sunset and sunrise, if the sky is clear and the horizon is unobstructed — conditions that are certainly met in Paranal Observatory. Above the Earth’s shadow is a pinkish glow known as the Belt of Venus. It is caused by light from the rising (in this case) or setting Sun being scattered by the Earth’s atmosphere.

Links


10 December 2012

The Stars Streak Overhead

Although this image might at first look like abstract modern art, it is in fact the result of a long camera exposure of the night sky over the Chajnantor Plateau in the Chilean Andes. As the Earth rotates towards another day, the stars of the Milky Way above the desert stretch into colourful streaks. The high-tech telescope in the foreground, meanwhile, takes on a dreamlike quality.

This mesmerising photo was taken 5000 metres above sea level on the Chajnantor Plateau, home of the Atacama Pathfinder Experiment (APEX) telescope, which is seen here. APEX is a 12-metre-diameter telescope which collects light with wavelengths in the millimetre and submillimetre range. Astronomers use APEX to study objects ranging from the cold clouds of gas and cosmic dust where new stars are being born, to some of the earliest and most distant galaxies in the Universe.

APEX is a pathfinder for the Atacama Large  Millimeter/submillimeter Array (ALMA), a revolutionary telescope that ESO, together with its international partners, is building and operating, also on the Chajnantor Plateau. When ALMA is completed in 2013, it will be an array of 54 antennas with 12-metre diameters, and an additional 12 antennas with 7-metre diameters. The two telescopes are complementary: thanks to its larger field of view, APEX can find many targets across wide areas of sky, which ALMA will study in great detail due to its far higher angular resolution. APEX and ALMA are both important tools to help astronomers find out more about the workings of our Universe, such as the formation of the stars seen wheeling overhead in this image.

ESO Photo Ambassador Babak Tafreshi took this picture. He is also founder of The World At Night, a programme to create and exhibit a collection of stunning photographs and time-lapse videos of the world’s most beautiful and historic sites against a nighttime backdrop of stars, planets and celestial events.

APEX is a collaboration between the Max Planck Institute for Radio Astronomy (MPIfR), the Onsala Space Observatory (OSO) and ESO. Operation of APEX at Chajnantor is entrusted to ESO. ALMA is an international astronomy facility, and a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile. ESO is the European partner in ALMA.

Links


3 December 2012

From Antu to Yepun — The Construction of the VLT

ESO turns fifty this year, and to celebrate this important anniversary, we are showing you glimpses into our history. Once a month during 2012, a special Then and Now comparison Picture of the Week shows how things have changed over the decades at the La Silla and Paranal Observatory sites, the ESO facilities in Santiago de Chile, and the Headquarters in Garching bei München, Germany.

The Very Large Telescope (VLT), ESO’s flagship facility on Cerro Paranal in Chile, is made up of four giant Unit Telescopes (UTs), each sporting a mirror of 8.2-metre diameter, and four movable 1.8-metre Auxiliary Telescopes. Our pair of photographs this month shows a Unit Telescope under construction, and one in the present day.

Early work on the first Unit Telescope (UT1) enclosure can be seen in the historical image, taken in late October 1995. The concrete foundations were complete and the lower, stationary part of the enclosure’s metal structure had been fixed to them. The first pieces of the rotating part of the telescope enclosure were also in place — the beginnings of the wide slit through which the telescope would observe and the heavy, horizontal structure that would support the sliding doors can be seen towards the camera. This Unit Telescope saw its first light on 25 May 1998 (see eso9820).

At the inauguration of Paranal in 1999 (see eso9921), each UT was given a name in the language of the native Mapuche tribe. The names — Antu, Kueyen, Melipal, and Yepun for UTs one to four in order — represent four prominent and beautiful features of the sky: the Sun, the Moon, the constellation of the Southern Cross, and Venus [1], respectively.

The modern-day photograph is of UT4, Yepun, which saw its first light in September 2000 (see eso0028). However, it serves just as well as its sibling UT1 to show the completed construction of the VLT, because all four UTs were designed to be identical. They differ only in the sets of instruments available on each, which give astronomers a wider range of tools to study the Universe. The yellow frame-like structure in front of Yepun is the M1 lifting platform, which can be moved between the UTs, and is used when their giant 8.2-metre primary mirrors are periodically removed and recoated.

In the years since the historical photograph was taken, the first of the UTs has gained a name — Antu — and a family, as the other telescopes have joined it on the mountaintop. Today, the VLT is the world’s most advanced visible-light astronomical telescope, and Antu, Yepun, and the other telescopes on Paranal have played a major role in making ESO the world’s most productive ground-based observatory by far!

Notes

[1] Yepun had been translated as “Sirius” at the time of the Paranal inauguration (see eso9921), but subsequent investigation showed that its correct translation is “Venus”.

Links


26 November 2012

Two Planet-hunters Snapped at La Silla

For centuries, philosophers and scientists have wondered about the possibility of habitable planets outside the Solar System. Today, this idea is more than speculation: many hundreds of exoplanets have been discovered over the last couple of decades, by astronomers all over the world. Various different techniques are used in this search for new worlds. In this unusual photograph, telescopes using two of these methods, the ESO 3.6-metre telescope with the HARPS spectrograph, and the space telescope CoRoT, have been captured in the same shot. The photograph was taken by Alexandre Santerne, an astronomer who studies exoplanets himself.

The High Accuracy Radial velocity Planetary Search (HARPS) spectrograph, the world’s foremost exoplanet hunter, is an instrument on ESO’s 3.6-metre telescope. The open dome of this telescope can be seen on the left of this image, behind the angular enclosure of the New Technology Telescope. HARPS finds exoplanets by detecting small changes in the motion of a star as it wobbles slightly under the gravitational pull of the orbiting planet. This is known as the radial velocity technique for finding exoplanets.

The faint trail of light high in the sky in this 20-second exposure is not a meteor but CoRoT, the Convection Rotation and planetary Transits space telescope. CoRoT searches for planets by looking for the dimming of light from a star which occurs when a planet passes in front of it — the transit method. The space telescope’s location above the Earth’s atmosphere improves the accuracy of its observations by removing the twinkling of stars. Potential planets found by the transit method are confirmed using complementary techniques such as the radial velocity method. Indeed, on very the night that this photograph was taken, HARPS was being used to follow up exoplanet candidates detected by CoRoT!

In November 2012, CoRoT unfortunately suffered a computer problem, meaning that — although it is still functioning — it can no longer retrieve data from its telescope (see the news on the CoRoT website, or for example this Nature News article). The CoRoT team have not given up though, and are working to revive the systems. Whether or not CoRoT can be revived, there is certainly no doubt that the mission has already been a great success! The spacecraft has doubled its originally planned mission lifetime, and was the first spacecraft to discover an exoplanet using the transit method. CoRoT has made great contributions, both to the search for exoplanets, and to the study of the interiors of stars through the field of asteroseismology.

The search for exoplanets helps us understand our own planetary system, and may be the first step towards finding life beyond Earth. HARPS and CoRoT are just two of the many exciting instruments developed to assist astronomers with this search.

Alexandre submitted this photograph to the Your ESO Pictures Flickr group. The Flickr group is regularly reviewed and the best photos are selected to be featured in our popular Picture of the Week series, or in our gallery. In 2012, as part of ESO’s 50th anniversary year, we are also welcoming your historical ESO-related images. Since submitting the photo, Alexandre has also become an ESO Photo Ambassador.

Links


19 November 2012

APEX's Icy Companions

The Atacama Pathfinder Experiment (APEX) telescope — captured in this dramatic image taken by ESO Photo Ambassador Babak Tafreshi — is one of the tools used by ESO to peer beyond the realm of visible light. It is located on the Chajnantor Plateau at an altitude of 5000 metres.

Clusters of white penitentes can be seen in the foreground of the photograph. The penitentes (Spanish for penitents) are a curious natural phenomenon found in high altitude regions, typically more than 4000 metres above sea level. They are thin spikes of hardened snow or ice, with their blades pointing towards the Sun, attaining heights from a few centimetres up to several metres.

APEX is a 12-metre-diameter telescope that observes light at millimetre and submillimetre wavelengths. Astronomers observing with APEX can see phenomena which would be invisible at shorter wavelengths. The telescope enables them to study molecular clouds — the dense regions of gas and cosmic dust where new stars are being born — which are dark and obscured by dust in visible or infrared light, but which glow brightly at these relatively longer wavelengths. Astronomers use this light to study their chemical and physical conditions. This wavelength range is also ideal for studying some of the earliest and most distant galaxies in the Universe.

Just visible in the night sky above and to the left of APEX are, respectively, the faint smudges of the Small and Large Magellanic Clouds, neighbouring galaxies of our own Milky Way galaxy. The plane of the Milky Way itself can be seen as a hazy band across the sky, most prominently over the APEX control building on the right. Dark patches in the band are regions where light from distant stars is blocked by interstellar dust. Hidden behind these dark dust lanes, the centre of the Milky Way lies at a distance of about 27 000 light-years. Telescopes such as APEX are a crucial tool for astronomers to peer through the dust and study the centre of our galaxy in detail.

APEX is a collaboration between the Max Planck Institute for Radio Astronomy (MPIfR), the Onsala Space Observatory (OSO) and ESO. Operation of APEX at Chajnantor is entrusted to ESO.

Links


12 November 2012

One Picture, Many Stories

ESO Photo Ambassador, Babak Tafreshi has captured an outstanding image of the sky over ESO’s Paranal Observatory, with a treasury of deep-sky objects.

The most obvious of these is the Carina Nebula, glowing intensely red in the middle of the image.  The Carina Nebula lies in the constellation of Carina (The Keel), about 7500 light-years from Earth. This cloud of glowing gas and dust is the brightest nebula in the sky and contains several of the brightest and most massive stars known in the Milky Way, such as Eta Carinae. The Carina Nebula is a perfect test-bed for astronomers to unveil the mysteries of the violent birth and death of massive stars. For some beautiful recent images of the Carina Nebula from ESO, see eso1208, eso1145, and eso1031.

Below the Carina Nebula, we see the Wishing Well Cluster (NGC 3532). This open cluster of young stars was named because, through a telescope’s eyepiece, it looks like a handful of silver coins twinkling at the bottom of a wishing well. Further to the right, we find the Lambda Centauri Nebula (IC 2944), a cloud of glowing hydrogen and newborn stars which is sometimes nicknamed the Running Chicken Nebula, from a bird-like shape that some people see in its brightest region (see eso1135). Above this nebula and slightly to the left we find the Southern Pleiades (IC 2632), an open cluster of stars that is similar to its more familiar northern namesake.

In the foreground, we see three of the four Auxiliary Telescopes (ATs) of the Very Large Telescope Interferometer (VLTI). Using the VLTI, the ATs — or the VLT’s 8.2-metre Unit Telescopes — can be used together as a single giant telescope which can see finer details than would be possible with the individual telescopes. The VLTI has been used for a broad range of research including the study of circumstellar discs around young stellar objects and of active galactic nuclei, one of the most energetic and mysterious phenomena in the Universe.

Links


5 November 2012

Building the Paranal Residencia — From Turbulence to Tranquility

ESO turns fifty this year, and to celebrate this important anniversary, we are showing you glimpses into our history. Once a month during 2012, a special Then and Now comparison Picture of the Week shows how things have changed over the decades at the La Silla and Paranal Observatory sites, the ESO facilities in Santiago de Chile, and the Headquarters in Garching bei München, Germany.

In this month’s pair of photographs, taken at ESO’s Paranal Observatory in Chile’s Atacama Desert, we compare a bustling construction site, as seen in November 1999, with the end result in the present day: the observatory’s accommodation building, known as the Paranal Residencia. Imagine the change from then to now: the clanging of hammers and drills, and the noise of tractors and cranes, have given way to the peaceful calm of a desert building that complements its surroundings. Built using natural materials and colours, and nestled into an existing depression in the ground, the completed building blends into the landscape.

The Residencia was built as a refuge for astronomers and other staff working in one of the harshest landscapes imaginable, where the extreme dryness, intense ultraviolet radiation from the Sun, strong winds, and high altitude are part of everyday life. The contractors who built the Residencia, also working in these harsh conditions, have created a deeply appreciated oasis in the desert for the observatory’s staff to take shelter from the arid environment, and the finished building is a testament to all their hard work. The award-winning Residencia contains over 100 rooms, as well as a number of communal spaces including a canteen, lounge, swimming pool, fitness centre and library. It has spectacular views from its western facade across the desert in the direction of the Pacific Ocean and the sunset.

There is another feature that can be seen in both these photographs: behind the Residencia, 2600 metres above sea level on the summit of Cerro Paranal, is the ESO Very Large Telescope (VLT). It is the world’s most advanced visible-light astronomical observatory, and the reason why the Residencia, and all those who stay within its walls, are there at all!

Links


29 October 2012

A Place to Unveil the Mysteries of the Cold Universe

This beautiful panoramic picture taken by Babak Tafreshi, an ESO Photo Ambassador, shows the last rays of sunlight bathing the Chajnantor Plateau in Chile’s Atacama region. The plateau is the home of the Atacama Pathfinder Experiment (APEX) telescope, which can be seen on the left of the panorama. From this remote place on Earth, 5000 metres above sea level, APEX studies the “cold Universe”.

APEX is a 12-metre-diameter telescope that observes light at millimetre and submillimetre wavelengths. Astronomers observing with APEX can see phenomena which would be invisible at shorter wavelengths. The telescope enables them to study molecular clouds — the dense regions of gas and cosmic dust where new stars are being born — which are dark and obscured by dust in visible or infrared light, but which glow brightly at these relatively longer wavelengths. Astronomers use this light to study the chemical and physical conditions in the clouds. This wavelength range is also ideal for studying some of the earliest and most distant galaxies in the Universe.

Since it began operating in 2005, APEX has produced many important science results. For example, APEX teamed up with ESO’s Very Large Telescope to detect matter being torn apart by the black hole at the centre of the Milky Way (eso0841), a result counted among the ESO Top 10 Astronomical Discoveries.

Clusters of white penitentes can be seen on the ground around APEX. The penitentes (Spanish for penitents) are a curious natural phenomenon found in high-altitude regions, typically more than 4000 metres above sea level. They are thin spikes of hardened snow or ice, with their blades pointing towards the Sun, attaining heights from a few centimetres up to several metres.

APEX is a collaboration between the Max Planck Institute for Radio Astronomy (MPIfR), the Onsala Space Observatory (OSO) and ESO. Operation of APEX at Chajnantor is entrusted to ESO.

APEX’s 12-metre dish is based on a prototype antenna for another observatory on Chajnantor, the Atacama Large Millimeter/submillimeter Array (ALMA). ALMA will have an array of fifty-four 12-metre antennas and twelve 7-metre antennas, when it is completed in 2013. ESO is the European partner in this international astronomy facility, which is a partnership of Europe, North America and East Asia in cooperation with the Republic of Chile.

Links


22 October 2012

Building VISTA, the World’s Largest Survey Telescope

ESO turns fifty this year, and to celebrate this important anniversary, we are showing you glimpses into our history. Once a month during 2012, a special Then and Now comparison Picture of the Week shows how things have changed over the decades at the La Silla and Paranal Observatory sites, the ESO facilities in Santiago de Chile, and the Headquarters in Garching bei München, Germany.

Since December 2009 the Visible and Infrared Survey Telescope for Astronomy (VISTA) has been mapping the southern sky from ESO’s Paranal Observatory in Chile. Our pair of photographs this month shows the VISTA telescope, during construction and in the present day.

The historical image, taken in mid-to-late 2004, shows the telescope’s building under construction. The skeleton of the telescope enclosure is visible on its circular base, surrounded by a temporary cage of scaffolding. VISTA sits on a peak about 1500 metres northeast of Cerro Paranal, the site of ESO’s Very Large Telescope. This peak was lowered by five metres to a height of 2518 metres, creating a 4000-square-metre platform for the necessary construction work.

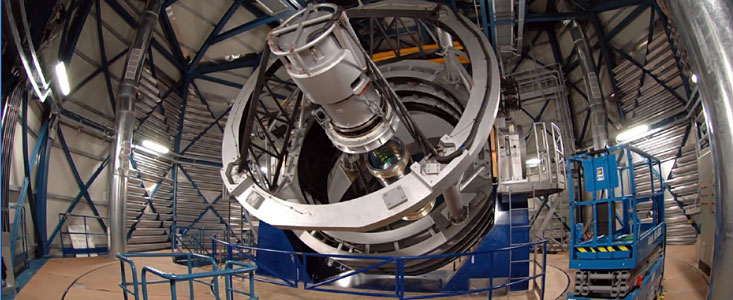

The present-day picture shows the completed VISTA telescope. The telescope’s enclosure is a 20-metre-diameter building which protects the telescope from the environment. Two sliding doors form the slit through which the telescope observes, and a wind screen can be deployed to close part of the slit when needed. Additional doors in the enclosure provide ventilation to control airflow during the night. An auxiliary building, adjacent to the enclosure and visible in the foreground, contains maintenance equipment and a coating plant which is used to apply the thin reflective coating of silver to the telescope’s mirrors.

VISTA operates at near-infrared wavelengths, with a 3-tonne, 67-megapixel camera. Its large mirror, wide field of view and very sensitive infrared detectors make it the world’s largest survey telescope.

VISTA was conceived and developed by a consortium of 18 universities in the United Kingdom, led by Queen Mary, University of London and became an in-kind contribution to ESO as part of the UK's accession agreement. Project management for the telescope design and construction was undertaken by the Science and Technology Facilities Council‘s UK Astronomy Technology Centre (STFC, UK ATC).

Links


15 October 2012

From Cosmic Spare Tyre to Ethereal Blossom

IC 5148 is a beautiful planetary nebula located some 3000 light-years away in the constellation of Grus (The Crane). The nebula has a diameter of a couple of light-years, and it is still growing at over 50 kilometres per second — one of the fastest expanding planetary nebulae known. The term “planetary nebula” arose in the 19th century, when the first observations of such objects — through the small telescopes available at the time — looked somewhat like giant planets. However, the true nature of planetary nebulae is quite different.

When a star with a mass similar to or a few times more than that of our Sun approaches the end of its life, its outer layers are thrown off into space. The expanding gas is illuminated by the hot remaining core of the star at the centre, forming the planetary nebula, which often takes on a beautiful, glowing shape.

When observed with a smaller amateur telescope, this particular planetary nebula shows up as a ring of material, with the star — which will cool to become a white dwarf — shining in the middle of the central hole. This appearance led astronomers to nickname IC 5148 the Spare Tyre Nebula.

The ESO Faint Object Spectrograph and Camera (EFOSC2) on the New Technology Telescope at La Silla gives a somewhat more elegant view of this object. Rather than looking like a spare tyre, the nebula resembles ethereal blossom with layered petals.


8 October 2012

A VISTA Before Sunset

ESO’s Paranal Observatory — located in Chile’s Atacama region — is most well known for the Very Large Telescope (VLT), ESO’s flagship telescope facility. However, over the last few years, the site has also become home to two state-of-the-art survey telescopes. These new members of the Paranal family are designed to image large areas of the sky quickly and deeply.

One of them, the 4.1-metre Visible and Infrared Survey Telescope for Astronomy (VISTA), is located on a neighbouring peak not far from the Paranal summit. It is shown in this beautiful photograph taken from Paranal by ESO Photo Ambassador, Babak Tafreshi. VISTA is the world’s largest survey telescope, and has been operating since December 2009.

At the lower right corner of the image, VISTA’s enclosure appears in front of a seemingly endless mountain range, which stretches to the horizon. As sunset approaches, the mountains cast longer shadows, which slowly cover the brownish tones that colour the magnificent landscape that surrounds Paranal. Soon, the Sun will drop below the horizon, and all the telescopes at Paranal will start another night of observations.

VISTA is a wide-field telescope, designed to map the southern sky in infrared light with high sensitivity, allowing astronomers to detect extremely faint objects. The goal of these surveys is to create large catalogues of celestial objects for statistical studies and to identify new targets that can be studied in more detail by the VLT.

Links
