VIMOS trending system: HISTORY plot
Last update: 2010-04-11T03:01:30 (UT)
same group: median_master ron_master rms_master ron_raw median_vs_temp   averages_low averages_high
close window history: 2003 2004 2005 2006 2007 2008 2009   2010   2011   2012 2013 2014 2015 2016 2017 2018   HEALTH
  ... ... ... ... ... ... ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB MEDIAN 207.0 ADU VAL205,215 77 median_master this | last_yr | all Q2, median bias, low gain
2 QC1DB MEDIAN 198.0 ADU VAL194,202 77 median_master this | last_yr | all Q1, median bias, low gain
3 QC1DB MEDIAN 186.0 ADU VAL184,195 77 median_master this | last_yr | all Q2, median bias, high gain
4 QC1DB MEDIAN 202.0 ADU VAL192,206 77 median_master this | last_yr | all Q1, median bias, high gain
5 QC1DB MEDIAN 193.0 ADU VAL190,198 77 median_master this | last_yr | all Q3, median bias, low gain
6 QC1DB MEDIAN 194.0 ADU VAL190,197 77 median_master this | last_yr | all Q4, median bias, low gain
7 QC1DB MEDIAN 187.0 ADU VAL184,195 77 median_master this | last_yr | all Q3, median bias, high gain
8 QC1DB MEDIAN 197.0 ADU VAL190,206 77 median_master this | last_yr | all Q4, median bias, high gain
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

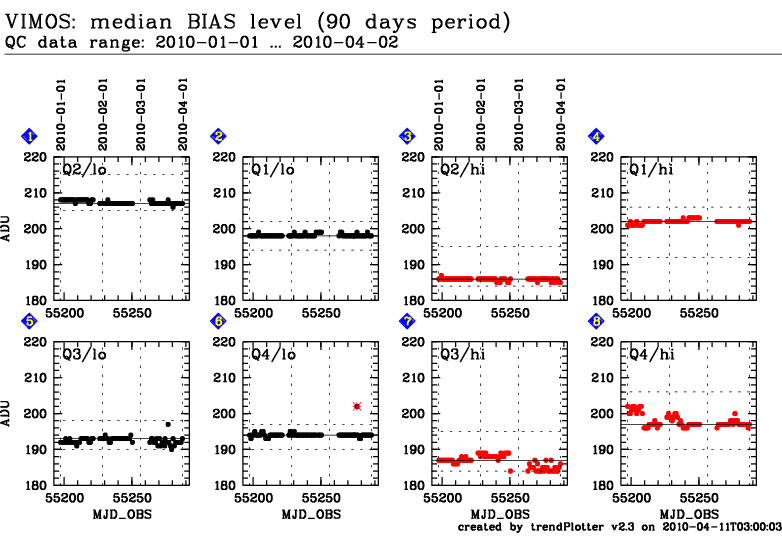

Trending plots for bias QC parameters.

All bias parameters are measured in the central 1600x1800 pixels of the detectors. The median bias level and the rms of the master should show a stable trend without sudden jumps or increase/decrease. The read-out noise (ron_raw) is calculated from the difference of the first two raw frames. Some outliers with high values are occasionally observed due to cosmic ray events. The read-out noise as measured from master frames (ron_master) should be extremely stable.

The new detectors (since July 2010) show a correlation of the bias level with temperature, especially for quadrant 2.

Bias frames are usually measured daily during day-time. They come in two different varieties: with low gain (used for imaging) and with high gain (used to calibrate the spectroscopic modes).

Template IDs: img_cal_Dark and spec_cal_Dark. Pipeline recipe: vmbias.
