Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
1.851 |
e/ADU |
VAL | 1.8,1.9 |
15 |
conad_avg |
this |
last_yr |
all
|
gain for 225kHz,1port,Low read-out mode |
| 2 |
• | QC1DB |
MEDIAN |
1.704 |
e/ADU |
VAL | 1.65,1.75 |
15 |
conad_avg |
this |
last_yr |
all
|
gain for 225kHz,1port,Low read-out mode |
| 3 |
• | QC1DB |
MEDIAN |
1.916 |
e/ADU |
VAL | 1.85,1.95 |
15 |
conad_avg |
this |
last_yr |
all
|
gain for 225kHz,1port,Low read-out mode |
| 4 |
• | QC1DB |
MEDIAN |
1.812 |
e/ADU |
VAL | 1.75,1.85 |
14 |
conad_avg |
this |
last_yr |
all
|
gain for 225kHz,1port,Low read-out mode |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local text file
|
This plot

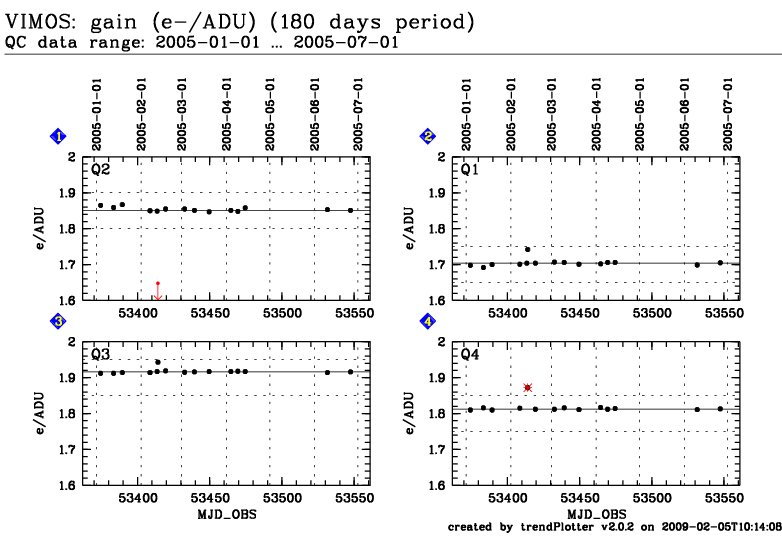

Trending plot for GAIN (conversion factor from ADU to electrons, e-/ADU).
The gain is determined from imaging lamp flats taken with the R filter and with the 225kHz,1port,Low
read-out mode. Please note that in the VIMOS headers this quantity is written as CONAD.
Template ID: img_cal_ScreenFlat. Pipeline recipe: vmimflatscreen.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked.
If configured,
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
