UVES trending system: FULL report
HELP USERS-GUIDE MORE
Last update: 2024-06-26T02:02:45 (UT)
  | now: 2024-06-26T04:34:27 (UT) muc02 QC pipeline: uves-6.1.11 (installed 2023-06-22)
close window history: 2016 2017 2018 2019 2020 2021 2022 2023   2024   HEALTH FULL
  ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 45.6 ADU none  3051 duty_cycle all (full time range) duty cycle in BIAS, readout mode 225kHz,1x1,low; BLUE CCD
2 •QC1DB MEDIAN 48.4 ADU none  3035 duty_cycle all (full time range) duty cycle in BIAS, readout mode 50kHz,2x2,high; BLUE CCD
3 •QC1DB MEDIAN 21.7 ADU none  100 duty_cycle all (full time range) duty cycle in BIAS, readout mode 625kHz (ultrafast),1x1,low; BLUE CCD
4 •QC1DB MEDIAN 46.8 ADU none  4110 duty_cycle all (full time range) duty cycle in BIAS, readout mode 225kHz,1x1,low; RED CCD
5 •QC1DB MEDIAN 52.4 ADU none  3049 duty_cycle all (full time range) duty cycle in BIAS, readout mode 50kHz,2x2,high; RED CCD
6 •QC1DB MEDIAN 19.4 ADU none  472 duty_cycle all (full time range) duty cycle in BIAS, readout mode 625kHz (ultrafast),1x1,low; RED CCD
*Data sources: QC1DB: QC1 database; LOCAL: local data source

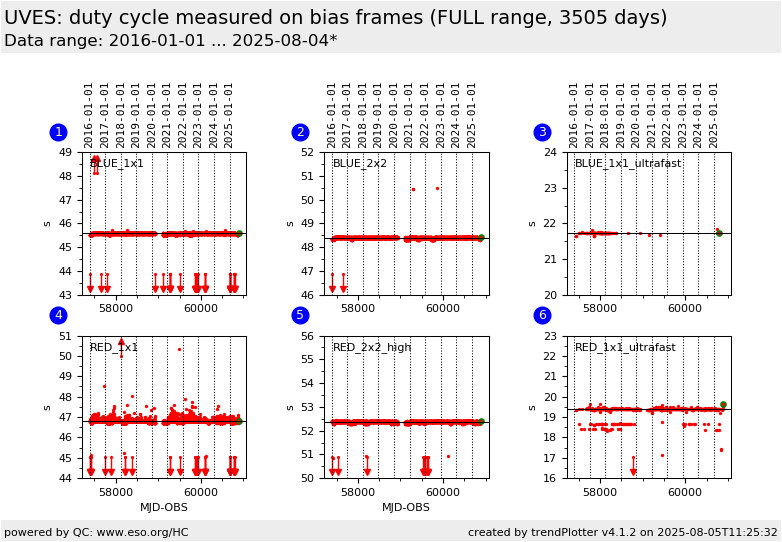

Plot 1
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:duty_cycle•
median:45.6ADU
thresholds:none
N_data plotted:3051
[click plot for closeup]
Plot 2
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:duty_cycle•
median:48.4ADU
thresholds:none
N_data plotted:3035
[click plot for closeup]
Plot 3
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:duty_cycle•
median:21.7ADU
thresholds:none
N_data plotted:100
[click plot for closeup]
Plot 4
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:duty_cycle•
median:46.8ADU
thresholds:none
N_data plotted:4110
[click plot for closeup]
Plot 5
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:duty_cycle•
median:52.4ADU
thresholds:none
N_data plotted:3049
[click plot for closeup]
Plot 6
scores: not implemented
data source:uves_bias
(QC1 database)
dataset:duty_cycle•
median:19.4ADU
thresholds:none
N_data plotted:472
[click plot for closeup]
This plot

This is a trending report for the duty cycle calculated on the UVES BIAS frames.
We monitor here the time to store a UVES frame for the different setups which has to be taken into account when calculating overheads.
From user manual in s:

  1. BLUE Chip 2x2/1pt/50kHz: 48
  2. BLUE Chip 1pt/225kHz: 46
  3. BLUE Chip 2pts/625kHz: 22
  4. RED Chip 2x2/2pts/50kHz: 52
  5. RED Chip 2pts/225kHz: 47
  6. RED Chip 4pts/625kHz: 19

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
