| SPHERE trending system: HEALTH CHECK report |
|
|
| Last update: 2017-05-29T22:59:05 (UT)
|
|
|
|
|
|
|
*Date on this monitor changes at 21:00 UT |
|
|
|
|
Plot
? |
Symb
? |
Source
* |
Average ? |
Thresholds ? |
N_
data |
QC1
parameter |
Data
downloads |
Remarks |
| method |
value |
unit |
method |
value |
| 1 |
• | QC1DB |
MEDIAN |
96 |
number |
VAL | 90,100 |
94 |
qc_npoints_obs |
this |
last_yr |
all
|
number of spectra |
| 2 |
• | QC1DB |
MEDIAN |
36 |
pixel/pixel |
none | |
94 |
qc_nremoved |
this |
last_yr |
all
|
scale |
| 3 |
• | QC1DB |
none |
|
pixel |
none | |
94 |
qc_optaxis_x |
this |
last_yr |
all
|
x-offset in pixel as function of optical bench temperature |
| 3 |
• | QC1DB |
none |
|
pixel |
none | |
94 |
qc_optaxis_y |
this |
last_yr |
all
|
y-offset in pixel as function of optical bench temperature |
| 4 |
• | QC1DB |
none |
|
pixel |
none | |
94 |
qc_optaxis_x |
this |
last_yr |
all
|
x-offset in pixel |
| 4 |
• | QC1DB |
none |
|
pixel |
none | |
67 |
qc_optaxis_x |
this |
last_yr |
all
|
x-offset in pixel |
| 5 |
• | QC1DB |
none |
|
pixel |
none | |
94 |
qc_optaxis_y |
this |
last_yr |
all
|
y-offset in pixel |
| 5 |
• | QC1DB |
none |
|
pixel |
none | |
67 |
qc_optaxis_y |
this |
last_yr |
all
|
y-offset in pixel |
| 6 |
• | QC1DB |
none |
|
pixel |
none | |
94 |
qc_optaxis_y |
this |
last_yr |
all
|
x_offset versus y-offset in pixel |
| |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|

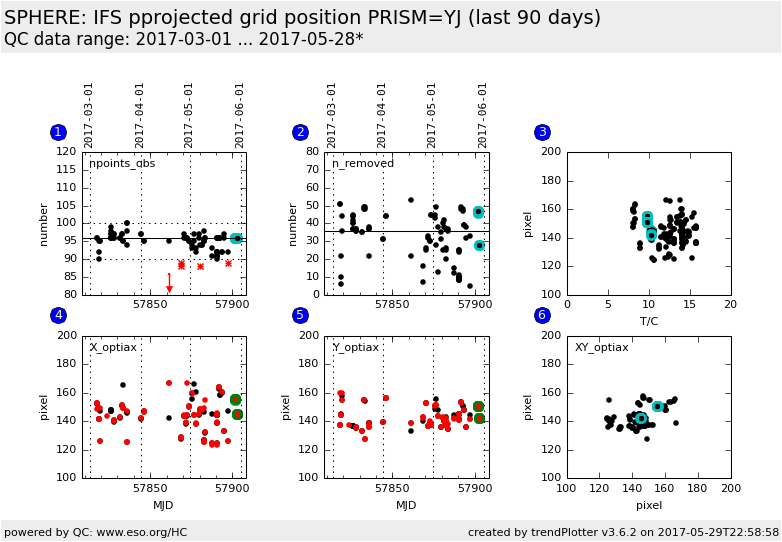

Plot 1
