SPHERE trending system: FULL report
HELP USERS-GUIDE MORE
Last update: 2024-11-17T06:01:48 (UT)
  | now: 2024-11-23T09:24:33 (UT) muc03 QC pipeline: spher-0.56.0 (installed 2024-09-26)
close window history: 2015 2016 2017 2018 2019 2020 2021 2022 2023   2024   HEALTH FULL
  ... ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB none   efficiency none  756 qc_med all (full time range) readmode = SlowPolarimetry, CAM=1
2 •QC1DB none   efficiency none  756 qc_med all (full time range) readmode = SlowPolarimetry, CAM=2
3 •QC1DB none   efficiency none  1345 qc_med all (full time range) readmode = FastPolarimetry, CAM=1
4 •QC1DB none   efficiency none  1360 qc_med all (full time range) readmode = FastPolarimetry, CAM=2
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: not implemented
data source:sphere_zimpol_modem_eff
(QC1 database)
dataset:qc_med•
average:none
thresholds:none
N_data plotted:756
[click plot for closeup]
Plot 2
scores: not implemented
data source:sphere_zimpol_modem_eff
(QC1 database)
dataset:qc_med•
average:none
thresholds:none
N_data plotted:756
[click plot for closeup]
Plot 3
scores: not implemented
data source:sphere_zimpol_modem_eff
(QC1 database)
dataset:qc_med•
average:none
thresholds:none
N_data plotted:1345
[click plot for closeup]
Plot 4
scores: not implemented
data source:sphere_zimpol_modem_eff
(QC1 database)
dataset:qc_med•
average:none
thresholds:none
N_data plotted:1360
[click plot for closeup]
This plot

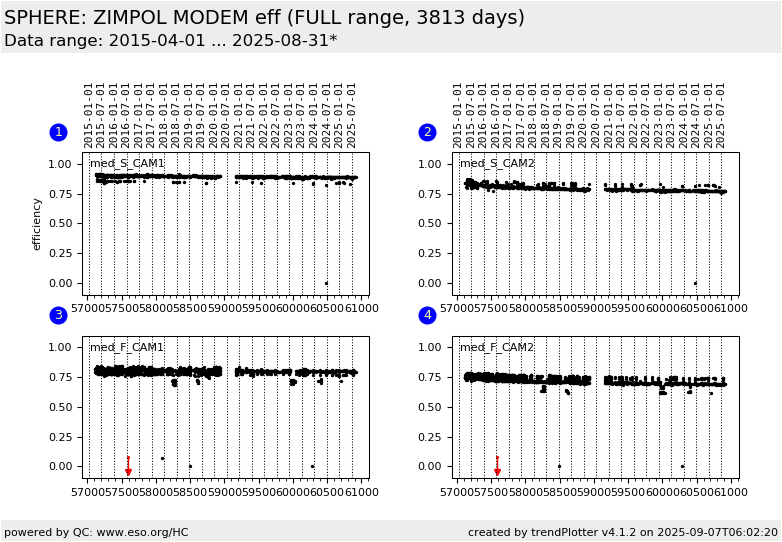

The four boxes show the polarimetric phase modulation demodulation efficiency as calculated by the pipeline recipe for

  • both detectors (CAM1 and CAM2) and
  • both readmodes (S= SlowPolarimetry and F=FastPolarimetry).

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
