Plot 1
scores: not implemented
| | data source: | sphere_ifs_dark
(QC1 database) |
dataset:
(numbers below apply to this dataset) | qc_persistence | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 620 |
| [click plot for closeup] |
Plot 2
scores: not implemented
| | data source: | sphere_ifs_dark
(QC1 database) |
dataset:
(numbers below apply to this dataset) | qc_persistence | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 619 |
| [click plot for closeup] |
Plot 3
scores: not implemented
| | data source: | sphere_ifs_dark
(QC1 database) |
dataset:
(numbers below apply to this dataset) | qc_persistence | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 619 |
| [click plot for closeup] |
Plot 4
scores: not implemented
| | data source: | sphere_ifs_background
(QC1 database) |
dataset:
(numbers below apply to this dataset) | qc_persistence | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 619 |
| [click plot for closeup] |
Plot 5
scores: not implemented
| | data source: | sphere_ifs_background
(QC1 database) |
dataset:
(numbers below apply to this dataset) | qc_persistence | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 619 |
| [click plot for closeup] |
Plot 6
scores: not implemented
| | data source: | sphere_ifs_background
(QC1 database) |
dataset:
(numbers below apply to this dataset) | qc_persistence | • |
| average: | none |
| thresholds: | none |
| N_data plotted: | 619 |
| [click plot for closeup] |

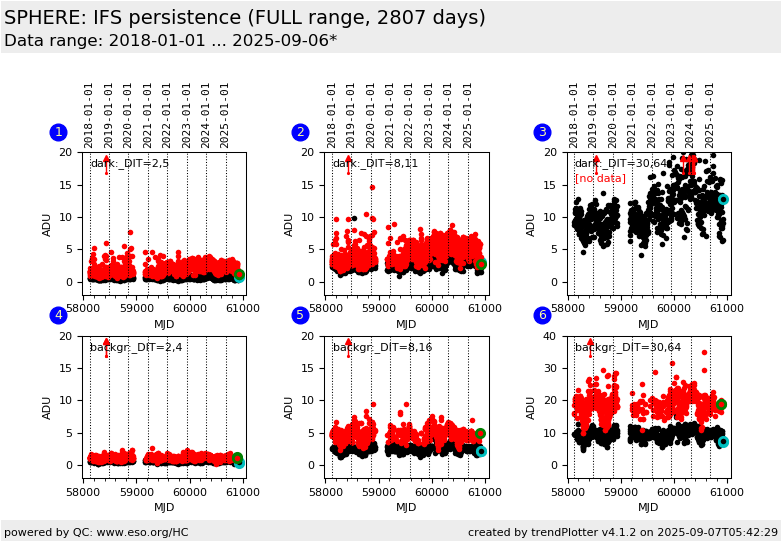

This plot monitors the persistence in both IFS dark and IFS background calibrations
which can be generated by previously acquired IFS optical distortion calibrations.
These optical distortion calibrations can leave a pinhole slice pattern in the IFS dark or background pipeline product.
The QC parameter is simply: the median counts in the pipeline product in a window P = [770, 1300 --- 850, 1440]
minus the median counts in window B = [640, 1470 --- 720, 1570].
Window P (pinhole) is the area where the pinhole slice pattern can show up and window B (background) is the area
off the pinhole slice pattern areas on the detector.
This kind of monitoring was introduced 2018-01-01.
IFS_DARK master frames are not used to calibrate observations, only
the ancillary IFS_DARK product IFS_STATIC_BADPIXEL is used. IFS_BACK
calibrations are used to calibrate science observations.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
