SINFONI trending system: FULL report
HELP USERS-GUIDE MORE
Last update: 2019-06-28T05:08:34 (UT)
  | now: 2024-11-23T04:09:17 (UT) muc04 QC pipeline: sinfo-3.2.5 (installed 2019-05-09)
close window history: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018   2019   HEALTH FULL
  ... ... ... ... ... ... ... ... ... ... ... ... ...
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 oQC1DB MEDIAN 0.28 ADU VAL0.23,0.34 1296 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): J-band ALL camera scales
1 •QC1DB none   ADU none  911 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): J-band/250 mas scale
1 •QC1DB none   ADU none  233 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): J-band/100 mas scale
1 •QC1DB none   ADU none  152 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): J-band/ 25 mas scale
2 oQC1DB MEDIAN 0.175 ADU VAL0.12,0.24 1364 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H-band ALL camera scales
2 •QC1DB none   ADU none  824 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H-band/250 mas scale
2 •QC1DB none   ADU none  432 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H-band/100 mas scale
2 •QC1DB none   ADU none  107 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H-band/ 25 mas scale
3 oQC1DB MEDIAN 0.158 ADU VAL0.10,0.22 2996 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): K-band ALL camera scales
3 •QC1DB none   ADU none  1270 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): K-band at the 250 mas camera scale
3 •QC1DB none   ADU none  1123 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): K-band at the 100 mas camera scale
3 •QC1DB none   ADU none  603 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): K-band at the 25 mas camera scale
4 oQC1DB MEDIAN 0.191 ADU VAL0.14,0.24 2167 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H+K-band ALL camera scales
4 •QC1DB none   ADU none  1042 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H+K-band at the 250 mas camera scale
4 •QC1DB none   ADU none  537 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H+K-band at the 100 mas camera scale
4 •QC1DB none   ADU none  588 qc_lflat_fpn1 all (full time range) fixed pattern noise (region 1): H+K-band at the 25 mas camera scale
*Data sources: QC1DB: QC1 database; LOCAL: local data source

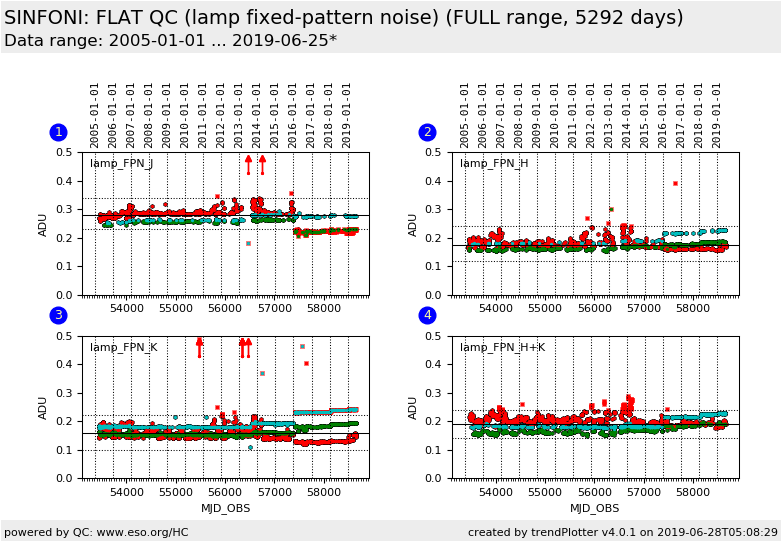

Plot 1
scores: not implemented
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn1o
median:0.28ADU
fixed thresholds:0.23...0.34ADU
N_data plotted:1296
[click plot for closeup]
Plot 2
scores: not implemented
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn1o
median:0.175ADU
fixed thresholds:0.12...0.24ADU
N_data plotted:1364
[click plot for closeup]
Plot 3
scores: not implemented
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn1o
median:0.158ADU
fixed thresholds:0.1...0.22ADU
N_data plotted:2996
[click plot for closeup]
Plot 4
scores: not implemented
data source:sinfoni_flat
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_lflat_fpn1o
median:0.191ADU
fixed thresholds:0.14...0.24ADU
N_data plotted:2167
[click plot for closeup]
This plot

The FPN is calculated over 2 windows:

FPN1: over the central region of the detector(X: 512-1536 Y: 512-1536
FPN2: over the area of a single slitlet (X: 1360-1400 Y: 1000-1200)

The area where FPN2 is computed was shifted by 10 pixels after the intervention which took place second part of 2013.

Remark: For H+K the area for FPN2 contains some lines, which causes a correlation with humidity

General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
