wavelength_calibration
QC1 database (advanced users): browse | plot
Click on CURRENT to see the current trending (Health Check).    Click on HISTORY to see the historical evolution of the trending.

The wavelength day calibration consists in using the MIDI heated blackscreen and taking 3 exposures through different narrow-band filters [NeII], [SIV] and [ArIII] (having central wavelengths accurately measured in the laboratory by the manufacturer). An extra exposure is taken through a polycarbonic foil that has several absorption lines in its N-band spectrum. Exposures without filters and with closed shutter are also taken to process the exposures with filters. From the spectra obtained through the filters a fit of the lambda(X) function is performed. The procedure is performed for each setup (PRISM or GRISM, and SCI_PHOT or HIGH_SENS). We monitor here the stability of the dispersion by plotting the wavelength of a spectral channel given by the lambda(X) function computed by the reduction of the calibration data. The selected spectral channels corresponds to the expected central wavelength of the three narrow-band filters.

The spectral dispersion is performed horizontally on the detector. There is a relationship between the x-coordinate of an illuminated pixel and the wavelength. This can be written: lambda(X)=C2X^2 + C1X + C0, where X is the pixel position. The coefficients C0, C1, C2 have to be determined by the calibration procedure.

There is one calibration per instrument setup: High-sens and sci-phot and per dispersive element: prism and grism.

The results are given for each region (window) on the detector (4 in the case of sci-phot, 2in the case of high_sens). A channel refers to a column in the detector window.

QC1 parameters

For each of the instrument mode: SCI_PHOT, HIGH_SENS and each dispersive element : PRISM and GRISM and for different filters [NeII], [SIV], [ArIII] and a foil: the wavelength is measured on a fixed channel.

• prism mode (QC1 database table midi_wave, columns ArIII/NeII/SIV_r1/2/3/4 where ins_disp = prism), where r1, r2, r3 and r4 correspond to the 4 windows which could be recorded on the detector.
• grism mode (QC1 database table midi_wave, columns ArIII/NeII/SIV_r1/2/3/4 where ins_disp = grism) where r1, r2, r3 and r4 correspond to the 4 windows which could be recorded on the detector.

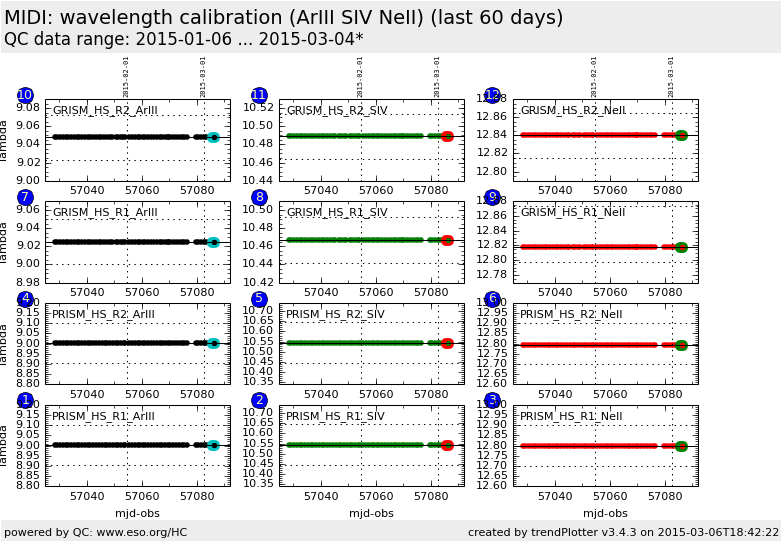

Trending

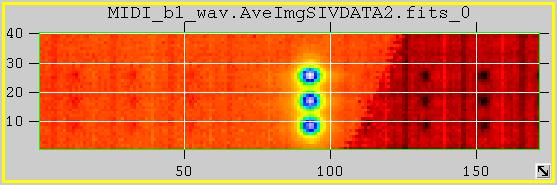

Filter SIV in the triple pinhole setting recorded for window 2

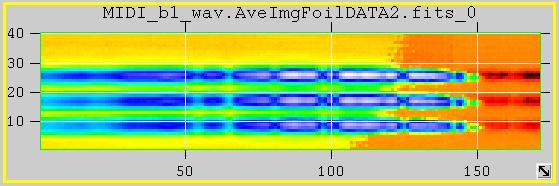

Foil in the triple pinhole setting recorded for window 2
