ISAAC trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2013-12-16T10:05:34 (UT)
  | now: 2024-12-22T03:25:02 (UT) muc03 QC pipeline: isaac-6.1.3 (installed 2013-04-15)
same group: SW_Offset SW_Disp SW_RESPOW SW_ArcLamps SW_XCORR LW_Offset LW_Disp LW_ResPow   DISP(LAM) RESP(LAM)
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ISAAC news: 2013-12-16: due to ISAAC decommissioning, refreshing of the health checks disabled
Report news:
DATE*: [?] 2013-12-09
report | NLT 		2013-12-10
report | NLT 		2013-12-11
report | NLT 		2013-12-12
report | NLT 		2013-12-13
no data | NLT 		2013-12-14
no data | NLT 		2013-12-15
no data | NLT
P...
Product quality:
products products products products no products no products no products
  no OPSLOG data

scores&comments | history ... | plot tutorial ... | contact               [?] 		*Date on this monitor changes at 21:00 UT
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • 2007-04-03: outliers are due to arc line identification failures, and not necessarily due to arc lamp failues. the QC value is not robust. This plot is still experimental.
  • 2007-04-03: The CentralGratingLine monitors the 1.4097 mu Argon line in SW-MR daily ; these plots monitor both the Argon and the Xenon lamp using day and night time arcs calibrations. All available SW-LR setups are used.
Plot
?		 Symb
?		 Source
*		 OPS?
**		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 ∗QC1DB no none   ADU none  7 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 0.3 slit
1 oQC1DB no none   ADU none  1 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 0.6 slit
1 •QC1DB no none   ADU none  1 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 0.8 slit
1 □QC1DB no MEDIAN 2.76e+05 ADU none  1 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 1 slit
1 +QC1DB no none   ADU none  1 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 1.5 slit
1 xQC1DB no none   ADU none  1 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 2 slit
2 ∗QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 0.3 slit
2 oQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 0.6 slit
2 •QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 0.8 slit
2 □QC1DB no MEDIAN   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 1 slit
2 +QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 1.5 slit
2 xQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 2 slit
3 ∗QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 0.3 slit
3 oQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 0.6 slit
3 •QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 0.8 slit
3 □QC1DB no MEDIAN   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 1 slit
3 +QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 1.5 slit
3 xQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 2 slit
4 ∗QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 0.3 slit
4 oQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 0.6 slit
4 •QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 0.8 slit
4 □QC1DB no MEDIAN   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 1 slit
4 +QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 1.5 slit
4 xQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 2 slit
6 ∗QC1DB no none   ADU none  6 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 0.3 slit
6 oQC1DB no none   ADU none  13 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 0.6 slit
6 •QC1DB no none   ADU none  3 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 0.8 slit
6 □QC1DB no MEDIAN 8.66e+05 ADU none  39 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 1 slit
6 +QC1DB no none   ADU none  3 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 1.5 slit
6 xQC1DB no none   ADU none  1 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 2 slit
7 ∗QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 0.3 slit
7 oQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 0.6 slit
7 •QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 0.8 slit
7 □QC1DB no MEDIAN   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 1 slit
7 +QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 1.5 slit
7 xQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 2 slit
8 ∗QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 0.3 slit
8 oQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 0.6 slit
8 •QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 0.8 slit
8 □QC1DB no MEDIAN   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 1 slit
8 +QC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 1.5 slit
8 xQC1DB no none   ADU none  0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 2 slit
*Data sources: QC1DB: QC1 database; LOCAL: local text file | **OPS: OPSLOG data are included
Plot 1
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:7
[click on plot for closeup]
Plot 2
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 3
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 4
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 6
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:6
[click on plot for closeup]
Plot 7
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:0
[click on plot for closeup]
Plot 8
scores: not implemented
data source:isaac_arc
(QC1 database)
dataset:
(numbers below apply to this dataset)		qc_arc_line_flux∗
average:none
thresholds:none
N_data plotted:0
[click on plot for closeup]

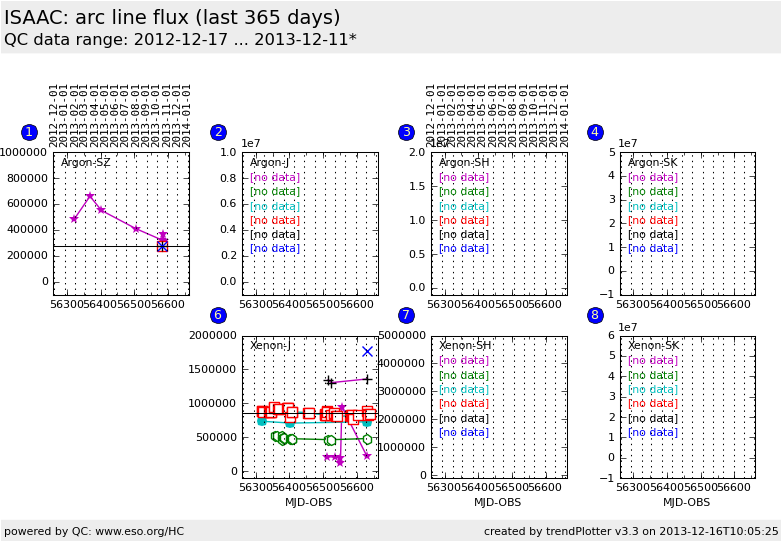

This plot

This is the trending plot for the ISAAC arc lamp calibrations of the SW-arm, LR-grating only

The QC parameters are fluxes of selected arc lines. The purpose is to monitor long-term lamp aging effects. These plots describe:
1. Line flux of Argon 1.054810 mu (SW-LR-SZ). Slits are coded with different symbols.
2. Line flux of Argon 1.208810 mu (SW-LR-J). Slits are coded with different symbols.
3. Line flux of Argon 1.744926 mu (SW-LR-SH). Slits are coded with different symbols.
4. Line flux of Argon 2.313952 mu (SW-LR-SK). Slits are coded with different symbols.

5. For SW-LR-SZ no Xenon lamp spectra are acquired.
6. Line flux of Xenon 1.202994 mu (SW-LR-J). Slits are coded with different symbols.
7. Line flux of Xenon 1.510384 mu (SW-LR-SH). Slits are coded with different symbols.
8. Line flux of Xenon 2.380295 mu (SW-LR-SK). Slits are coded with different symbols.
Find more information about ISAAC QC parameters derived from arc lamp frames here.



General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
