ISAAC trending system: HISTORY plot
Last update: 2010-03-30T19:27:38 (UT)
same group: SW_IMG SW_SPEC   LW_DCHB LW_DCLB LW_UCHB det_temp
Print: Information and research:
- png file
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 .LOCAL none   T/K none   15043 SW1 n/a Hawaii-1 temperature sensor
1 .LOCAL none   T/K none   15043 SW2 n/a Hawaii-2 temperature sensor
2 .LOCAL none   T/K none   15043 LW1 n/a Aladdin-1 temperature sensor
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

This is the trending plot for the ISAAC detector temperature sensors.

These plots describe:

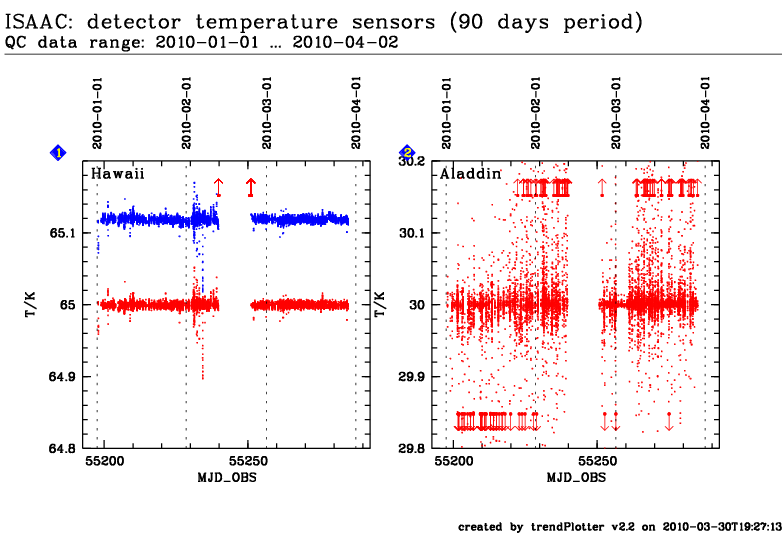

Fig. 1. temperature of the ISAAC Hawaii detector (keyword INS.TEMP-DETSW) and the backup sensor (blue) (keyword INS.TEMP-DETSW.CONTROL)
Fig. 2. temperature of the ISAAC Aladdin detector (keyword INS.TEMP-DETLW). The Aladdin backup sensor is out of order since 2004-07-18.
Values are read from the ingested ISAAC raw frames fits headers.

General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
