ISAAC trending system: HISTORY plot
Last update: 2009-12-30T19:18:36 (UT)
same group: SW_Offset SW_Disp SW_RESPOW SW_ArcLamps SW_XCORR LW_Offset LW_Disp LW_ResPow   DISP(LAM) RESP(LAM)
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
  • 2007-04-03: outliers are due to arc line identification failures, and not necessarily due to arc lamp failues. the QC value is not robust. This plot is still experimental.
  • 2007-04-03: The CentralGratingLine monitors the 1.4097 mu Argon line in SW-MR daily ; these plots monitor both the Argon and the Xenon lamp using day and night time arcs calibrations. All available SW-LR setups are used.
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 [7]QC1DB none   ADU none   5 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 0.3 slit
1 [19]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 0.6 slit
1 •QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 0.8 slit
1 ♦QC1DB MEDIAN   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 1 slit
1 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 1.5 slit
1 xQC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SZ, 2 slit
2 [7]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 0.3 slit
2 [19]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 0.6 slit
2 •QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 0.8 slit
2 ♦QC1DB MEDIAN   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 1 slit
2 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 1.5 slit
2 xQC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, J, 2 slit
3 [7]QC1DB none   ADU none   17 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 0.3 slit
3 [19]QC1DB none   ADU none   12 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 0.6 slit
3 •QC1DB none   ADU none   9 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 0.8 slit
3 ♦QC1DB MEDIAN 133219.0 ADU none   8 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 1 slit
3 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 1.5 slit
3 xQC1DB none   ADU none   4 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SH, 2 slit
4 [7]QC1DB none   ADU none   7 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 0.3 slit
4 [19]QC1DB none   ADU none   16 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 0.6 slit
4 •QC1DB none   ADU none   2 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 0.8 slit
4 ♦QC1DB MEDIAN 18265900.0 ADU none   12 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 1 slit
4 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 1.5 slit
4 xQC1DB none   ADU none   2 qc_arc_line_flux this | last_yr | all Argon arc line flux for SW, LR, SK, 2 slit
6 [7]QC1DB none   ADU none   1 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 0.3 slit
6 [19]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 0.6 slit
6 •QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 0.8 slit
6 ♦QC1DB MEDIAN 553395.0 ADU none   24 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 1 slit
6 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 1.5 slit
6 xQC1DB none   ADU none   2 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, J, 2 slit
7 [7]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 0.3 slit
7 [19]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 0.6 slit
7 •QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 0.8 slit
7 ♦QC1DB MEDIAN   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 1 slit
7 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 1.5 slit
7 xQC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SH, 2 slit
8 [7]QC1DB none   ADU none   2 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 0.3 slit
8 [19]QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 0.6 slit
8 •QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 0.8 slit
8 ♦QC1DB MEDIAN 17905100.0 ADU none   3 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 1 slit
8 +QC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 1.5 slit
8 xQC1DB none   ADU none   0 qc_arc_line_flux this | last_yr | all Xenon arc line flux for SW, LR, SK, 2 slit
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

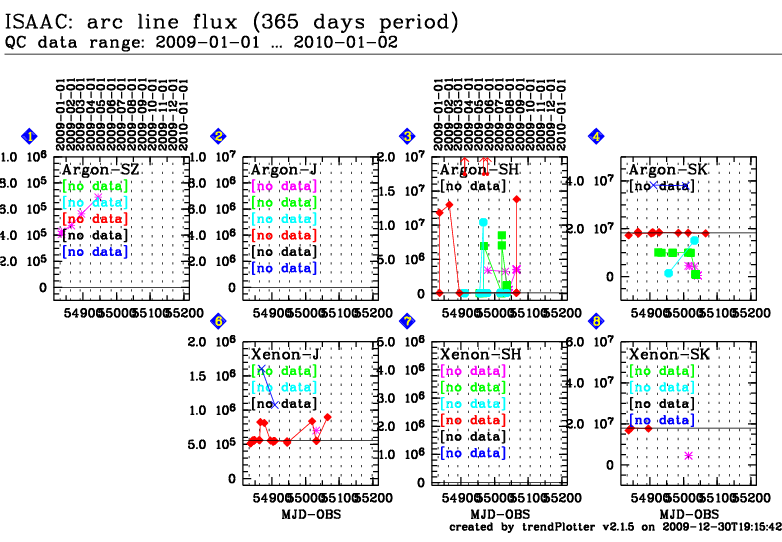

This is the trending plot for the ISAAC arc lamp calibrations of the SW-arm, LR-grating only

The QC parameters are fluxes of selected arc lines. The purpose is to monitor long-term lamp aging effects. These plots describe:
1. Line flux of Argon 1.054810 mu (SW-LR-SZ). Slits are coded with different symbols.
2. Line flux of Argon 1.208810 mu (SW-LR-J). Slits are coded with different symbols.
3. Line flux of Argon 1.744926 mu (SW-LR-SH). Slits are coded with different symbols.
4. Line flux of Argon 2.313952 mu (SW-LR-SK). Slits are coded with different symbols.

5. For SW-LR-SZ no Xenon lamp spectra are acquired.
6. Line flux of Xenon 1.202994 mu (SW-LR-J). Slits are coded with different symbols.
7. Line flux of Xenon 1.510384 mu (SW-LR-SH). Slits are coded with different symbols.
8. Line flux of Xenon 2.380295 mu (SW-LR-SK). Slits are coded with different symbols.
Find more information about ISAAC QC parameters derived from arc lamp frames here.



General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
