ISAAC trending system: HISTORY plot
Last update: 2008-01-13T22:34:11 (UT)
same group: SW_Offset SW_Disp SW_RESPOW SW_ArcLamps SW_XCORR LW_Offset LW_Disp LW_ResPow   DISP(LAM) RESP(LAM)
Print: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
[info]		 Symbol
[info]		 Source* Average [info] Thresholds [info] N_data Data downloads Remarks
method value unit method value
1 oQC1DB none   sec none   201 this | last_yr | all
3 oQC1DB none   sec none   57 this | last_yr | all SW arm, MR grating slit_1 Resolving Power(Lambda) relation
2 oQC1DB none   sec none   1 this | last_yr | all LW arm, LR grating slit_1 Resolving Power(Lambda) relation
4 oQC1DB none   sec none   0 this | last_yr | all LW arn, SW grating slit_1 Resolving Power(Lambda) relation
*Data sources: QC1DB: QC1 database; LOCAL: local text file
This plot

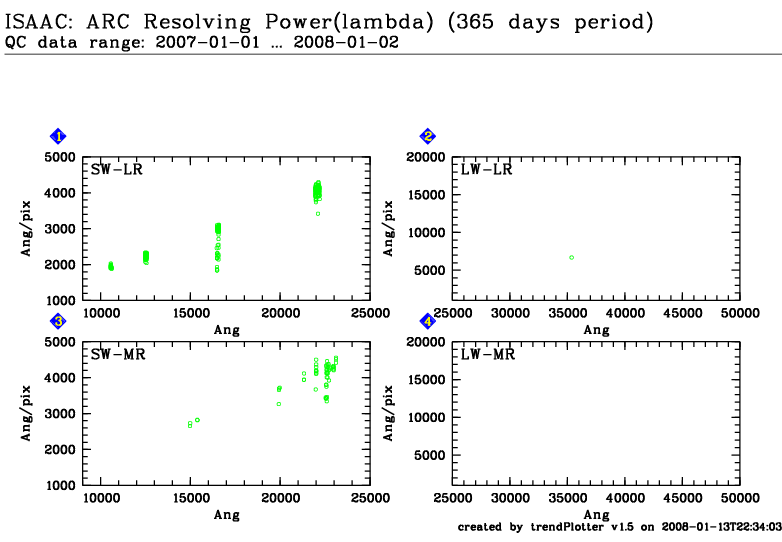

This is the relation plot for the ISAAC QC parameters derived from ARC frames. These plots describe:

1. resolving power as a function of wavelength for setup SW LR slit_1.
3. as Fig.1 but for Hawaii MR.
2. as Fig.1 but for Aladdin LR.
4. as Fig.1 but for Aladdin MR.
Find more information about ISAAC DARK frames here.



General information

Click on any of the plots to see a close-up version. The latest date is indicated on top of the plot, data points belonging to that date are specially marked.

If configured,

  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
