Source* | Average [info] | Thresholds [info] | N_data | Data downloads | Remarks | ||||
| method | value | unit | method | value | |||||||
| 1 | • | QC1DB | MEDIAN | 513.94250 | PIXEL | none | 45 | this | last_yr | all | X-position before calibrations | ||
| 1 | o | QC1DB | none | PIXEL | none | 45 | this | last_yr | all | X-position after calibrations | |||
| 2 | • | QC1DB | MEDIAN | 511.50000 | PIXEL | none | 45 | this | last_yr | all | Y-position before calibrations | ||
| 2 | o | QC1DB | none | PIXEL | none | 45 | this | last_yr | all | Y-position after calibrations | |||
| 3 | • | QC1DB | MEDIAN | -89.65219 | DEGREE | none | 45 | this | last_yr | all | Tilt angle before calibrations | ||
| 3 | o | QC1DB | none | DEGREE | none | 45 | this | last_yr | all | Tilt angle after calibrations | |||
| 4 | • | QC1DB | MEDIAN | 5398952.00000 | ADU | none | 18 | this | last_yr | all | Arc line flux before calibrations | ||
| 4 | o | QC1DB | none | ADU | none | 18 | this | last_yr | all | Arc line flux after calibrations | |||
| 5 | • | LOCAL | MEDIAN | PIXEL | none | 0 | n/a | X-position after minus before | |||
| 6 | • | LOCAL | MEDIAN | PIXEL | none | 0 | n/a | Y-position after minus before | |||
| 7 | • | LOCAL | MEDIAN | DEGREE | none | 0 | n/a | Tilt angle after minus before | |||
| 8 | • | LOCAL | MEDIAN | ADU | none | 0 | n/a | time between both slit acquisitions in days | |||
| *Data sources: QC1DB: QC1 database; LOCAL: local text file | |||||||||||

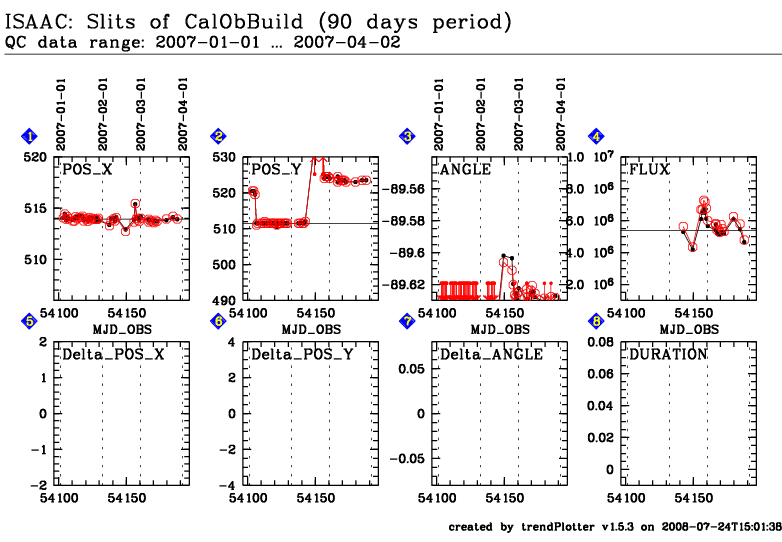

This is the trending plot of the through slit images taken as part of the day time calibration sequence for spectroscopy.
This plot describes:
1. The x-position of the first slit image taken before the
spectroscopic arc and flat frames (black) and the second slit image taken
after the spectroscopic arc and flat frames (red).
2. The y-position of the slit images taken before (black) and after (red) the day time
calibrations.
3. The tilt angle of the slit images taken before (black) and after
(red) the day time
calibrations.
4. The flux of the slit images taken before (black) and after
(red) the day time
calibrations.
5. slit/camera movement during day-time calibrations: AFTER minus BEFORE measurement of Fig.1.
6. slit/camera movement during day-time calibrations: AFTER minus BEFORE measurement of Fig.2.
7. slit/camera movement during day-time calibrations: AFTER minus BEFORE measurement of Fig.3.
8. The time between both slit images in the calobuild batch in days.
The purpose of this trending is to check if the camera and grating have been stable during the batch acquisition of day time calibrations. Find more information about ISAAC slit frames here.
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot, data points belonging to that date are specially marked. If configured,
