Plot ? |
Symb ? |
Source * |
Average ? |
Thresholds ? |
N_ data |
QC1 parameter |
Data downloads |
Remarks |
method |
value |
unit |
method |
value |
1 |
| QC1DB |
MEDIAN |
589 |
NONE |
VAL | 550,725 |
85 |
fiba_thar_lines_tot |
this |
last_yr |
all
|
total number of ThAr lines, fibre A |
2 |
| QC1DB |
MEDIAN |
1.11 |
NONE |
VAL | 0.4,1.6 |
85 |
fiba_thar_flux_ratio |
this |
last_yr |
all
|
median flux ratio of ThAr lines to reference line table, fibre A |
3 |
| QC1DB |
MEDIAN |
700 |
NONE |
VAL | 550,725 |
85 |
fibb_thar_lines_tot |
this |
last_yr |
all
|
total number of ThAr lines, fibre B |
4 |
| QC1DB |
MEDIAN |
1.58 |
NONE |
VAL | 0.4,1.6 |
85 |
fibb_thar_flux_ratio |
this |
last_yr |
all
|
median flux ratio of ThAr lines to reference line table, fibre B |
|
*Data sources: QC1DB: QC1 database; LOCAL: local data source
|
Plot 1 scores: 7|
| data source: | espresso_wave_thar_a (QC1 database) |
dataset: | fiba_thar_lines_tot | |
median: | 589 | NONE |
fixed thresholds: | 550...725 | NONE |
N_data plotted: | 85 |
[click plot for closeup] |
Plot 2 scores: 7|
| data source: | espresso_wave_thar_a (QC1 database) |
dataset: | fiba_thar_flux_ratio | |
median: | 1.11 | NONE |
fixed thresholds: | 0.4...1.6 | NONE |
N_data plotted: | 85 |
[click plot for closeup] |
Plot 3 scores: 7|
| data source: | espresso_wave_thar_b (QC1 database) |
dataset: | fibb_thar_lines_tot | |
median: | 700 | NONE |
fixed thresholds: | 550...725 | NONE |
N_data plotted: | 85 |
[click plot for closeup] |
Plot 4 scores: 7|
| data source: | espresso_wave_thar_b (QC1 database) |
dataset: | fibb_thar_flux_ratio | |
median: | 1.58 | NONE |
fixed thresholds: | 0.4...1.6 | NONE |
N_data plotted: | 85 |
[click plot for closeup] |
This plot

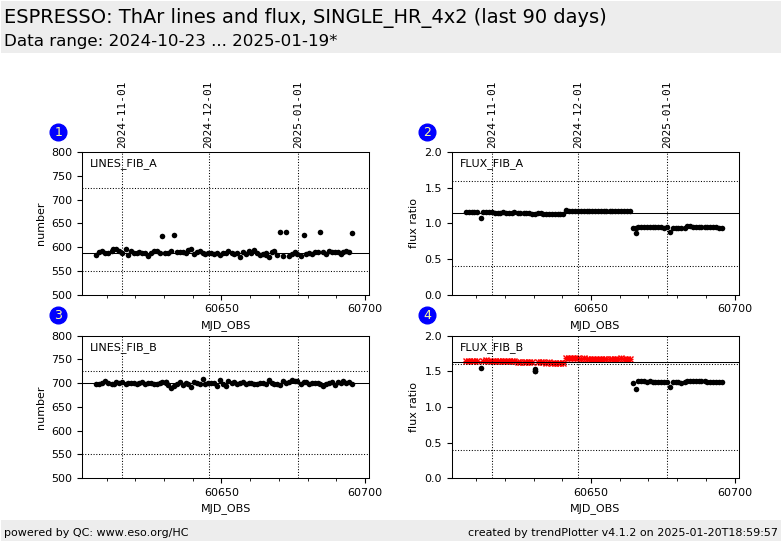

Trending plots for ThAr wavelength-calibration exposures.
The plots show the total number of ThAr lines that are used for the wavelength calibrations
and the median flux ratio of these lines with respect to a reference line table.
General information
Click on any of the plots to see a close-up version.
The latest date is indicated on top of the plot.
If configured,
- data points belonging to the latest date are specially marked
- statistical averages are indicated by a solid line, and thresholds by broken lines
- outliers are marked by a red asterisk. They are defined as data points outside the
threshold lines
- "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
- you can download the data for each parameter set if the 'Data downloads' link shows up
|
