ESPRESSO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-22T20:04:30 (UT)
  | now: 2024-12-23T03:00:28 (UT) muc11 QC pipeline: espdr-2.5.0 (installed 2022-06-28)
same group: lines_HR_1x1 lines_HR_2x1 lines_HR_4x2 lines_UHR_1x1 lines_MR_4x2 lines_MR_8x4
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ESPRESSO news: These pages for ESPRESSO HC will be not be updated any longer after 21 Jan 2025. Please refer to the qcFlow generated Health Check.
Report news:
DATE*: [?] 2024-12-16
report | NLT
2024-12-17
report | NLT
2024-12-18
report | NLT
2024-12-19
report | NLT
2024-12-20
report | NLT
2024-12-21
report | NLT
2024-12-22
report | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw
P...
CAL product quality:
products products products products products products products

transfer   ngas [?]

scores&comments | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?]
*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?
Symb
?
Source
*
Average ? Thresholds ? N_
data
QC1
parameter
Data
downloads
Remarks
method value unit method value
1 QC1DB none   NONE VAL29000,32000 16 fiba_lines_tot this | last_yr | all total number of lines, fibre A
2 QC1DB none   NONE none  16 fiba_lines_avg this | last_yr | all average number of lines per order, fibre A
3 QC1DB none   NONE none  16 fiba_lines_rms this | last_yr | all RMS of number of lines per order, fibre A
4 QC1DB none   NONE VAL29000,32000 16 fibb_lines_tot this | last_yr | all total number of lines, fibre B
5 QC1DB none   NONE none  16 fibb_lines_avg this | last_yr | all average number of lines per order, fibre B
6 QC1DB none   NONE none  16 fibb_lines_rms this | last_yr | all RMS of number of lines per order, fibre B
*Data sources: QC1DB: QC1 database; LOCAL: local data source
Plot 1
scores: 4|
data source:espresso_wave_thar_a
(QC1 database)
dataset:fiba_lines_tot
average:none
fixed thresholds:29000...32000NONE
N_data plotted:16
[click plot for closeup]
Plot 2
scores: not implemented
data source:espresso_wave_thar_a
(QC1 database)
dataset:fiba_lines_avg
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 3
scores: not implemented
data source:espresso_wave_thar_a
(QC1 database)
dataset:fiba_lines_rms
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 4
scores: 4|
data source:espresso_wave_thar_b
(QC1 database)
dataset:fibb_lines_tot
average:none
fixed thresholds:29000...32000NONE
N_data plotted:16
[click plot for closeup]
Plot 5
scores: not implemented
data source:espresso_wave_thar_b
(QC1 database)
dataset:fibb_lines_avg
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]
Plot 6
scores: not implemented
data source:espresso_wave_thar_b
(QC1 database)
dataset:fibb_lines_rms
average:none
thresholds:none
N_data plotted:16
[click plot for closeup]

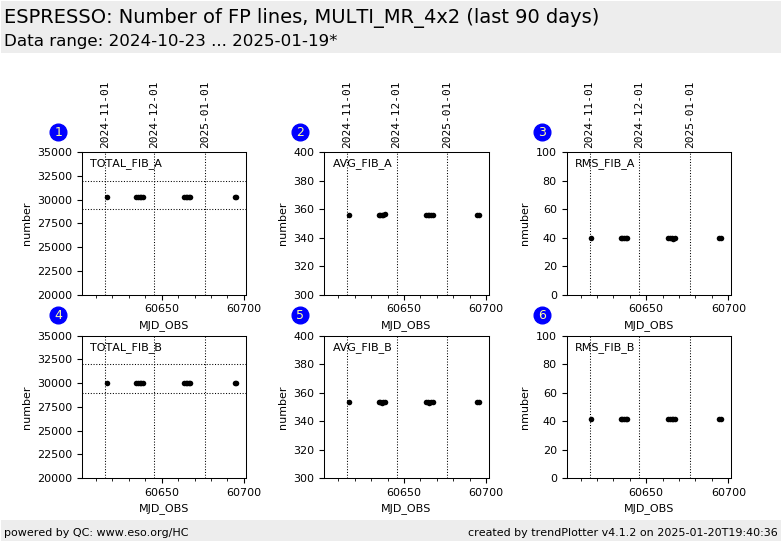

This plot

Trending plot for the number of lines that are used for the wavelength solution. For this plot, the number of used Fabry-Perot (FP) lines are counted after calibrating them with Th-Ar lines.

The plots show the total number of used lines, the average number of lines per order, and the RMS of the line numbers per order.


General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow ( or )
  • you can download the data for each parameter set if the 'Data downloads' link shows up
