ESPRESSO trending system: HEALTH CHECK report
HELP USERS-GUIDE MORE
Last update: 2024-12-22T18:44:03 (UT)
  | now: 2024-12-22T21:21:15 (UT) muc11 QC pipeline: espdr-2.5.0 (installed 2022-06-28)
same group: (U)HR_1x1 HR_2x1 HR_4x2 MR_4x2 MR_8x4
General news: NOTE: The Health Check and calChecker services are moved to qcFlow on an instrument by instrument basis. The current pages will not be updated any longer once the move has been finished.
ESPRESSO news: These pages for ESPRESSO HC will be not be updated any longer after 21 Jan 2025. Please refer to the qcFlow generated Health Check.
Report news:
DATE*: [?] 2024-12-15
report | NLT 		2024-12-16
report | NLT 		2024-12-17
report | NLT 		2024-12-18
report | NLT 		2024-12-19
report | NLT 		2024-12-20
report | NLT 		2024-12-21
report | NLT 		2024-12-22
no data | NLT
r...
Raw CAL displays:
raw raw raw raw raw raw raw no CAL raw files
P...
CAL product quality:
products products products products products products products no CAL products

transfer   ngas [?]

scores&comments | FULL | history ... | plot tutorial ... | contact | HC_docu... | quality events...               [?] 		*Date on this monitor changes at 21:00 UT
png: Information and research:
- png file - advanced studies: QC1 browser | QC1 plotter
Plot
?		 Symb
?		 Source
*		 Average ? Thresholds ? N_
data		 QC1
parameter		 Data
downloads		 Remarks
method value unit method value
1 •QC1DB MEDIAN 0.786 ADU VAL0,1.5 14 dark_mean_avg this | last_yr | all mean dark current, average of 16 read-out ports; RED detector
2 •QC1DB MEDIAN 0.029 ADU VAL0,0.15 14 dark_mean_rms this | last_yr | all mean dark current, RMS over 16 read-out ports; RED detector
3 •QC1DB none   ADU none  14 dark_mean_0_0 this | last_yr | all mean dark current, read-out port 0_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_1_0 this | last_yr | all mean dark current, read-out port 1_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_2_0 this | last_yr | all mean dark current, read-out port 2_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_3_0 this | last_yr | all mean dark current, read-out port 3_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_4_0 this | last_yr | all mean dark current, read-out port 4_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_5_0 this | last_yr | all mean dark current, read-out port 5_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_6_0 this | last_yr | all mean dark current, read-out port 6_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_7_0 this | last_yr | all mean dark current, read-out port 7_0, RED detector
3 •QC1DB none   ADU none  14 dark_mean_0_1 this | last_yr | all mean dark current, read-out port 0_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_1_1 this | last_yr | all mean dark current, read-out port 1_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_2_1 this | last_yr | all mean dark current, read-out port 2_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_3_1 this | last_yr | all mean dark current, read-out port 3_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_4_1 this | last_yr | all mean dark current, read-out port 4_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_5_1 this | last_yr | all mean dark current, read-out port 5_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_6_1 this | last_yr | all mean dark current, read-out port 6_1, RED detector
3 •QC1DB none   ADU none  14 dark_mean_7_1 this | last_yr | all mean dark current, read-out port 7_1, RED detector
4 •QC1DB MEDIAN 0.985 ADU VAL0,1.5 14 dark_mean_avg this | last_yr | all mean dark current, average of 16 read-out ports; BLUE detector
5 •QC1DB MEDIAN 0.0558 ADU VAL0,0.15 14 dark_mean_rms this | last_yr | all mean dark current, RMS over 16 read-out ports; BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_0_0 this | last_yr | all mean dark current, read-out port 0_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_1_0 this | last_yr | all mean dark current, read-out port 1_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_2_0 this | last_yr | all mean dark current, read-out port 2_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_3_0 this | last_yr | all mean dark current, read-out port 3_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_4_0 this | last_yr | all mean dark current, read-out port 4_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_5_0 this | last_yr | all mean dark current, read-out port 5_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_6_0 this | last_yr | all mean dark current, read-out port 6_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_7_0 this | last_yr | all mean dark current, read-out port 7_0, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_0_1 this | last_yr | all mean dark current, read-out port 0_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_1_1 this | last_yr | all mean dark current, read-out port 1_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_2_1 this | last_yr | all mean dark current, read-out port 2_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_3_1 this | last_yr | all mean dark current, read-out port 3_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_4_1 this | last_yr | all mean dark current, read-out port 4_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_5_1 this | last_yr | all mean dark current, read-out port 5_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_6_1 this | last_yr | all mean dark current, read-out port 6_1, BLUE detector
6 •QC1DB none   ADU none  14 dark_mean_7_1 this | last_yr | all mean dark current, read-out port 7_1, BLUE detector
*Data sources: QC1DB: QC1 database; LOCAL: local data source

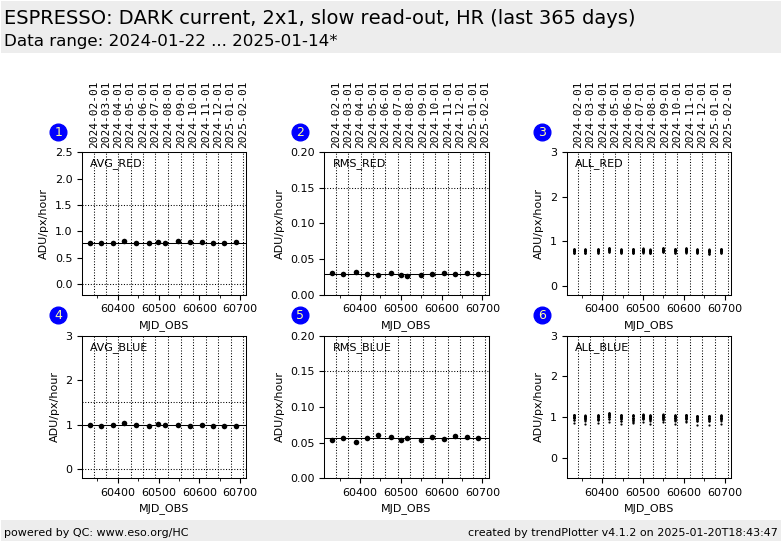

Plot 1
scores: 1|
data source:espresso_dark
(QC1 database)
dataset:dark_mean_avg•
median:0.786ADU
fixed thresholds:0...1.5ADU
N_data plotted:14
[click plot for closeup]
Plot 2
scores: 1|
data source:espresso_dark
(QC1 database)
dataset:dark_mean_rms•
median:0.029ADU
fixed thresholds:0...0.15ADU
N_data plotted:14
[click plot for closeup]
Plot 3
scores: not implemented
data source:espresso_dark
(QC1 database)
dataset:
(numbers below apply to this dataset)		dark_mean_0_0•
average:none
thresholds:none
N_data plotted:14
[click plot for closeup]
Plot 4
scores: 1|
data source:espresso_dark
(QC1 database)
dataset:dark_mean_avg•
median:0.985ADU
fixed thresholds:0...1.5ADU
N_data plotted:14
[click plot for closeup]
Plot 5
scores: 1|
data source:espresso_dark
(QC1 database)
dataset:dark_mean_rms•
median:0.0558ADU
fixed thresholds:0...0.15ADU
N_data plotted:14
[click plot for closeup]
Plot 6
scores: not implemented
data source:espresso_dark
(QC1 database)
dataset:
(numbers below apply to this dataset)		dark_mean_0_0•
average:none
thresholds:none
N_data plotted:14
[click plot for closeup]
This plot

Trending plots for dark current. Only dark exposures with exposure time of at least 3600 secs are considered.

ESPRESSO has two chips, one for the BLUE and one for the RED arm. Each chip has 16 read-out ports. QC parameters are determined per read-out port which leads to 16 different values for each QC parameter per chip. The HC plots show in separate sub plots the average (AVG) of all 16 values per detector, the RMS of these values, and ALL 16 individual values (in one sub plot).



General information

Click on any of the plots to see a close-up version.

The latest date is indicated on top of the plot.

If configured,

  • data points belonging to the latest date are specially marked
  • statistical averages are indicated by a solid line, and thresholds by broken lines
  • outliers are marked by a red asterisk. They are defined as data points outside the threshold lines
  • "aliens" (= data points outside the plot Y limits) are marked by a red arrow (↑ or ↓)
  • you can download the data for each parameter set if the 'Data downloads' link shows up
